Arc Picnic Benches - Dimensions & Drawings
Bench Seating Capacity & Standard Dimensions Table
| Bench Length (feet) | Adult Seating Capacity | Standard Bench Height (inches) |
|---|---|---|
| 3 | 2 | 18 |
| 3.5 | 2 | 18 |
| 4 | 2 | 18 |
| 5 | 3 | 18 |
| 6 | 3 | 18 |
Arc Picnic Benches Dimensions
3.5-Foot Arc Picnic Bench Dimensions
40" point to point on the outside diameter, 29" point to point on the inside diameter. Approx. Weight: 25 lbs. Six benches make a complete circle with a 46" diameter.
4-Foot Arc Picnic Bench Dimensions
47¼" point to point on the outside diameter, 36" point to point on the inside diameter. Approx. weight: 30 lbs. Six benches make a complete circle with a 57" diameter.

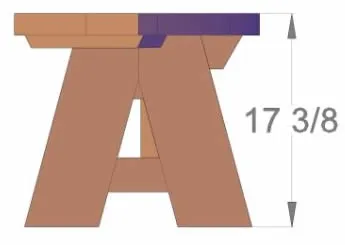

Side View

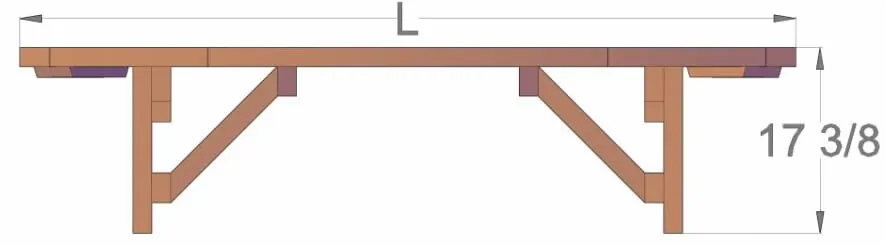

Front View

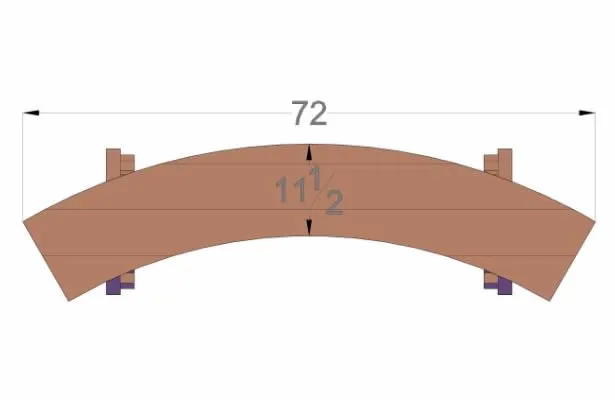

Top View

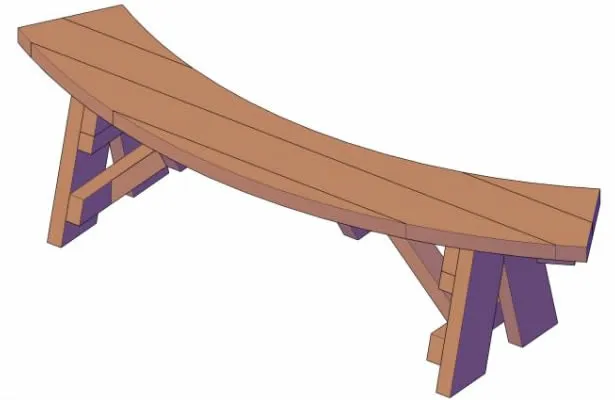

Isometric View
