Chair Swing Sets - Dimensions & Drawings
Swing itself is 1' 11"H x 2' 4"D. Seat back is 1' 8"H from the top of the seat to the top of the backrest. We leave a 6" clearance on either side of the swing for the frame. The hanging hardware is 4"L x 2 1/4"W x 2"H.

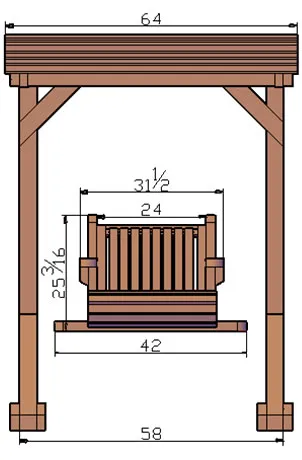

Front View

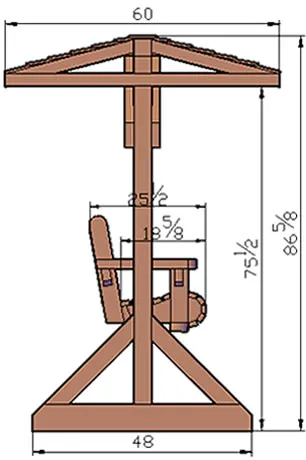

Side View
| Swing Size | Swing Width | Frame Footprint | Roof Dimen. |
|---|---|---|---|
| Armchair | 24" between armrests, 31 ½" including armrests, 42" total (with the timber underneath that holds the eyebolts) | 58"W x 4'D | 64'W x 5'D |
| Bench | 40" between armrests, 47 ½" including armrests, 58" total (with the timber underneath that holds the eyebolts) | 74"W x 4'D | 80'W x 5'D |
| Large Bench | 52" between armrests, 59 ½" including armrests, 70" total (with the timber underneath that holds the eyebolts) | 86"W x 4'D | 92'W x 5'D |
| Swing Size | Approx. Weight of Swing Alone | Approx. Weight of Swing & Frame | Approx. Weight of Swing, Frame & Roof |
|---|---|---|---|
| Armchair | 45 lbs. | ||
| Bench | 60 lbs. | 260 lbs. | 400 lbs. |
| Large Bench | 80 lbs. | 330 lbs. | 500 lbs. |
