Chest Beds - Dimensions & Drawings
The Chest bed does not need a box spring. The bed comes with plenty of strong Bunkie boards to support the mattress by itself.
Each bed, regardless of Mattress size or wood grade chosen, can support over 650 lbs total weight if necessary. If you require additional weight capacity, please let us know.

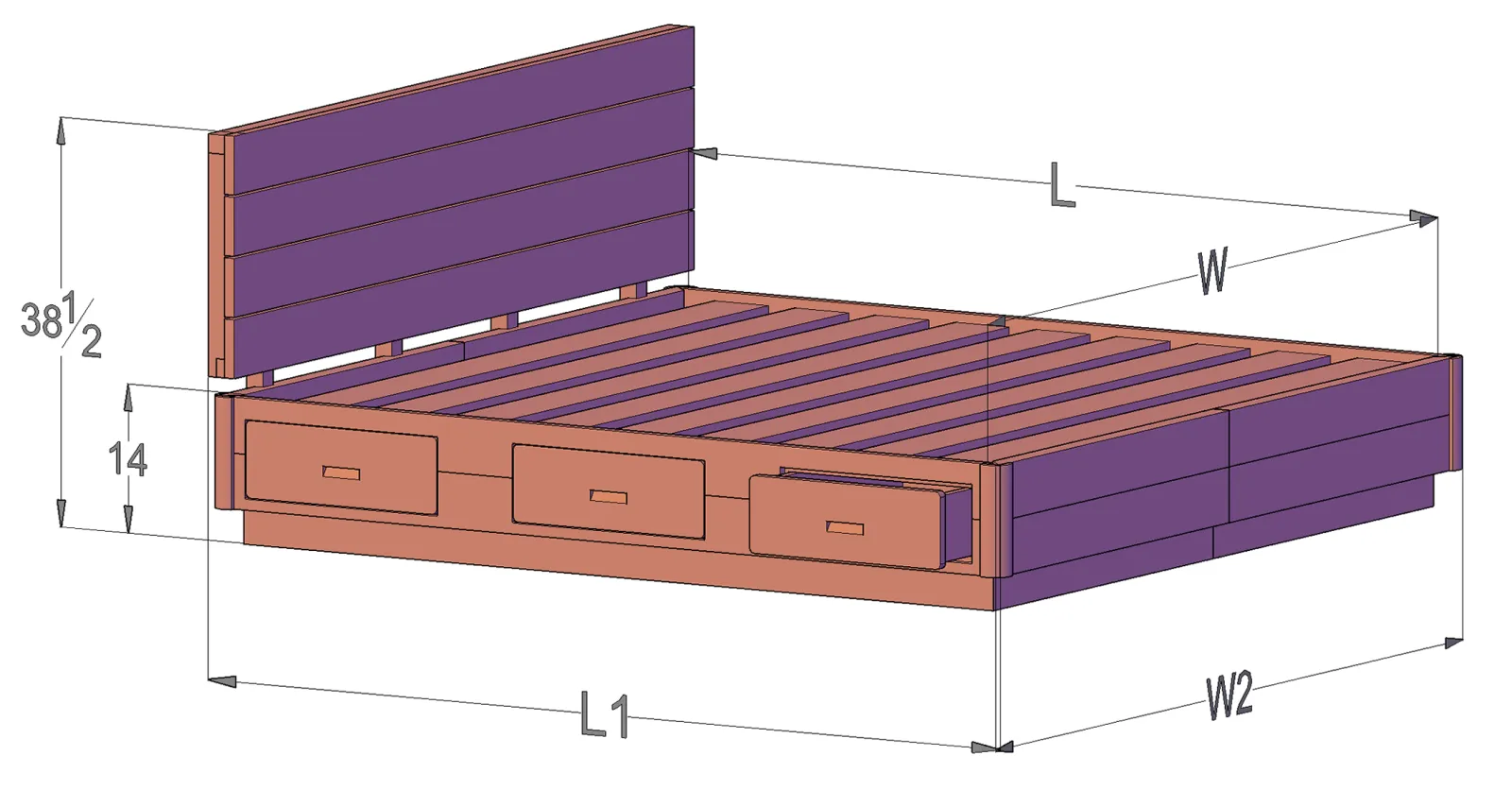

Isometric with Dimensions View

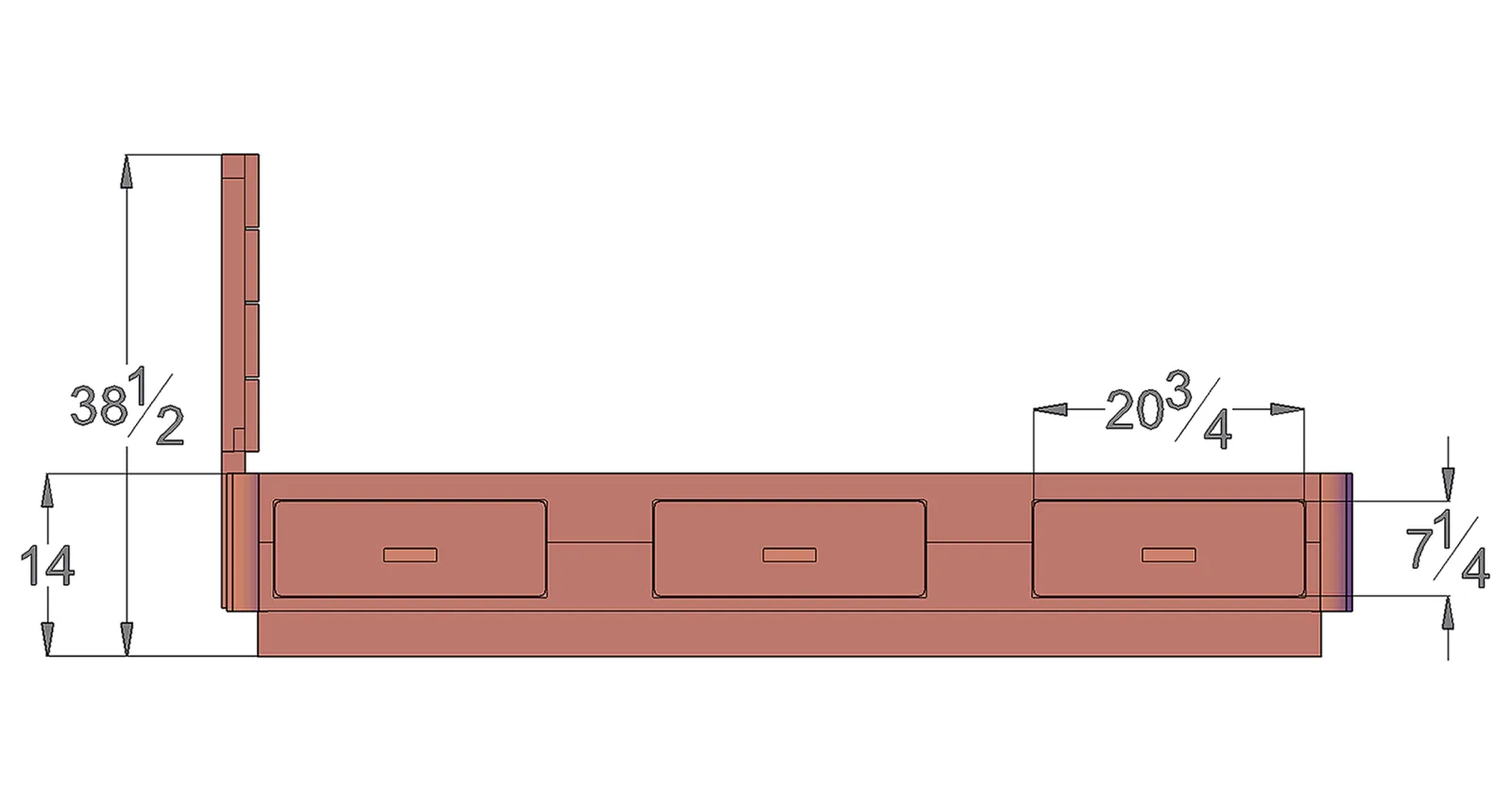

Side View

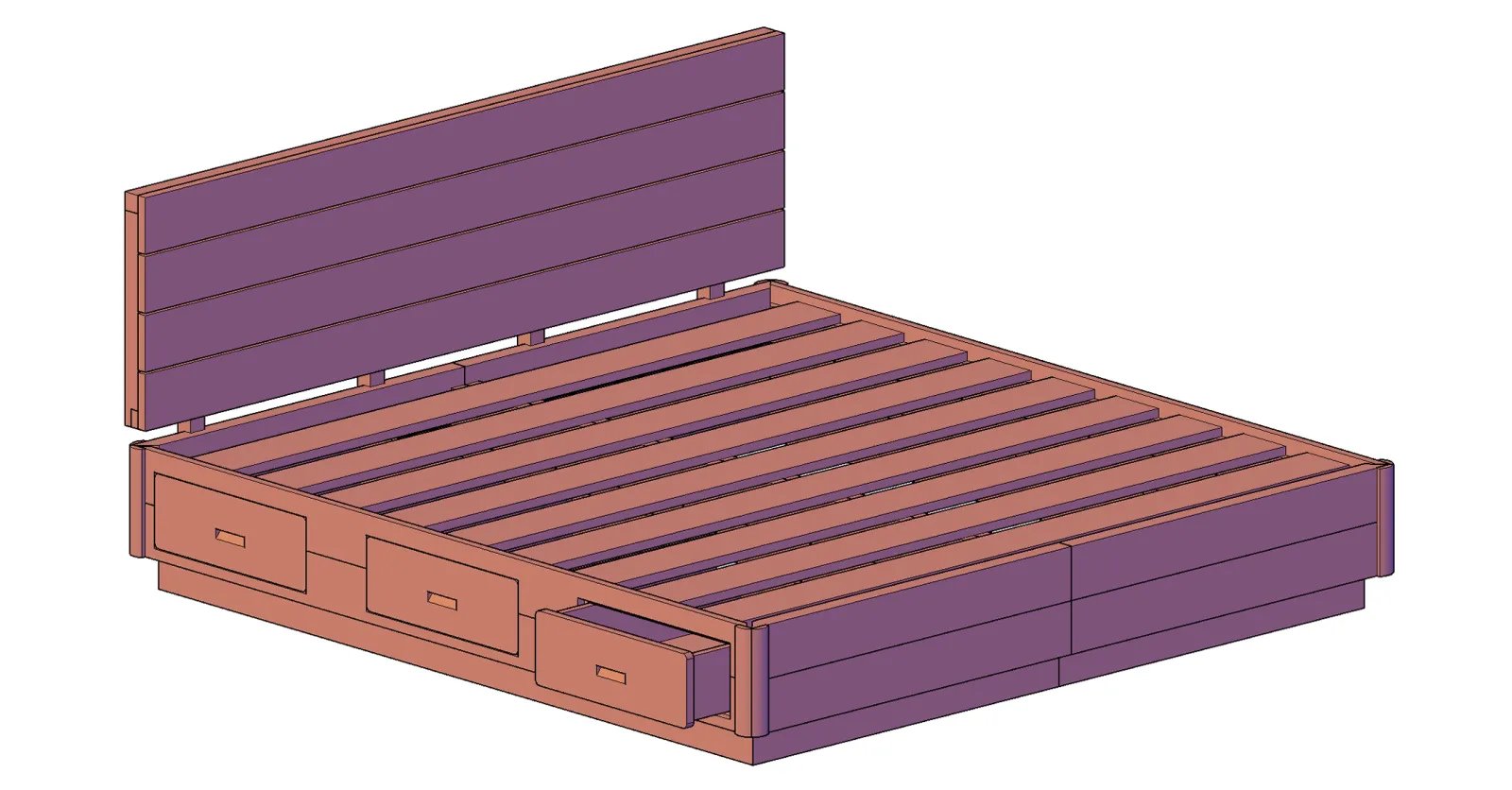

Isometric View
| Size | Mattress Measurements | Box Mattress Dimensions | Chest Bed Dimensions | |||
|---|---|---|---|---|---|---|
| Mattress Width | Mattress Length | W | L | W1 | L1 | |
| Twin | 39" | 75" | 41" | 77" | 44.25" | 82.25" |
| Double | 54" | 75" | 56" | 77" | 59.25" | 82.25" |
| Queen | 60" | 80" | 62" | 82" | 62.25" | 87.25" |
| King | 76" | 80" | 78" | 82" | 81.25" | 87.25" |
| California King | 72" | 84" | 74" | 86" | 77.25" | 91.25" |
Note: For purposes of determining the "north" end of the bed, please assume you are looking at the bed in front of you with the length of the mattresses running from left to right. The left side is North and the right side is South. Yes, it is arbitrary, but we had to pick it one way or another!
