Folding Arc Wood Bench - Dimensions & Drawings
| Bench Length | Radius | Associated Table | |
| Internal (R1) | External(R2) | ||
| 30" | 17" | 19" | Round Folding Table 30" Diameter |
| 36" | 23" | 35" | Round Folding Table 42" Diameter |
| 42" | |||
| 47" | 28" | 40" | Karyn's Folding Table |
| 52" | |||

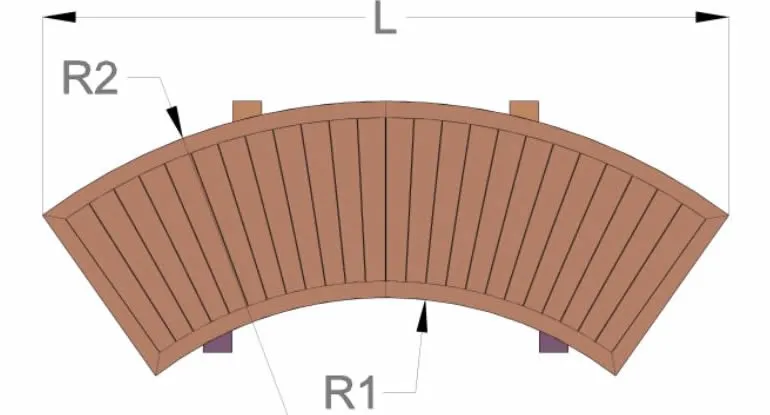

Top View

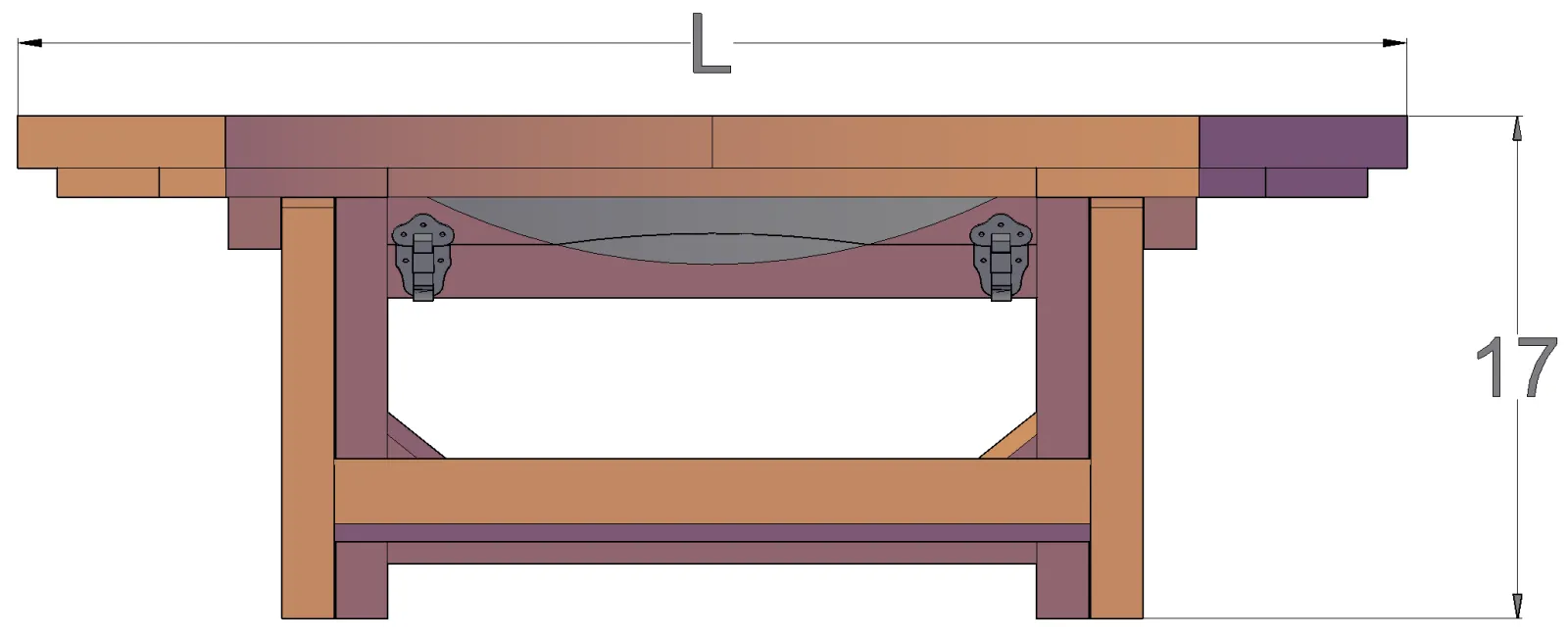

Front View

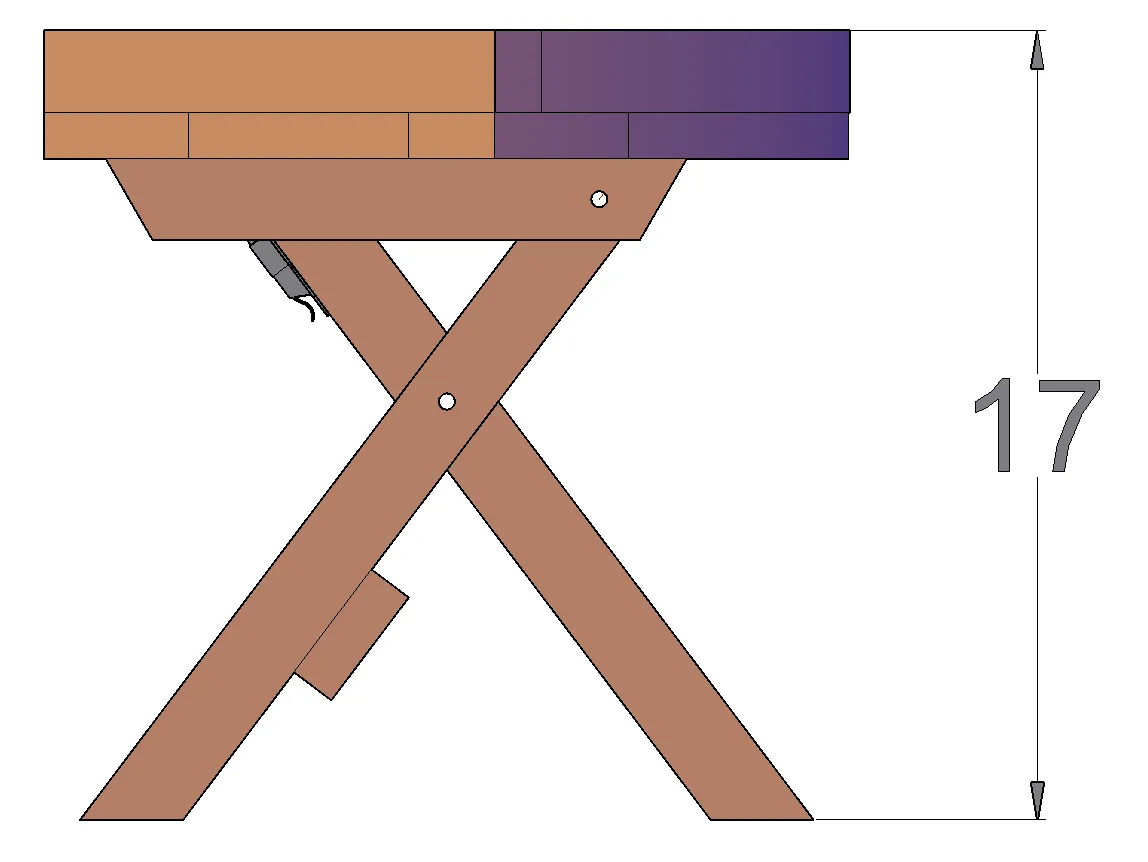

Side View

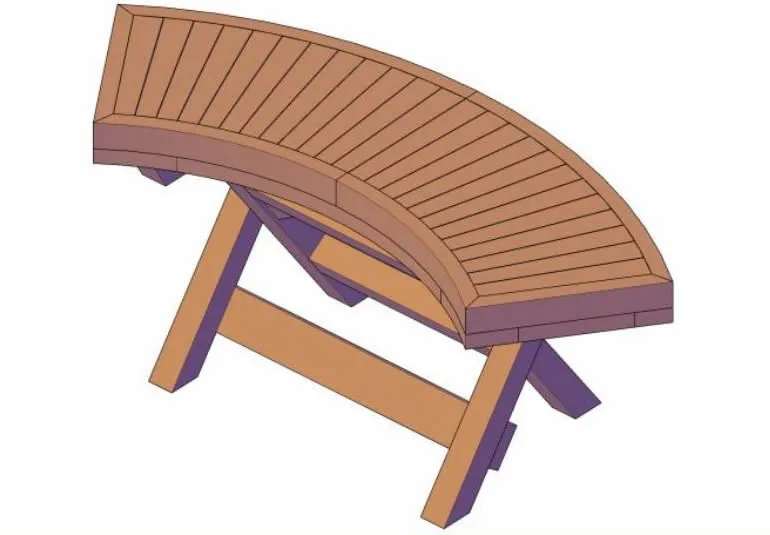

Isometric View
Replacement Screw: Tabletop and bench top slats are attached with small stainless steel screws. The standard design is to have the screws showing, flush with the slats. But, if you don't want it that way, just let us know in the comment box and we'll screw them in from below.
