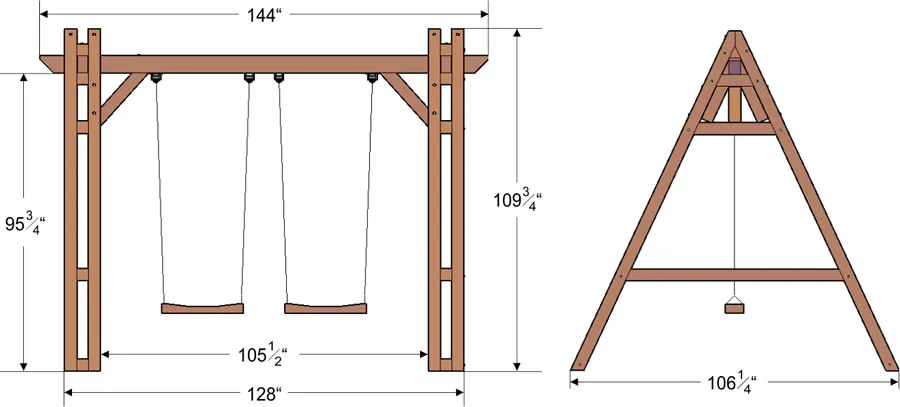

Rory's Big Playground Swing Sets - Dimensions & Drawings
Rory's Big Playground Swing has 3" x 3" timber framing and a 2 3/4" x 5 1/2" main timber. The Big swing is rated for up to 500 total lbs for 2 swingers. Our swings are so massive that they do not need to be secured to the ground. The only thing we recommend is that you add a few inches of gravel underneath each of the four post corners so that the posts won't settle into the ground.
| Swing Size | Ground Footprint L x W | Total Height | Main Timber L x W x H | Framing (full dimension) | Approx. Weight | Capacity |
|---|---|---|---|---|---|---|
| Big | 10' 8" x 8'0" | 9' | 10' 8" x 2 3/4" x 5 1/2" | 3" x 3" | 250 lbs. | 500 lbs. |
Rory's Swing Seat Dimensions
3" thick x 2' 2" long x 5 3/4" wide. The seat has a 22 1/2" wide seating capacity (inside the eyebolts or holes). Capacity is 400 lbs. However, ultimate weight bearing capacity will depend on what you use to attach the seat (e.g., rope, chain, etc.) and what you attach it to (e.g., a tree or beam). The hanging hardware is 4"L x 2 1/4"W x 2"H.
Toddler/Small Kid's Swing Seat Dimensions
The Toddler/Small Kid's Swing Seat is recommended for ages 6 months to 3 years old. It is 15 1/2"W x 13"D x 8 1/2"H to top of front safe
