Rory's Giant Playground Swing Sets - Dimensions & Drawings

Rory's Giant Playground Swing has 4" x 4" timber framing and a 5 1/2" x 5 1/2" main timber (see drawings below). Our swings are so massive that they do not need to  be secured to the   ground. The only thing we recommend is that you add a few  inches of   gravel underneath each of the four post corners so that the posts  won't   settle into the ground:

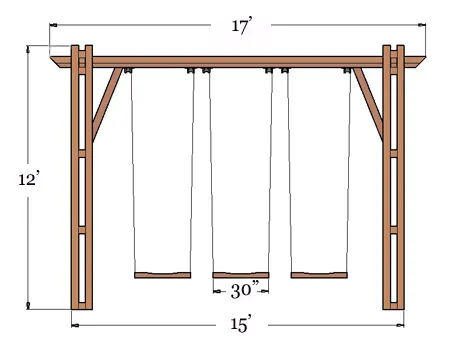

Front View

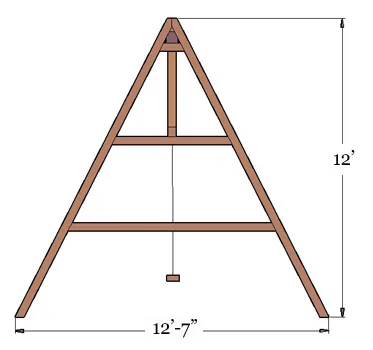

Side View

Rory's Swing Seat Dimensions
3" thick x 2' 2" long x 5 3/4" wide. The seat has a 30" wide seating capacity. Capacity is 400 lbs. However, ultimate weight bearing capacity will depend on what you use to attach the seat (e.g., rope, chain, etc.) and what you attach it to (e.g., a tree or beam).

Toddler/Small Kid's Swing Seat Dimensions
The Toddler/Small Kid's Swing Seat is recommended for ages 6 months to 3 years old. It is 15 1/2"W x 13"D x 8 1/2"H to top of front safe

Seel Beam Reinforcement

Available for additional structural reinforcement for Rory's Giant 3-Person Swing is a 1/4" thick steel beam. It sits atop the entire length of the 6 x 6 main timber and wraps around both the front and rear for additional long-term structural strength. The steel beam is not needed for normal long-term use; it was developed for commercial installations, but has been ordered occasionally for private family applications where on-going rambunctious behavior is anticipated. The steel beam is primered and painted black (oil based paint) and comes with all the stainless steel bolts needed to firmly secure it to the main beam.
