Rory's Swing Seats - Dimensions & Drawings

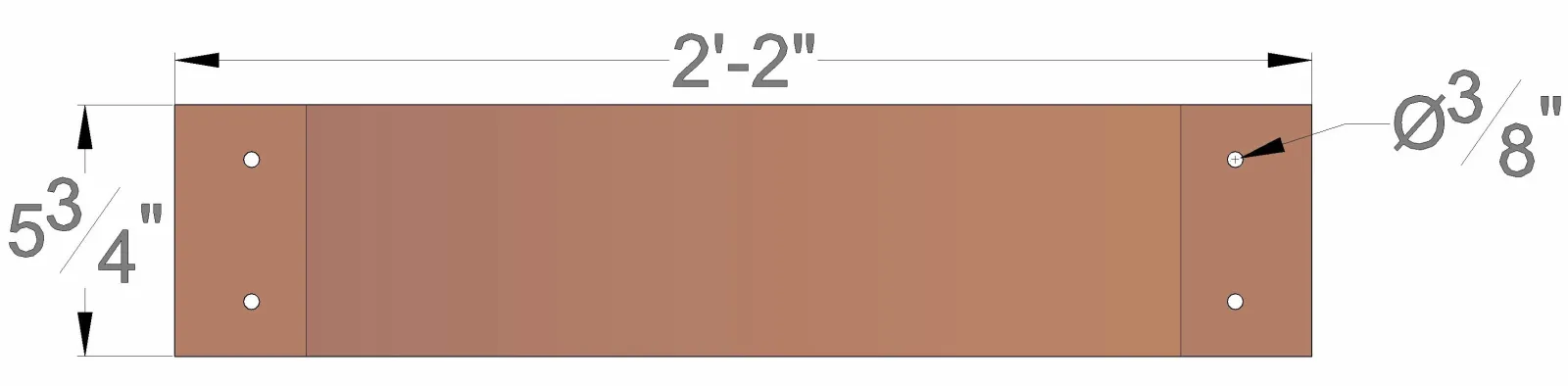

Top View

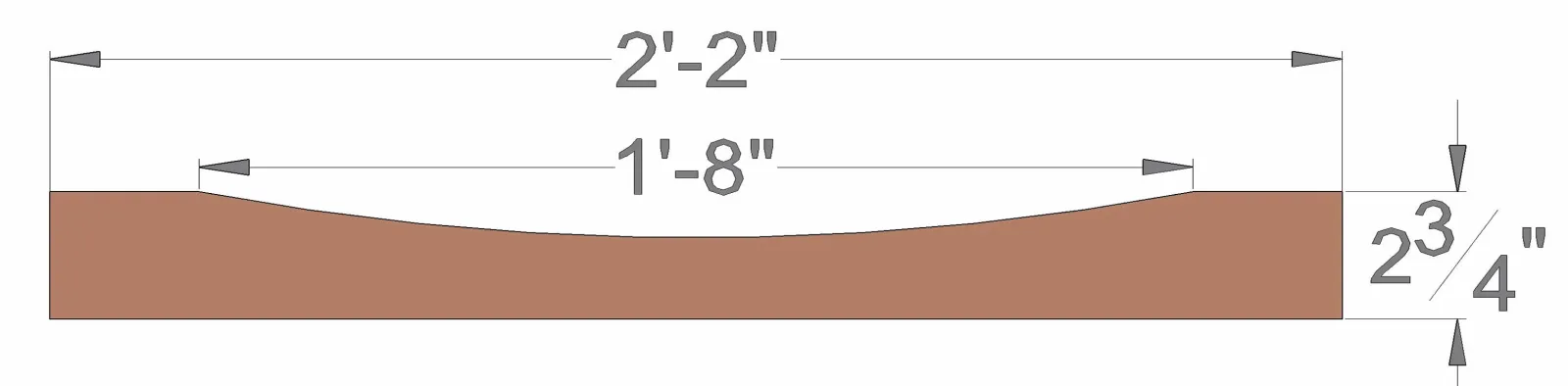

Side View

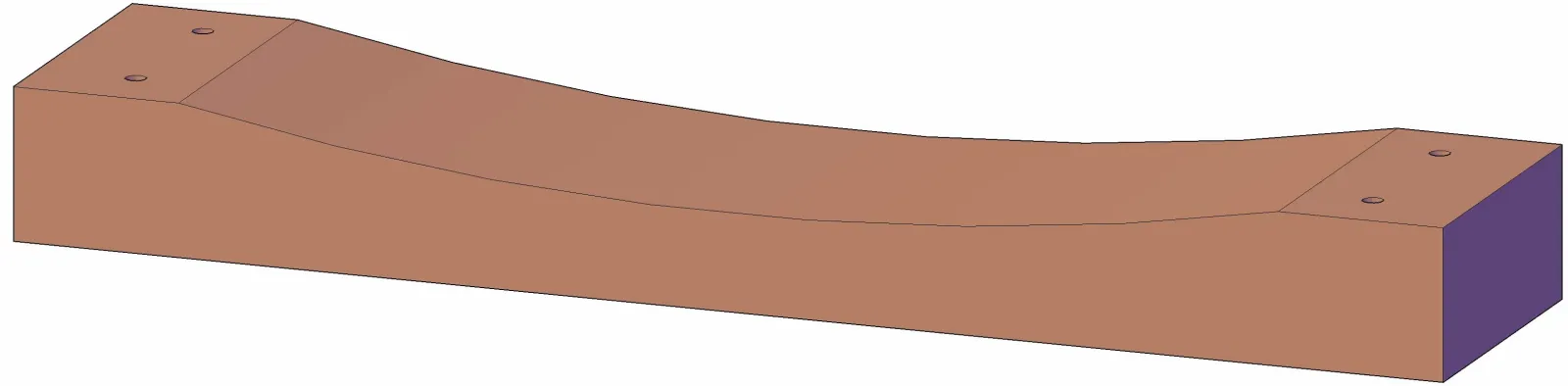

Isometric View
Rory's Kid's Playground Swing is sized for children ages four to nine, while the rest of the swings can be enjoyed by adults and children alike. Rory's Big Playground Swing has 3" x 3" timber framing and a 2 3/4" x 5 1/2" main timber, while the beefier Rory's Grande Playground Swing is a few inched wider with 4" x 4" timber framing and a thicker main timber. The Big swing is rated for up to 500 total lbs for 2 swingers and the Grande is rated for up to 650 total lbs for large swingers! Also, check out Rory's Giant 3-Person Swing for the ultimate swinging experience!
| Swing Size | Ground Footprint L x W | Total Height | Main Timber L x W x H | Framing (full dimension) | Approx. Weight | Capacity |
|---|---|---|---|---|---|---|
| Small Kid's | 7' 2" x 5'6" | 6' | 7' 2" x 17/8" x 5 1/2" | 3" x 3" | 160 lbs. | 350 lbs. |
| Big | 10' 8" x 8'0" | 9' | 10' 8" x 23/4" x 5 1/2" | 3" x 3" | 250 lbs. | 500 lbs. |
| Grande | 11' 0" x 9'0" | 9' | 11' 0" x 33/4" x 5 1/2" | 4" x 4" | 300 lbs. | 650 lbs. |
| Giant | 15' 1" x 12'6" | 12' | 17' 0" x 51/2" x 5 1/2" | 4" x 4" | 420 lbs. | 800 lbs. |
Rory's Swing Seat Dimensions
3" thick x 2' 2" long x 5 3/4" wide. The seat has a 22 1/2" wide seating capacity (inside the eyebolts or holes). Capacity is 400 lbs. However, ultimate weight bearing capacity will depend on what you use to attach the seat (e.g., rope, chain, etc.) and what you attach it to (e.g., a tree or beam). The hanging hardware is 4"L x 2 1/4"W x 2"H.
Some customers ask us about not having to touch the chain with their hands. If you don't want to touch the chain, the easiest solution is to order the seat without chain and instead buy high quality manila rope from your local hardware store or online. If you like the idea of using chain, you can slide a plastic sleeve over the chain (at least the bottom 2 feet or so which will be touched regularly). Any hardware store has plastic tubing that can be cut to slide the chain into. If you have a large diameter old garden hose, which will do the trick also.
Toddler/Small Kid's Swing Seat Dimensions
The Toddler/Small Kid's Swing Seat is recommended for ages 6 months to 3 years old. It is 15 1/2"W x 13"D x 8 1/2"H to top of front safe
Our swings are so massive that they do not need to be secured to the ground. The only thing we recommend is that you add a few inches of gravel underneath each of the four post corners so that the posts won't settle into the ground.
