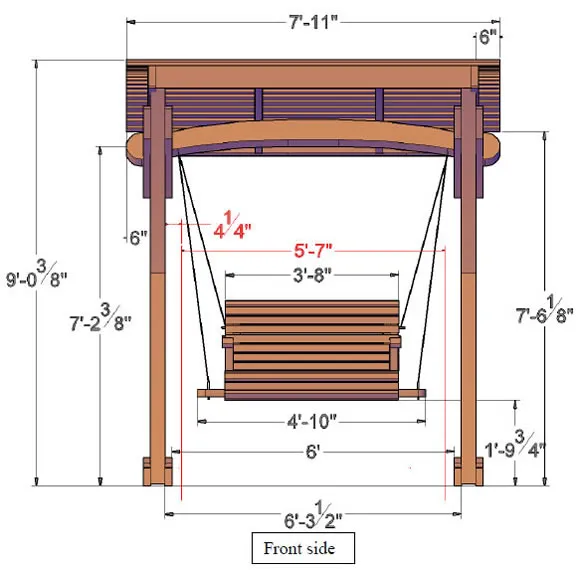

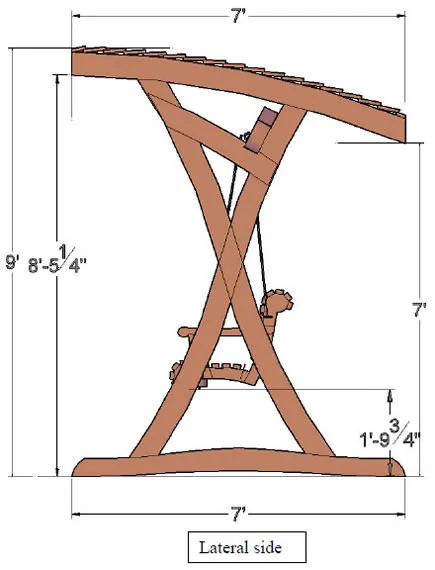

Summerbreeze Swing Sets - Dimensions & Drawings

Swing itself is 1' 11"H x 2' 4"D. Seat back is 1' 8"H from the top of the seat to the top of the backrest. We leave a 6" clearance on either side of the swing for the frame. The hanging hardware is 4"L x 2 1/4"W x 2"H.

Swing Size	Swing Width
Bench	40" between armrests, 47 ½" including armrests, 58" total (with the timber underneath that holds the eyebolts)
Large Bench	52" between armrests, 59 ½" including armrests, 70" total (with the timber underneath that holds the eyebolts)
XL Bench	70.5" between armrests, 78" including armrests, 88.5" total (with the timber underneath that holds the eyebolts)
