When we receive any Pergola order, we will provide you with a detailed set of drawings based on the options and sizes chosen. The drawings will clearly show all the details and dimensions from 3 different angles. They are an excellent tool for you to double check everything to be sure it is exactly as you'd like before it is built. Drawings are emailed within 5 business days and we'll revise your drawings as needed to make sure all details and sizing issues are perfected prior to beginning construction.

Below are some examples of drawings sent to prior customers:

The Wooden Dome Pergola - Standard Dimensions

D1

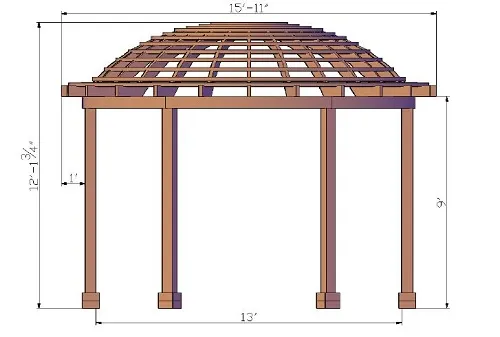

Perspective View with Measures

D2

Top view Purling Slats Measures

D1

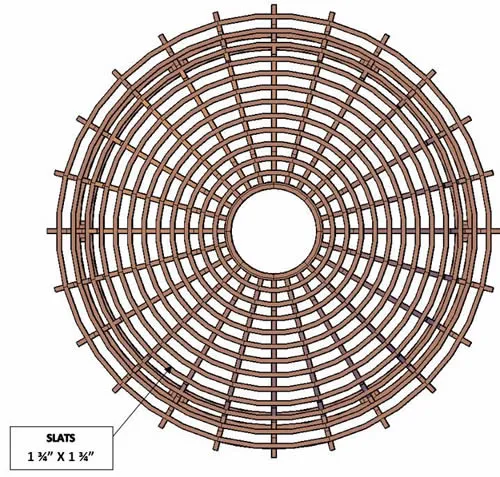

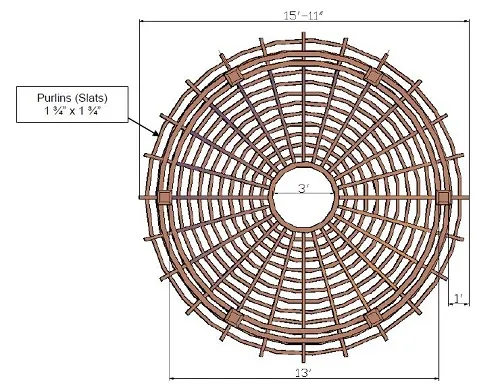

Top View with Slats Measures

D2

Isometric View

D1

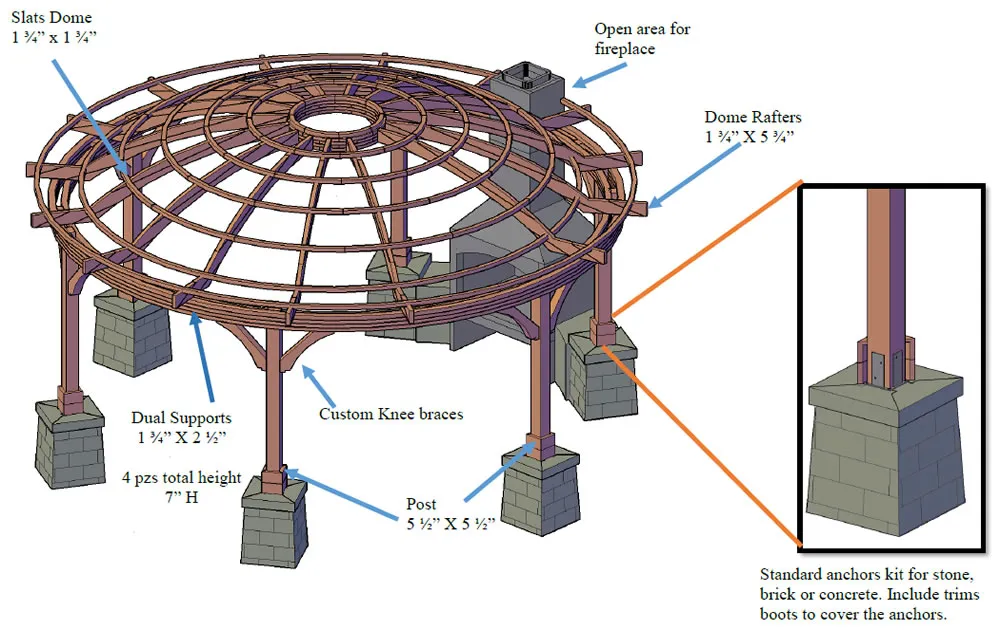

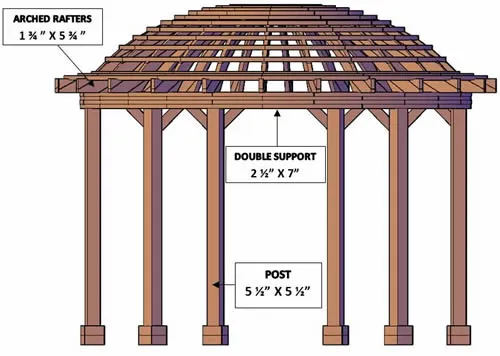

Isometric View With Sopports, Posts and Arched Rafters Measures

D2

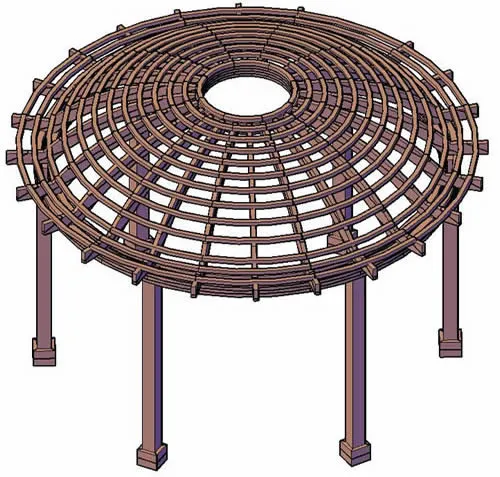

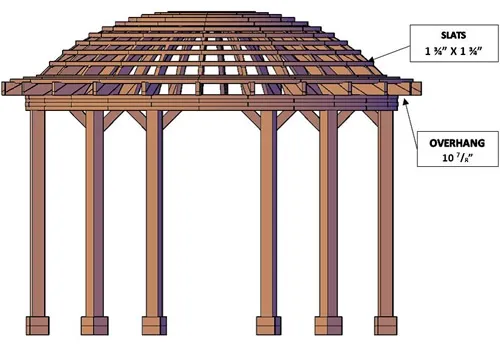

Isometric View WIth SLats and Overhang Measures

The Wooden Dome Pergola - Custom Dimensions

D1

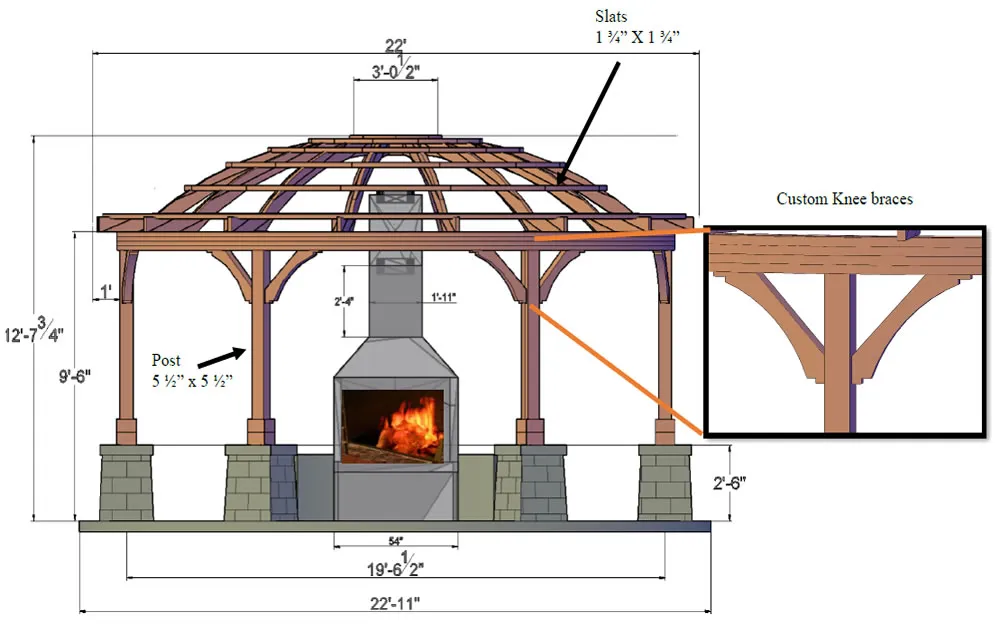

Isometric View WIth Slats and Overhang Measures

D2

Isometric View WIth Slats and Overhang Measures

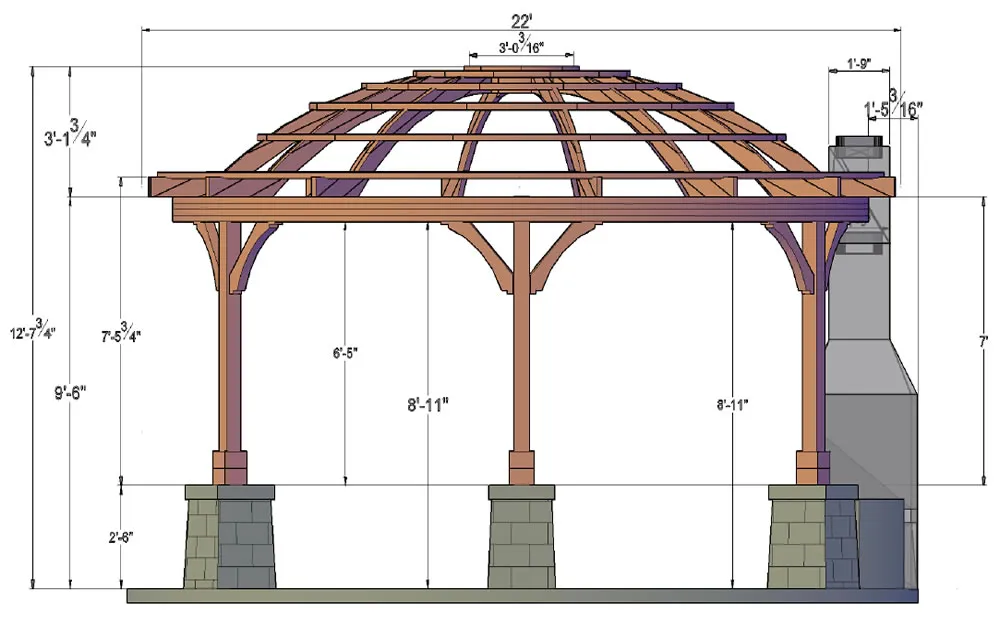

D3

Isometric View WIth Slats and Overhang Measures

D4

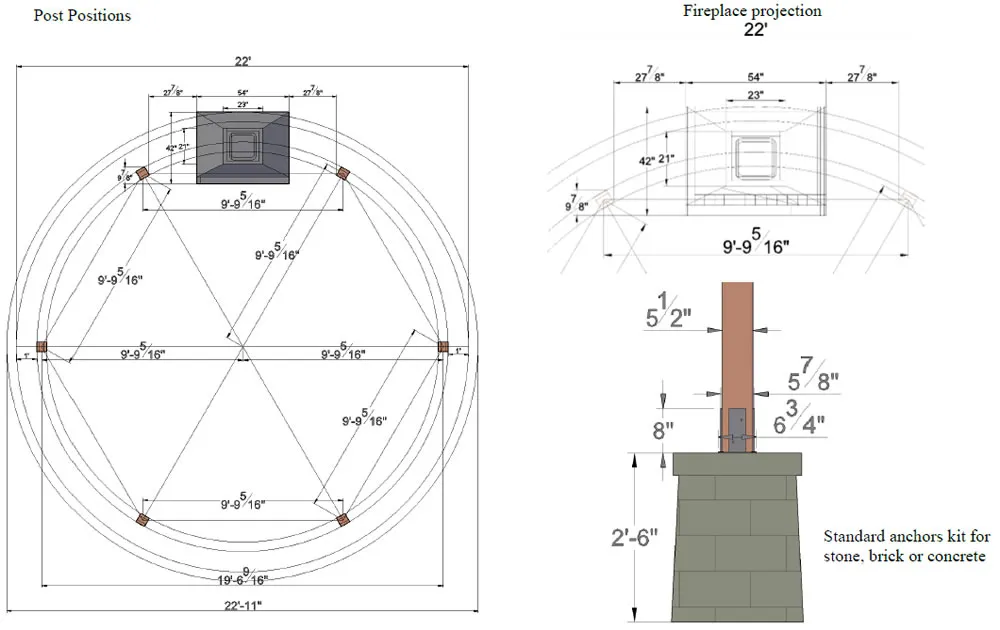

Isometric View WIth Slats and Overhang Measures

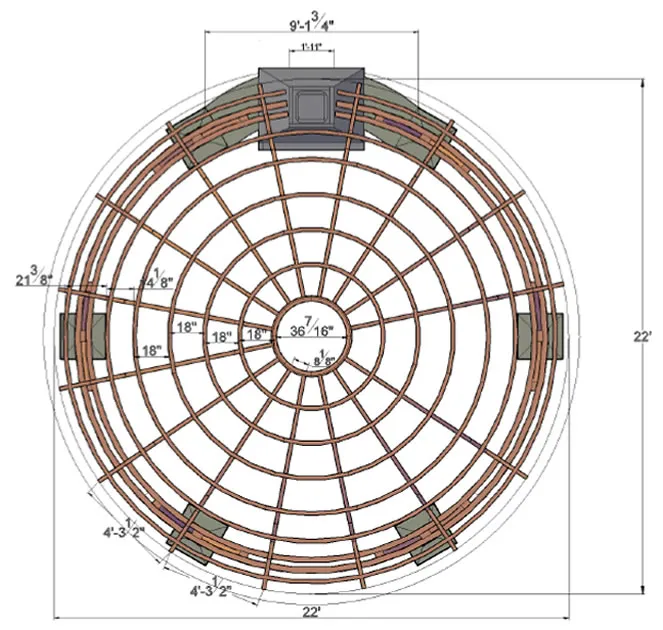

D5

Isometric View WIth Slats and Overhang Measures

Forever Redwood Pergola kits are completely assembled in the shop prior to shipping to be certain everything fits together perfectly. All timbers are notched into one another to increase structural strength and to lock all your pergolas timbers in place so they will never sag, twist or move. There are hundreds of notches in the larger pergolas. Full notching is rarely practiced because it is labor intensive, but it is one of the secrets to a long lasting beautiful pergola.

For additional long-term structural strength, we add solid timber blocking in-between the dual support timbers as shown in the drawing below. With this blocking, the dual supports are in effect converted into one solid 5 3/4 inch x 61/2 inch or 7 1/4 inch x 6 1/2 inch timber as shown below:

/media/cms/PergolaBlocking.png
