Window Box Planters - Dimensions & Drawings
Framing is 1 1/8" wide and 1" tall both on the top and bottom.
| Exterior Dimensions (L x W x H in inches) | Interior Dimensions L x W x H in inches | Capacity | Weight |
|---|---|---|---|
| 6 x 6 x 4.5 | 4.5 x 4.5 x 4 | 1/3 Gal | 2 lbs. |
| 7 x 7 x 4.5 | 4.5 x 4.5 x 4 | 1/2 Gal | 3 lbs. |
| 7 x 7 x 7 | 6 x 6 x 6.5 | 1 Gal | 4 lbs. |
| 8.5 x 10 x 10 | 6.5 x 9 x 9 | 2 Gal | 5 lbs. |
| 10 x 7 x 5.5 | 8.5 x 5.5 x 5 | 1 Gal | 4 lbs. |
| 10 x 10 x 10 | 8 x 9 x 9 | 2.5 Gal | 5.5 lbs. |
| 14 x 10 x 10 | 12 x 9 x 9 | 5 Gal | 10 lbs. |
| 17.5 x 7 x 5.5 | 16 x 5.5 x 5 | 2 Gal | 5 lbs. |
| 27 x 7 x 5.5 | 25.5 x 5.5 x 5 | 3 Gal | 6 lbs. |
| 36 x 7 x 5.5 | 34.5 x 5.5 x 5 | 4 Gal | 8 lbs. |
| 44 x 7 x 5.5 | 42.5 x 5.5 x 5 | 5 Gal | 10 lbs. |
| 54 x 7 x 6.5 | 52.5 x 5.5 x 6 | 7.5 Gal | 12 lbs. |
| 62 x 7 x 7.5 | 60.5 x 5.5 x 7 | 10 Gal | 14 lbs. |
| 72 x 7 x 7.5 | 70.5 x 5.5 x 7 | 14 Gal | 16 lbs. |
| 84 x 7 x 7.5 | 82.5 x 5.5 x 7 | 16 Gal | 18 lbs. |
| 96 x 7 x 7.5 | 94.5 x 5.5 x 7 | 18 Gal | 21 lbs. |
| 108 x 7 x 7.5 | 106.5 x 5.5 x 7 | 21 Gal | 23 lbs. |
| 120 x 7 x 7.5 | 118.5 x 5.5 x 7 | 23 Gal | 26 lbs. |
| 12 x 8.5 x 8.5 | 10 x 6.5 x 8 | 3 Gal | 6 lbs. |
| Exterior Dimensions (L x W x H in inches) | Interior Dimensions L x W x H in inches | Capacity | Weight |
|---|---|---|---|
| 17.5 x 8.5 x 8.5 | 15.5 x 6.5 x 8 | 4 Gal | 8 lbs. |
| 24 x 8.5 x 8.5 | 22 x 6.5 x 8 | 6 Gal | 12 lbs. |
| 36 x 8.5 x 8.5 | 34 x 6.5 x 8 | 9 Gal | 14 lbs. |
| 48 x 8.5 x 8.5 | 46 x 6.5 x 8 | 11 Gal | 21 lbs. |
| 60 x 8.5 x 8.5 | 58 x 6.5 x 8 | 14 Gal | 26 lbs. |
| 72 x 8.5 x 8.5 | 70 x 6.5 x 8 | 17 Gal | 29 lbs. |
| 84 x 8.5 x 8.5 | 82 x 6.5 x 8 | 20 Gal | 32 lbs. |
| 96 x 8.5 x 8.5 | 94 x 6.5 x 8 | 25 Gal | 35 lbs. |
| 108 x 8.5 x 8.5 | 106 x 6.5 x 8 | 29 Gal | 39 lbs. |
| 120 x 8.5 x 8.5 | 118 x 6.5 x 8 | 32 Gal | 43 lbs. |
| 24 x 10 x 10 | 22 x 8 x 9.5 | 8 Gal | 13 lbs. |
| 36 x 10 x 10 | 34 x 8 x 9.5 | 12 Gal | 18 lbs. |
| 48 x 10 x 10 | 46 x 8 x 9.5 | 15 Gal | 24 lbs. |
| 60 x 10 x 10 | 58 x 8 x 9.5 | 19 Gal | 28 lbs. |
| 72 x 10 x 10 | 70 x 8 x 9.5 | 23 Gal | 35 lbs. |
| 84 x 10 x 10 | 82 x 8 x 9.5 | 26 Gal | 41 lbs. |
| 96 x 10 x 10 | 94 x 8 x 9.5 | 30 Gal | 46 lbs. |
| 108 x 10 x 10 | 106 x 8 x 9.5 | 40 Gal | 51 lbs. |
| 120 x 10 x 10 | 118 x 8 x 9.5 | 44 Gal | 57 lbs. |
Planters are available in any size or style. Learn more about custom planter sizing or contact us if you want a style that you don't see.

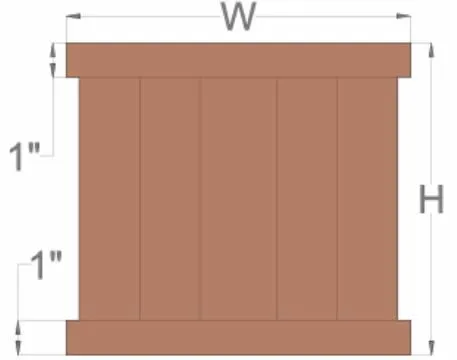

Side View

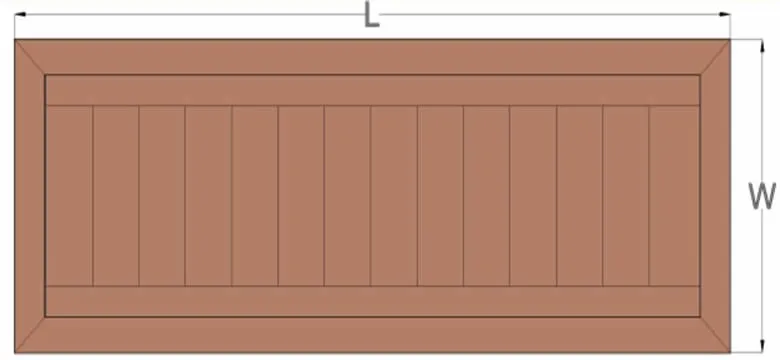

Top View

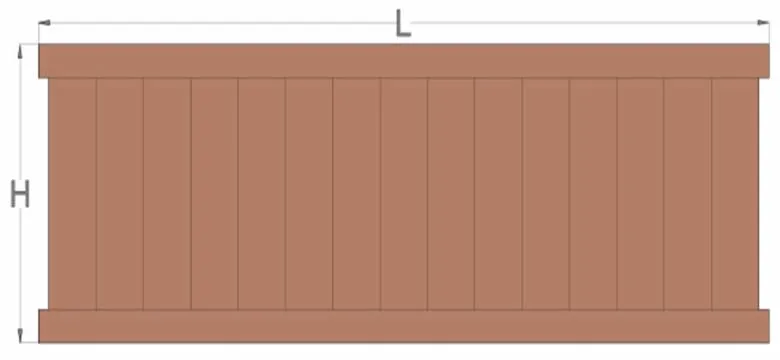

Front View

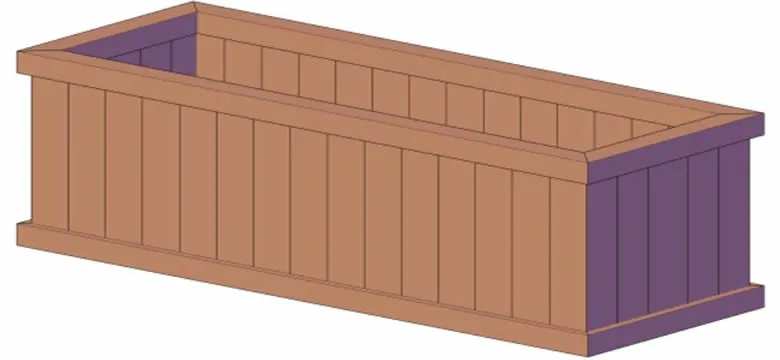

Isometric View
