Classic Wooden Picnic Bench - Dimensions & Drawings
Bench Seating Capacity & Standard Dimensions Table
| Bench Length (feet) | Adult Seating Capacity | Standard Bench Height (inches) |
|---|---|---|
| 2 | 1 | 18 |
| 2 | 1 | 18 |
| 3* | 1 | 18 |
| 3 | 2 | 18 |
| 4 | 2 | 18 |
| 4 | 2-3 | 18 |
| 5 | 3 | 18 |
| 6** | 3 | 18 |
| 7 | 4 | 18 |
| 8** | 4-5 | 18 |
*-popular as end bench
**-popular as side bench
Dimensions
Picnic Table Benches Dimensions
All benches are 17 3/8" tall with 11½" wide seats and 18 3/8" wide bases. They are made from full two-inch thick boards.
Bench Height: 15 inc., 18 inch., 21 inch.
Side View

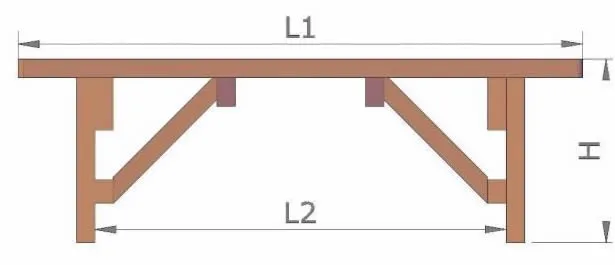

Front View

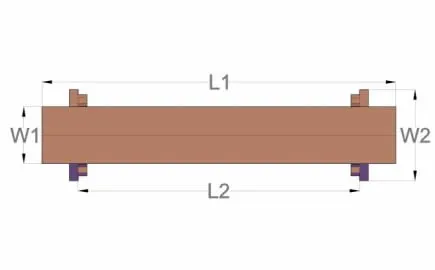

Top View

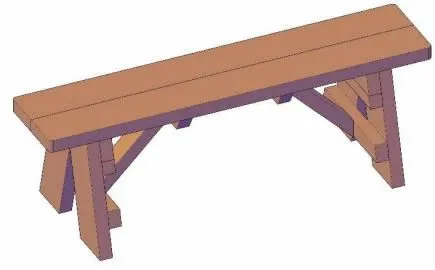

Isometric View
| Bench Size (foot) | Approx. Weight (lbs) |
|---|---|
| 2 | 20 |
| 2-5 | 23 |
| 3 | 25 |
| 3-5 | 28 |
| 4 | 30 |
| 4-5 | 33 |
| 5 | 35 |
| 5-5 | 38 |
| 6 | 40 |
| 6-5 | 43 |
| 7 | 45 |
| 7-5 | 48 |
| 8 | 65 |
