Jean's Ultimate Swing Sets - Dimensions & Drawings

The Jean's Ultimate Swing Set is can be enjoyed by adults and children alike.

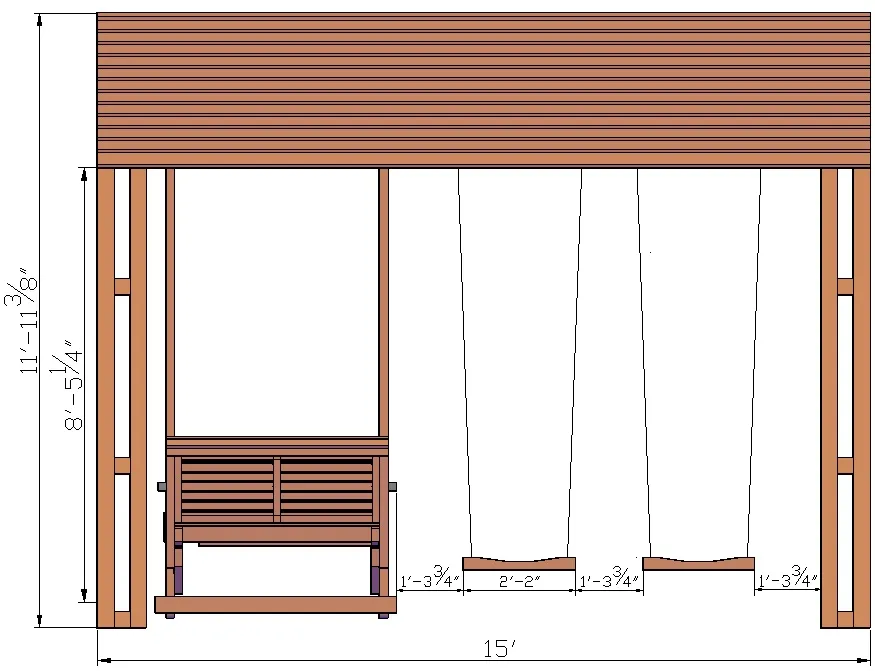

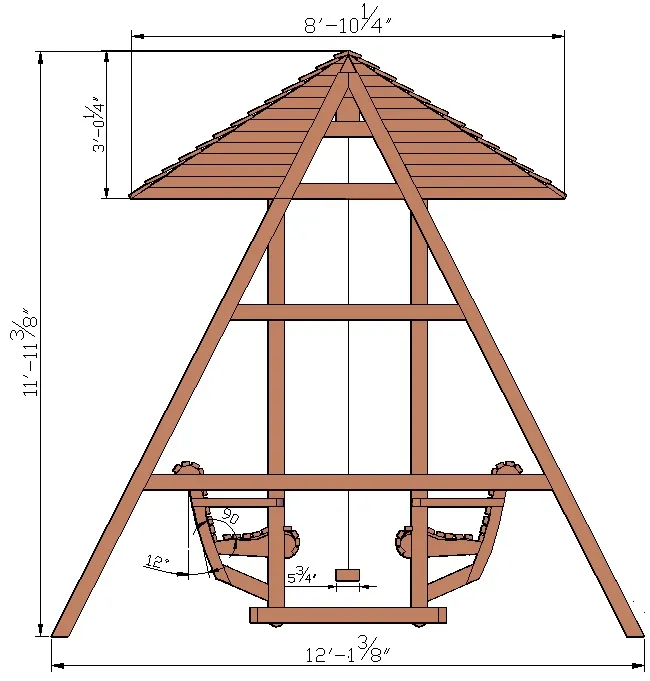

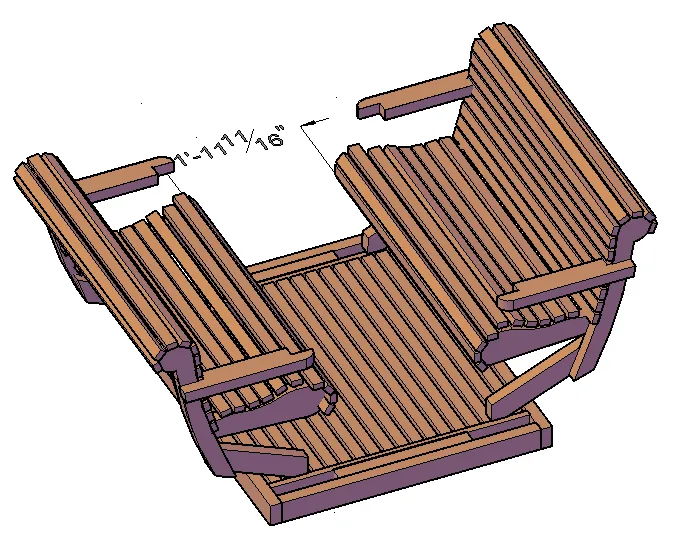

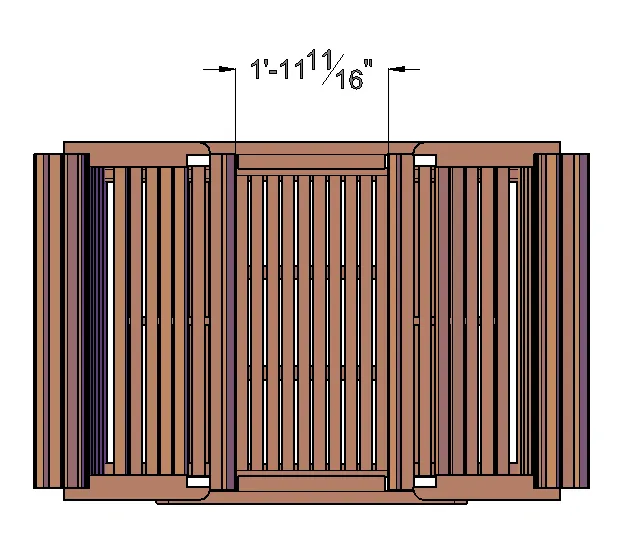

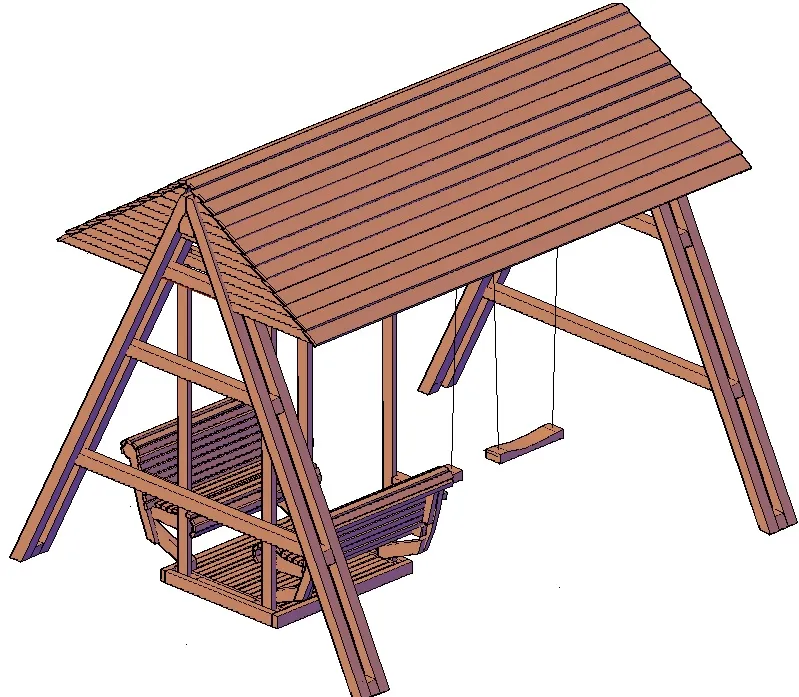

Specifications drawings for Jean's Ultimate Swing Set

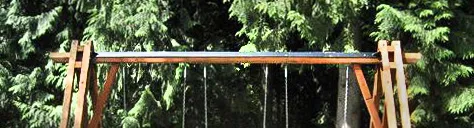

Seel Beam Reincorcement

Available for additional structural reinforcement for Rory's Giant 3-Person Swing is a 1/4" thick steel beam. It sits atop the entire length of the 6 x 6 main timber and wraps around both the front and rear for additional long-term structural strength. The steel beam is not needed for normal long-term use; it was developed for commercial installations, but has been ordered occasionally for private family applications where on-going rambunctious behavior is anticipated. The steel beam is primered and painted black (oil based paint) and comes with all the stainless steel bolts needed to firmly secure it to the main beam.

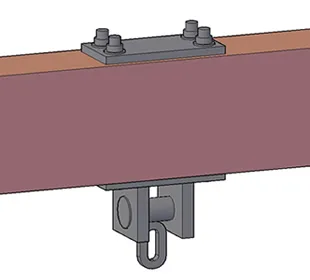

The hanging hardware is 4"L x 2 1/4"W x 3 1/4"H (see drawings below)

Some customers ask us about not having to touch the chain with their hands. If you don't want to touch the chain, the easiest solution is to order the seat without chain and instead buy high quality manila rope from your local hardware store or online. If you like the idea of using chain, you can slide a plastic sleeve over the chain (at least the bottom 2 feet or so which will be touched regularly). Any hardware store has plastic tubing that can be cut to slide the chain into. If you have a large diameter old garden hose, which will do the trick also.

Rory's Swing Seat Dimensions
3" thick x 2' 2" long x 5 3/4" wide. The seat has a 30" wide seating capacity. Capacity is 400 lbs. However, ultimate weight bearing capacity will depend on what you use to attach the seat (e.g., rope, chain, etc.) and what you attach it to (e.g., a tree or beam).

Toddler/Small Kid's Swing Seat Dimensions
The Toddler/Small Kid's Swing Seat is recommended for ages 6 months to 3 years old. It is 15 1/2"W x 13"D x 8 1/2"H to top of front safe

Our swings are so massive that they do not need to be secured to the ground. The only thing we recommend is that you add a few inches of gravel underneath each of the four post corners so that the posts won't settle into the ground.
