San Francisco Redwood Patio Table - Dimensions & Drawings
Tabletops available in any size up to 15 ft long and 60" wide. Tables are regularly 30 7/8" H but this height can be adjusted if you require. Table aprons are 3 1/4" H and are recessed under the tabletop edges by 3". Tabletop boards are 1 7/8" thick and leg timbers are 3 3/4" x 3 3/4" thick for proper support. Tabletop widths available from 30" to 60" Wide.

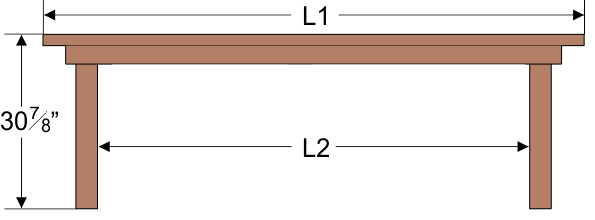

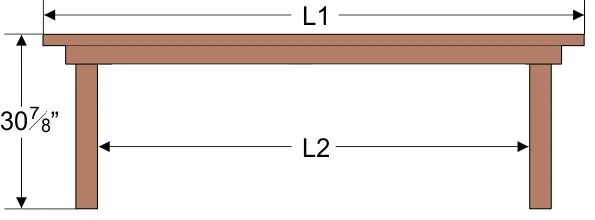

Front View

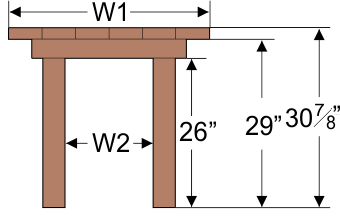

Side View

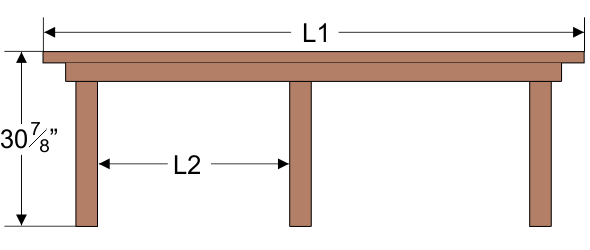

Front View
Side View
| Length specifications from 4ft at 10ft | ||
|---|---|---|
| L1 | L2 | |
| 4 ft | 4" | 28 1/2" |
| 5 ft | 5" | 40 3/4" |
| 6 ft | 6" | 52 3/4" |
| 7 ft | 7" | 64 3/4" |
| 8 ft | 8" | 76 3/4" |
| 10 ft | 10" | 100 3/4" |
| Length specifications from 12ft at 15ft | ||
|---|---|---|
| Table Length | L1 | L2 |
| 12 ft | 12 ft | 60 1/2" |
| 14 ft | 14 ft | 72 1/2" |
| 15 ft | 15 ft | 78 1/2" |
| Width specifications | |
|---|---|
| W1 | W2 |
| 28 3/4" | 12" |
| 34 1/2" | 17 3/4" |
| 40 1/4" | 23 1/2" |
| 46" | 29 1/4" |
| 51 3/4" | 36" |
| 57 1/2" | 40 3/4" |
Note: Although spacing between the legs is narrow on the ends (W2), an end chair works fine for widths 40" and wider. The reason is the apron is 3" recessed under the tabletop and all our armrests slide under the apron to at least touch the leg if necessary. The leg is 4 3/4" in from the tabletop edge and this is more than enough space to comfortably sit and eat or drink.
Dining Chair Dimensions:
Massive Chair (Armless) Dimensions:
24 1/2"D x 23 3/4"W x 40 1/4"H. Seat is 16"H x 23 3/4" W x 18"D. Boards are fully 2" thick. Approx. Weight: 30 lbs
Ruth and Luna Chair (Armless) Dimensions:
23"D x 21 1/4"W x 39 1/2"H. Seat is 16"H x 21 1/4" W x 18"D. Boards are fully 2" thick. Approx. Weight: 25 lbs.
Armchair Dimensions:
Massive Armchair Dimensions:
27"D x 25 1/2"W x 40 1/4"H including armrests. Seat is 16"H x 23 3/4"W x 18" D. Armrests are 25.5"H from ground. Approx. Weight: 40 lbs.
Ruth Armchairs Dimensions:
23"D x 23"W x 39 1/4"H including armrests. Seat is 16" H X 20"W X 18" D. Armrests are 25.5"H from ground. Approx. Weight: 35 lbs.
Luna Armchairs Dimensions:
23"D x 22 1/2"W x 39 1/4"H including armrests. Seat is 16" H X 19 1/2"W X 18" D. Armrests are 25.5"H from ground. Approx. Weight: 35 lbs.
