El Paso Wedding Pavilion - Dimensions & Drawings
These are the measurements of the El Paso Wedding Pavilion. See price, sizes and wood options →
The El Paso Wedding Pavilion are available in lengths from 20' to 60' and widths from 22' to 45'. The length and width are the overall roof measurements. The standard roof overhang is 12".
El Paso Wedding Pavilion Dimensions Example: 20ft L x 20ft W

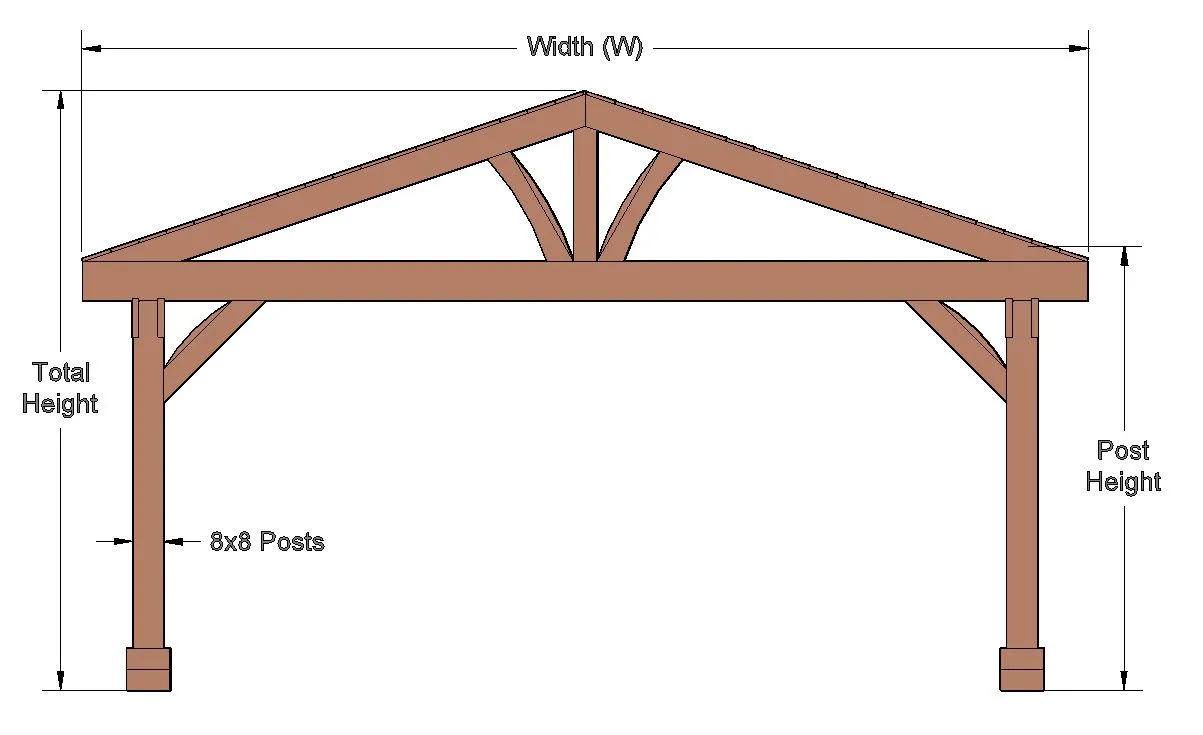

Front View

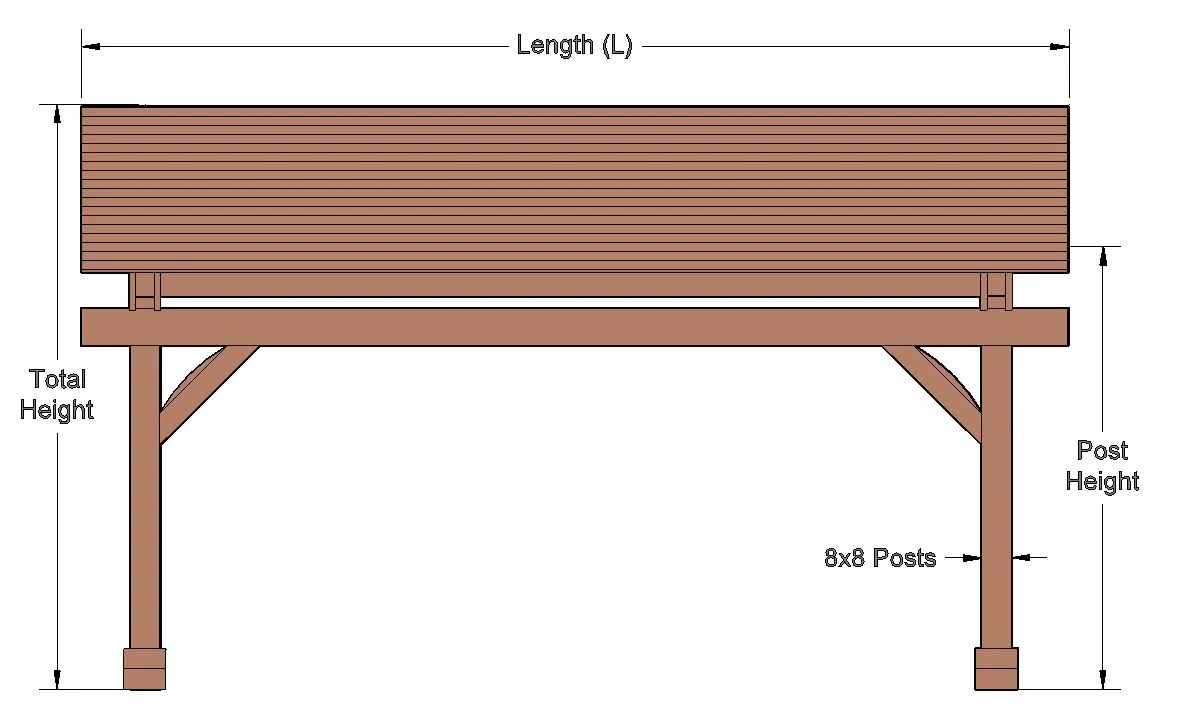

Side View

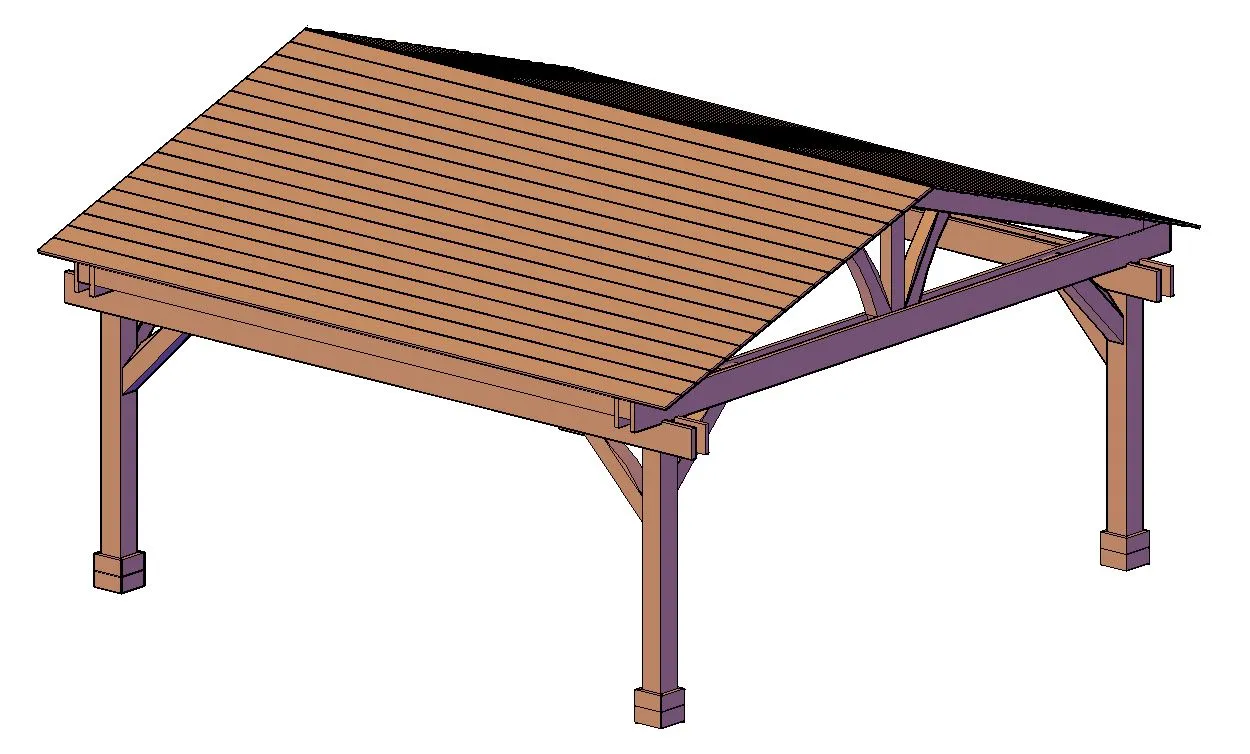

Isometric View
El Paso Wedding Pavilion Dimensions Example: 38ft L x 30ft W

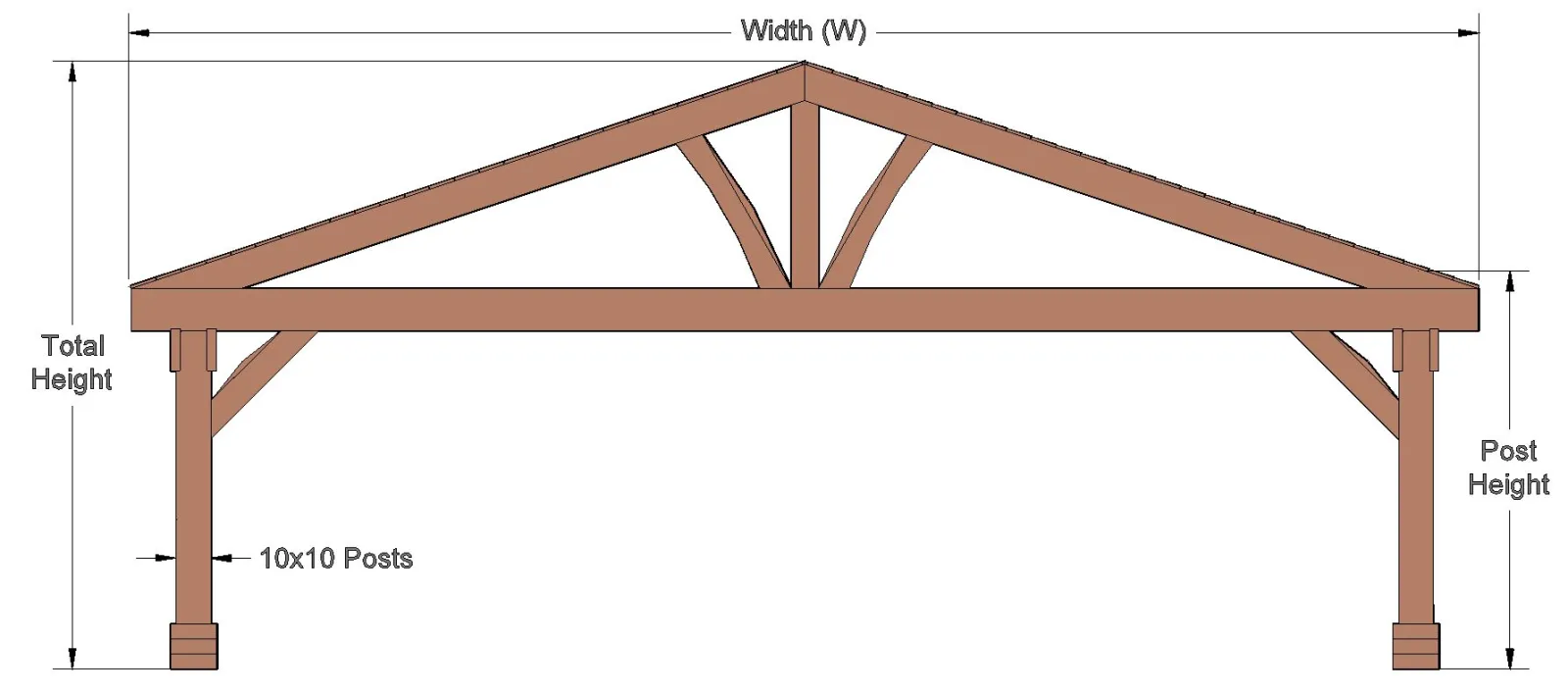

Front View

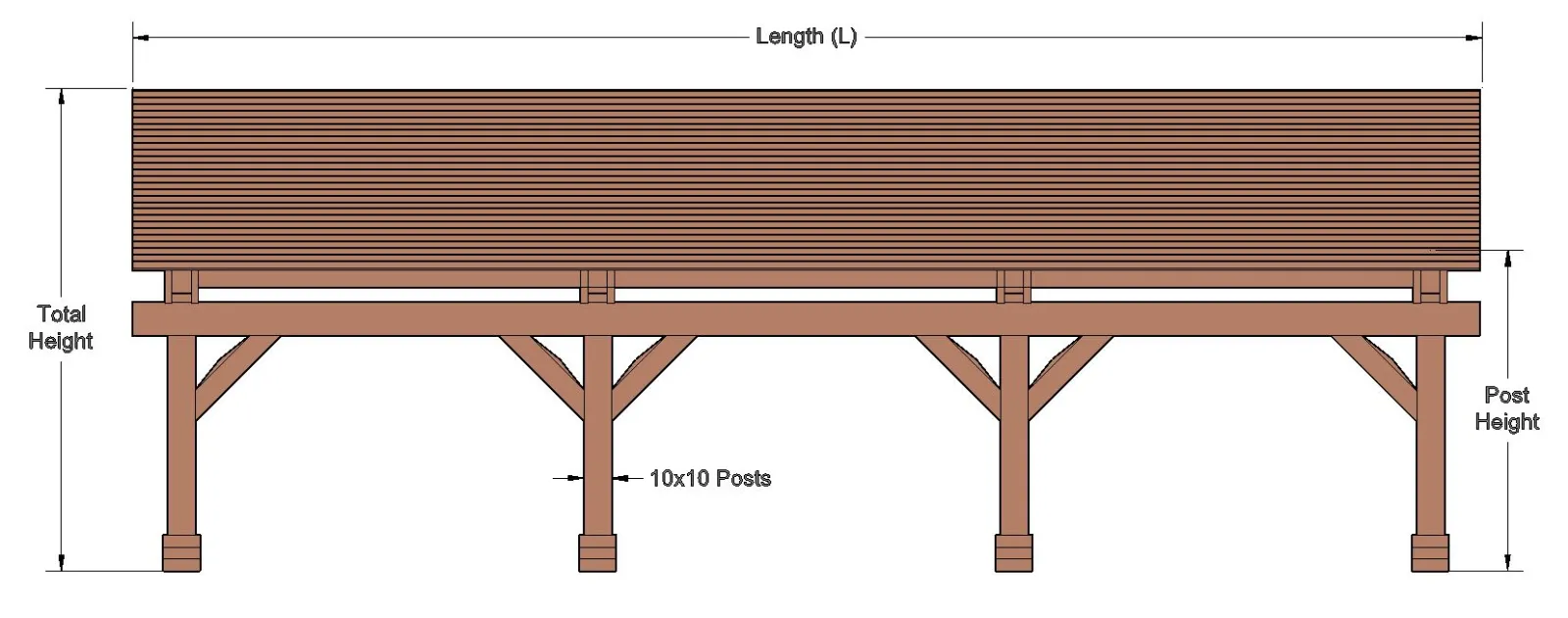

Side View

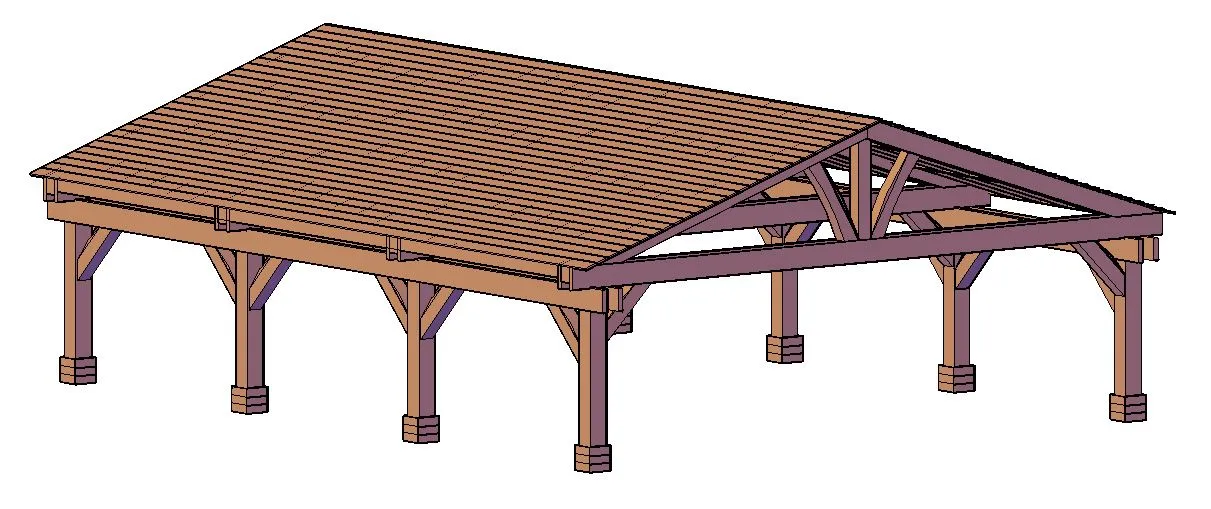

Isometric View
El Paso Wedding Pavilion Dimensions Example: 60ft L x 45ft W

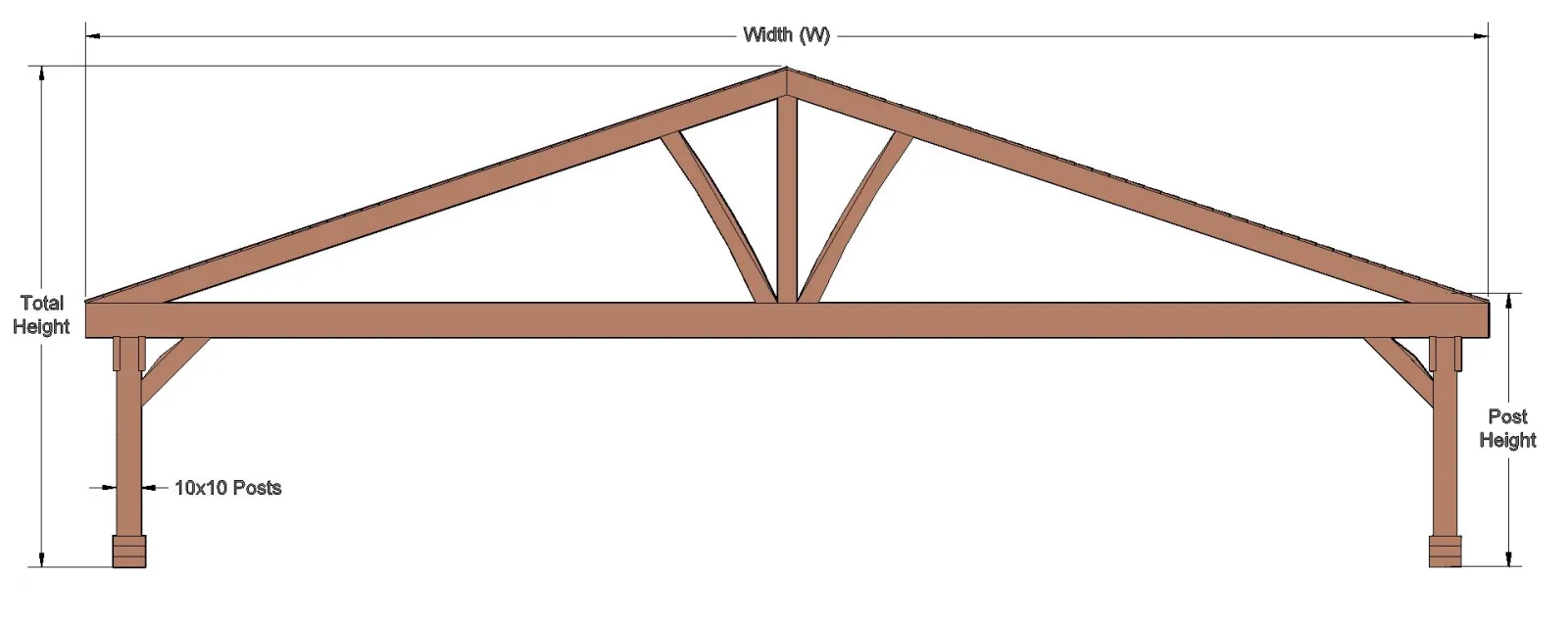

Front View

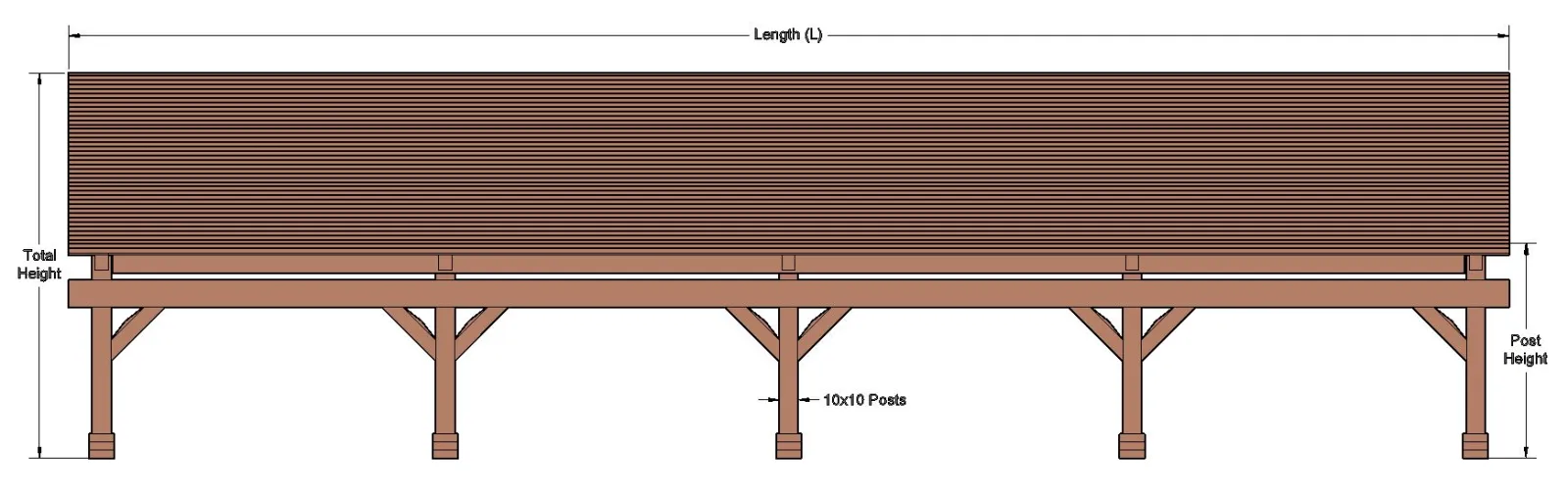

Side View

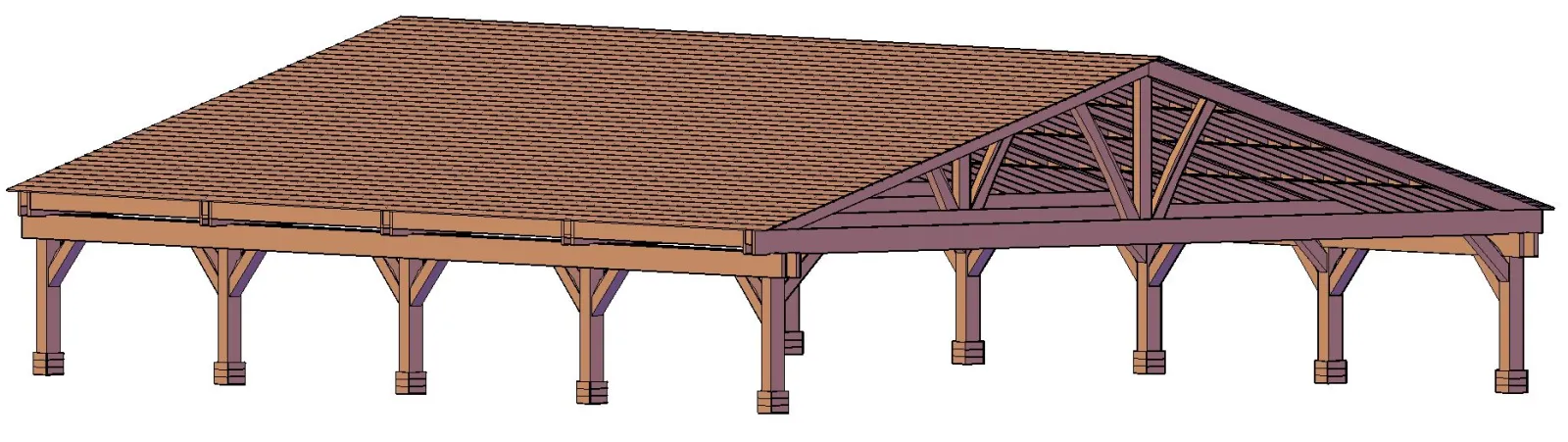

Isometric View
For additional long-term structural strength, we add solid timber blocking in-between the dual support timbers as shown in the drawing below. With this blocking, the dual supports are in effect converted into one solid 7 1/4 inch x 6 1/2 inch timber as shown below:
