Emma's Modern Pavilion - Dimensions & Drawings
These are the measurements of the Emma's Modern Pavilion. See price, sizes and wood options →
Emma's Modern Pavilion are available in lengths from 8' to 60' and widths from 8' to 24'. The length and width are the overall roof measurements.
Rafters are set at 24" on center.

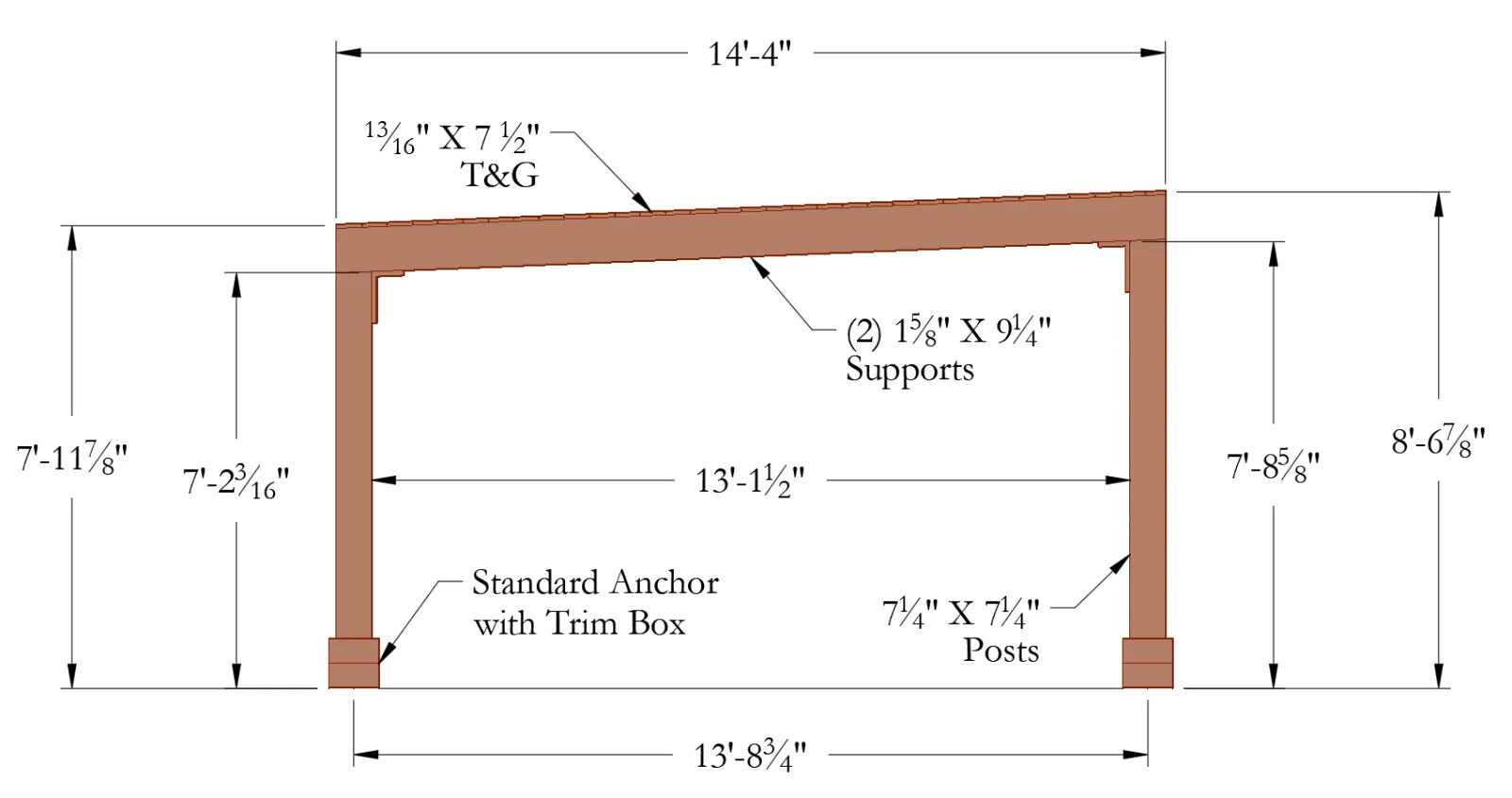

Width View

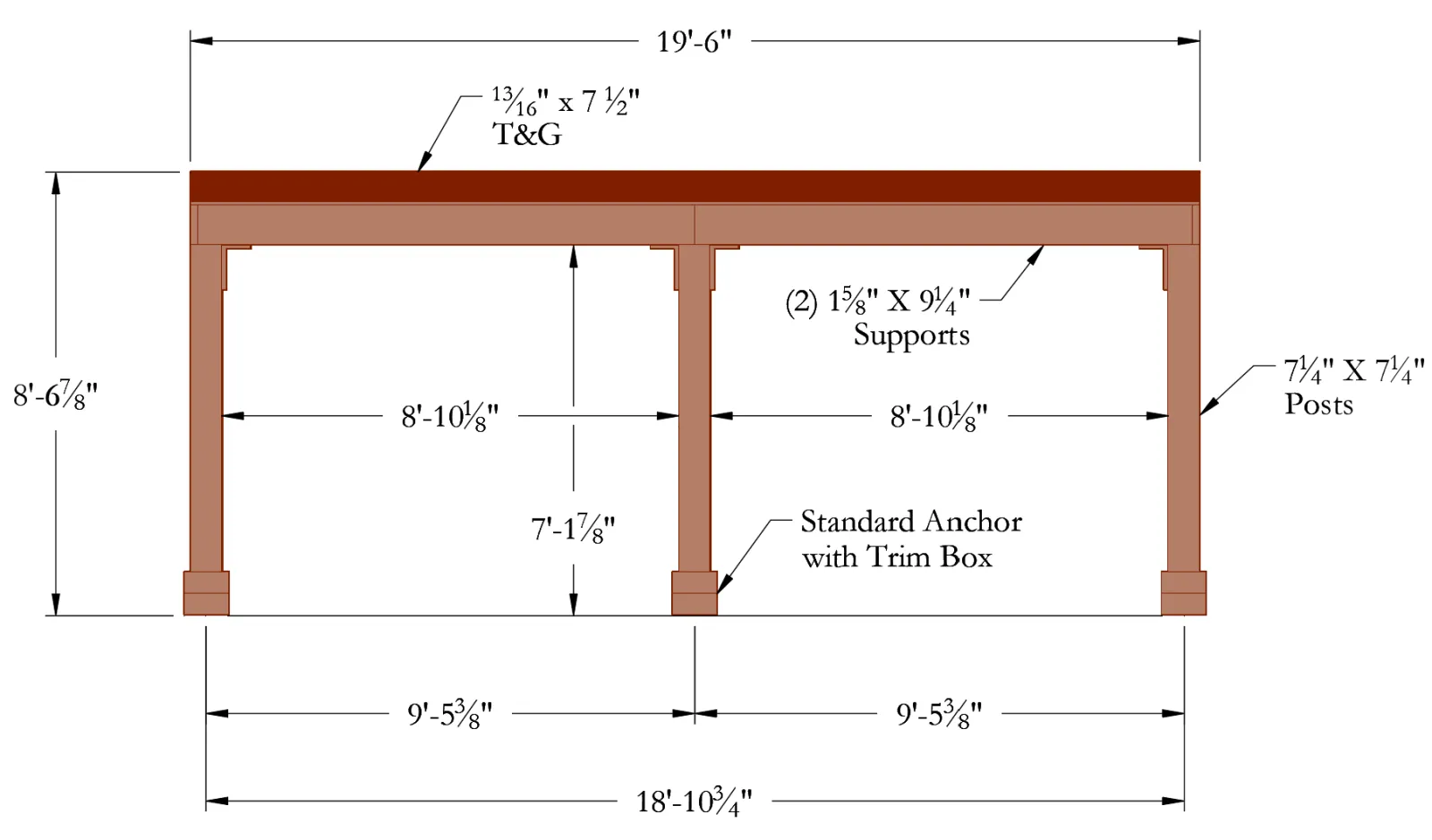

Length View

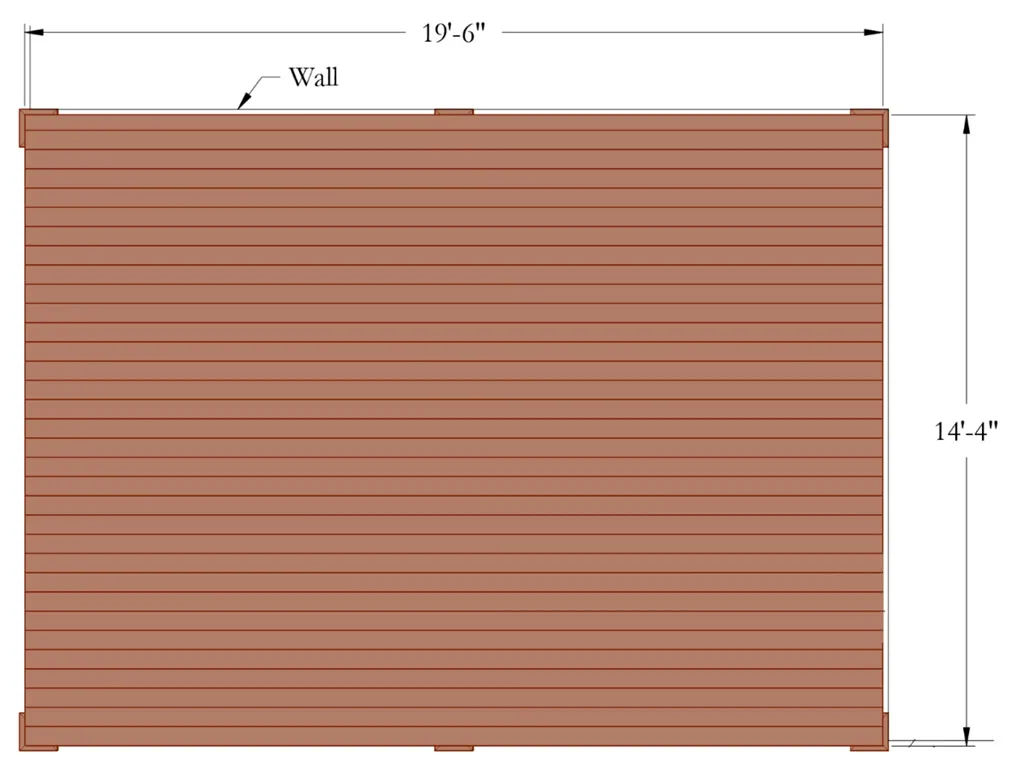

Top View

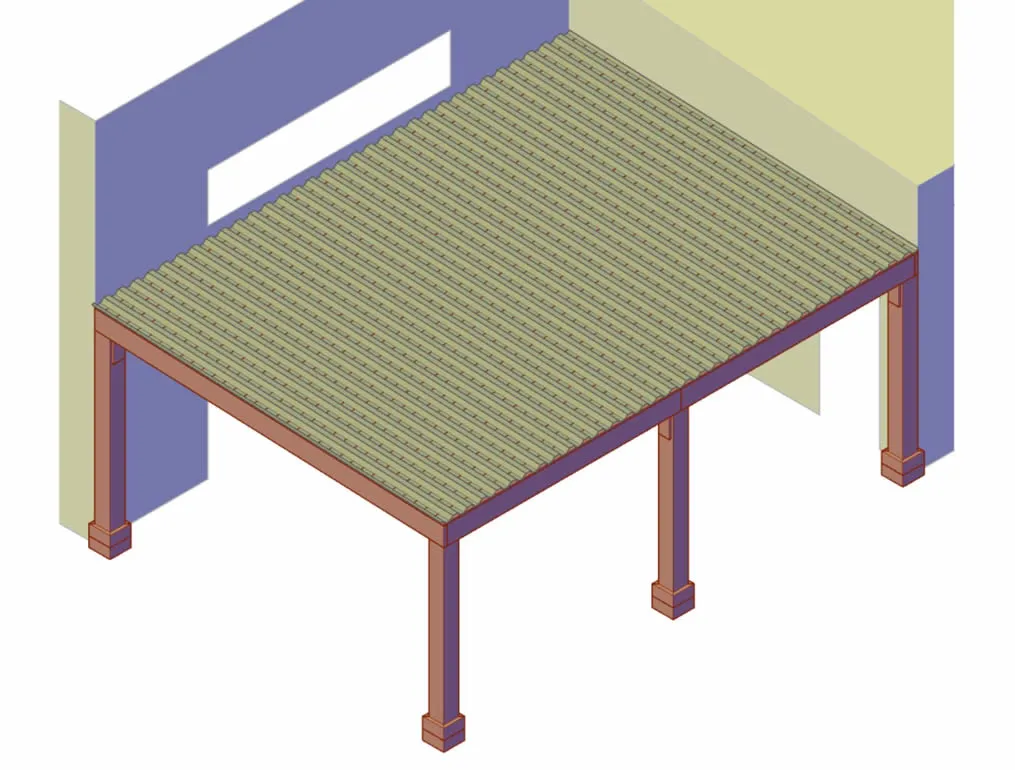

Isometric View
| EMMA'S MODERN PORCH PAVILION SPECIFICATIONS TABLE | |||
|---|---|---|---|
| Height Front Posts (ft) | Height Back Posts (ft) | Height Front Posts (FT) - from floor up to support | Height Back Posts (FT) from floor up to roof |
| 8.5 | 9.9 | 7.42 | 10.36 |
| 9 | 10.4 | 7.92 | 10.86 |
| 9.5 | 10.9 | 8.42 | 11.36 |
| 10 | 11.4 | 8.92 | 11.86 |
| 10.5 | 11.9 | 9.42 | 12.36 |
| 11 | 12.4 | 9.92 | 12.86 |
| 11.5 | 12.9 | 10.42 | 13.36 |
| 12 | 13.4 | 10.92 | 13.86 |

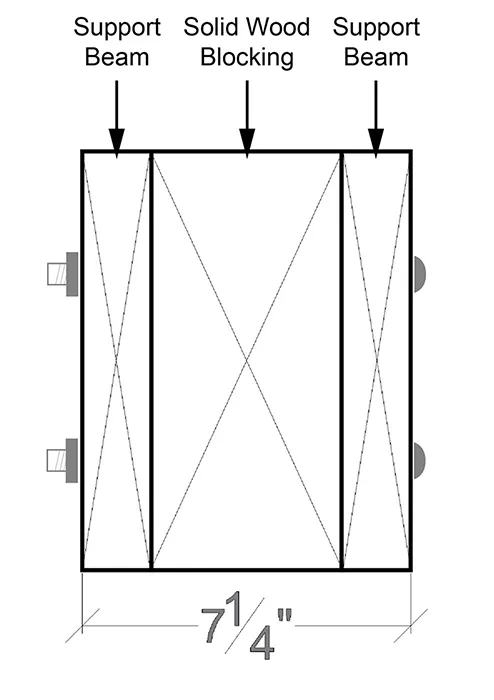

For additional long-term structural strength, we add solid timber blocking in-between the dual support timbers as shown in the drawing below. With this blocking, the dual supports are in effect converted into one solid 7 1/4 inch timber as shown below, the overall size will depend on the post and supports dimensions:
