The Big Timber Carport Pavilion - Dimensions & Drawings
The Carport Pavilions are available in Lengths from 8' to 40' and widths from 16' to 24'. The Length and Width are the overall roof measurements. The standard roof overhang is 12".

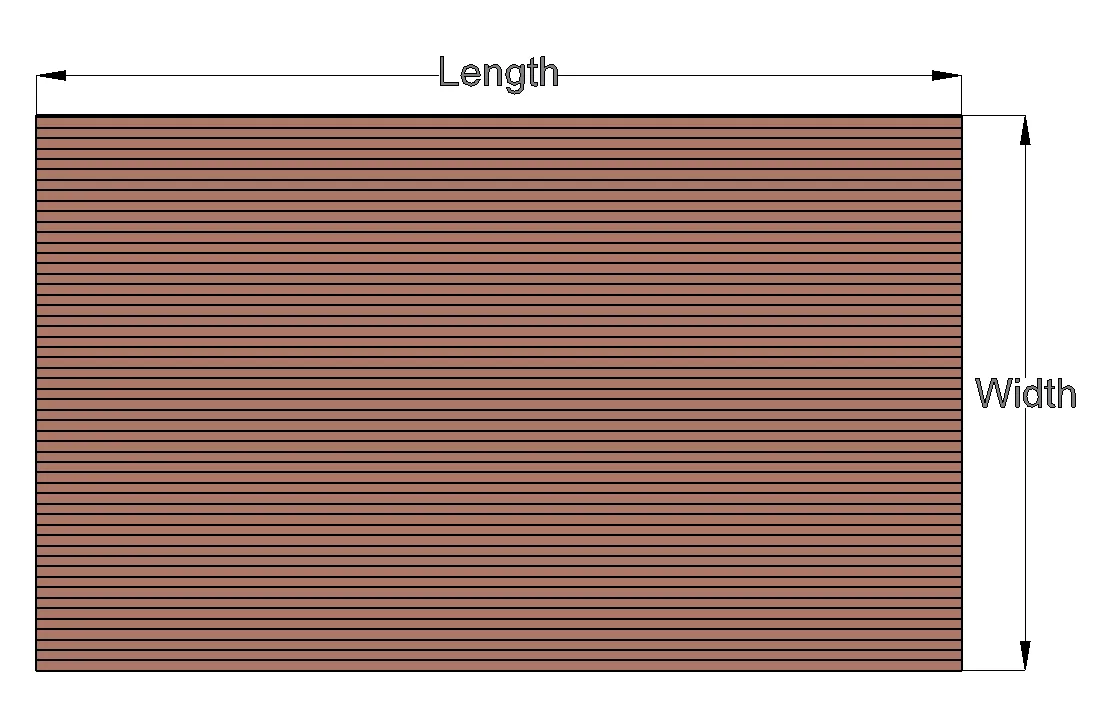

Top View
Side View.
Front View: The 3 parking bays are available from 38ft long
Isometric View: The 3 parking bays are available from 38ft long
| Width | Post Measurements | |
|---|---|---|
| Smallest Post Height (H1) | Tallest Post Height (H2) | |
| 16ft | 9ft | 11ft - 1 1/16in |
| 18ft | 9ft | 11ft - 5 1/16in |
| 20ft | 9ft | 11ft - 8 3/16in |
| 22ft | 9ft | 12ft - 1 1/16in |
| 24ft | 9ft | 12ft - 5 1/16in |
| Vehicles Qty | Minimum Pavilion Dimensions to Place a Vehicle | |
|---|---|---|
| Standard Vehicle Size | Large Vehicle Size |
|
| 1 | 14 ft Length Roof | 16 ft Width Roof |
| 2 | 20 ft Length Roof | 28 ft Width Roof |
| 3 | 38 ft Length Roof | 38 ft Width Roof |
