The Esther Scissor Truss Pavilion - Dimensions & Drawings

The Esther Scissor Truss Pavilion has dimensions in lengths from 15' to 120' and widths from 15' to 65'. The length and width are the overall roof measurements. The standard roof overhang is 12". If you need a custom size, we can do it. Just let us know.

The Esther Scissor Truss Pavilion Dimensions Example:

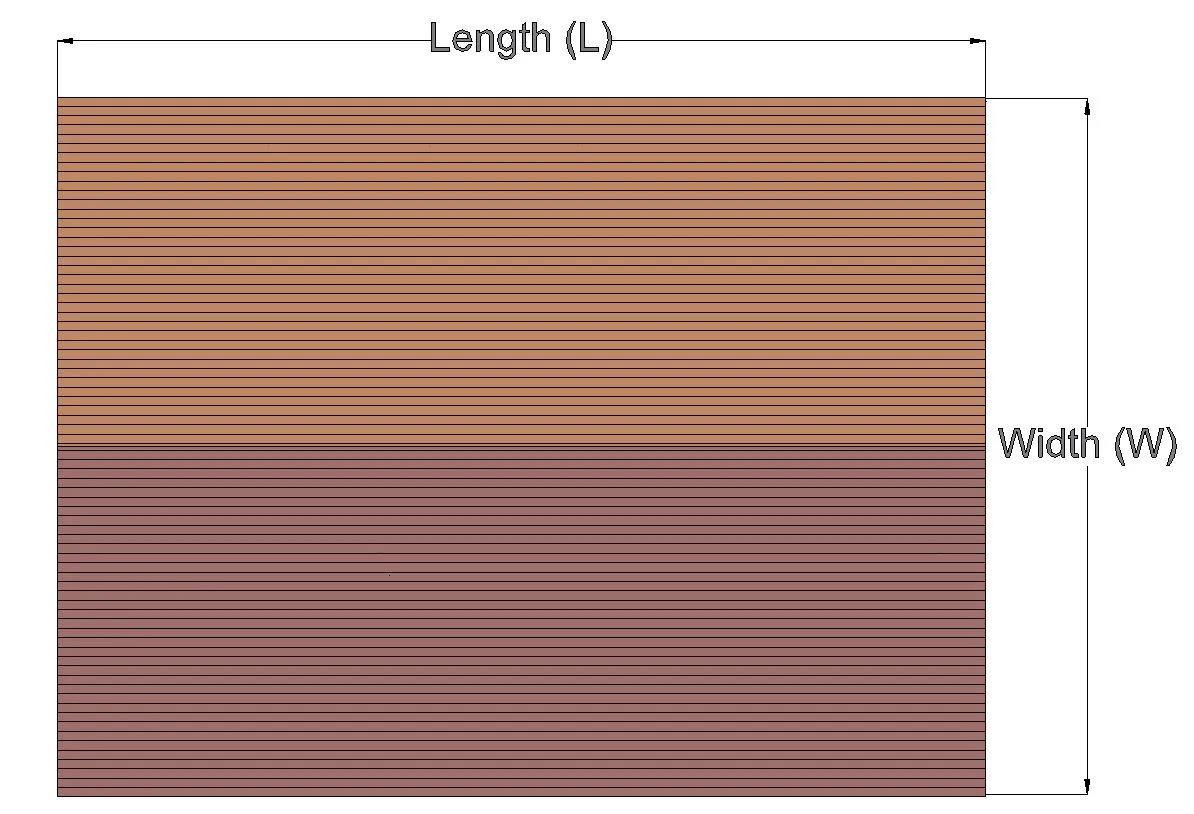

TOP VIEW

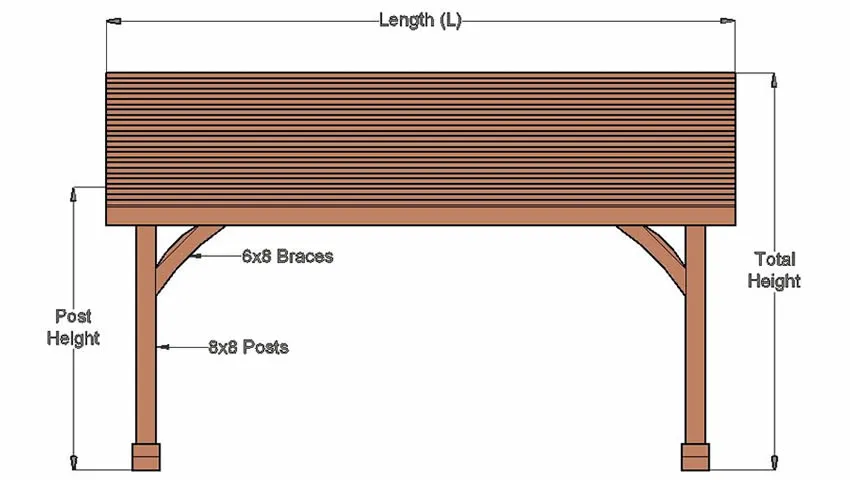

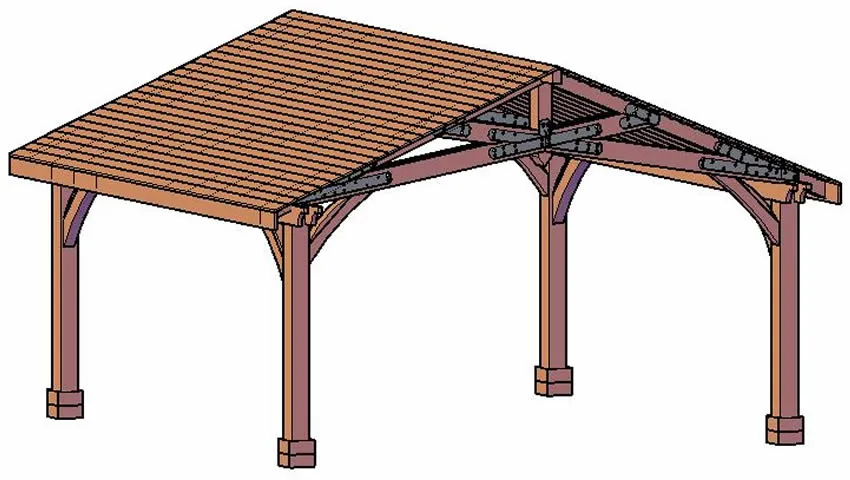

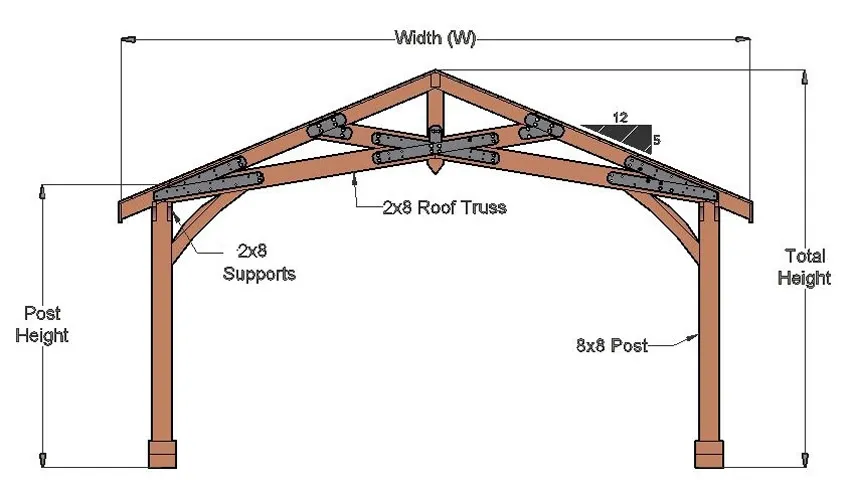

20 ft L x 20 ft W

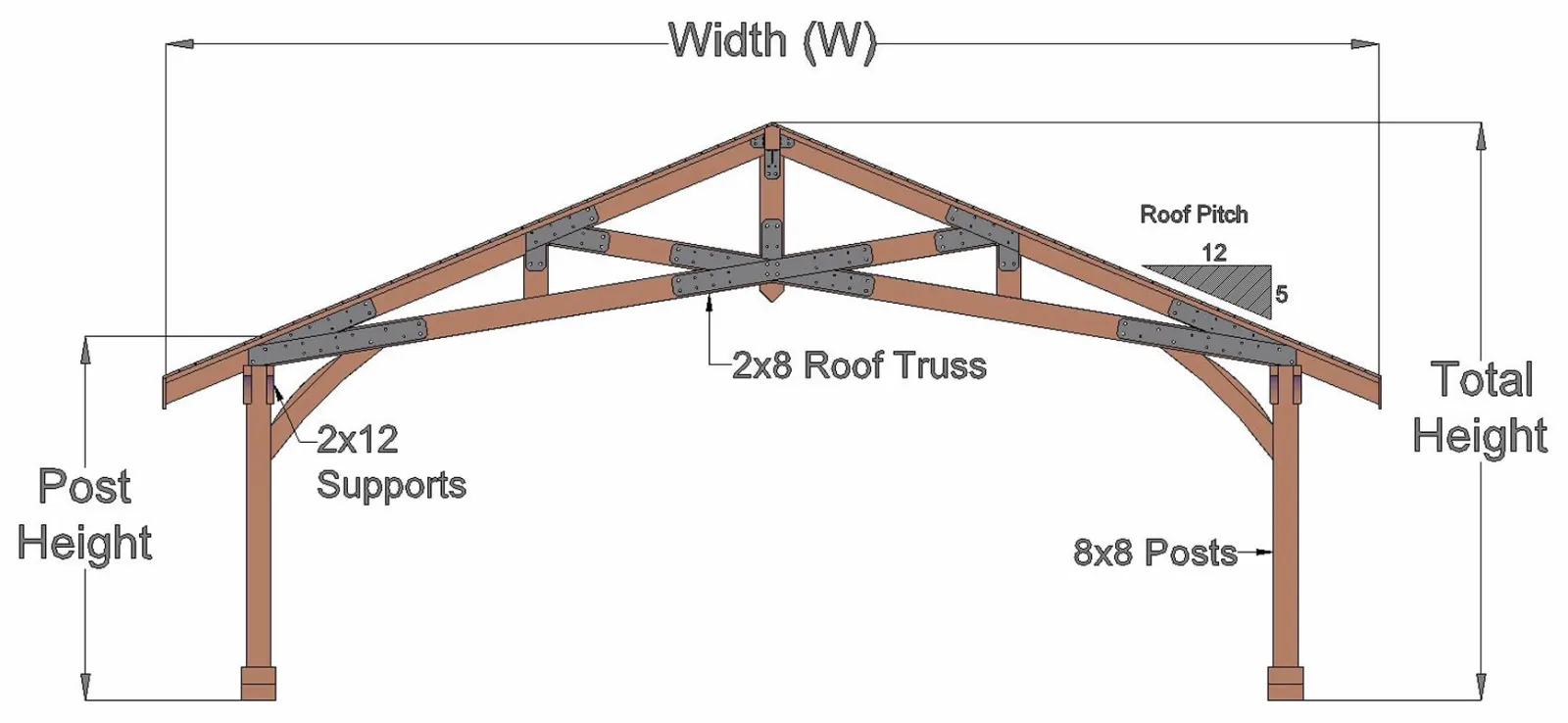

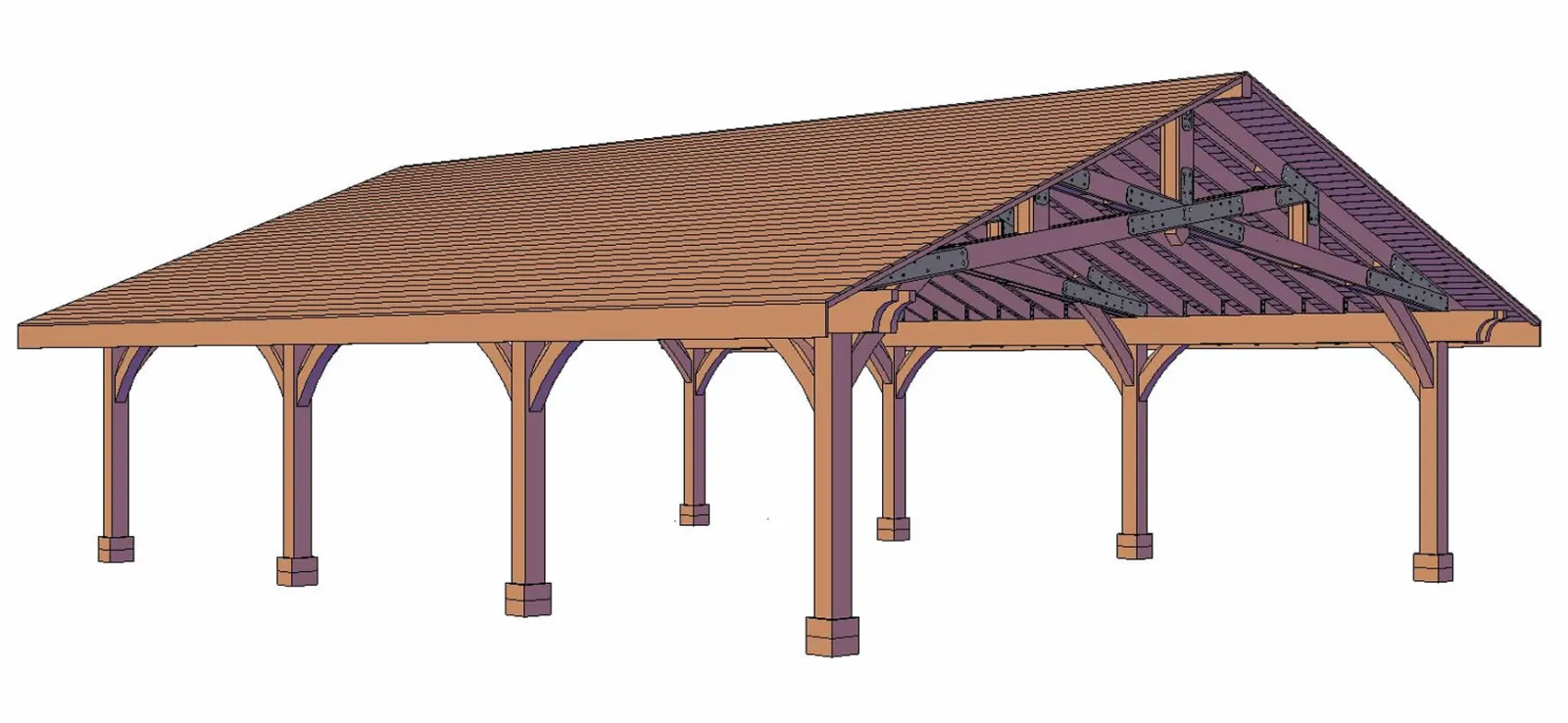

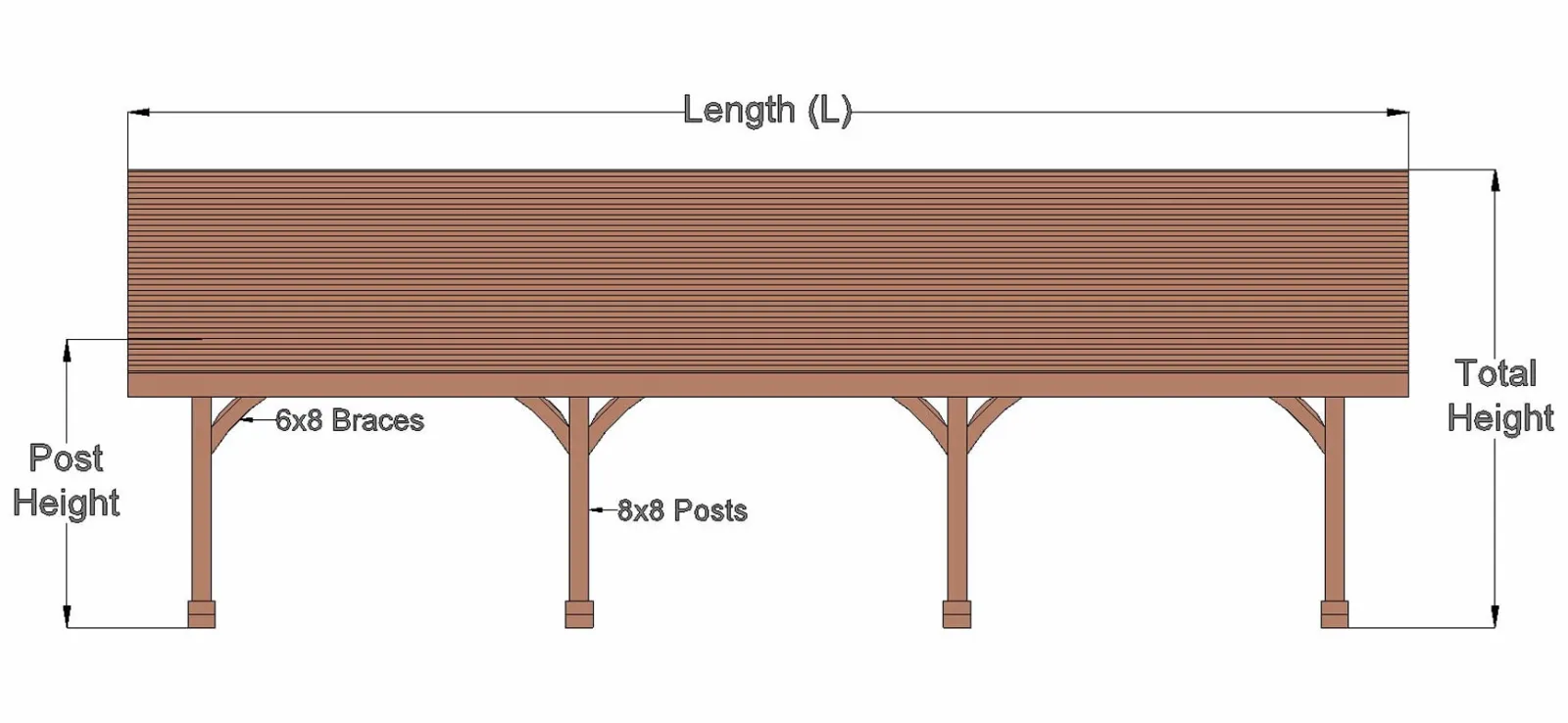

40 ft L x 30 ft W

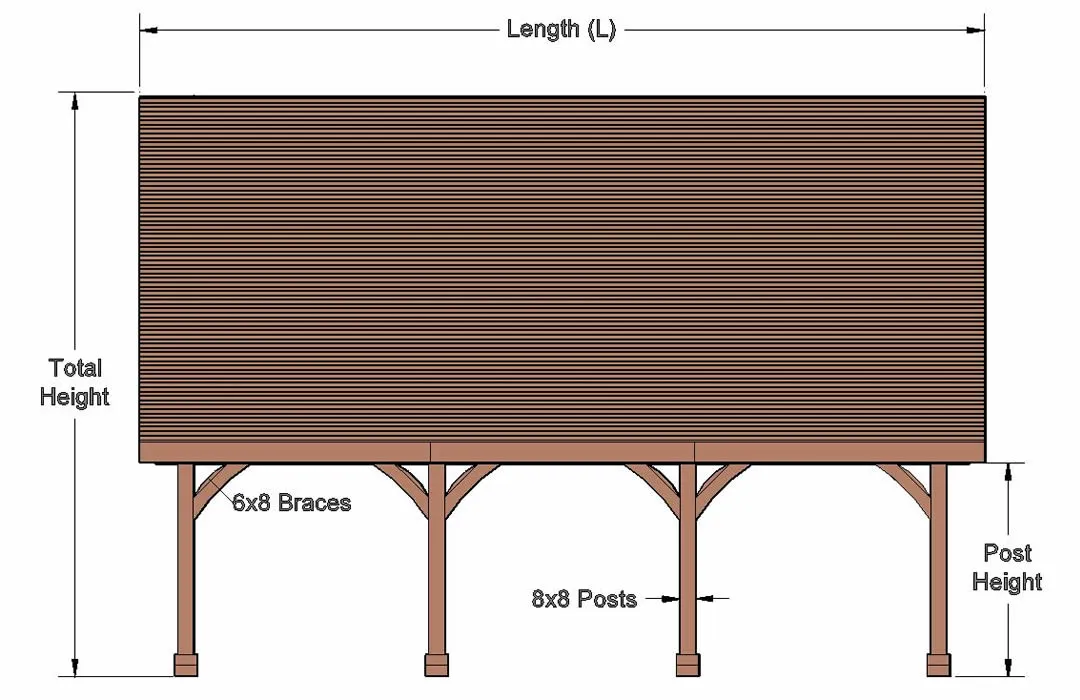

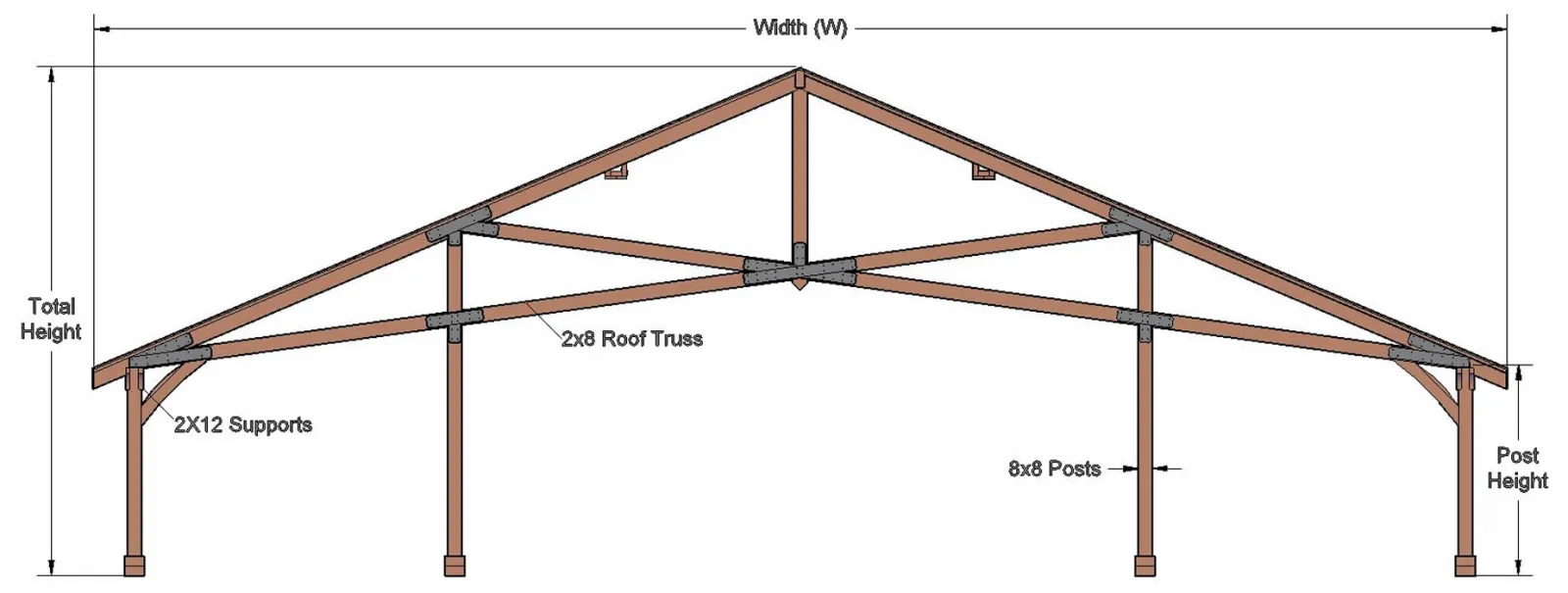

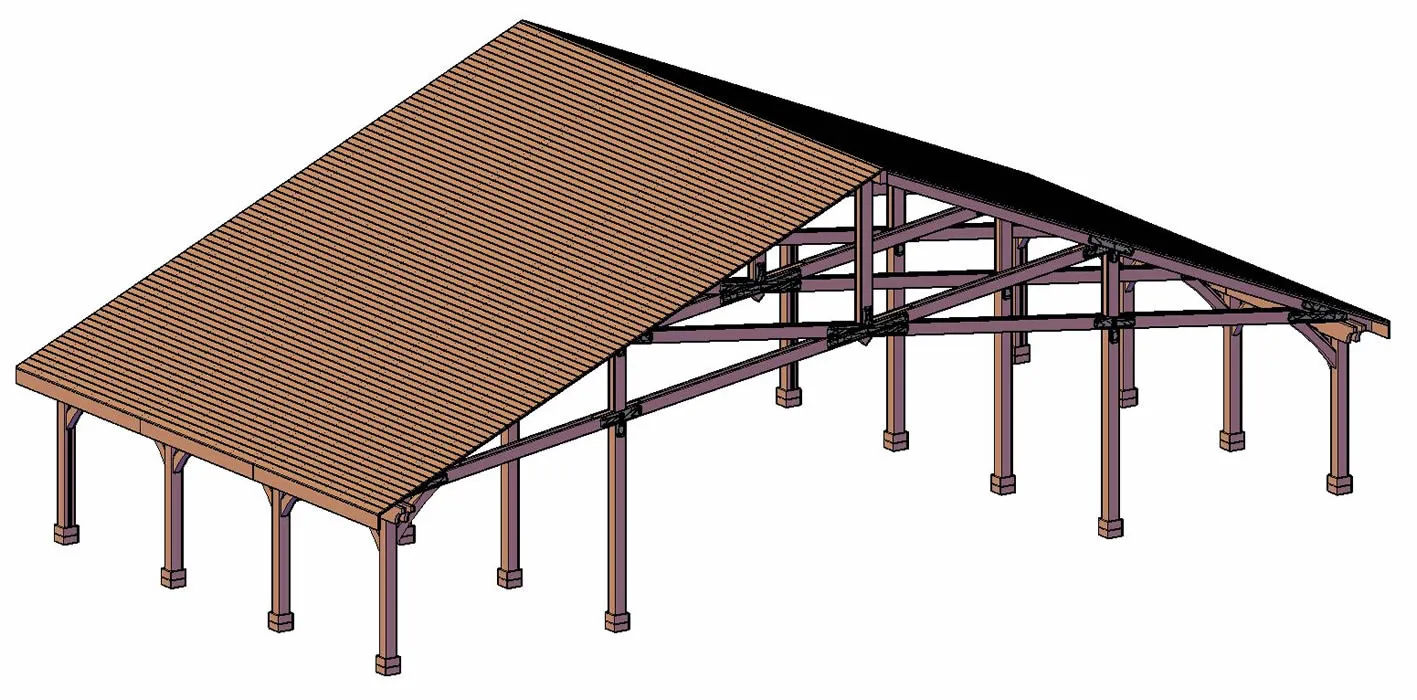

30 ft L x 63 ft W
