The San Carlos Carport Pavilion - Dimensions & Drawings

The San Carlos Pavilion Kits are available in lengths from 8' to 60' and widths from 8' to 20'. The length and width are the overall roof measurements. The standard roof overhang is 12". This Pavilion has a metal roof atop the wood timbers, no tongue and groove boards.

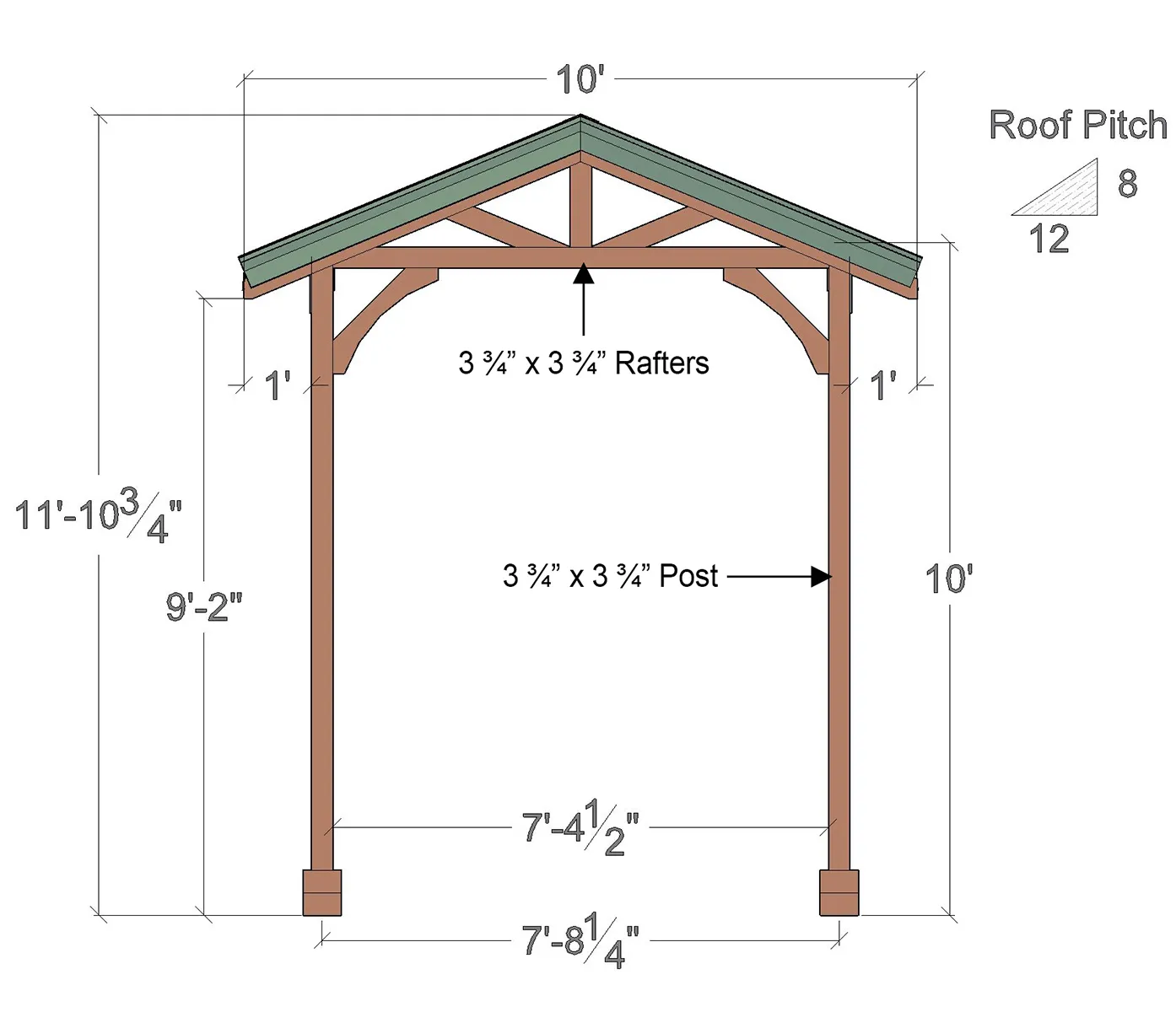

Front View

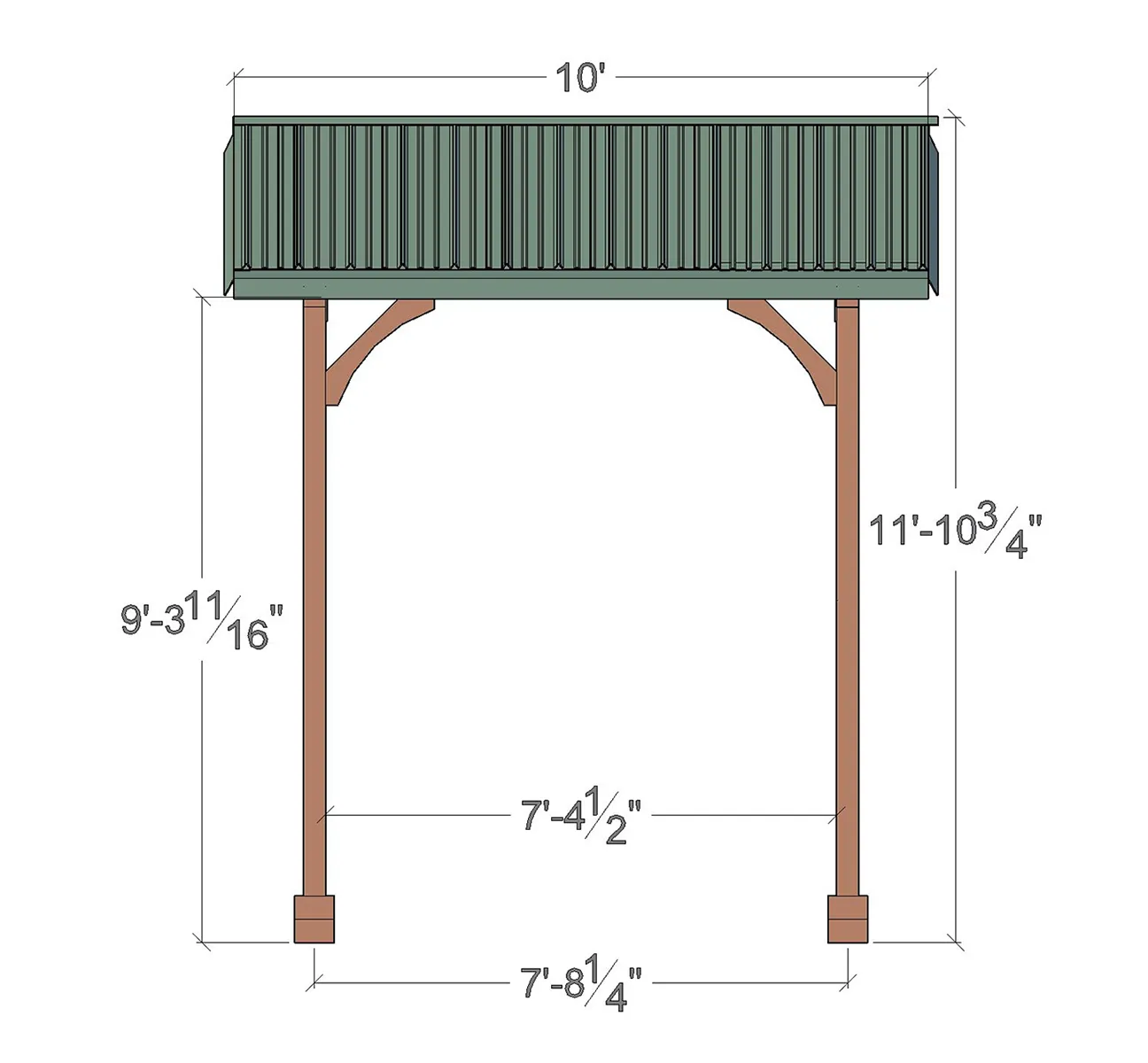

Side View

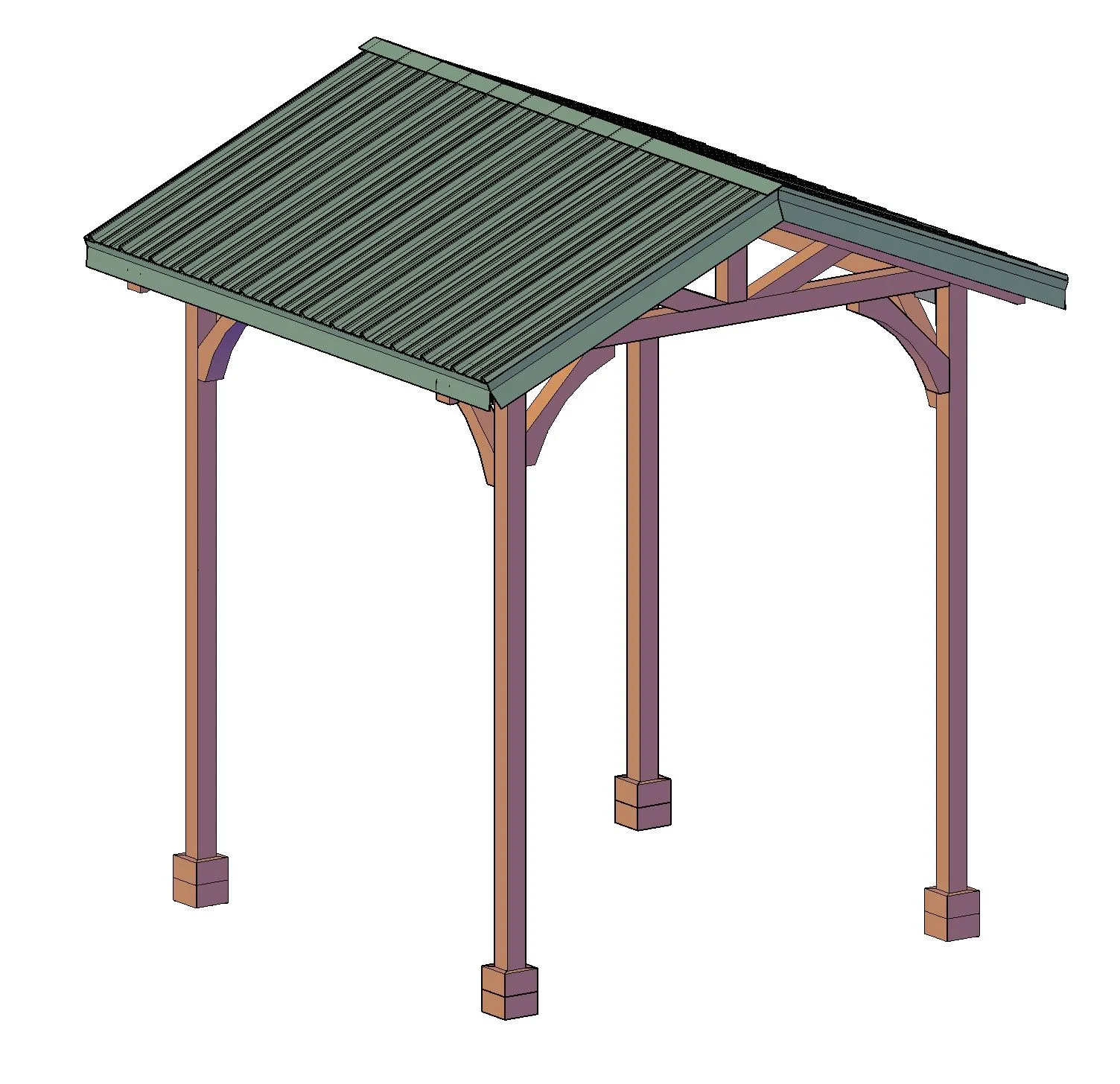

Isometrical View

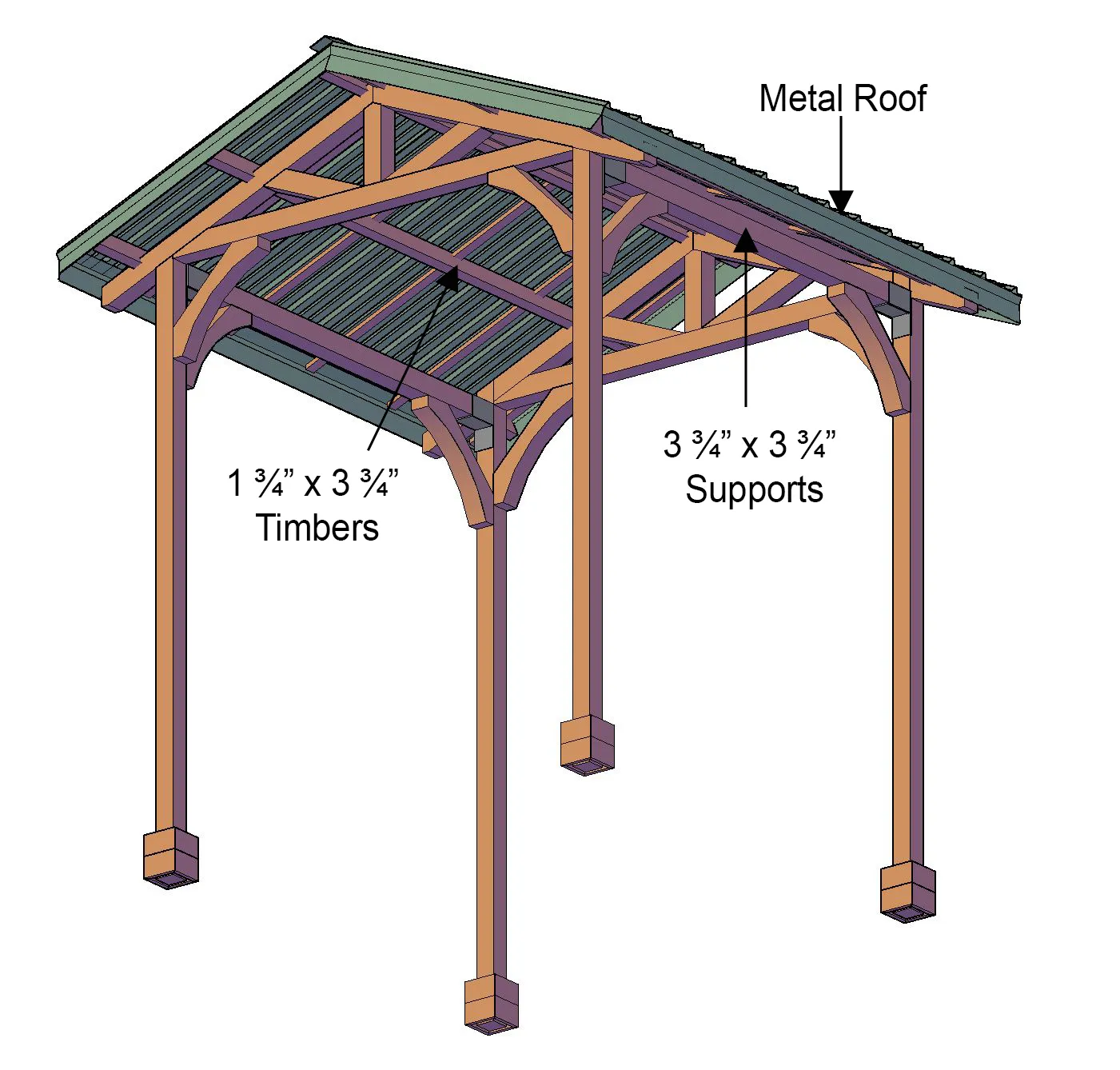

Detailed Isometrical View
