The Sunset Porch Pavilion - Dimensions & Drawings
These are the measurements of the Sunset Porch Pavilion. See price, sizes and wood options →
The Sunset Porch Pavilions are available in lengths from 8' to 60' and widths from 8' to 24'. The length and width are the overall roof measurements. The standard roof overhang is 12".
| THE SUNSET PATIO PAVILION SPECIFICATIONS TABLE | |||
|---|---|---|---|
| H1 - Posts Height (ft) | H2 - Height (ft) From Floor Up To Support Base | Width (ft) | H3 - Total Height (ft) |
| 9 | 7.8 | 8 | 10.24 |
| 9 | 7.8 | 10 | 10.57 |
| 9 | 7.8 | 12 | 10.91 |
| 9 | 7.8 | 14 | 11.24 |
| 9 | 7.8 | 15 | 11.41 |
| 9 | 7.8 | 16 | 11.58 |
| 9 | 7.8 | 18 | 11.91 |
| 9 | 7.8 | 20 | 12.25 |
| 9 | 7.8 | 22 | 12.58 |
| 9 | 7.8 | 24 | 12.92 |
The Sunset Porch Pavilion - Attached by Length Size

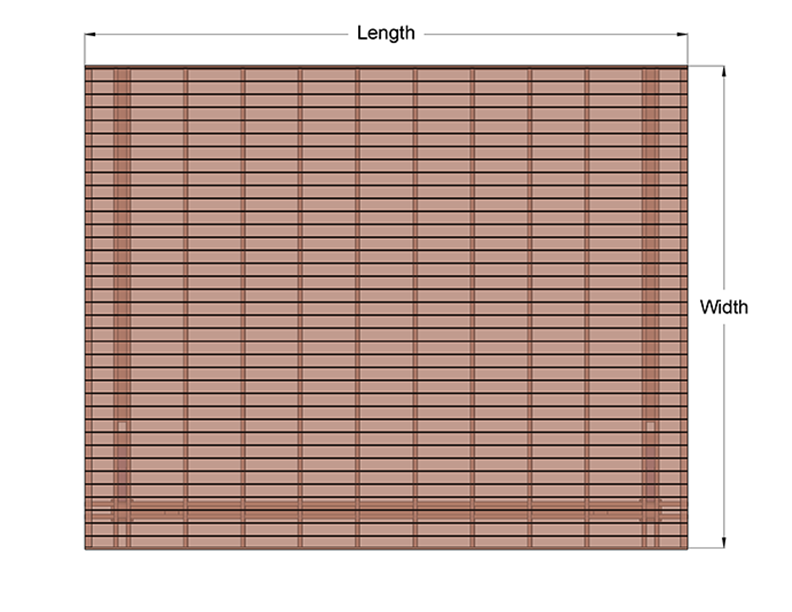

Top View

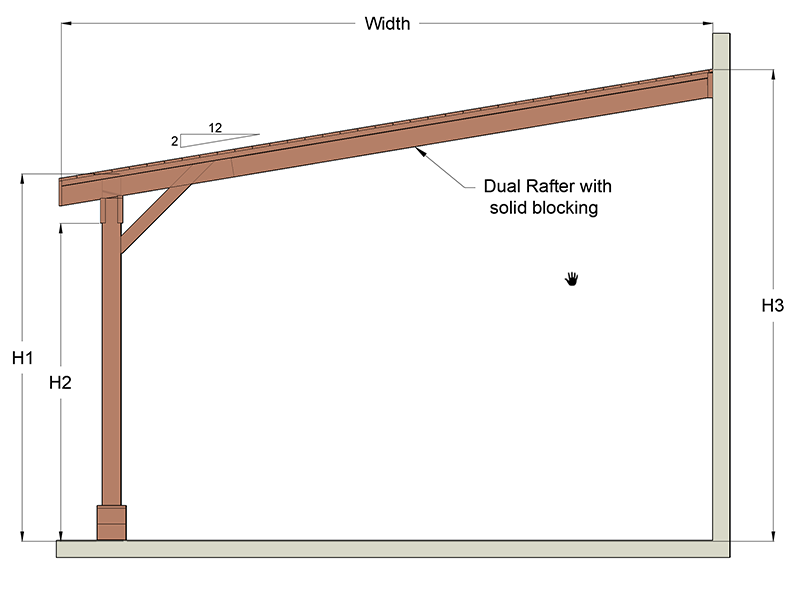

Length View

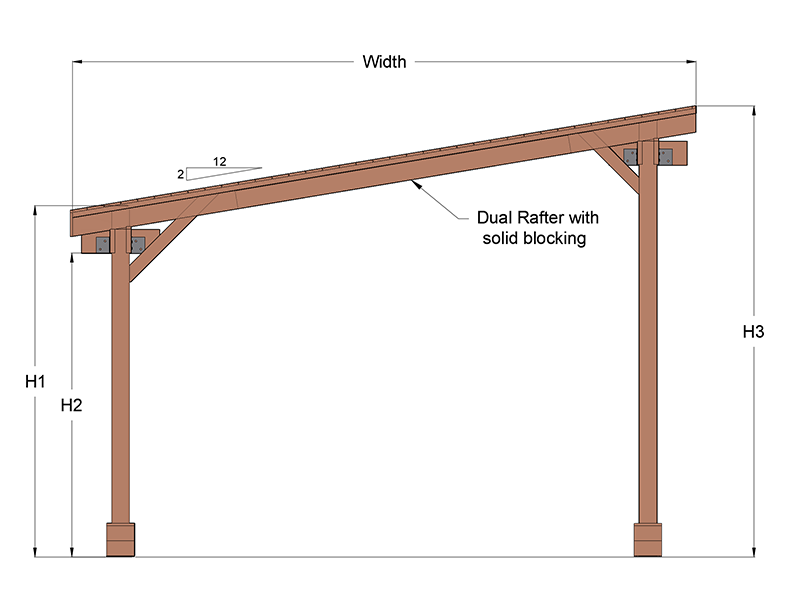

Width View

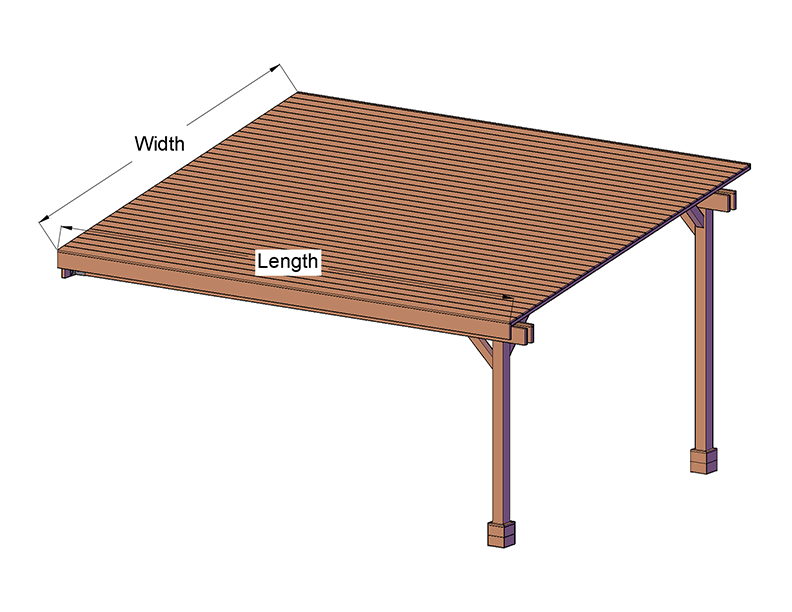

Isometric View
The Sunset Porch Pavilion - Attached by Length Size

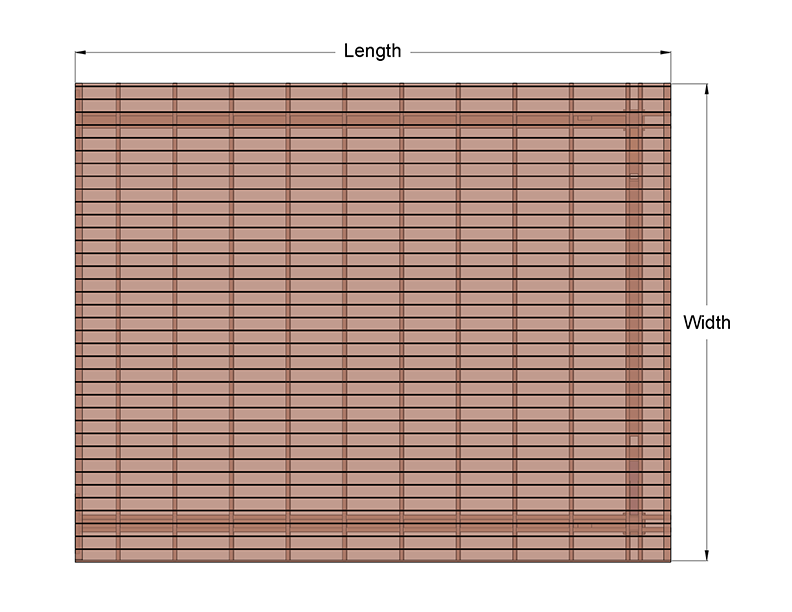

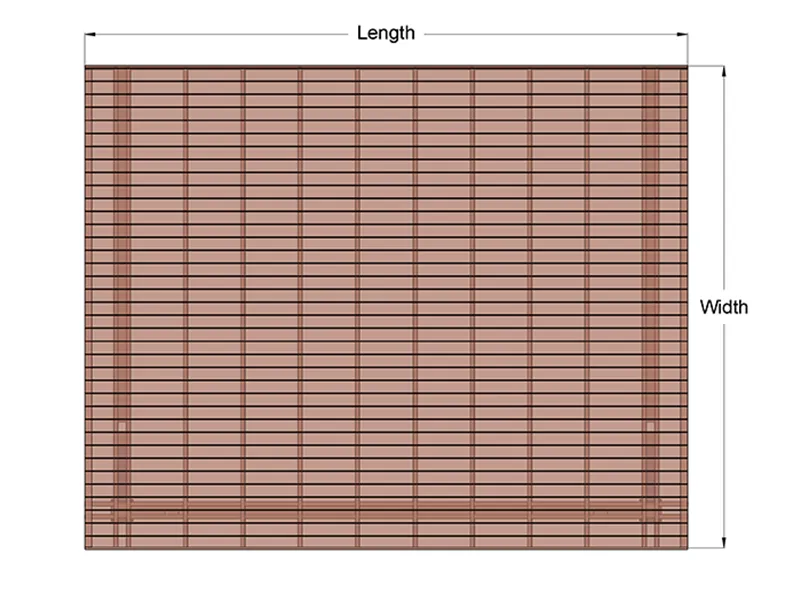

Top View

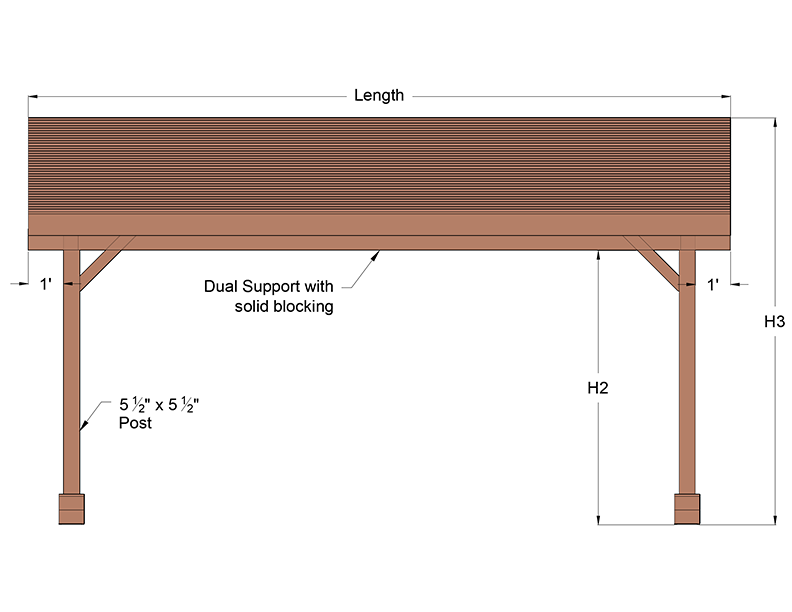

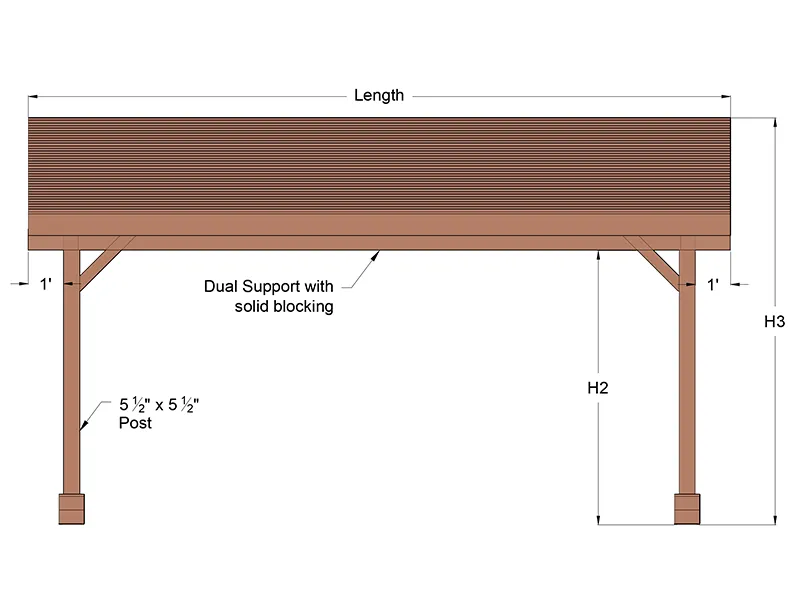

Length View

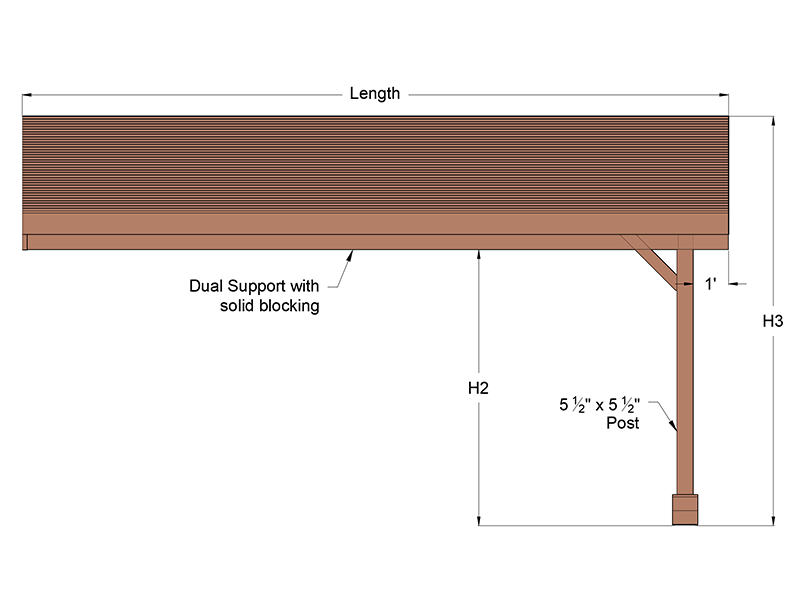

Width View

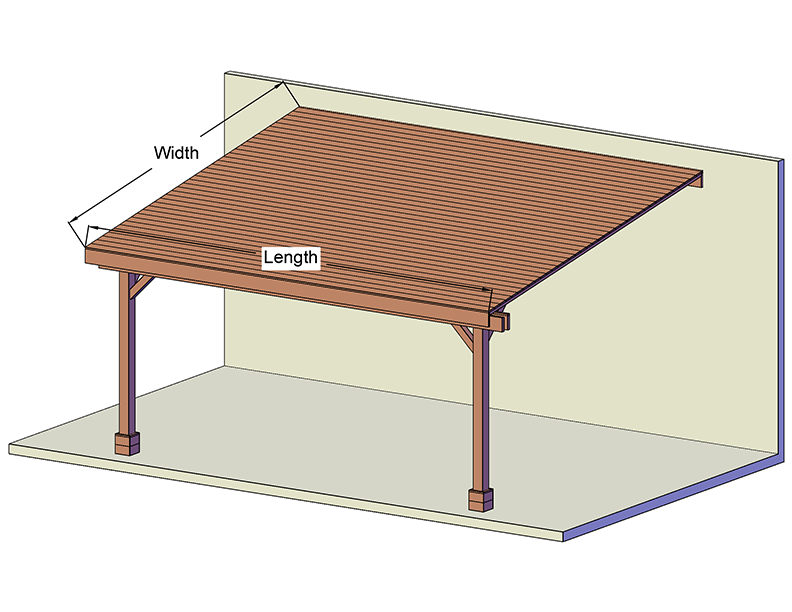

Isometric View
For additional long-term structural strength, we add solid timber blocking in-between the dual support timbers as shown in the drawing below. With this blocking, the dual supports are in effect converted into one solid 7 1/4 inch x 6 1/2 inch timber as shown below:
