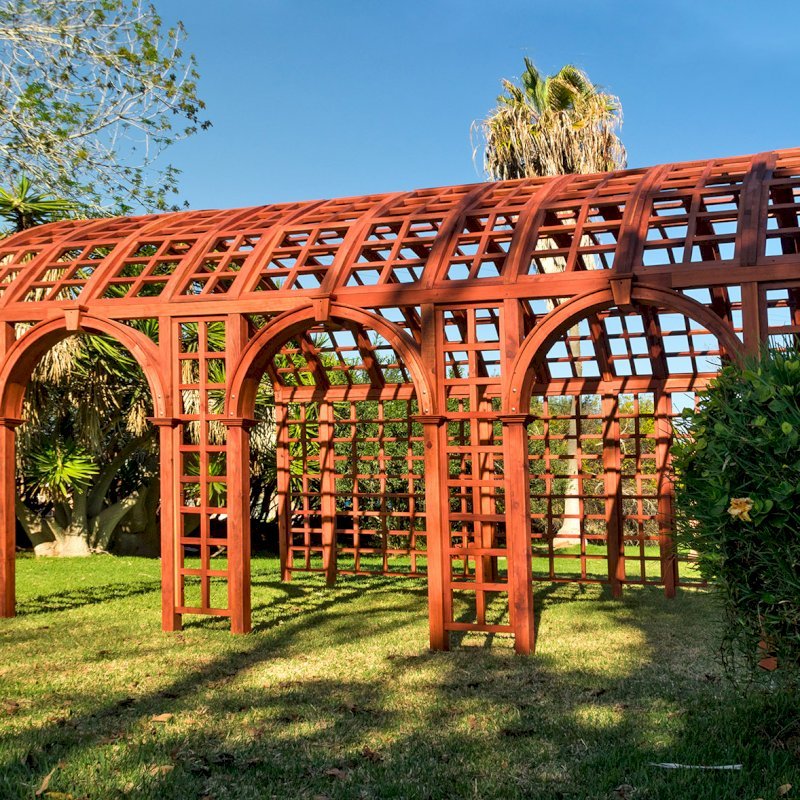

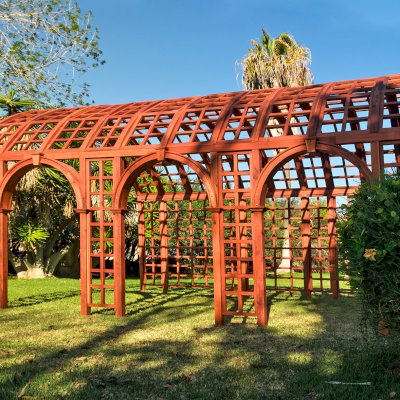

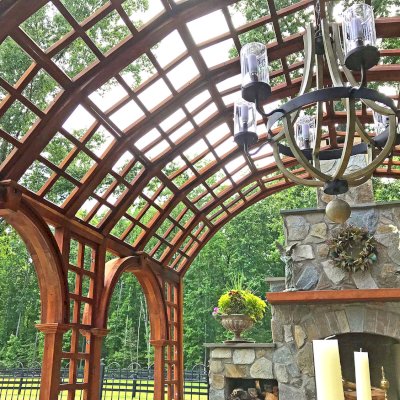

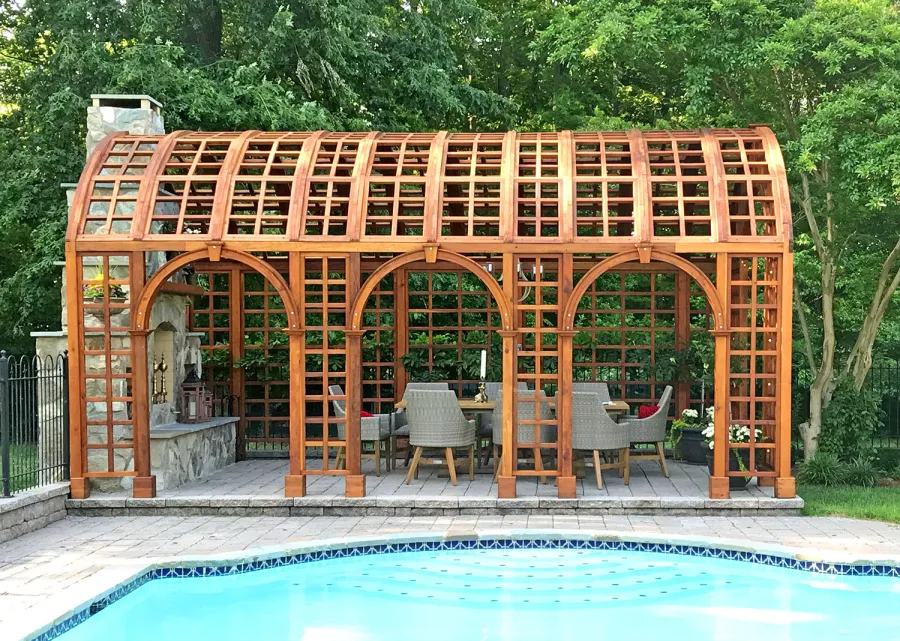

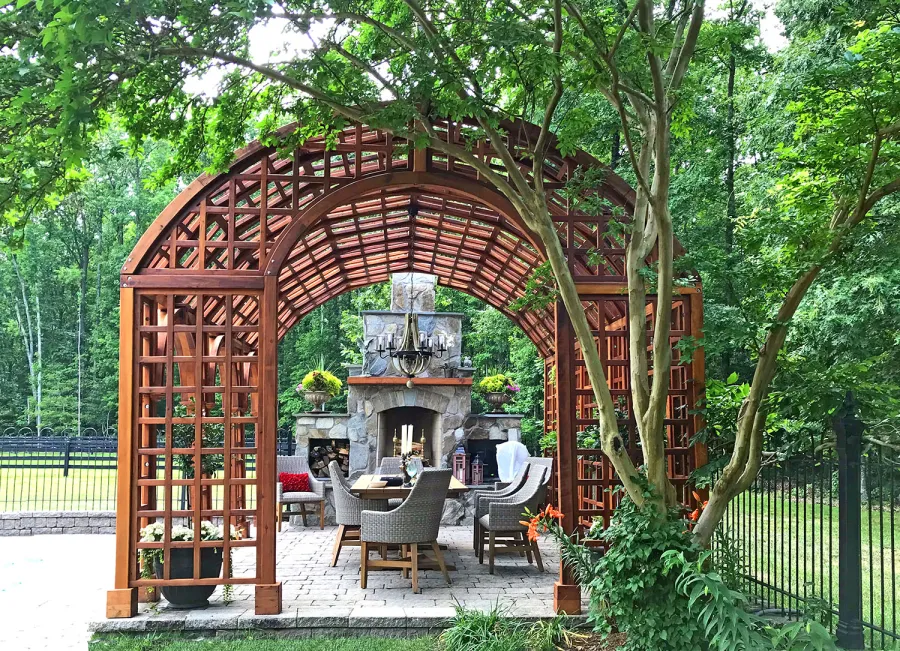

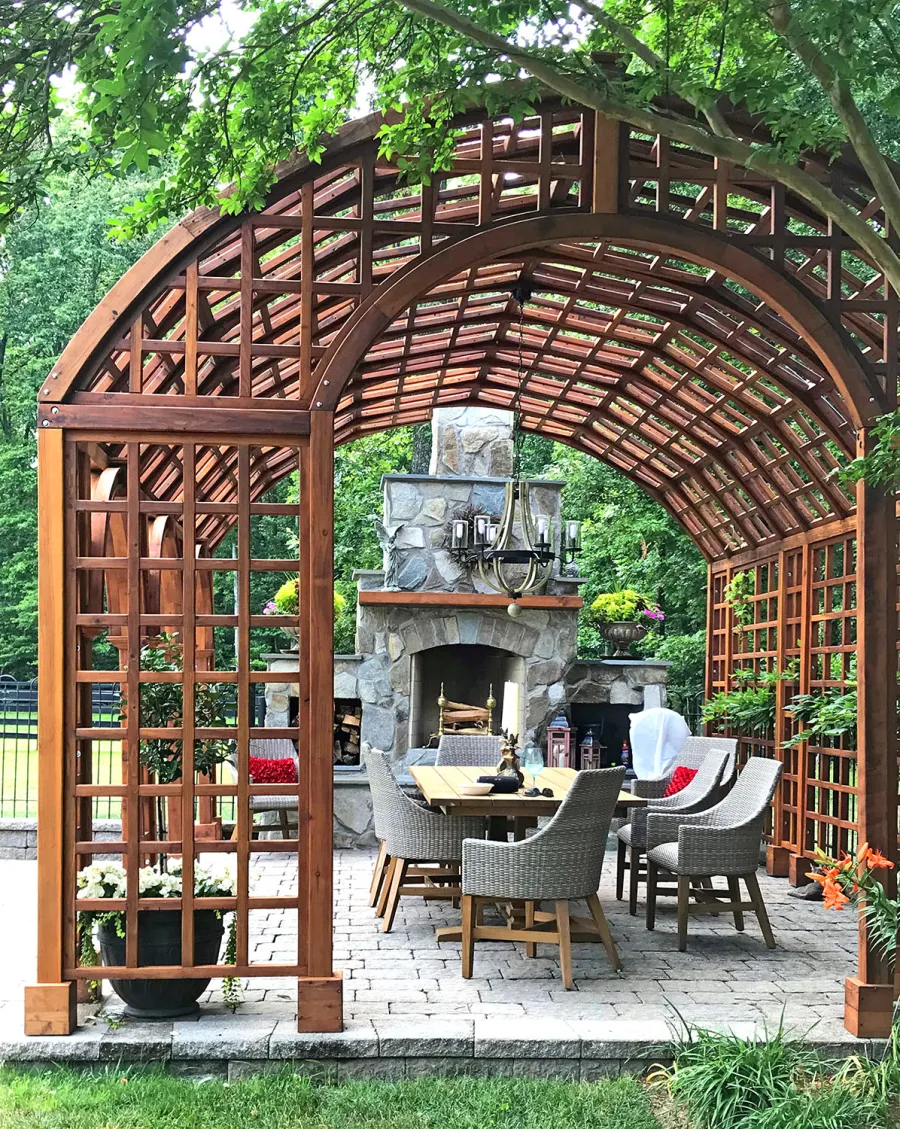

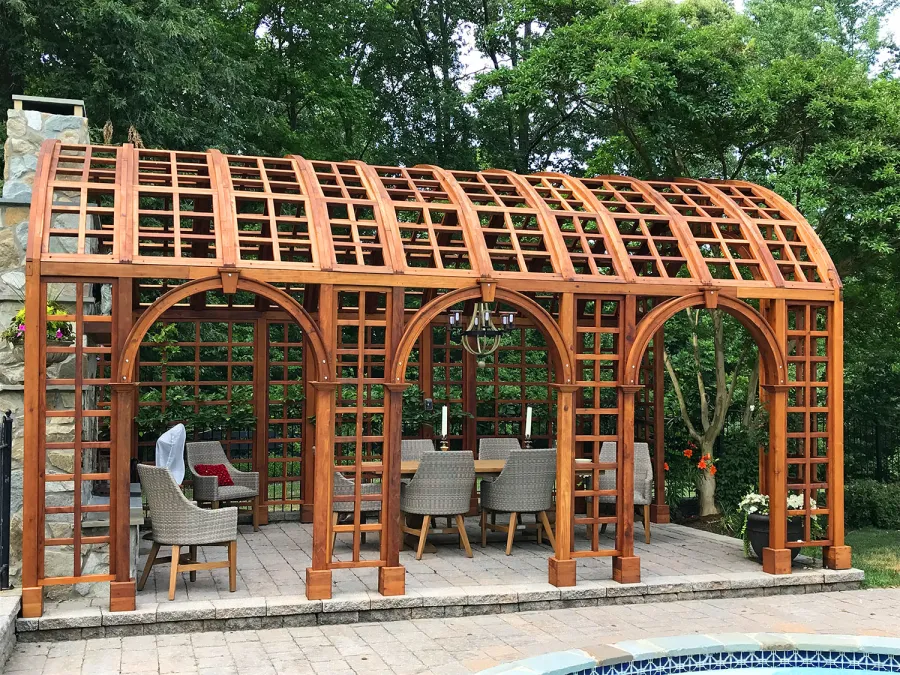

-800x800.jpg "The Victorian Trellis (Options: 22' L x 14' W, Combination of Arcs and Lattice Panels, Mature Redwood, No Rain Guard, 9' Post Height, No Electrical Wiring Trim, Post Anchor Kit for Stone, No Ceiling Fan Base, Transparent Premium Sealant). Photo Courtesy of JR and Trish West of King George, Virginia.")

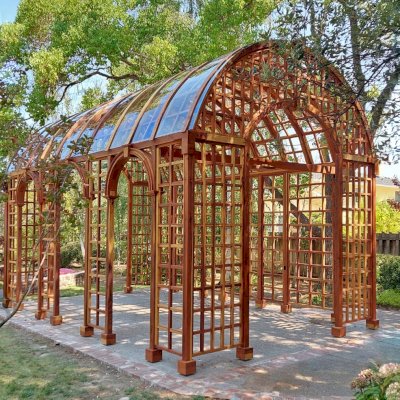

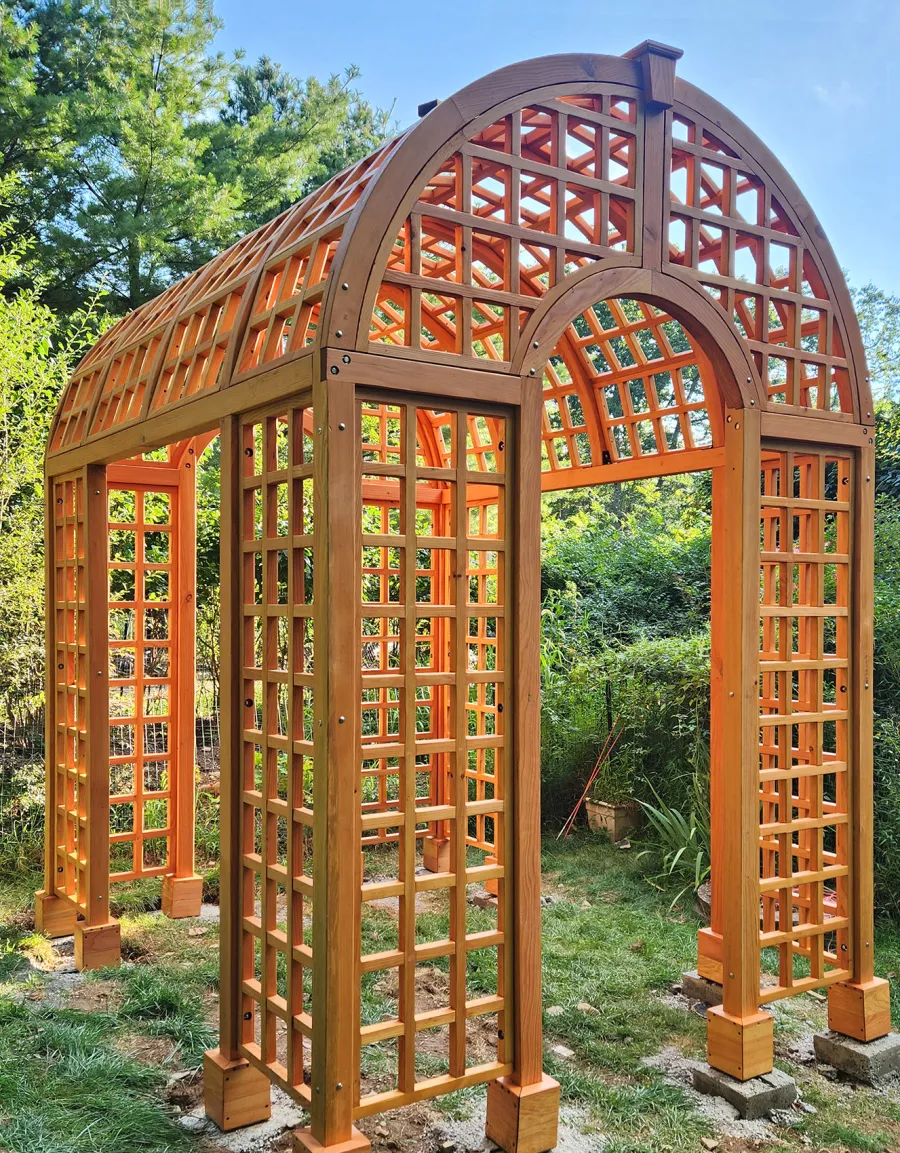

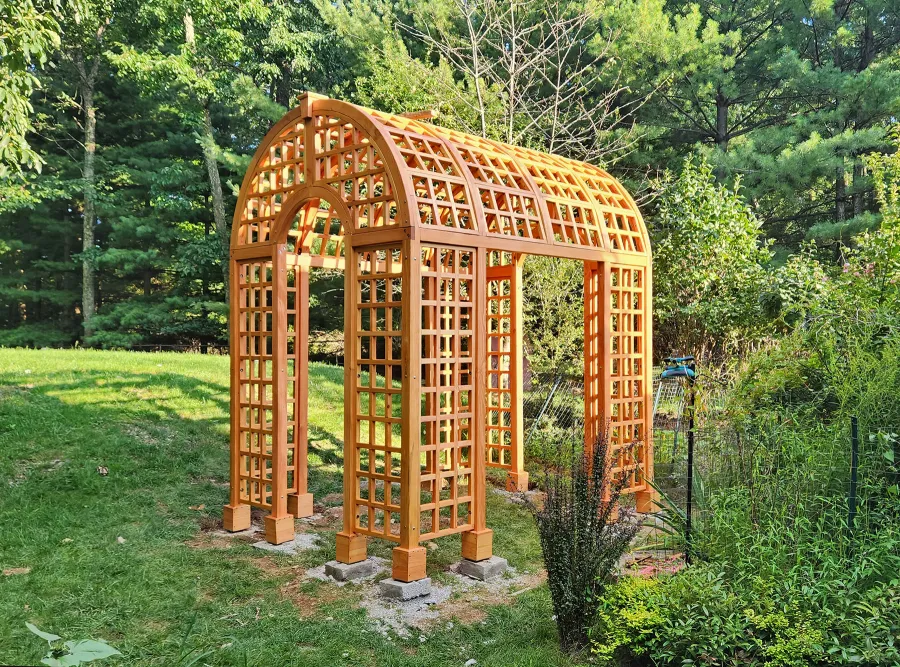

![The Victorian Trellis (Options: 22' L x 14' W, Victorian Arcs in One Side [3 Arcs], California Redwood, with Rain Guard, 9' Post Height, Electrical Wiring Trim for 1 Post, No Ceiling Fan Base, Transparent Premium Sealant).](https://www.foreverredwood.com/image/cache/catalog/product/the-virginian-victorian-trellis-pergola/DOUGLAS BLATZ1-800x800.jpg "The Victorian Trellis (Options: 22' L x 14' W, Victorian Arcs in One Side [3 Arcs], California Redwood, with Rain Guard, 9' Post Height, Electrical Wiring Trim for 1 Post, No Ceiling Fan Base, Transparent Premium Sealant).")
![The Victorian Trellis (Options: 22' L x 14' W, Victorian Arcs in One Side [3 Arcs], California Redwood, with Rain Guard, 9' Post Height, Electrical Wiring Trim for 1 Post, No Ceiling Fan Base, Transparent Premium Sealant).](https://www.foreverredwood.com/image/cache/catalog/product/the-virginian-victorian-trellis-pergola/DOUGLAS BLATZ3-800x800.jpg "The Victorian Trellis (Options: 22' L x 14' W, Victorian Arcs in One Side [3 Arcs], California Redwood, with Rain Guard, 9' Post Height, Electrical Wiring Trim for 1 Post, No Ceiling Fan Base, Transparent Premium Sealant).")
![The Victorian Trellis (Options: 22' L x 14' W, Victorian Arcs in One Side [3 Arcs], California Redwood, with Rain Guard, 9' Post Height, Electrical Wiring Trim for 1 Post, No Ceiling Fan Base, Transparent Premium Sealant).](https://www.foreverredwood.com/image/cache/catalog/product/the-virginian-victorian-trellis-pergola/DOUGLAS BLATZ2-800x800.jpg "The Victorian Trellis (Options: 22' L x 14' W, Victorian Arcs in One Side [3 Arcs], California Redwood, with Rain Guard, 9' Post Height, Electrical Wiring Trim for 1 Post, No Ceiling Fan Base, Transparent Premium Sealant).")

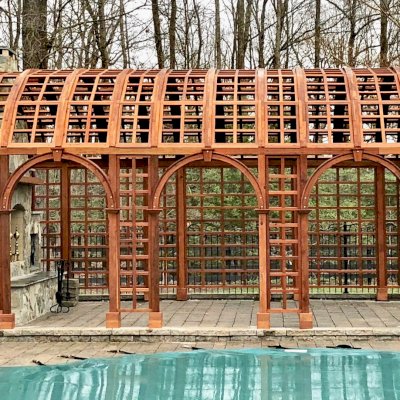

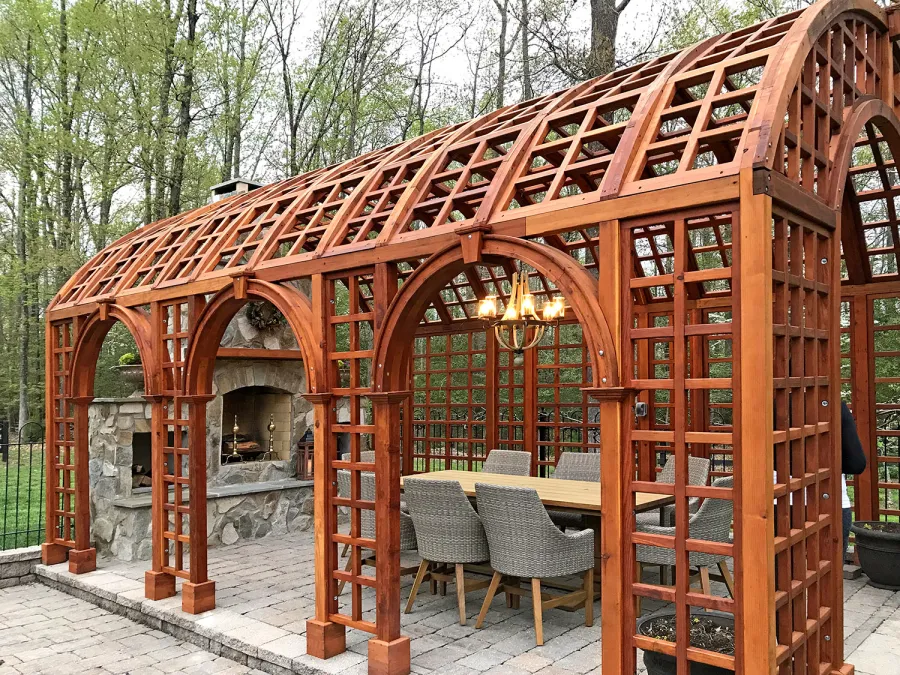

.jpg "The Victorian Trellis (Options: 22' L x 14' W, Combination of Arcs and Lattice Panels, Mature Redwood, No Rain Guard, 9' Post Height, No Electrical Wiring Trim, Post Anchor Kit for Stone, No Ceiling Fan Base, Transparent Premium Sealant). Photo Courtesy of JR and Trish West of King George, Virginia.")

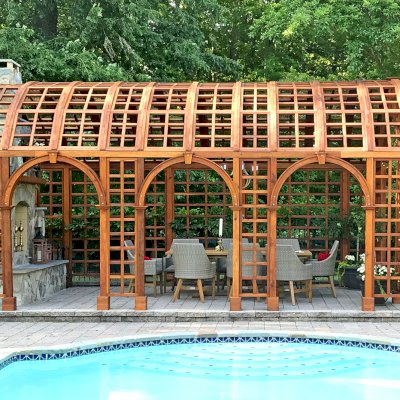

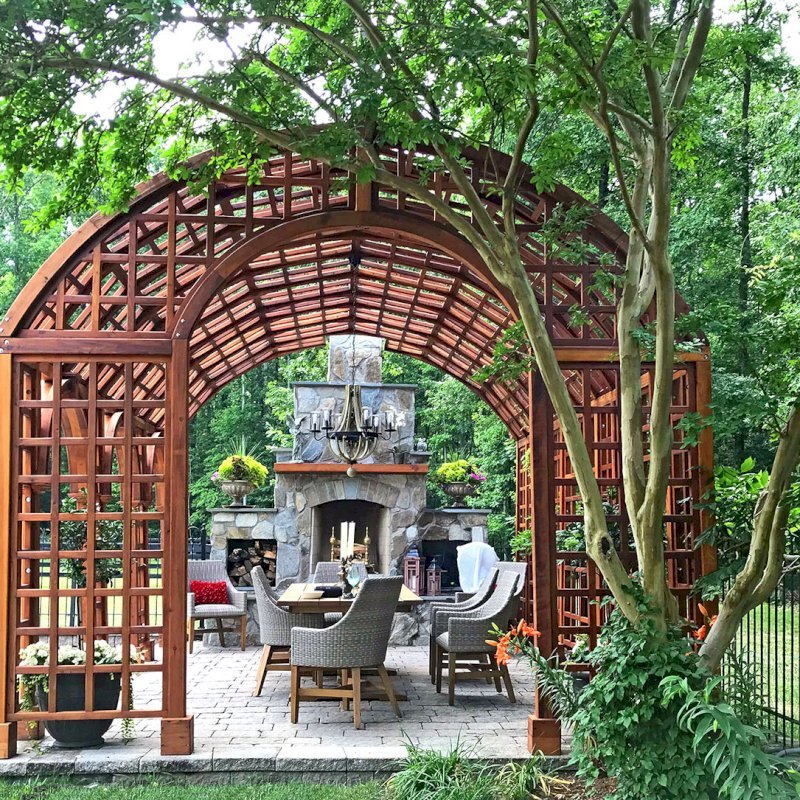

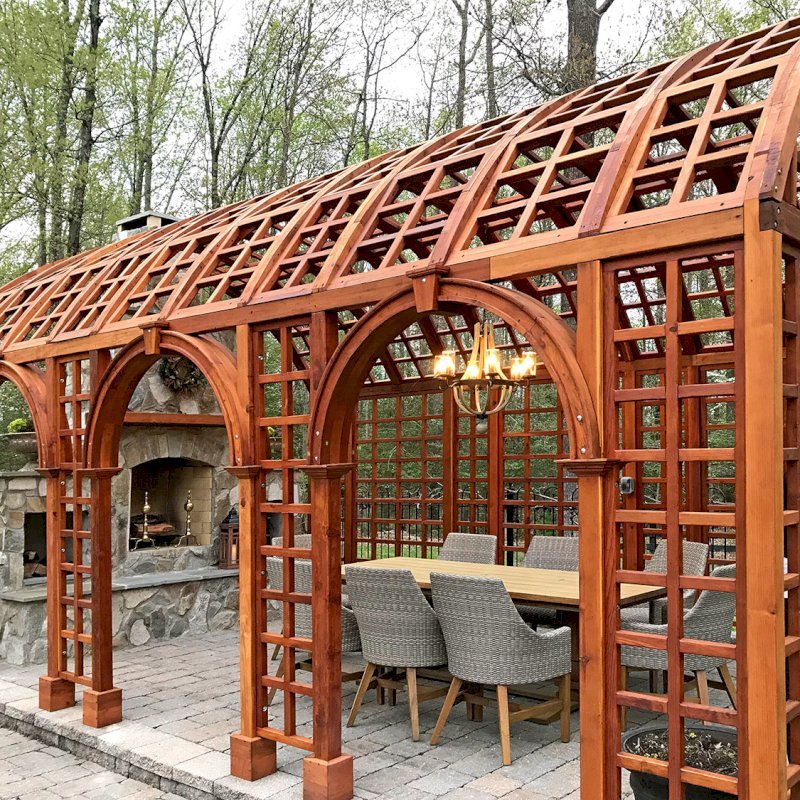

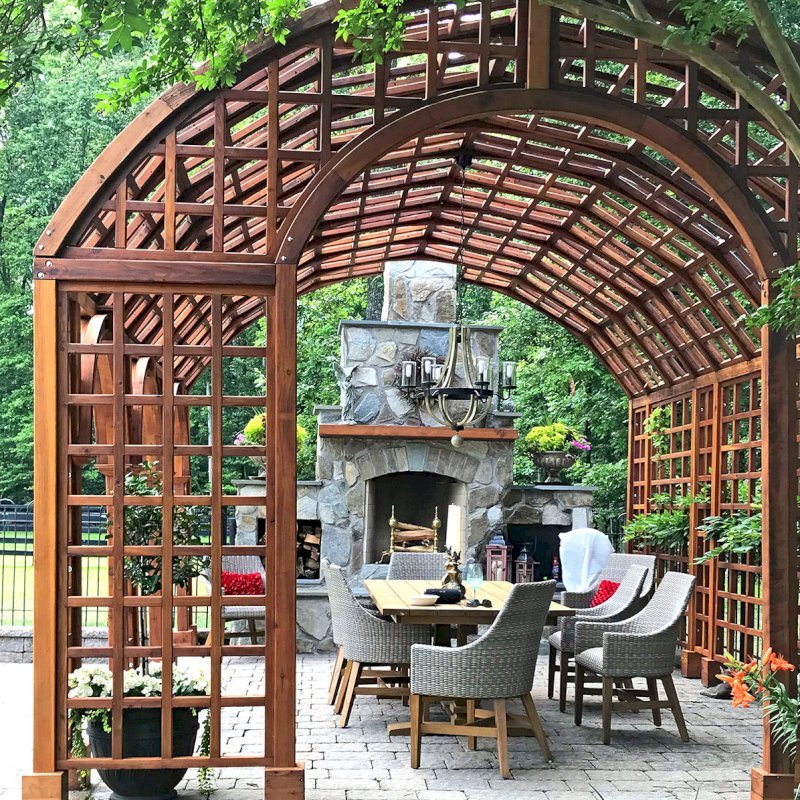

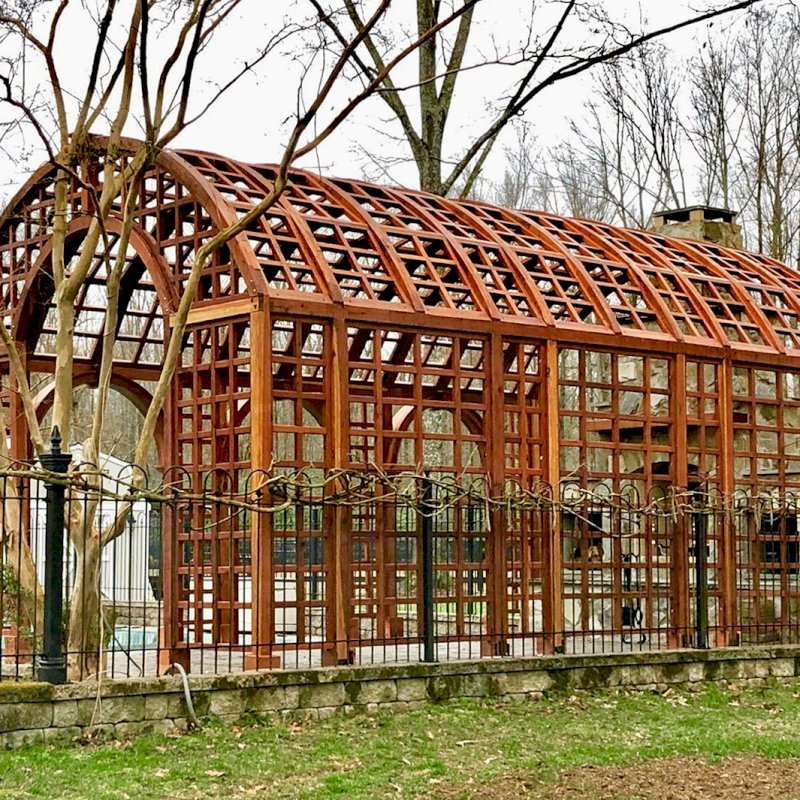

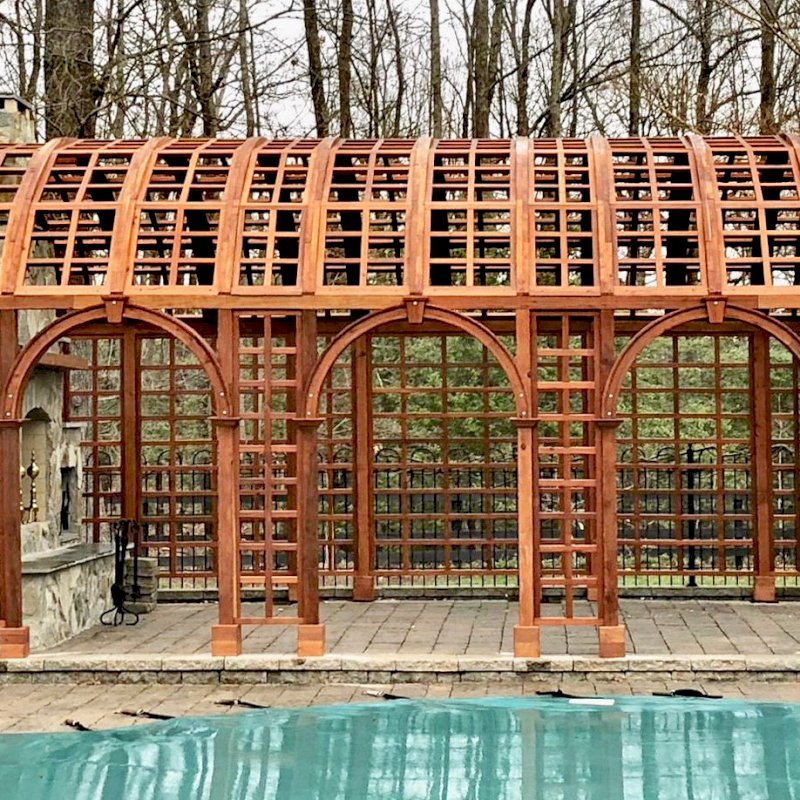

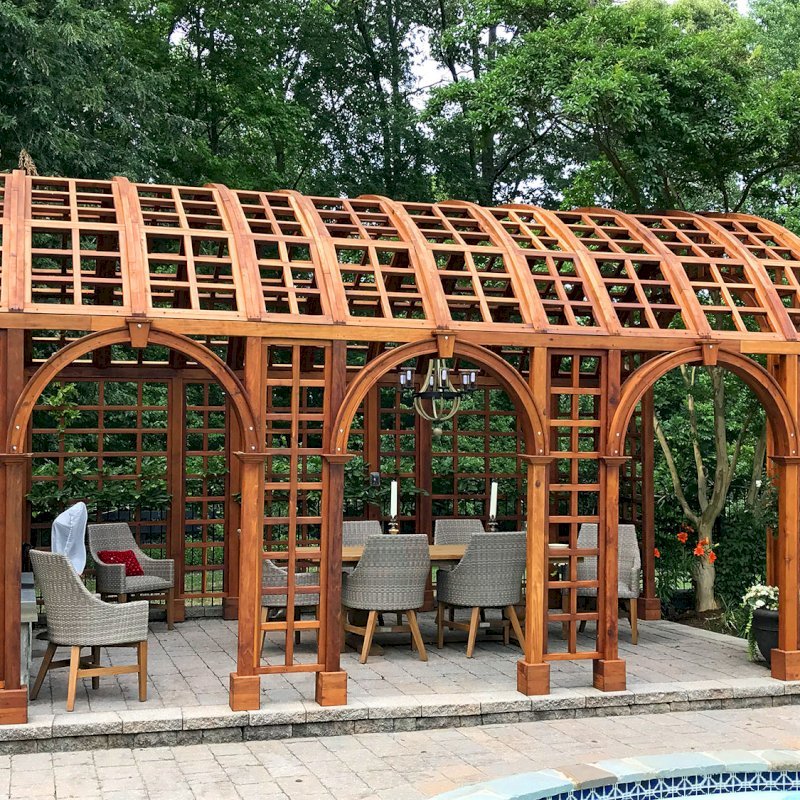

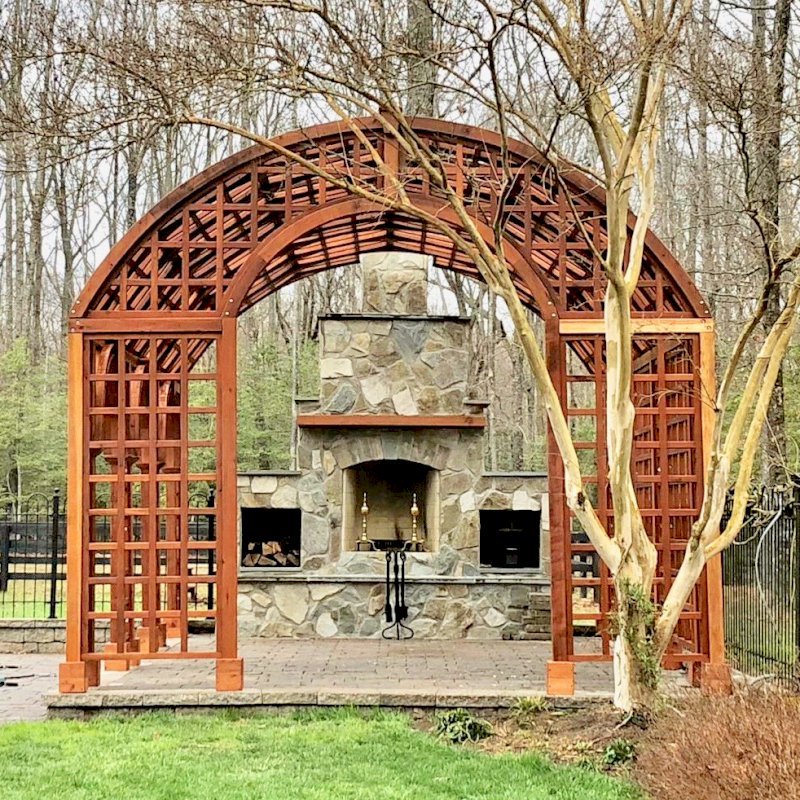

Walk back in time to when Queen Victoria was Sovereign and electricity the wonder of the times. As a respectable member of society, you understood the importance of designing and placing your Victorian Trellis as a focal point of your estate’s sprawling lawn. Of course, you had a talented carpentry crew custom build it to sit perfectly within your lovely manicured garden.
- Easy Sizing & Options: You don't have to figure it all out beforehand. Just estimate the size you think will work for the space. Then, check the wood grades and other options in the Build it Your Way section to the right of the large photo above. Once we receive your order, we will email you a detailed drawing so you can then see what needs fine tuning. We will stay with your ideas until you have something you completely love. Every detail can be customized as needed. If you want to add a detail or a size you do not see, just say the word.
- Built to Last: We are a forest restoration company. We steward our lands and from the limited amount of lumber we harvest each year and hand select the best, fattest timbers for your project. Everything is ridiculously over built. All real wood and steel - no plastic/vinyl/ compressed glue/plywood or flimsy hardware or nails. We have over 25 years experience building, shipping and installing shade structures all over the country.
- Details Matter: All joints are notched/cross-notched so your pergola will never sag, warp, twist, or shrink. Each timber is fully seasoned and dry and finely sanded to a smooth to the touch feel. We use the best sealants on the market. We make the best wood shade structures you can buy. Check the competition carefully. Does any other manufacturer offer up to 20 year decay warranties?

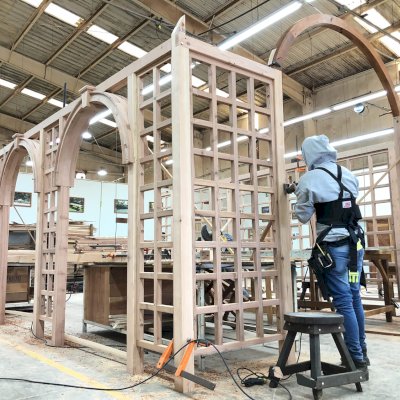

- You Install or We Install?: Once you sign off on your drawings, your Arched Pergola kit is fully erected and finished in the shop for easy re-assembly. All the stainless steel hardware is included. Just bolt the timbers and panels back together. Most kits go back up in 6 to 8 hours with one helper. And, if you do not want to do the work, we can send our install team anywhere in the U.S.
- Turnaround Time & Financing: We can build in 2 to 3 weeks, but we recommend ordering your pergola kit 2 to 3 months in advance to have time to fine tune the details via the drawings. You can also take advantage of our 1/3rd deposit option on site to spread out the cash via a couple monthly payments.
- Questions? - Download the ebook "Everything you Wanted to Know about Pergolas" for answers to frequently asked questions or please contact our Pergola Advisor.
Our pergolas kits are built without synthetic materials, and will hold their shape and durability for much longer than any other outdoor furniture on the market today. We offer free shipping in the continental US, and can either send you a kit to put together at home, or an installation team that will put the kit together for you, and install it as desired.
THE VICTORIAN TRELLIS SPECIFICATIONS (PDF DOWNLOAD)
GENERAL INFORMATION ABOUT PERMITTING FOR PERGOLAS AND PAVILIONS
Specifications has the following sections, any of which you may go to directly by clicking on it:
DIMENSIONS & DRAWINGS
We can customize our Pergolas to suit your needs. Just tell us what size and what options you want. Prior to building, we provide our customers with a detailed set of drawings based on their initial choices and sizes. The drawings are the perfect tool to show you all the details and dimensions. It allows you to double check everything to be sure it is exactly as you'd like before it is built. Drawings are emailed within 5 business days and we'll revise your drawings as needed to make sure all details and sizing issues are perfected prior to beginning construction.
| Width (W) | W1 | W2 | Arc Width (AW) | Trellis Panel Width (TW) | Height (H) | Arc Height (AH) | Trellis Height (TH) | Roof Height (RH) | Posts Dimensions (PD) | Support Dimensions (SD) | Arches Dimension (AD) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 3.30 | 2.20 | 3.00 | 1.90 | 11.67 | 9.17 | 7.00 | 3.70 | 4x4 | 4x4 | 4x4 |
| 10 | 4.30 | 2.70 | 4.00 | 2.40 | 12.67 | 9.67 | 7.00 | 4.70 | 4x4 | 4x4 | 4x4 |
| 12 | 5.30 | 3.20 | 5.00 | 2.90 | 13.17 | 9.67 | 7.00 | 5.20 | 4x4 | 4x4 | 4x4 |
| 14 | 6.30 | 3.70 | 6.00 | 3.40 | 14.17 | 10.17 | 7.00 | 6.20 | 4x4 | 4x4 | 4x4 |
| 15 | 6.30 | 4.20 | 6.00 | 3.90 | 14.67 | 10.17 | 7.00 | 6.70 | 4x4 | 4x4 | 4x4 |
| 16 | 7.48 | 4.02 | 7.00 | 3.54 | 14.67 | 10.17 | 6.66 | 6.70 | 6x6 | 6x6 | 6x6 |
| 18 | 8.48 | 4.52 | 8.00 | 4.04 | 15.50 | 10.50 | 6.66 | 7.53 | 6x6 | 6x6 | 6x6 |
| 20 | 9.48 | 5.02 | 9.00 | 4.54 | 16.50 | 11.00 | 6.66 | 8.53 | 6x6 | 6x6 | 6x6 |
| 22 | 10.48 | 5.52 | 10.00 | 5.04 | 17.50 | 11.50 | 6.66 | 9.53 | 6x6 | 6x6 | 6x6 |
| 24 | 11.48 | 6.02 | 11.00 | 5.54 | 18.50 | 12.00 | 6.66 | 10.53 | 6x6 | 6x6 | 6x6 |
| For pergolas from 8'W to 15'W (4x4 structure) | |||||||
| Length (L) | L1 | L2 | Lateral Arc Length (LAL) | Trellis Panel Length (TL) | H1 | Trellis Height (TH) | Arcs or Panels Qty. In One Side |
|---|---|---|---|---|---|---|---|
| 8 | 4.80 | 1.45 | 4.50 | 1.15 | 7.67 | 7.00 | 1 |
| 10 | 4.80 | 2.45 | 4.50 | 2.15 | 7.67 | 7.00 | 1 |
| 12 | 4.80 | 3.45 | 4.50 | 3.15 | 7.67 | 7.00 | 1 |
| 14 | 4.80 | 4.45 | 4.50 | 4.15 | 7.67 | 7.00 | 1 |
| 15 | 4.80 | 1.70 | 4.50 | 1.40 | 7.67 | 7.00 | 2 |
| 16 | 4.80 | 2.03 | 4.50 | 1.73 | 7.67 | 7.00 | 2 |
| 18 | 4.80 | 2.70 | 4.50 | 2.40 | 7.67 | 7.00 | 2 |
| 20 | 4.80 | 3.36 | 4.50 | 3.06 | 7.67 | 7.00 | 2 |
| 22 | 4.80 | 1.82 | 4.50 | 1.52 | 7.67 | 7.00 | 3 |
| 24 | 4.80 | 2.32 | 4.50 | 2.02 | 7.67 | 7.00 | 3 |
| 25 | 4.80 | 2.57 | 4.50 | 2.27 | 7.67 | 7.00 | 3 |
| 26 | 4.80 | 2.82 | 4.50 | 2.52 | 7.67 | 7.00 | 3 |
| 28 | 4.80 | 3.32 | 4.50 | 3.02 | 7.67 | 7.00 | 3 |
| 30 | 4.80 | 2.10 | 4.50 | 1.80 | 7.67 | 7.00 | 4 |
| 32 | 4.80 | 2.50 | 4.50 | 2.20 | 7.67 | 7.00 | 4 |
| 35 | 4.80 | 3.10 | 4.50 | 2.80 | 7.67 | 7.00 | 4 |
| 38 | 4.80 | 3.70 | 4.50 | 3.40 | 7.67 | 7.00 | 4 |
| 40 | 4.80 | 2.61 | 4.50 | 2.31 | 7.67 | 7.00 | 5 |
| 45 | 4.80 | 3.45 | 4.50 | 3.15 | 7.67 | 7.00 | 5 |
| 50 | 4.80 | 2.98 | 4.50 | 2.68 | 7.67 | 7.00 | 6 |
| 55 | 4.80 | 3.70 | 4.50 | 3.40 | 7.67 | 7.00 | 6 |
| 60 | 4.80 | 4.41 | 4.50 | 4.11 | 7.67 | 7.00 | 6 |
| For pergolas from 16'W to 20'W (6x6 structure) | |||||||
| Length (L) | L1 | L2 | Lateral Arc Length (LAL) | Trellis Panel Length (TL) | H1 | Trellis Height (TH) | Arcs or Panels Qty. In One Side |
|---|---|---|---|---|---|---|---|
| 8 | 4.48 | 1.52 | 4.00 | 1.04 | 7.49 | 6.66 | 1 |
| 10 | 4.48 | 2.52 | 4.00 | 2.04 | 7.49 | 6.66 | 1 |
| 12 | 4.48 | 3.52 | 4.00 | 3.04 | 7.49 | 6.66 | 1 |
| 14 | 4.48 | 4.52 | 4.00 | 4.04 | 7.49 | 6.66 | 1 |
| 15 | 4.48 | 1.85 | 4.00 | 1.38 | 7.49 | 6.66 | 2 |
| 16 | 4.48 | 2.19 | 4.00 | 1.71 | 7.49 | 6.66 | 2 |
| 18 | 4.48 | 2.85 | 4.00 | 2.38 | 7.49 | 6.66 | 2 |
| 20 | 4.48 | 3.52 | 4.00 | 3.06 | 7.49 | 6.66 | 2 |
| 22 | 4.48 | 2.02 | 4.00 | 1.54 | 7.49 | 6.66 | 3 |
| 24 | 4.48 | 2.52 | 4.00 | 2.04 | 7.49 | 6.66 | 3 |
| 25 | 4.48 | 2.77 | 4.00 | 2.29 | 7.49 | 6.66 | 3 |
| 26 | 4.48 | 3.02 | 4.00 | 2.54 | 7.49 | 6.66 | 3 |
| 28 | 4.48 | 3.52 | 4.00 | 3.04 | 7.49 | 6.66 | 3 |
| 30 | 4.48 | 3.32 | 4.00 | 1.84 | 7.49 | 6.66 | 4 |
| 32 | 4.48 | 2.72 | 4.00 | 2.24 | 7.49 | 6.66 | 4 |
| 35 | 4.48 | 3.32 | 4.00 | 2.84 | 7.49 | 6.66 | 4 |
| 38 | 4.48 | 3.92 | 4.00 | 3.44 | 7.49 | 6.66 | 4 |
| 40 | 4.48 | 2.85 | 4.00 | 2.38 | 7.49 | 6.66 | 5 |
| 45 | 4.48 | 3.69 | 4.00 | 3.21 | 7.49 | 6.66 | 5 |
| 50 | 4.48 | 3.24 | 4.00 | 2.76 | 7.49 | 6.66 | 6 |
| 55 | 4.48 | 3.95 | 4.00 | 3.47 | 7.49 | 6.66 | 6 |
| 60 | 4.48 | 4.66 | 4.00 | 4.18 | 7.49 | 6.66 | 6 |
Corner posts are 5 1/2" by 5 1/2" (standard sized 6x6s) and are recessed 12" in from roof dimensions (This can be adjusted to meet your needs just let us know).
Roof support timbers (lintels) and rafters are 1 7/8" x 5 3/4". If you prefer a different sizing or style write what you would like in the comments section or contact us.
Posts normally ship 9' long. 9 posts make the top of the roof 9' also and give you an 8' 4" clearance ("ceiling height") under the rafters. About 90% of our pergola customers go with the default 9' post height. If you'd like your pergola taller or shorter, just select Other Height and write in what you would like in the comments section.
The maximum roof size is 20' in either direction with a 4 post structure. The maximum span (with the standard timber sizes mentioned above) is 18' 2 1/2" on center between posts. Structures over 20' in any direction are built with an additional post to support roofs between 20 and 40 feet. For example, a 30' x 20' free standing pergola has 6 posts.

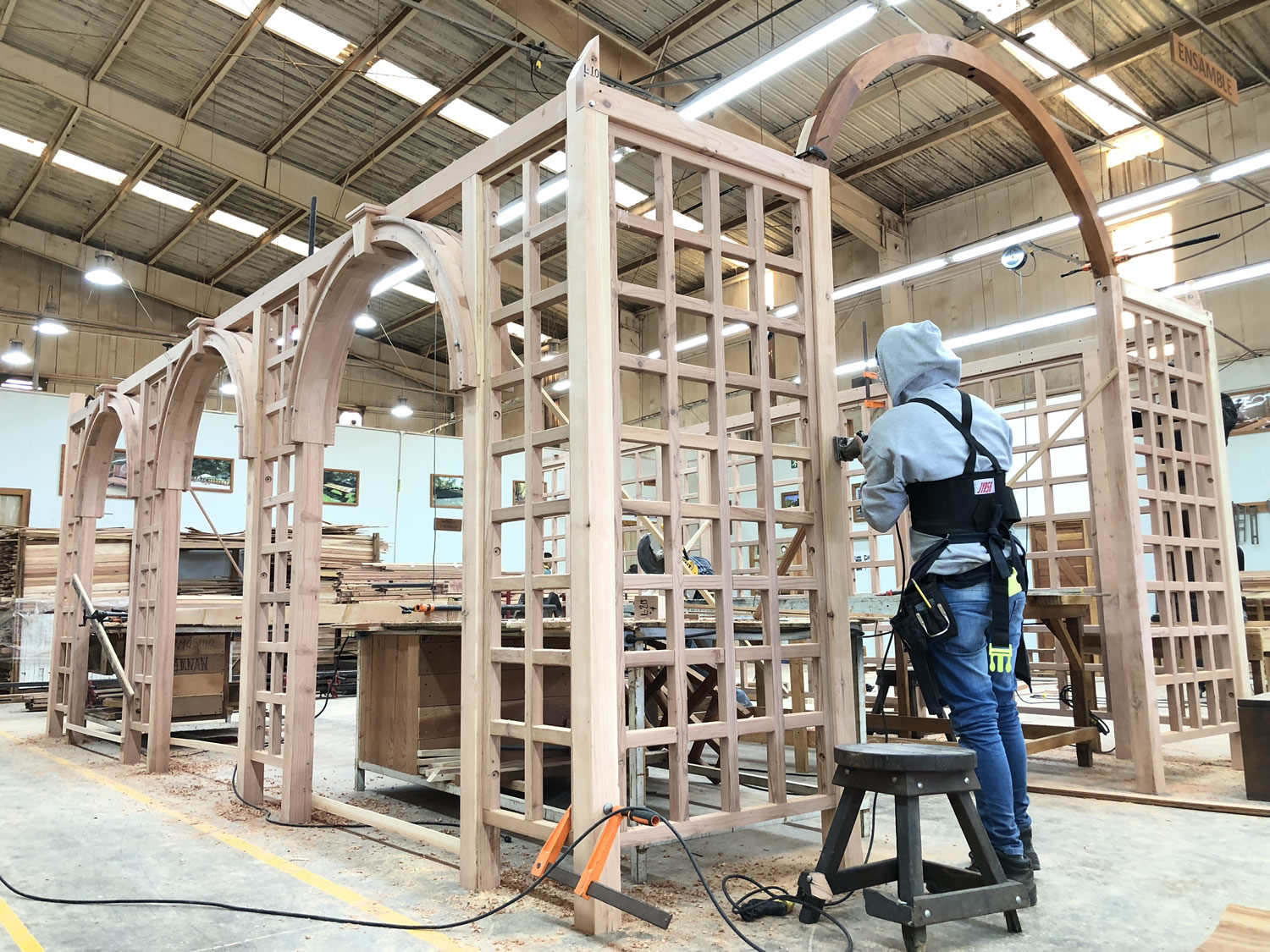

Forever Redwood Pergola kits are completely assembled in the shop prior to shipping to be certain everything fits together perfectly. All timbers are notched into one another to increase structural strength and to lock all your pergolas timbers in place so they will never sag, twist or move. There are hundreds of notches in the larger pergolas. Full notching is rarely practiced because it is labor intensive, but it is one of the secrets to a long lasting beautiful pergola.
All assembly hardware is included and is stainless steel.
Assembly Instructions for: The Victorian Trellis
Assembly Instructions for: Ways To Attach Your Pergola Post to the Ground
All You Need is a Few Tools and a Friend.
Assembly is best done by two people and usually takes about half a day to a day, depending on size. Pergolas need a ratchet wrench, a hammer and a ladder to put them together. In some cases, you might need a drill to attach the posts into concrete. As with all our products, we preassemble pergolas in our shop to ensure everything fits together. All hardware is included and all parts are clearly labeled before it is shipped. We also include detailed step-by-step instructions.
Take a look at our assembly instructions below for specific details. If you plan to pour concrete to hold the posts, the project will require an additional half day prior to assembly. Please do the concrete pour a few days prior to assembly to allow the concrete to cure.
Installation Help.
Special talent is not required to re-assemble our pergolas. But, if you would like help, just let us know. We have our own team for installations in California, Nevada and Southern Arizona and a network of local contractors we recommend for farther afield.
Care: Your Forever Redwood Furniture will last for decades in year-round weather without maintenance.
Depending on the wood grade you choose, even with harsh year-round outdoor conditions, you can expect your furniture to last from ten to forty years without maintenance of any kind.
Being outside year-round is rough on any woods finish. The surface absorbs UV rays, pollution, constant variations in moisture and temperature and it also oxidizes. This is why most wood just doesn’t hold up and the surface color slowly changes towards a silver patina over the years. But, with Forever Redwood, you don’t have to worry. The silver patina is surface deep only (less than 1/64") and is not indicative of decay. Your set will last decades and is not compromised in any way by the surface color change. For example, we keep our display items as is without refinishing to show off this natural aging (we like the patina!).
Although Forever Redwood is maintenance-free, we recommended you take a few minutes as needed to clean by either hosing down and/or brushing/dusting away accumulated debris (no soap or chemicals needed). If you’d like to keep your set looking its best for decades, please go to: Care and Finish.
