The Lattice Pergola Kit

Tired of seeing low quality pergolas that look flimsy? Want a structure that will actually last for decades? We have been the leaders in this industry for many years because we get it. We are here to support you and make your plans a reality without wasting your time. From design & sizing to building & installing, reach out at any point to see how easy it is to make your vision possible.

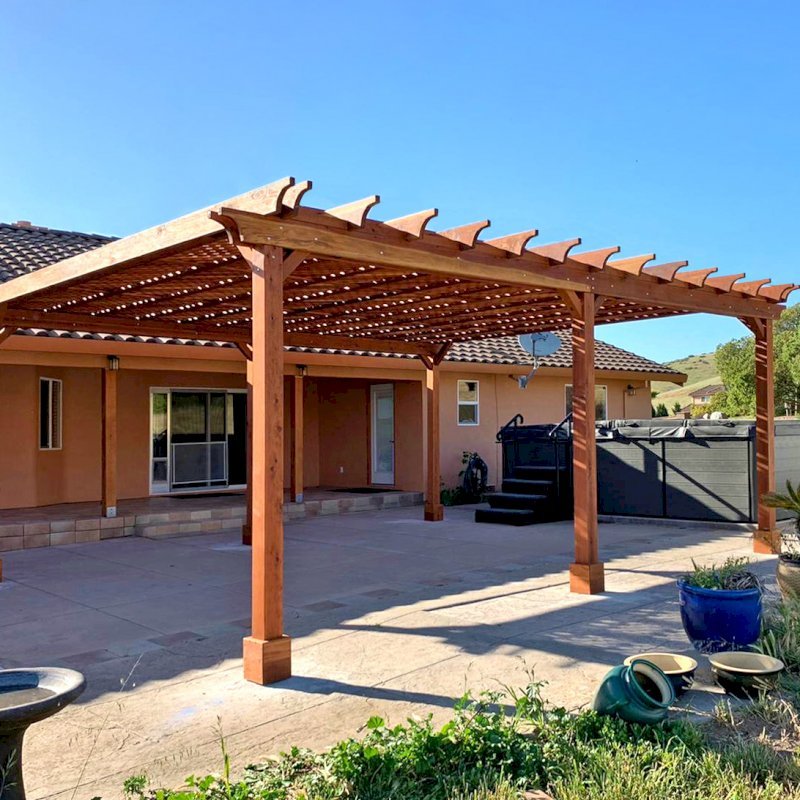

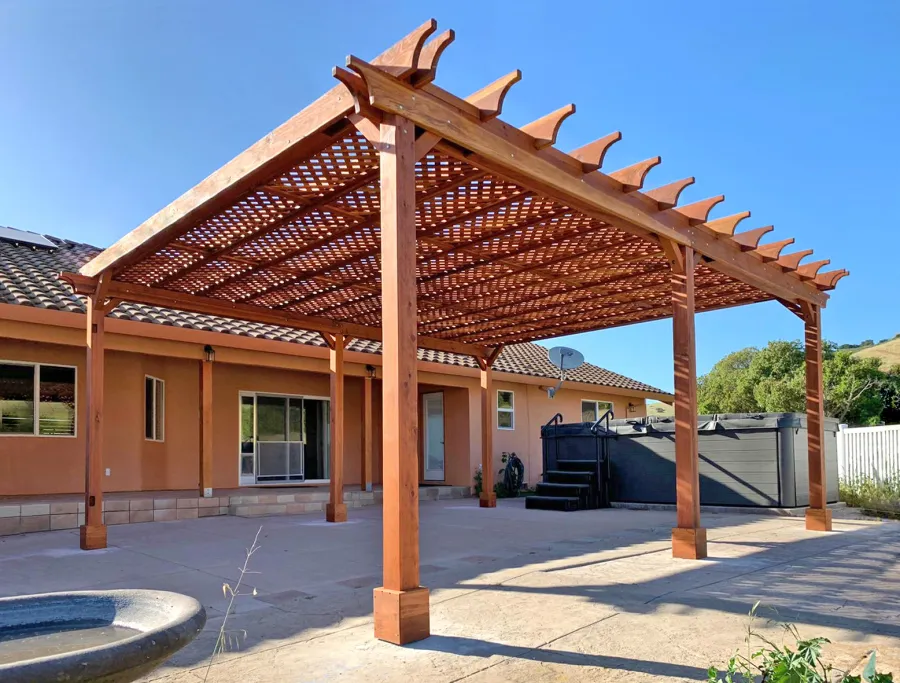

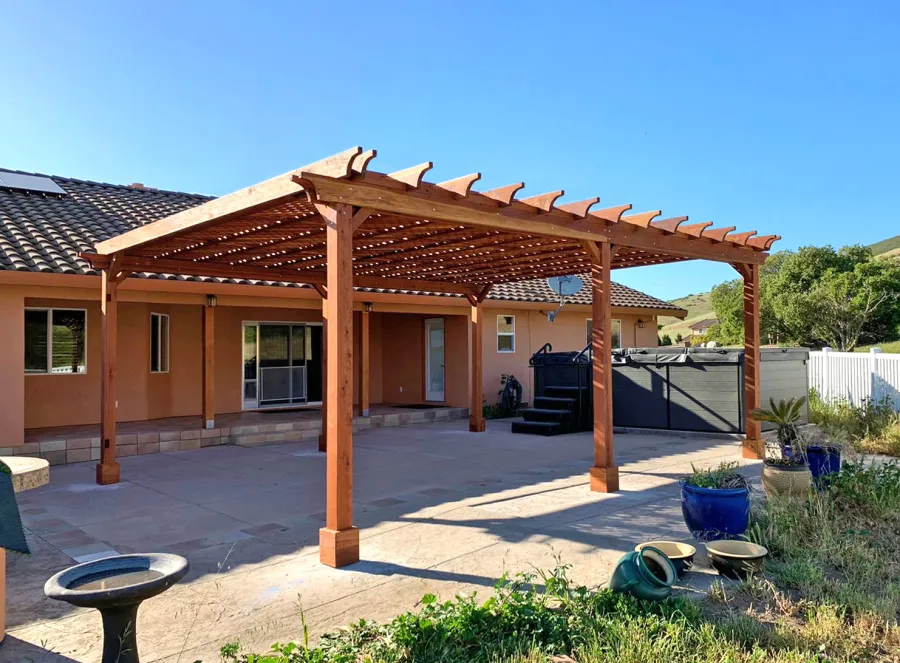

The Lattice Pergola Kit (Options: 24' L x 20' W, California Redwood, No Electrical Wiring Trim, Lattice Roof, Lengthwise Roof Support Timbers, 6-Post Anchor Kit for Concrete, No ceiling Fan Base, No Privacy Panels, No Curtains Rods, 9.5' Post Height, Transparent Premium Sealant). Photo Courtesy of C. Lopez of Salinas, CA.

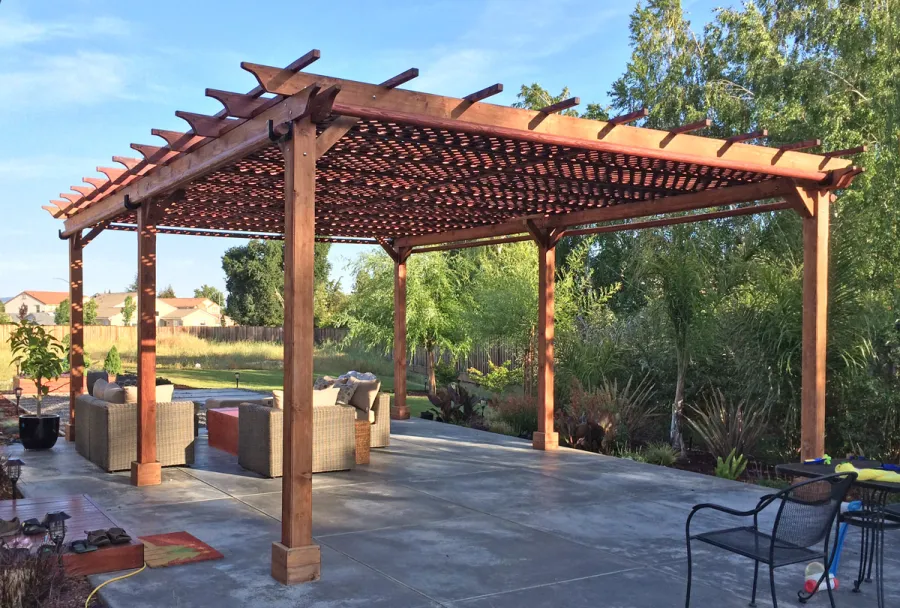

The Lattice Pergola Kit (Options: 25' L x 18' W, California Redwood, No Electrical Wiring Trim, Lattice Roof, Lengthwise Roof Support Timbers, 6-Post Anchor Kit for Concrete, No ceiling Fan Base, No Privacy Panels, 4 Curtains Rods, 9.5' Post Height, Transparent Premium Sealant). 2x2 Slats Above Rafters was Added as Custom Detail. It is not Part of Standard Design. Photo Courtesy of Tom Deckowski of Morgan Hill, CA. Note that photo shows 2 yr old finish that is partially faded.

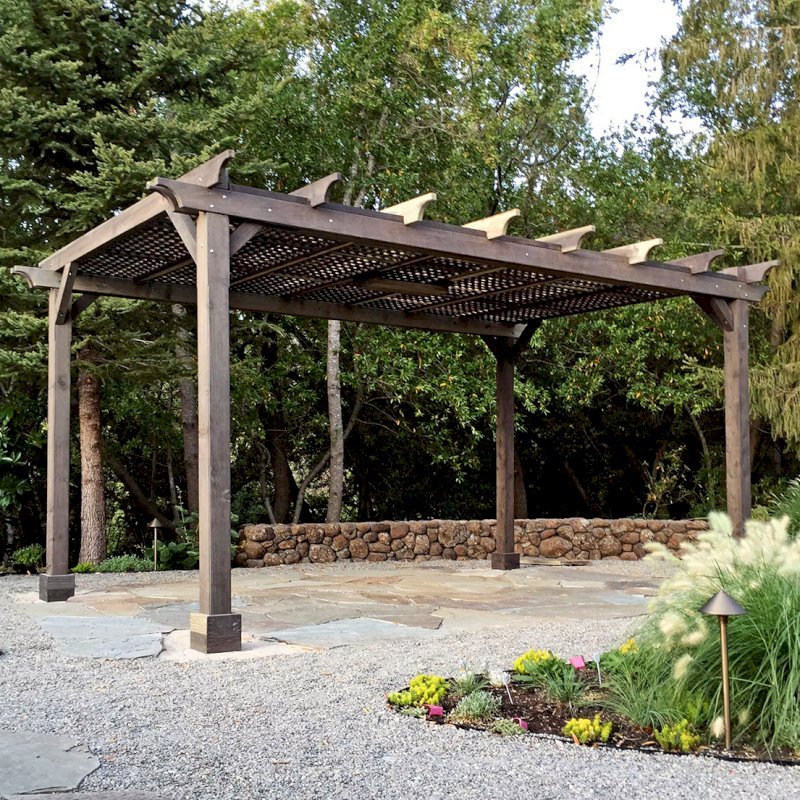

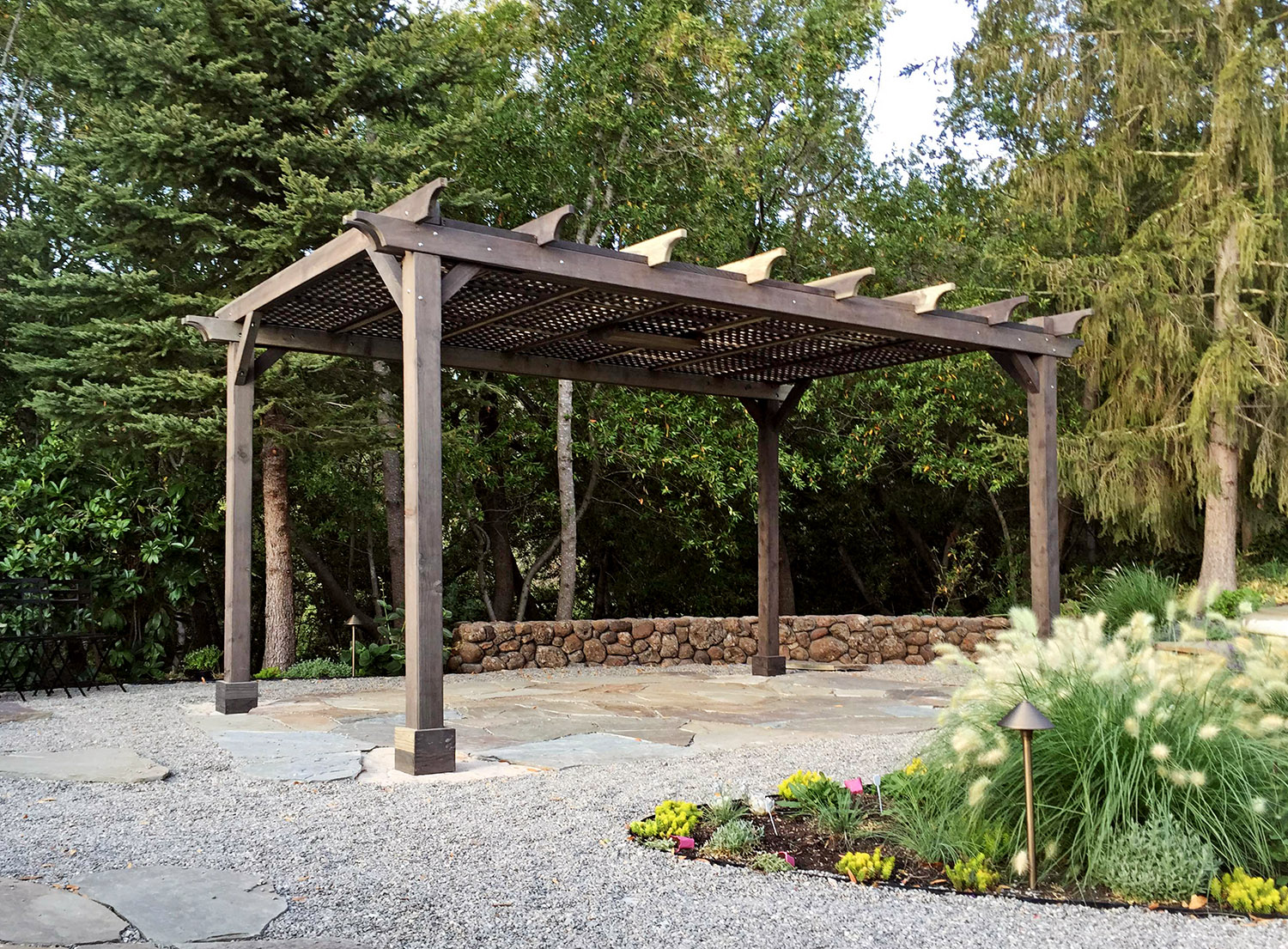

The Lattice Pergola Kit (Options: 18' L x 12' W, California Redwood, No Electrical Wiring Trim, Lattice Roof, Lengthwise Roof Support Timbers, 4-Post Kit for Stone, Brick, or Concrete, 1 Ceiling Fan Base, No Privacy Panels, No Curtain Rods, 9' Post Height, Eco Wood Treatment). Photo Courtesy of B. Savard of San Rafael, California.

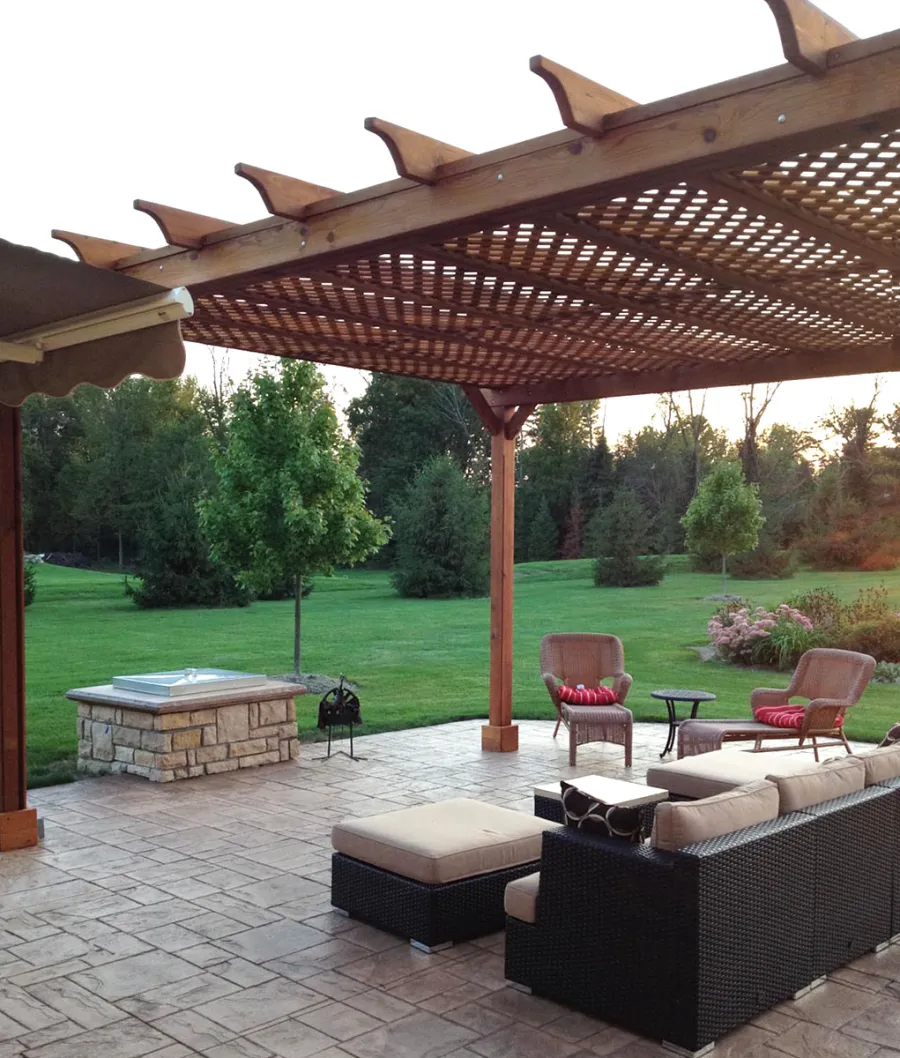

The Lattice Pergola Kit (Options: 20' L x 16' W, Mature Redwood, No Electrical Wiring Trim, Lattice Roof, Lengthwise Roof Support Timbers, 4-Post Kit for Stone, Brick, or Concrete, No Ceiling Fan Base, No Privacy Panels, No Curtain Rods, 10' Post Height, Transparent Premium Sealant). Photo Courtesy of David Wilson.

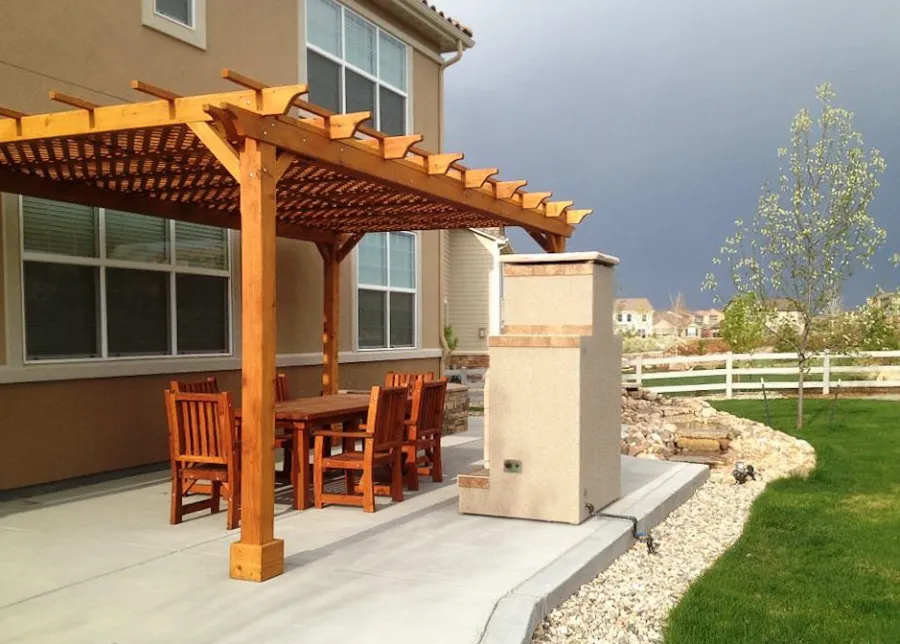

The Traditional Wooden Garden Pergola (Options: 20' L x 12' W, Mature Redwood, No Electrical Wiring Trim, Lattice Roof, Lengthwise Roof Support Timbers, 4-Post Anchor Kit for Concrete, No Ceiling Fan Base, No Privacy Panels, No Curtain Rods, 9.5' Post Height, Transparent Premium Sealant). 2x2 Slats Above Rafters was Added as Custom Detail. It is not Part of Standard Design.

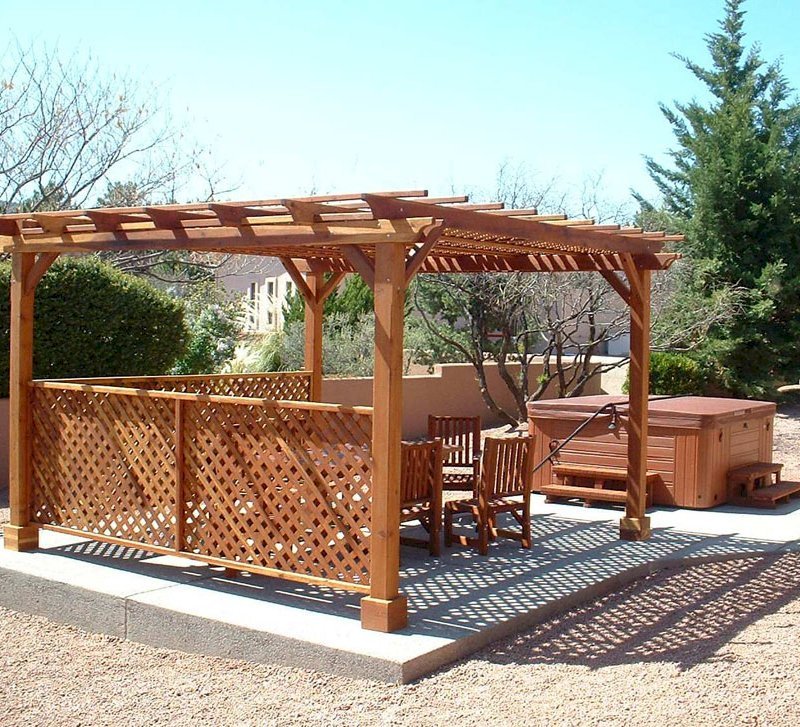

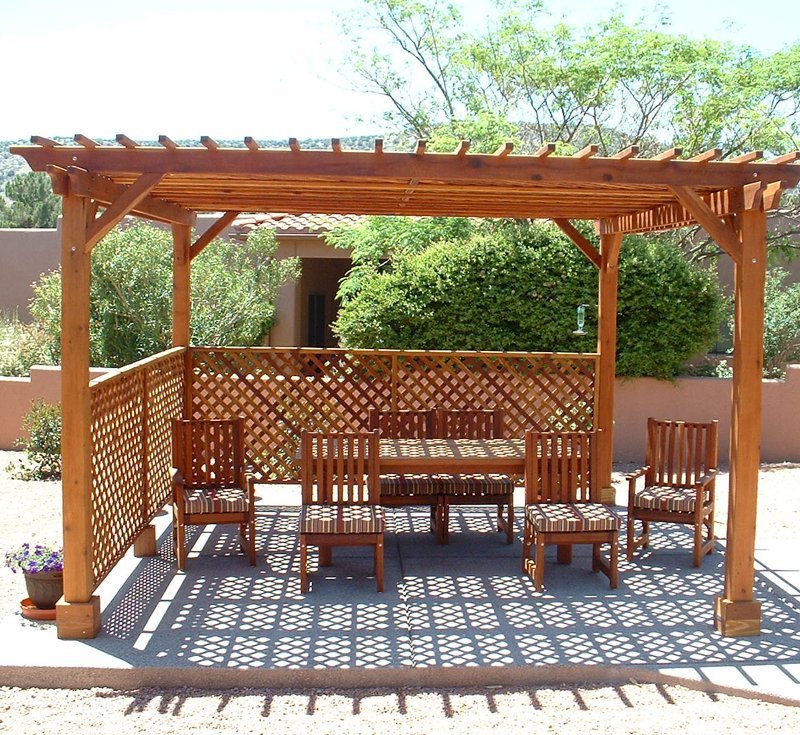

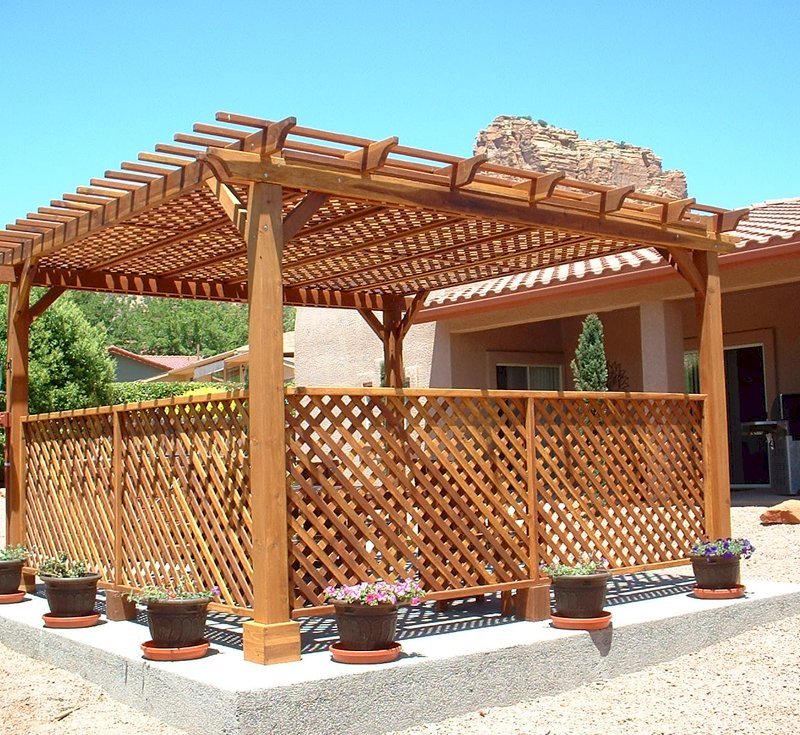

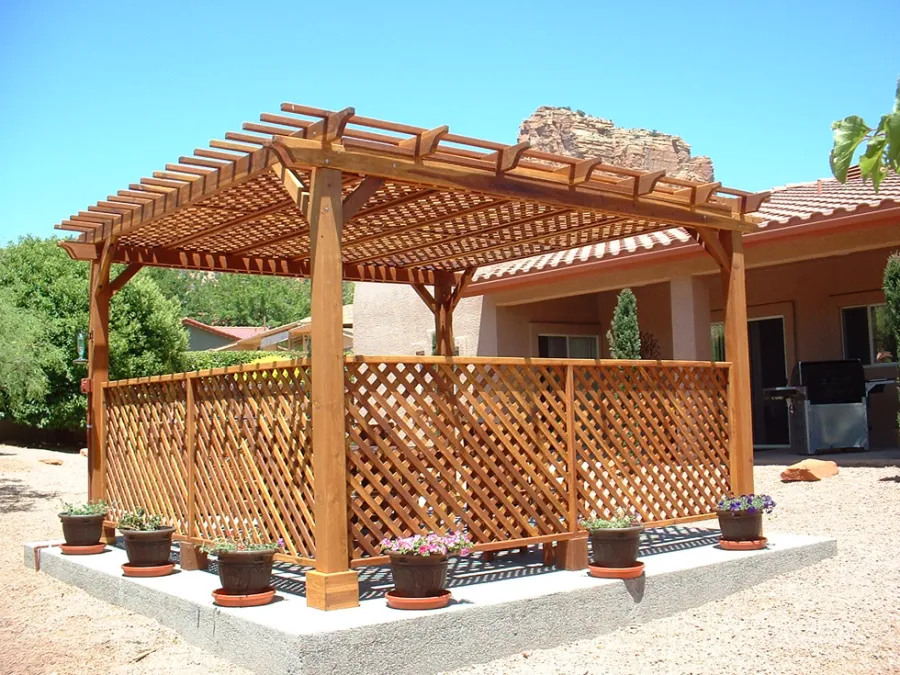

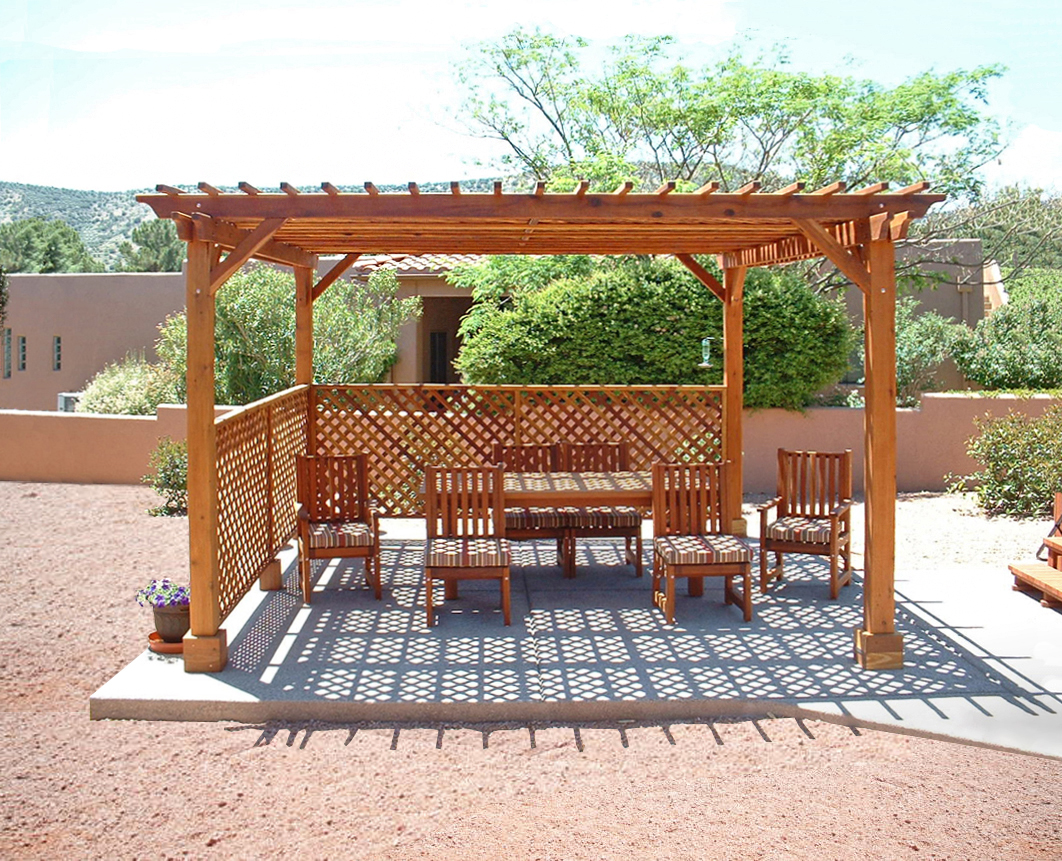

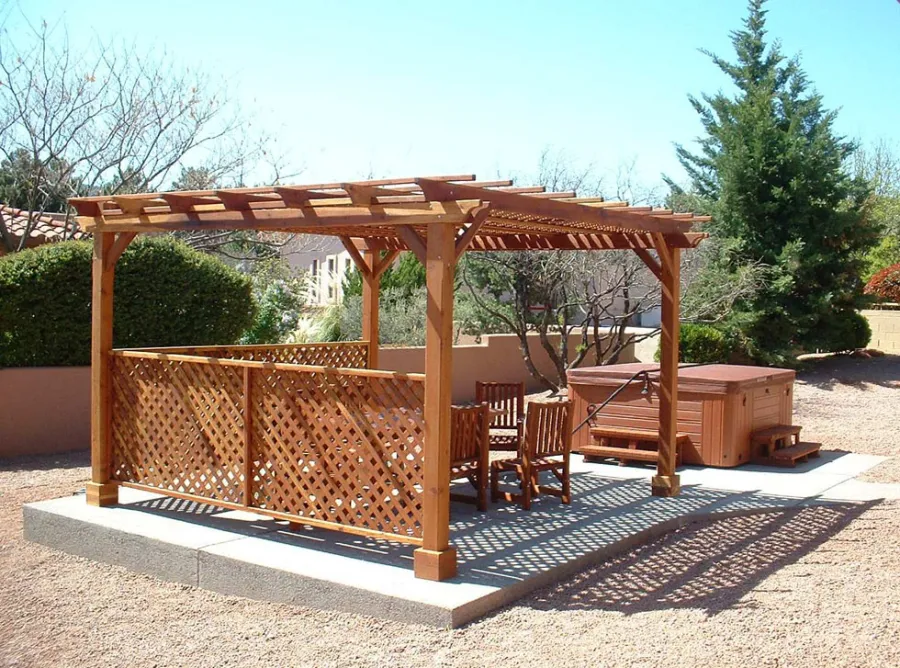

The Lattice Pergola Kit (Options: 15' x 15', California Redwood, No Electrical Wiring Trim, Lattice Panel Roof, 4-post Anchor Kit for Concrete, No Ceiling Fan Base, 2 Privacy Panels, No Curtain Rods, 9' Post Height, Transparent Premium Sealant). 2x2 Slats Above Rafters was Added as Custom Detail. It is not Part of Standard Design. Under the Pergola, a 7' San Francisco Patio Table Set with 42" W Tabletop, 4 Ruth Chairs and 2 Ruth Armchairs. Photo Courtesy of Mr. Joseph Dlugosz of Sedona, AZ.

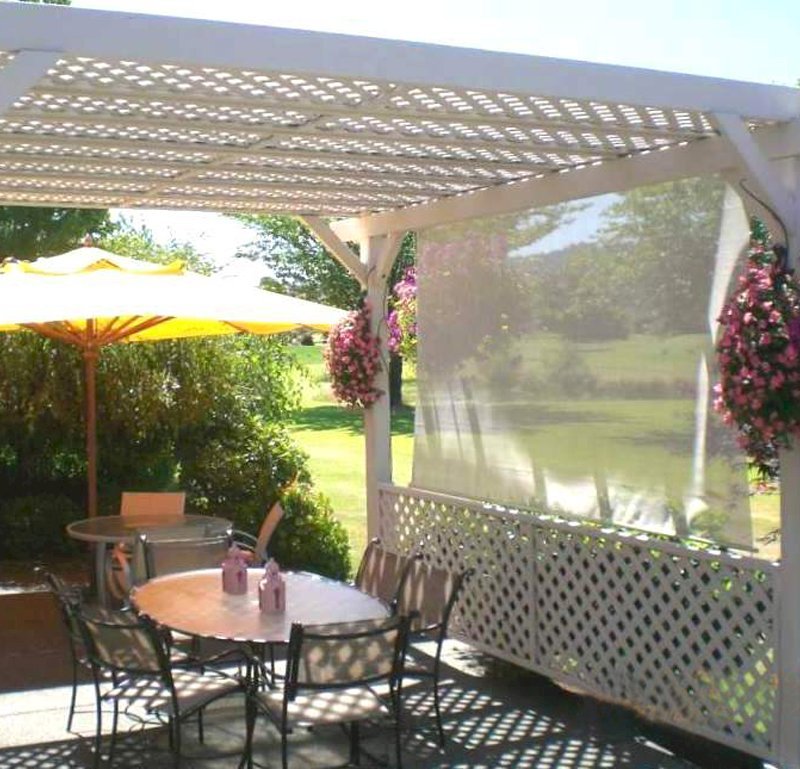

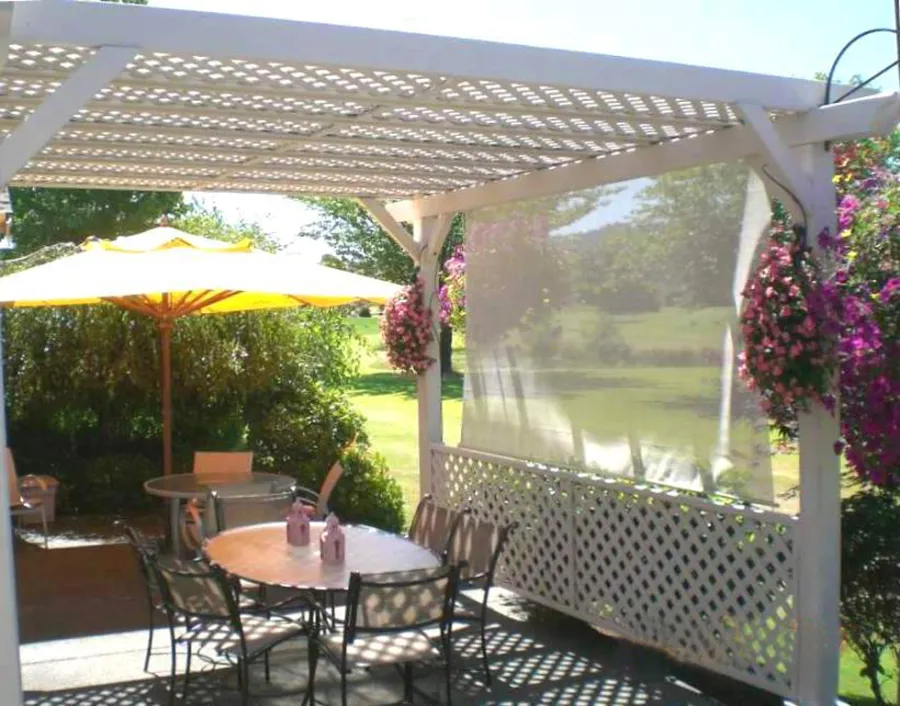

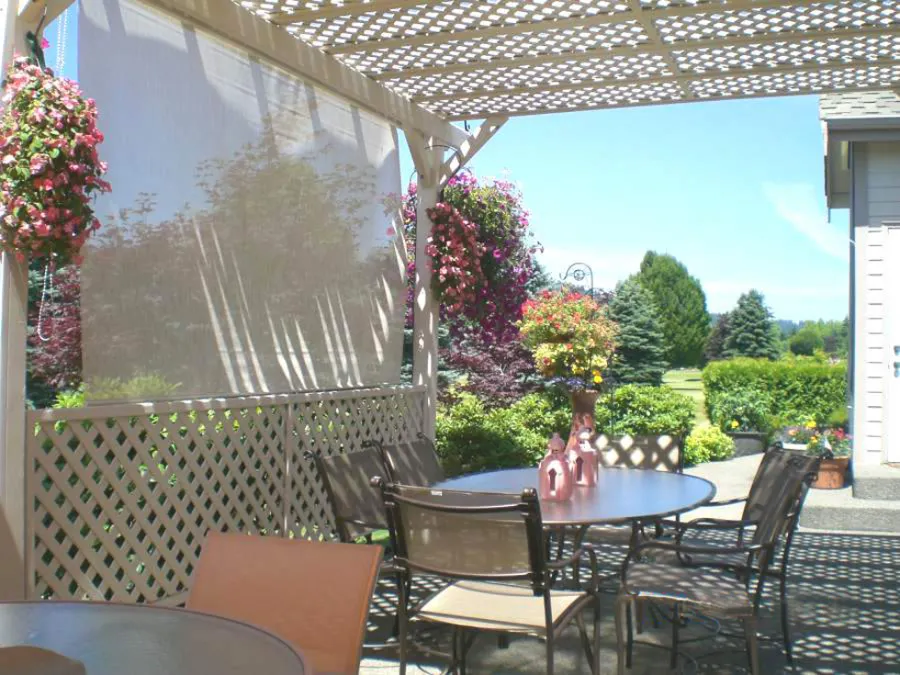

The Lattice Pergola Kit (Options:14' x 16', Douglas-fir, No Electrical Wiring Trim, Lattice Roof, Lengthwise Roof Support, 4-Post Anchor Kit for Concrete, No Ceiling Fan Base, 1 Privacy Panel, No Curtain Rods, 9' Post Height, Off-White Oil-Based Primer). Custom sail clothe made with Sunbrella fabric. Custom request: no roof slats included.

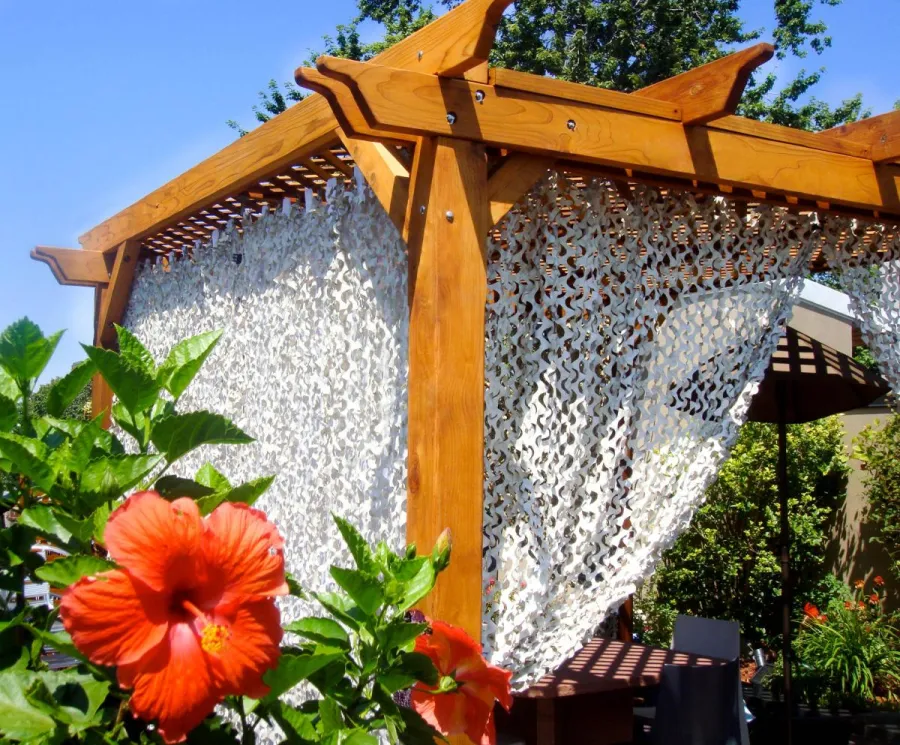

Garden Pergola (Options: 10' x 10', Mature Redwood, No Electrical Wiring Trim, Lattice Roof, 4-Post Anchor Kit for Concrete, No Ceiling Fan Base, No Privacy Panels, No Curtain Rods, 9' Post Height, Transparent Premium Sealant).

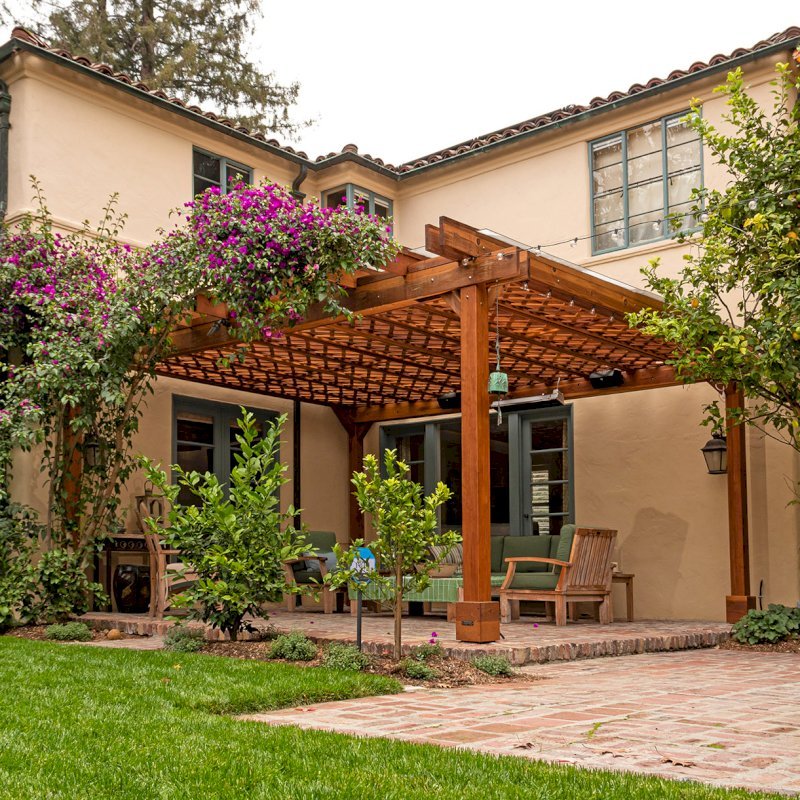

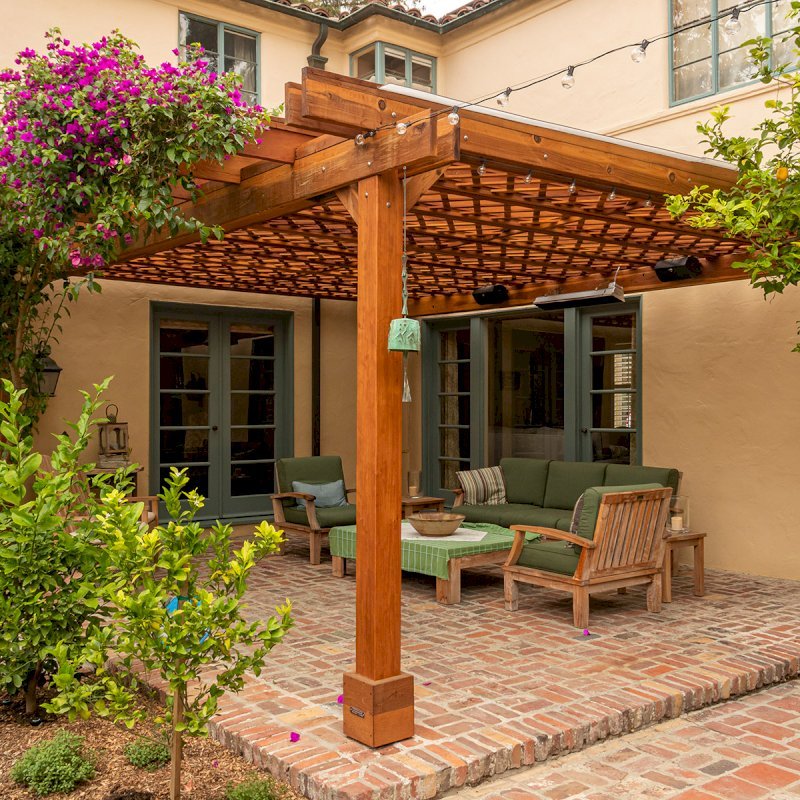

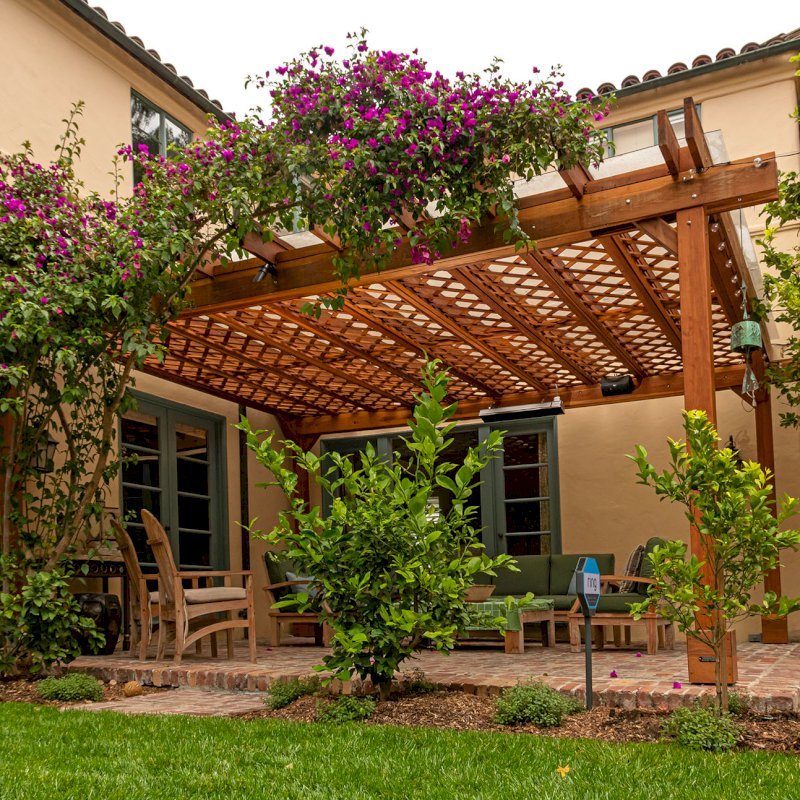

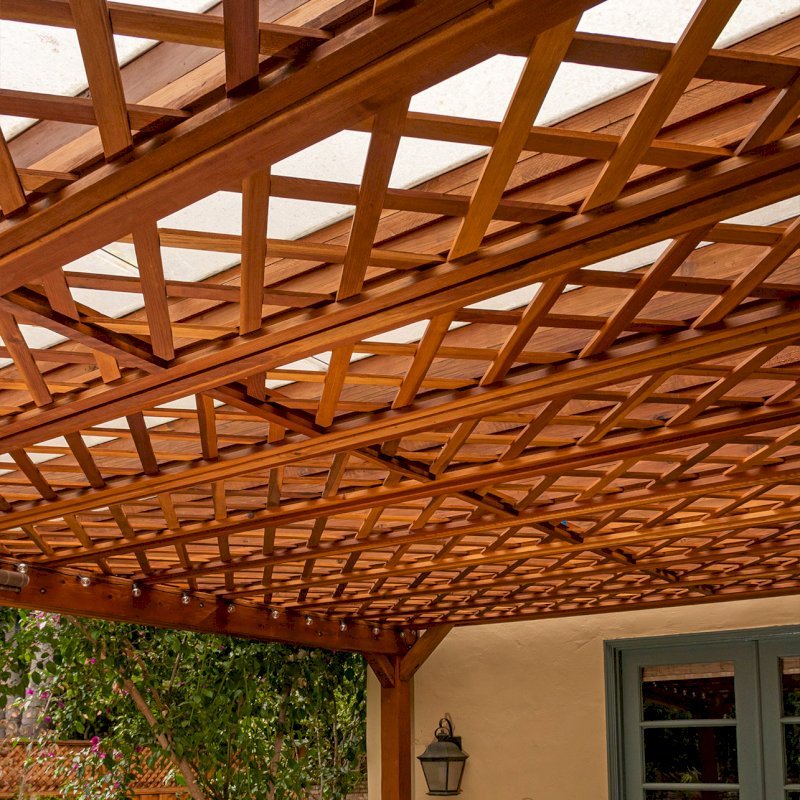

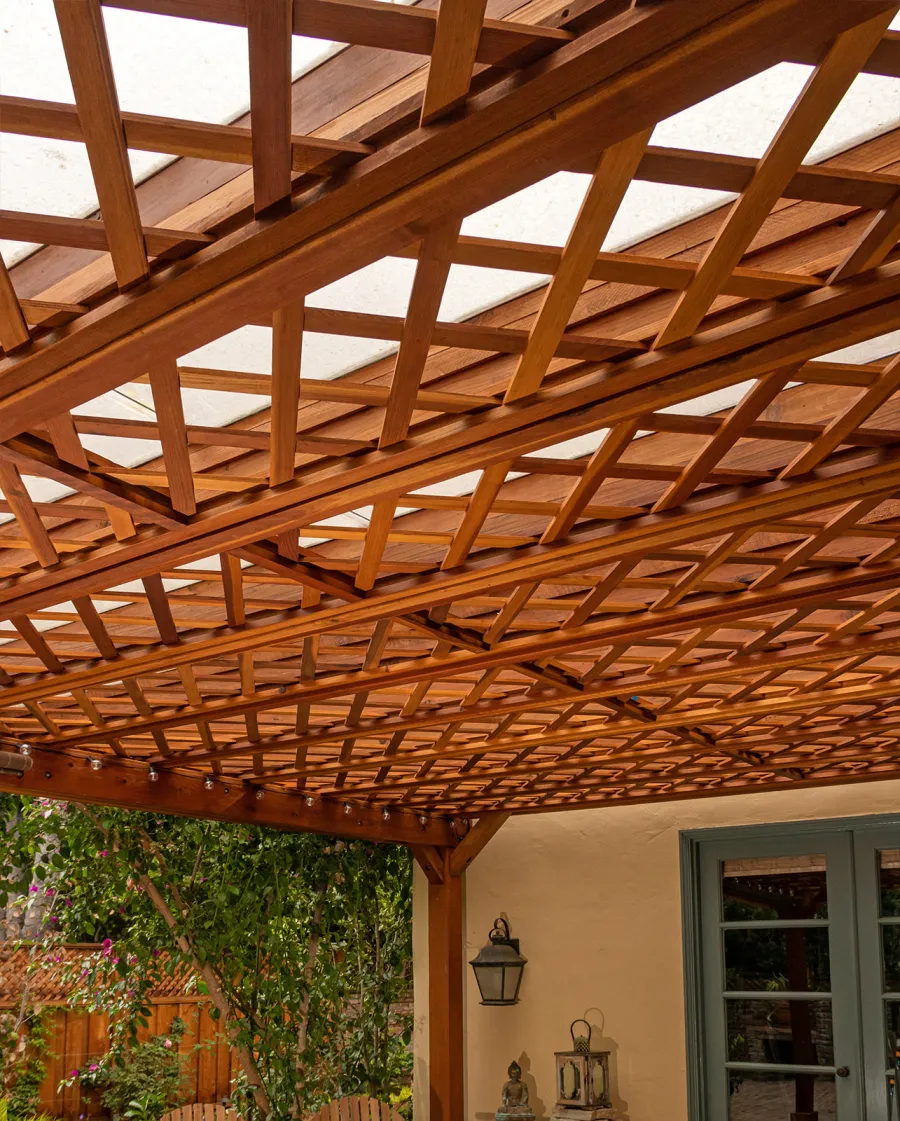

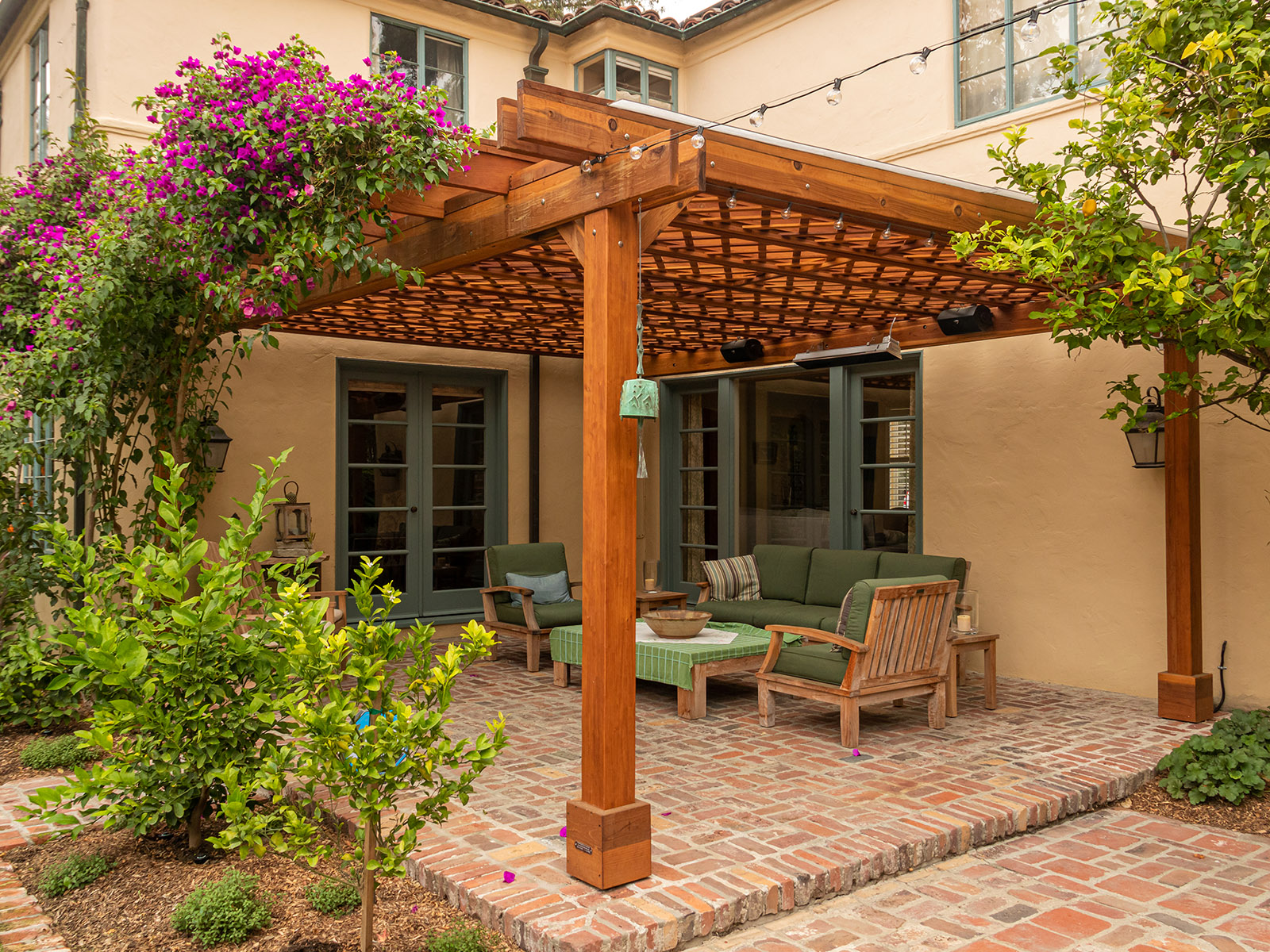

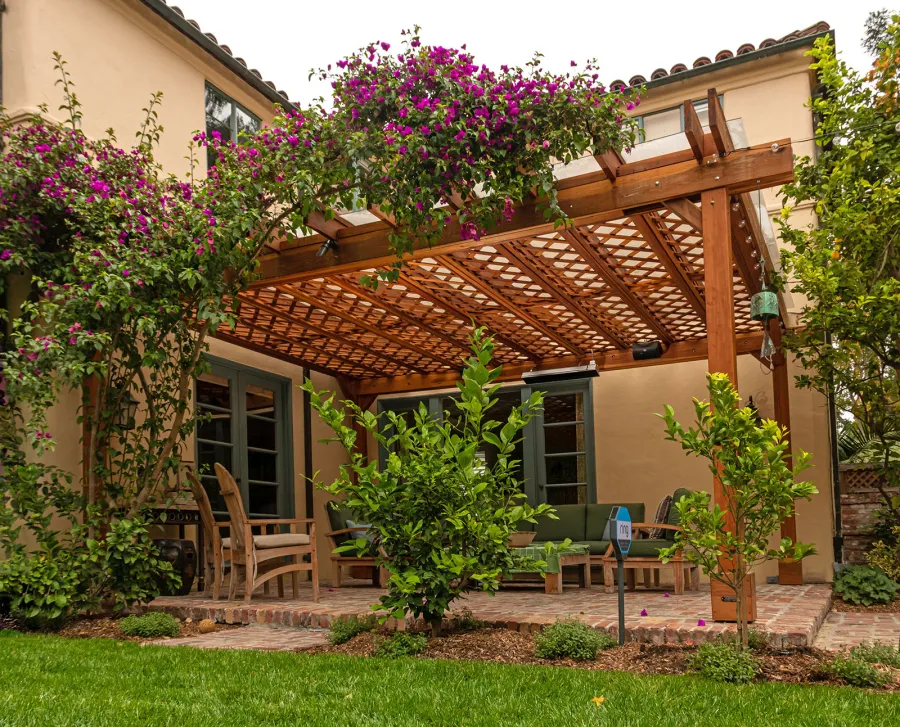

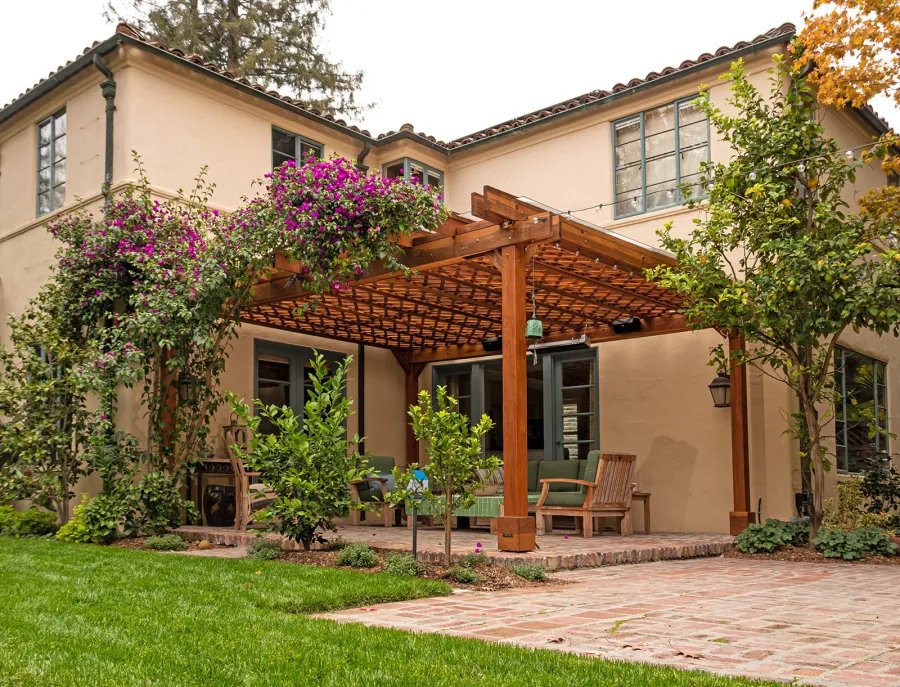

Custom The Lattice Pergola Kit (Options: 19' L x 16' W, California Redwood, Electrical Wiring Trim for 2 Posts, Lattice Roof, 4-Post Kit for Concrete, No Ceiling Fan Base, No Privacy Panels, No Curtain Rods, 9' Post Height, Transparent Premium Sealant). Lattice panels were customized with larger openings than is the standard design. Photo Courtesy of D. Wood of Palo Alto, California.

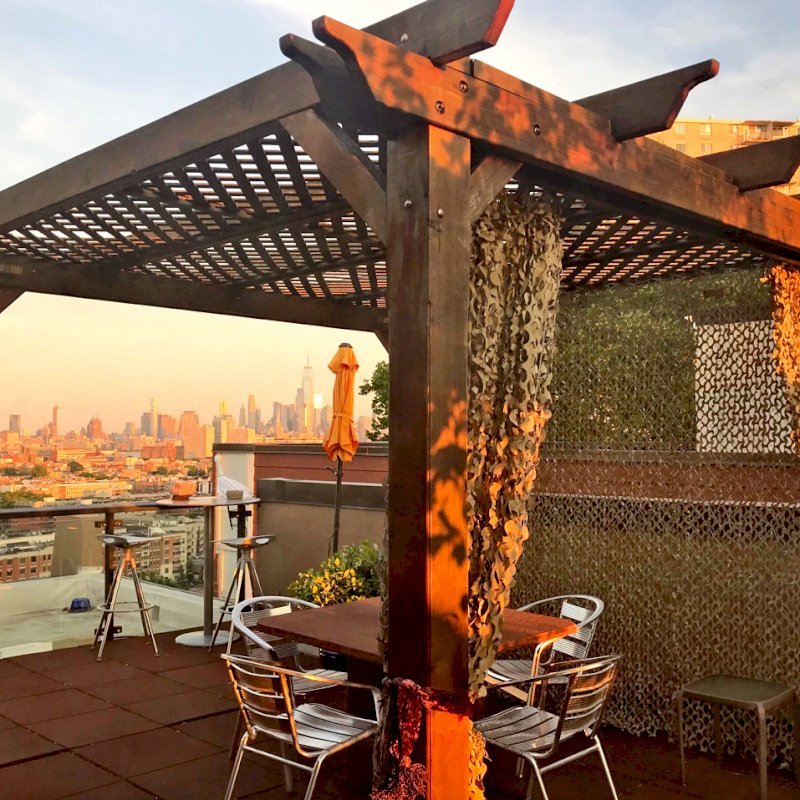

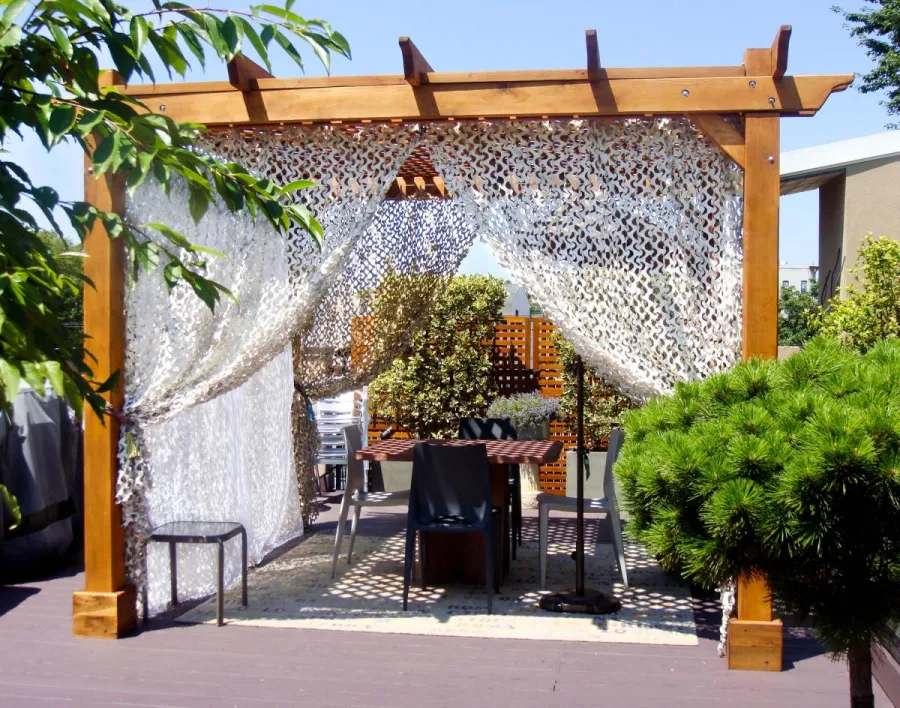

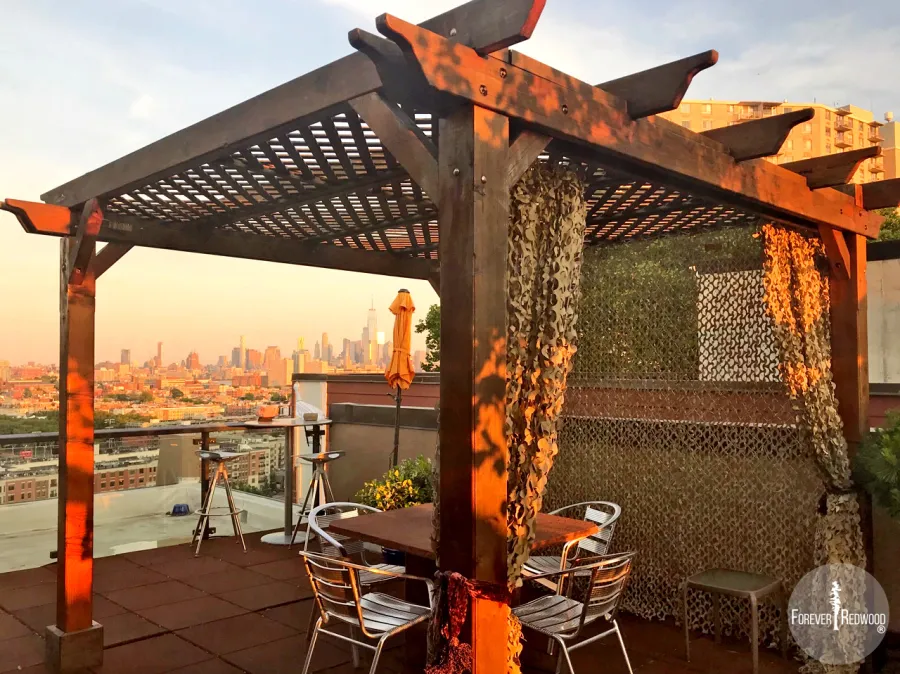

Add some fabric for a special touch. The Traditional Wooden Garden Pergola (Options: 10' x 10', Mature Redwood, No Electrical Wiring Trim, Lattice Roof, 4-Post Anchor Kit for Concrete, No Ceiling Fan Base, No Privacy Panels, No Curtain Rods, 9' Post Height, Transparent Premium Sealant). Photo Courtesy of Fabienne Jacquet of Union City, New Jersey.

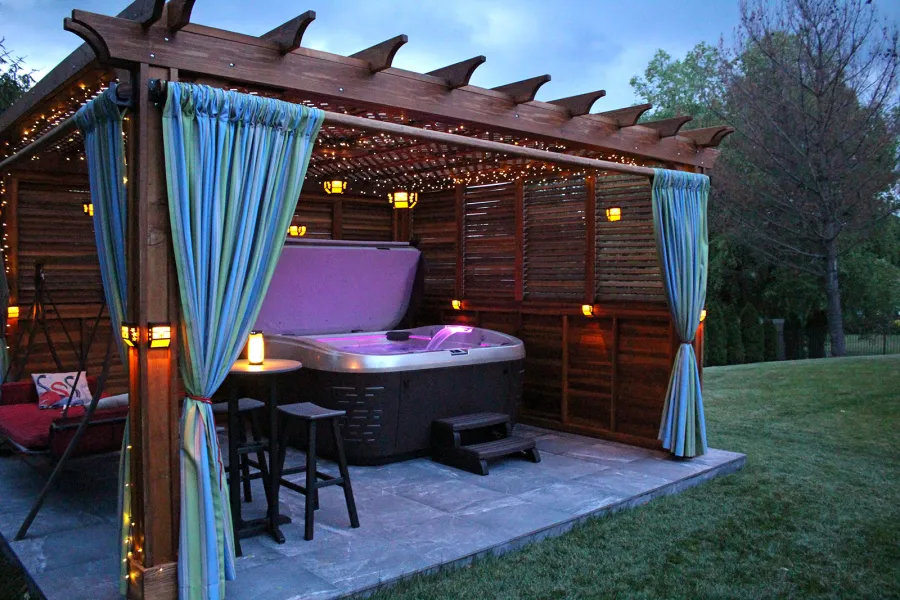

The Lattice Pergola Kit (Options: 18' x 16', California Redwood, Electrical Wiring Trim for 2 Posts, Lattice Panel Roof, 4-post Anchor Kit for High-Wind, Vertical Decorative Trims for Posts, No Ceiling Fan Base, 2 Privacy Panels [half solid wall and half louvered panel], 2 Curtain Rods, 9' Post Height, Transparent Premium Sealant). Photo Courtesy of J. Tyler of Richboro, Pennsylvania.

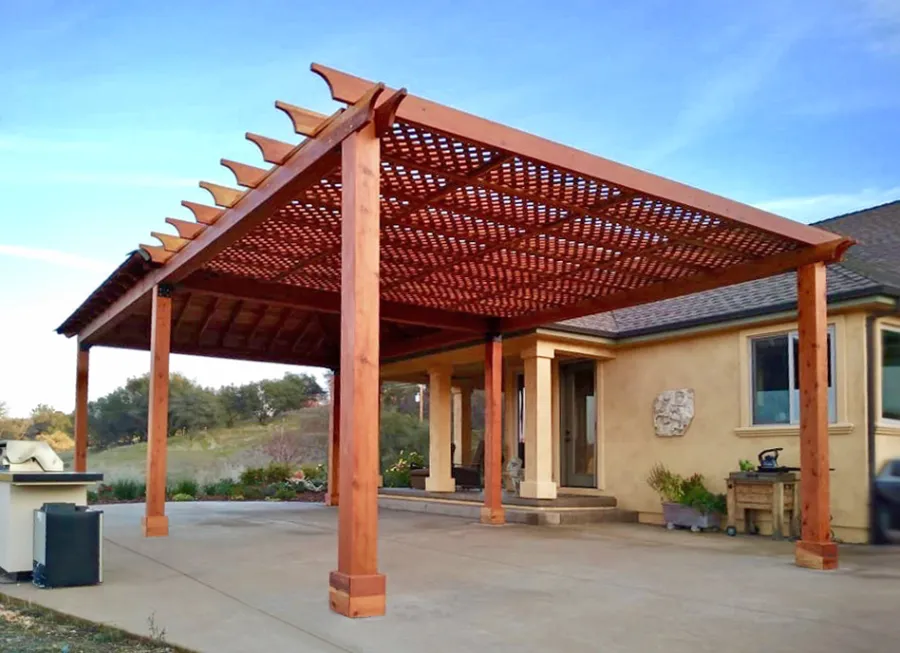

The Traditional Wooden Garden Pergola & Loreto Pavilion (Options: 16' L x 20' W, Attached to a 20' x 20' Loreto Pavilion, California Redwood, No Electrical Wiring Trim, Lattice Roof, Widthwise Roof Support Timbers, 6-Post Anchor Kit for High-Wind, No Ceiling Fan Base, No Privacy Panels, No Curtain Rods, 9.5' Post Height, Transparent Premium Sealant). Photo Courtesy of R. Offenbach of Ione, CA.

Photo: 1 of 20

Custom detail or design? Talk to one of our specialists to get the perfect solution!

Donâ€™t want to assemble? We can deliver and assemble anywhere in the Continental US.

Need a beautiful all natural wood pergola? Want something you don't have to replace for 20 years that is truly environmentally friendly? Need it your way? Want help with the assembly? From Design to Install we make it easy. Let us know what you have in mind. We will make sure that it's something you can be proud of for years to come.

Questions? Download "Everything you wanted to know about Pergolas" for answers to frequently asked questions or contact our Pergola Advisor.

THE LATTICE PERGOLA KIT SPECIFICATIONS (PDF DOWNLOAD)

GENERAL INFORMATION ABOUT PERMITTING FOR PERGOLAS AND PAVILIONS

Specifications have the following sections, any of which you may go to directly by clicking:

DIMENSIONS & DRAWINGS (PROVIDED PRIOR TO CONSTRUCTION)

PRIVACY PANEL STYLES

RAIN GUARD

PERGOLA HEIGHT (POST SIZE)

ELECTRICAL WIRING TRIM KIT

POST DECORATIVE TRIM

PERGOLA POST ANCHORING

ACCESORY BASES & SHELVING

HEAVY DUTY CURTAIN RODS & STAINLESS STEEL HANGERS

PRIVACY PANEL QUANTITY

RETRACTABLE SHADE CANOPY

FINISH OPTIONS

DIMENSIONS & DRAWINGS (PROVIDED PRIOR TO CONSTRUCTION)

When we receive any Pergola order, we provide you with a detailed set of drawings based on the options and sizes chosen. The drawings will clearly show all detail and dimension from 3 different angles. They are an excellent tool for you to double check everything to be sure it is exactly as you'd like before we begin building. Drawings are emailed within 5 business days and we'll revise your drawings as much as needed to be sure every detail and sizing issue is perfected prior to beginning construction.

Below are some examples of drawings sent to prior customers:

Top View

Support View (Pergola Length)

Rafter View (Pergola Width)

Isometric View

Corner posts are 5 1/2" by 5 1/2" (standard sized 6x6s) and are recessed 12" in from roof dimensions (This can be adjusted to meet your needs just let us know).

Roof support timbers (lintels) and rafters are 1 7/8" x 5 3/4". If you prefer a different sizing or style, simply write what you would like in the comments section or contact us.

Posts normally ship 9' long. 9 posts make the top of the roof 9' also and give you an 8' 4" clearance ("ceiling height") under the rafters. About 90% of our pergola customers go with the default 9' post height. If you'd like your pergola taller or shorter, just select Other Height and write in what you would like in the comments section.

The maximum roof size is 20' in either direction with a 4 post structure. The maximum span (with the standard timber sizes listed above) is 18' 2 1/2" on center between posts. Structures over 20' in any direction are built with an additional post to support roofs between 20 and 40 feet. For example, a 30' x 20' free standing pergola has 6 posts.

Forever Redwood Pergola kits are completely assembled in the shop prior to shipping to be certain everything fits together perfectly. All timbers are notched into one another to increase structural strength, locking all pergolas timbers in place so they will never sag, twist or move. There are hundreds of notches in the larger pergolas. Full notching is rarely practiced because it is labor intensive, but it is one of the secrets to a long lasting and beautiful pergola.

All assembly hardware is included and is stainless steel.

For additional long-term structural strength, we add solid timber blocking in-between the dual support timbers as shown in the drawing below. With this blocking, the dual supports are in effect converted into one solid 5 3/4" x 61/2" or 7 1/4" x 6 1/2" timber as shown below:

Assembly Instructions for: The Lattice Pergola Kit

Assembly Instructions for: How to Anchor Your Pergola

All You Need is a Few Tools and a Friend.

Assembly is best done by two people over a half to full day depending on size. Pergolas require a ratchet, wrench, hammer and ladder. Some assemblies may require a drill to attach the posts into concrete. As with all of our products, we preassemble pergolas in our shop to ensure everything fits together. All hardware is included with clearly labeled parts. We also include detailed step-by-step instructions.

Take a look below at our assembly instructions for specific details. If you'd like a concrete pour to hold the posts, your project will require an additional half day prior to assembly. Please complete the concrete pour a few days prior to assembly to allow the concrete to cure.

Installation Help.

Special skills are not required to re-assemble our pergolas. If you would like help, just let us know. We have our own team for installations in California, Nevada and Southern Arizona, and a network of local contractors we recommend for farther afield.

Care: Your Forever Redwood Furniture will last for decades in year-round weather without maintenance.

Depending on the wood grade you choose, you should expect your furniture to last 10-40 years without maintenance even in climates with harsh, year round conditions.

Being outside year-round is rough on all wood finishings. The surface absorbs UV rays and pollution, there is a constant variation in moisture and temperature, and oxidization occurs. Over the years, most woods degrade and decay, and the surface color will slowly fade towards a silver patina. This is not the case with Forever Redwood. The silver patina is surface deep (less than 1/64") and is not indicative of decay. Your set will last decades and will not compromised in any way by surface color changes. We keep our display items as is without refinishing as examples to show off the natural aging process (we like the patina!).

Although Forever Redwood is maintenance-free, we recommended that you take a few minutes as needed to clean by either hosing down and/or brushing/dusting away accumulated debris (no soap or chemicals needed). If you’d like to keep your set looking its best for decades, please go to: Care and Finish.
