Laila's Storage Spa Step - Dimensions & Drawings
| Diameter | L1 | L2 |
|---|---|---|
| 5' | 23-5/8" | 17-1/4" |
| 6' | 24-5/16" | 18-5/8" |
| 7' | 24-13-/16" | 19-11/16" |

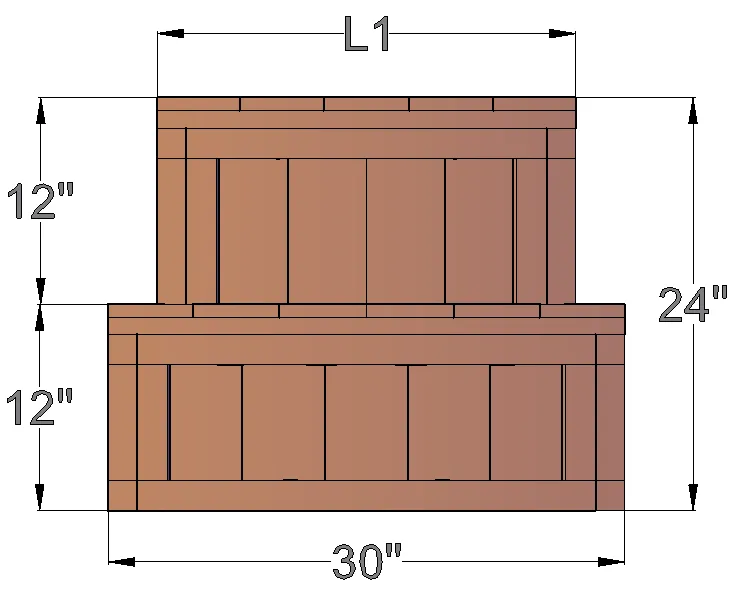

Front View

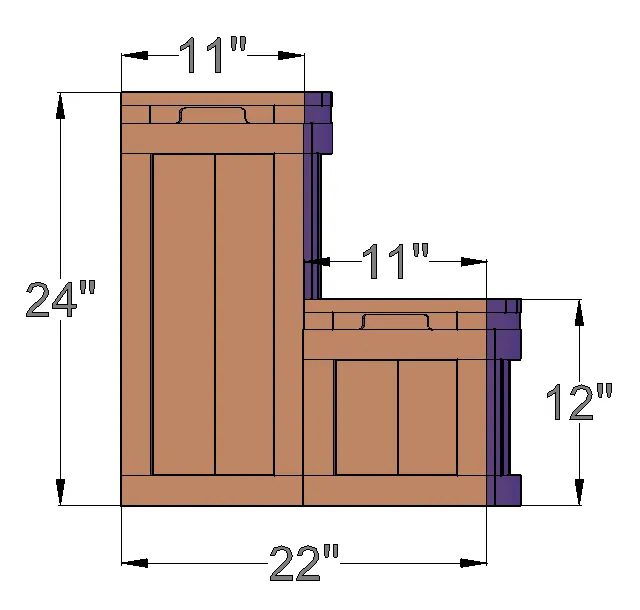

Side View

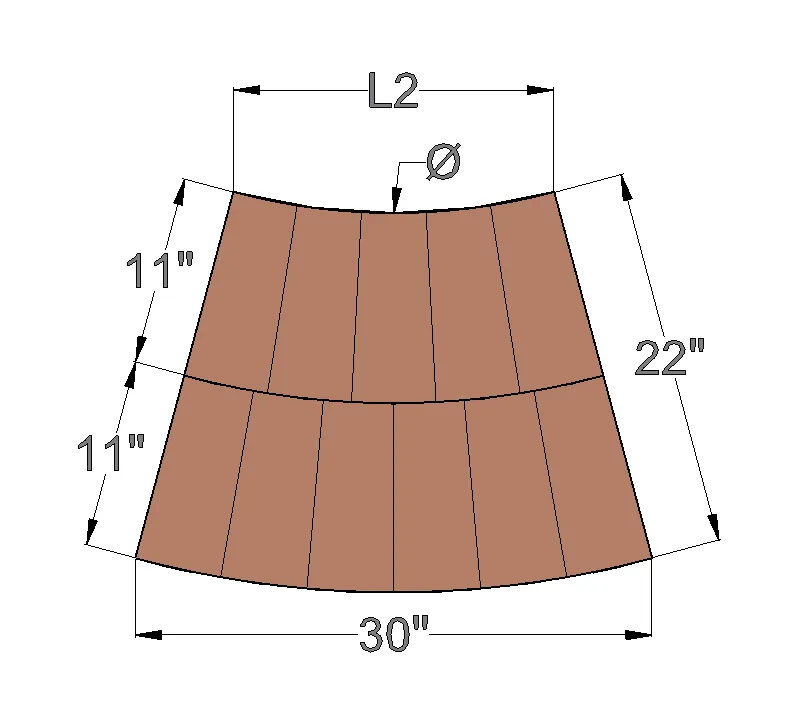

Top View

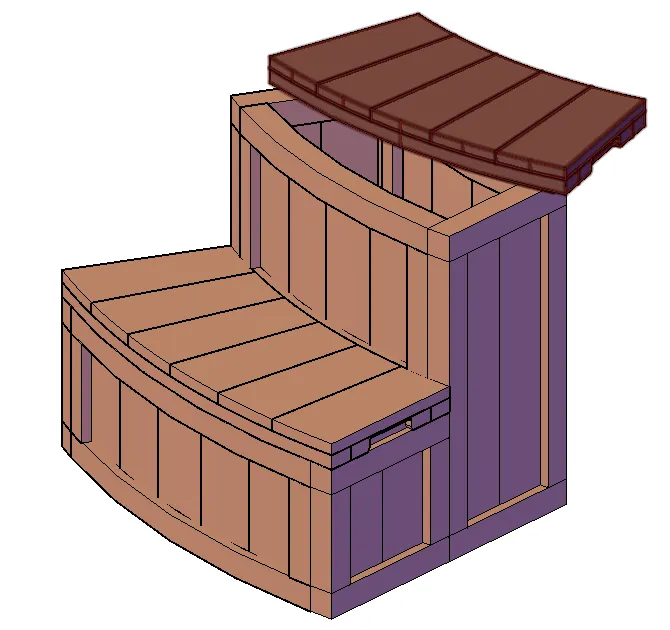

Isometric View

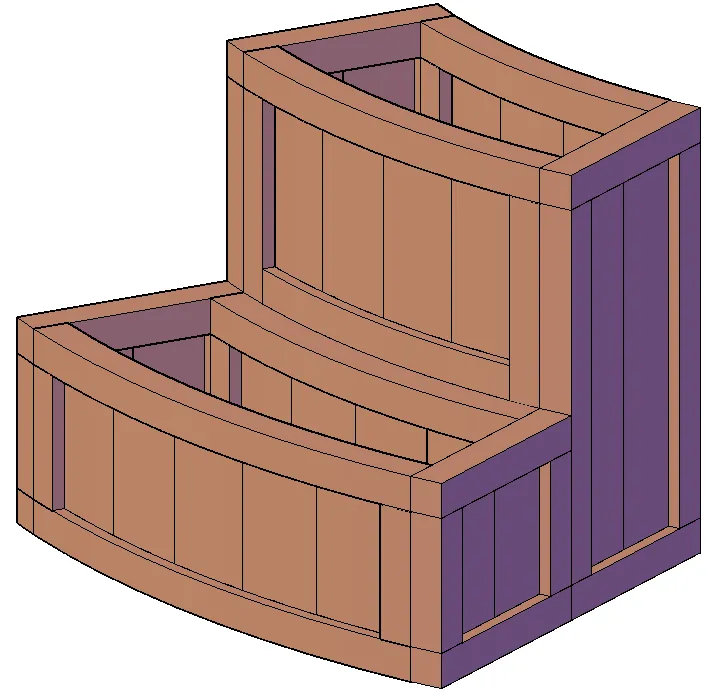

Isometric View - Without lid

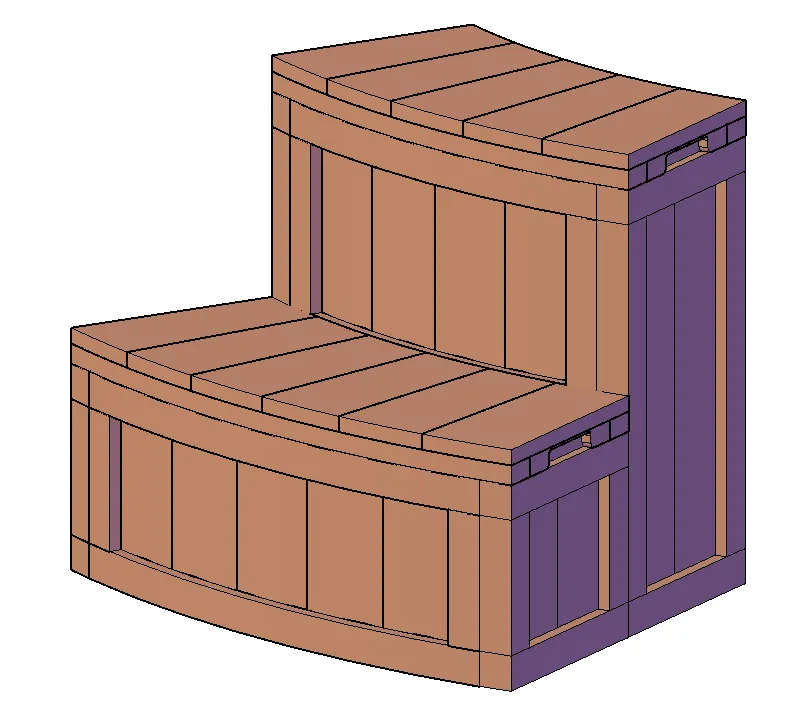

Isometric View - With lid
