The Hexagonal Retreat Pavilion - Dimensions & Drawings
Exterior Diameter -> Webpage Diameter Option

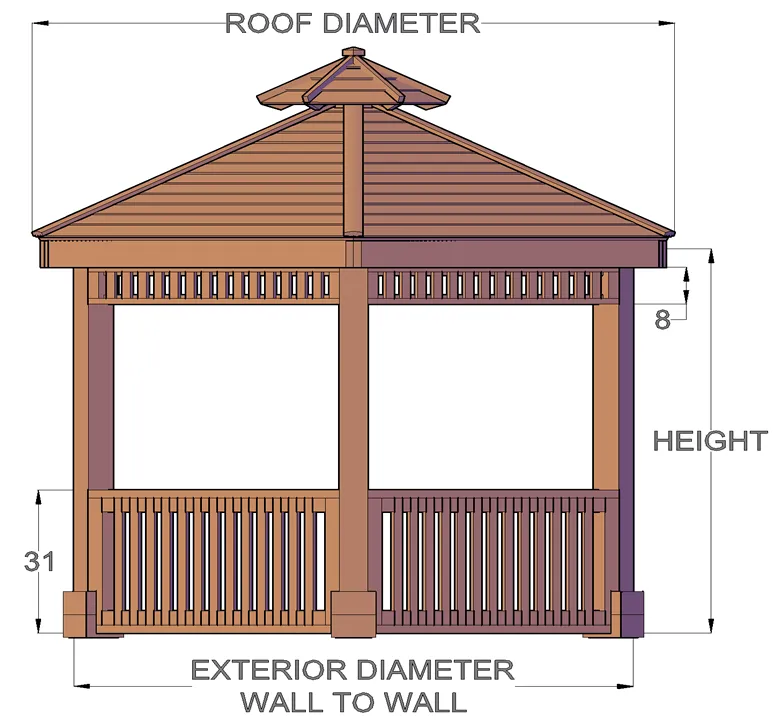

Isometric View with Dimensions (Diameter Exterior & Diameter Roof)

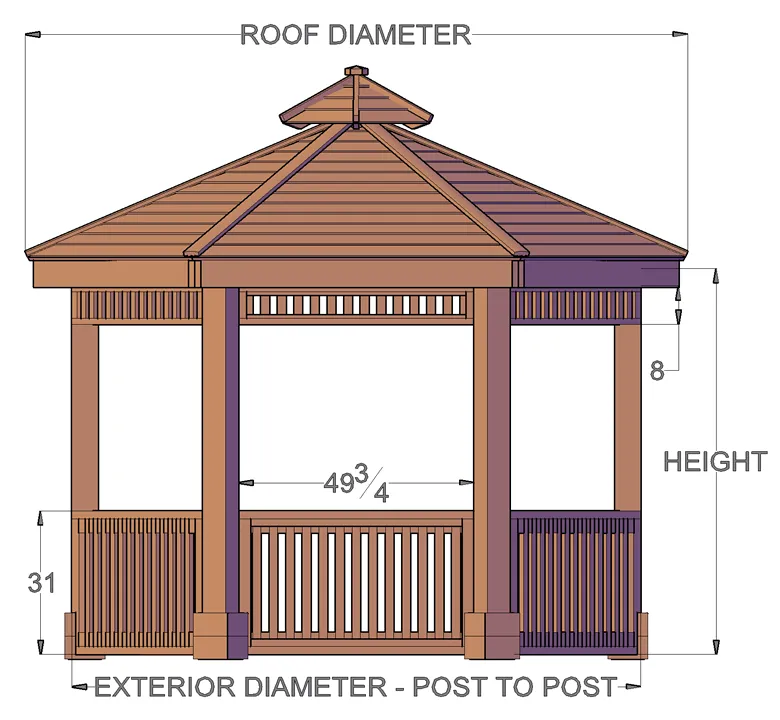

Isometric View with Dimensions

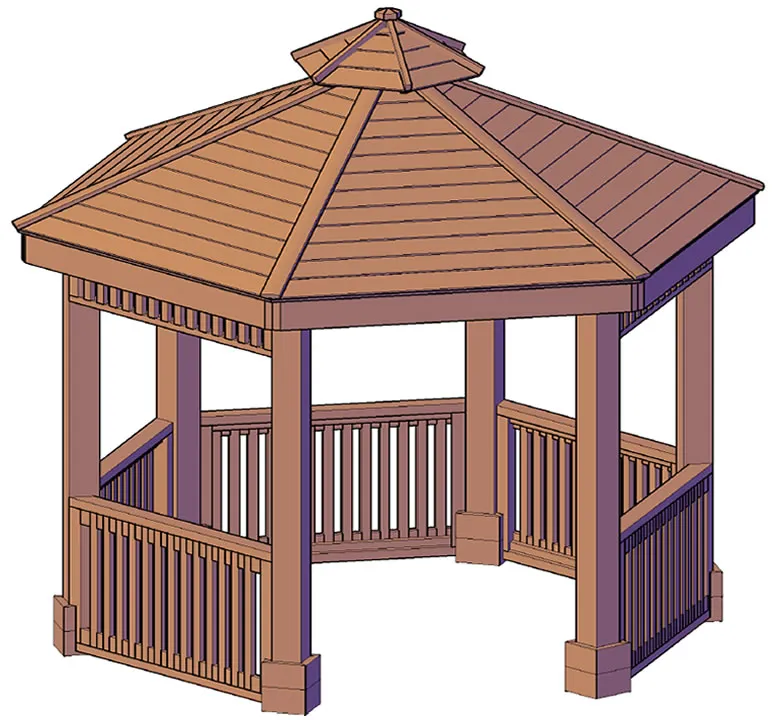

Isometric View

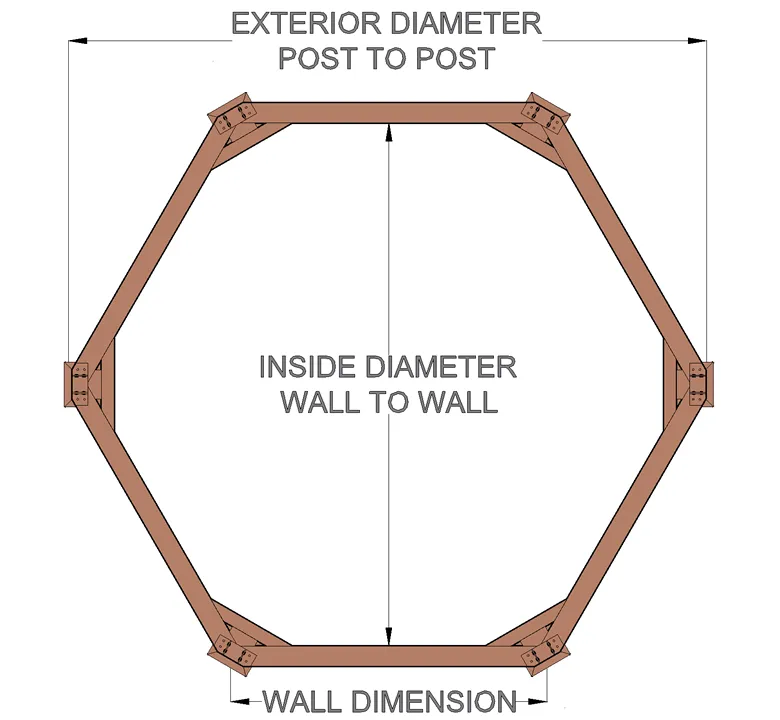

| Pavilion Size | Inside Diameter Wall to Wall | Exterior Diameter Wall to Wall | Roof Diameter |
|---|---|---|---|
| 8-Foot | 84" | 96" | 112" |
| 10-Foot | 108" | 120" | 136" |
| 12-Foot | 132" | 144" | 160" |
| 14-Foot | 156" | 168" | 184" |
| 16-Foot | 180" | 192" | 208" |
| 18-Foot | 204" | 216" | 232" |
| 20-Foot | 228" | 240" | 256" |
We can customize our pavilions to suit your needs. Just tell us what size and what options you want. Prior to building any Pavilions, we provide our customers with a detailed drawing based on their proposed features. This lets you review any choices made and make any needed adjustments before it is built. Drawings are a great way to make certain all details have been considered and that your Pavilion will be exactly what you dreamed of.
