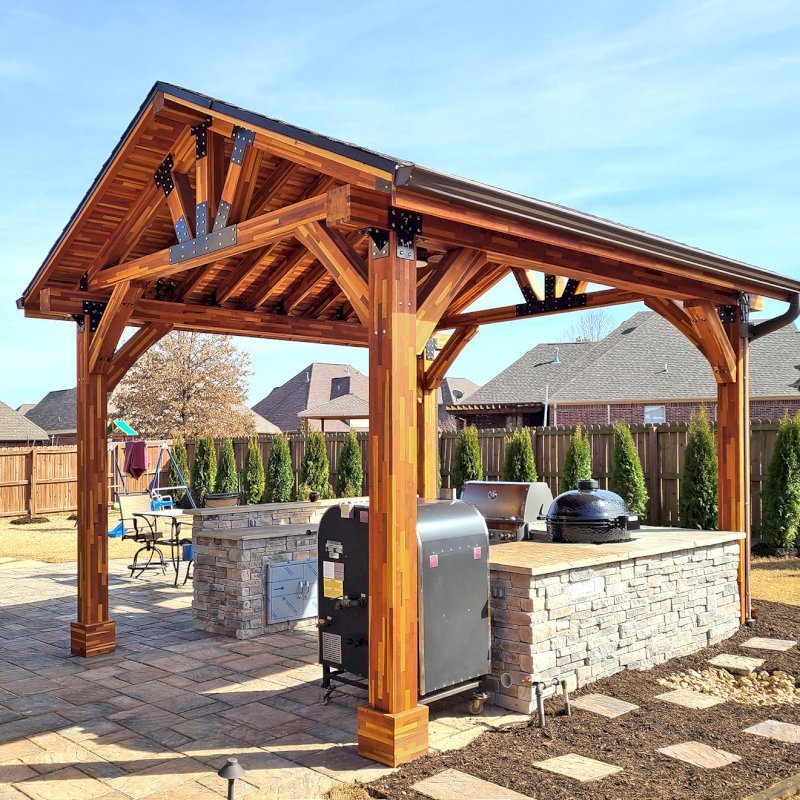

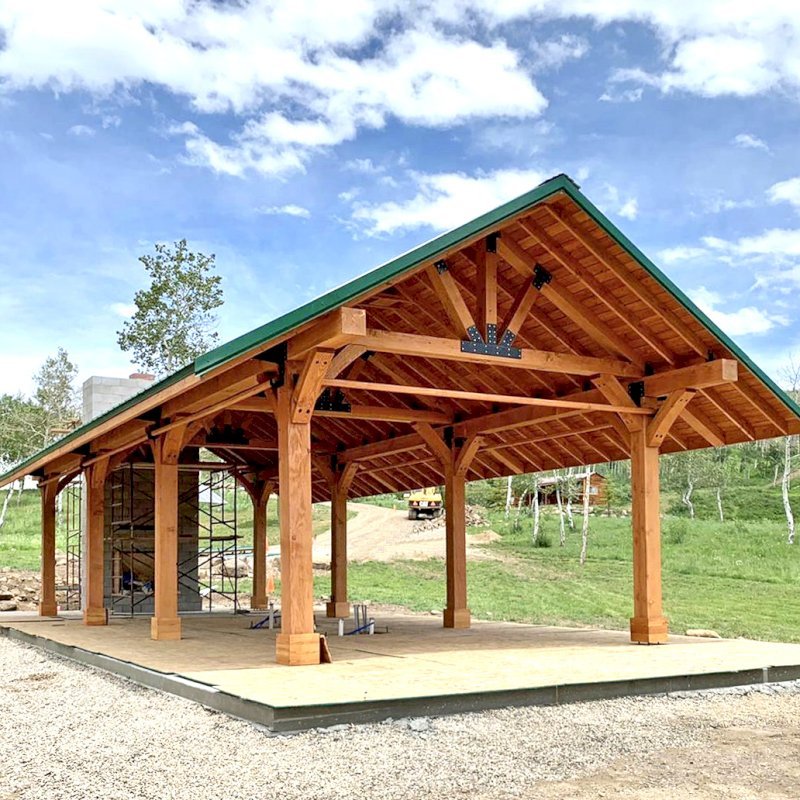

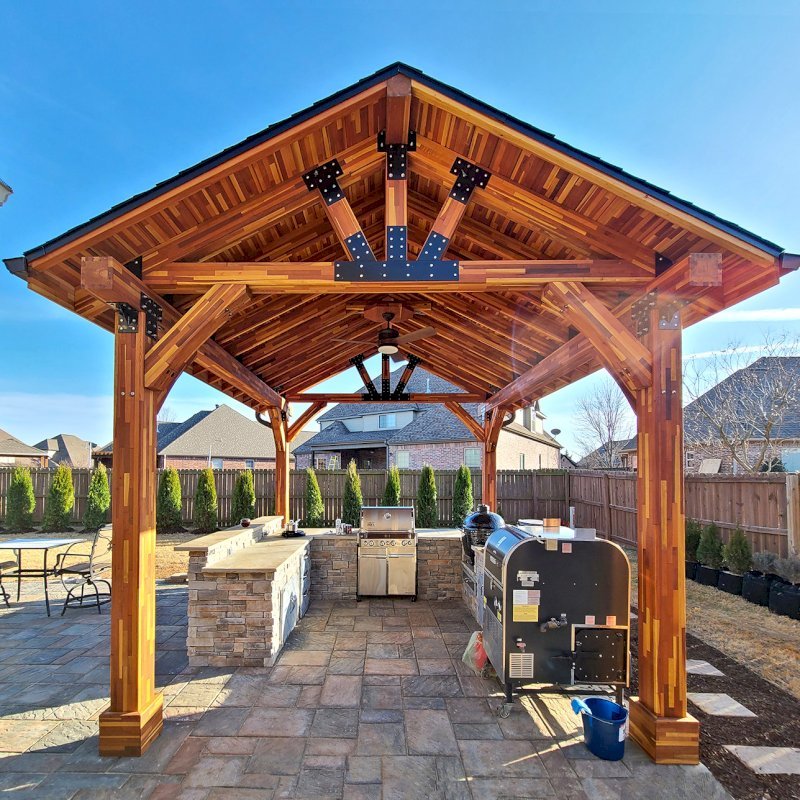

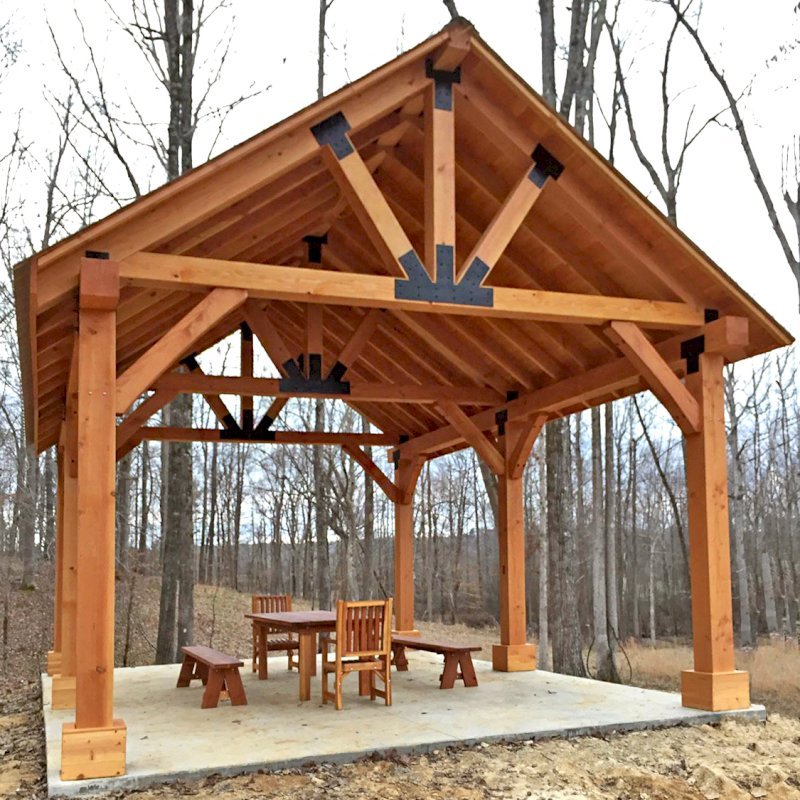

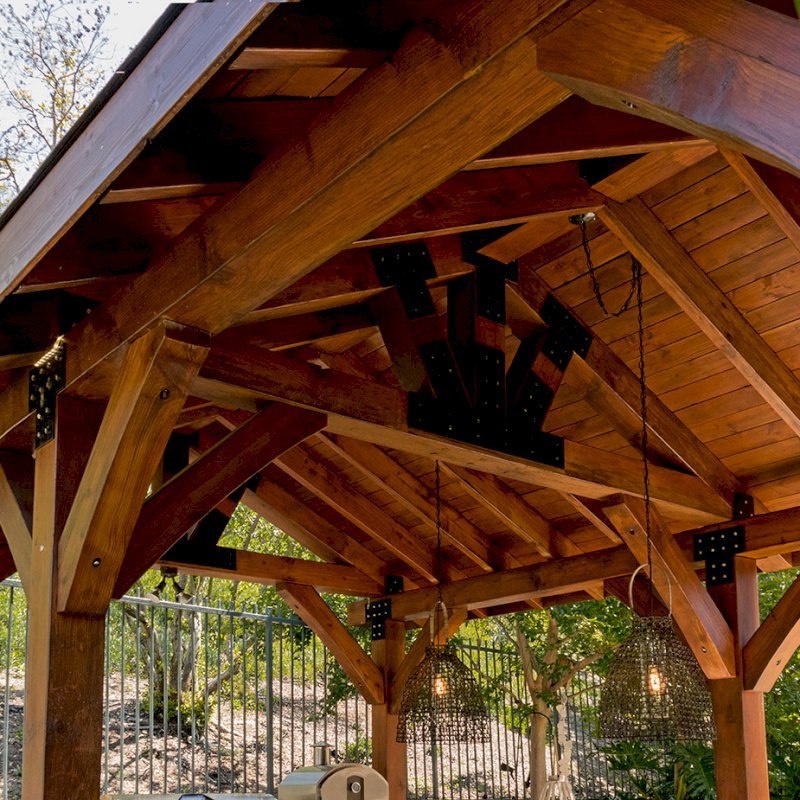

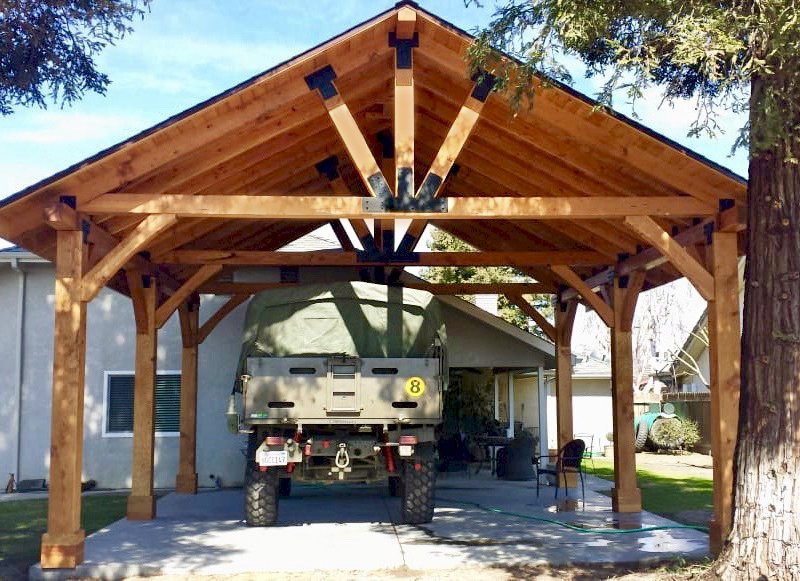

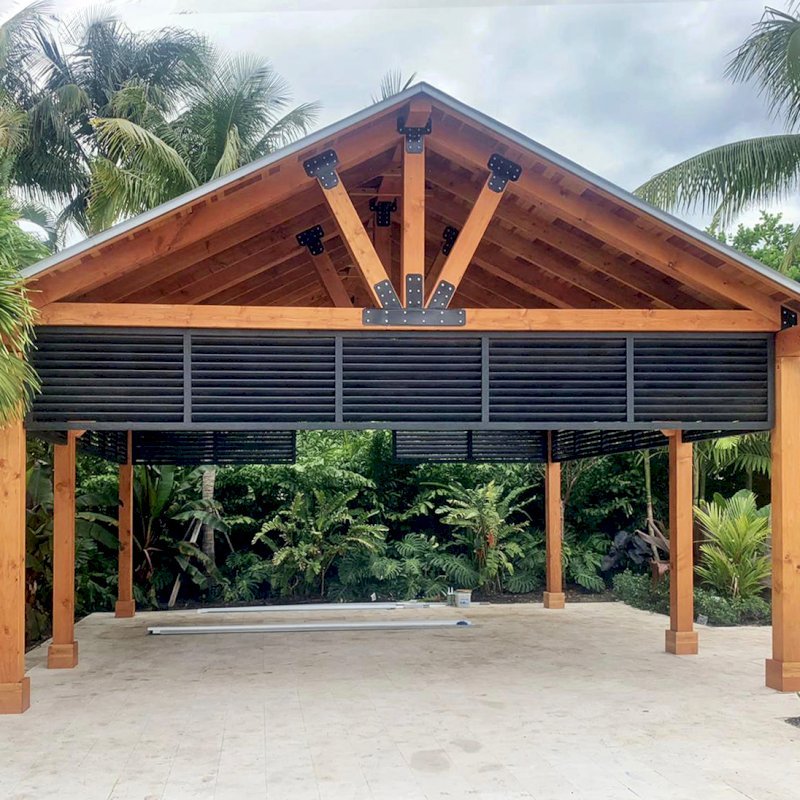

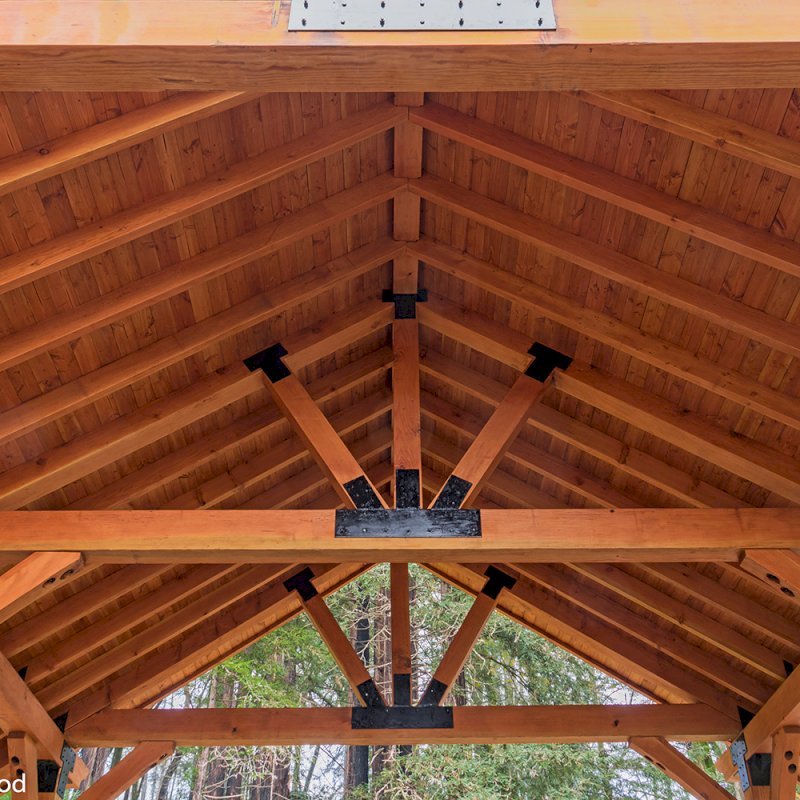

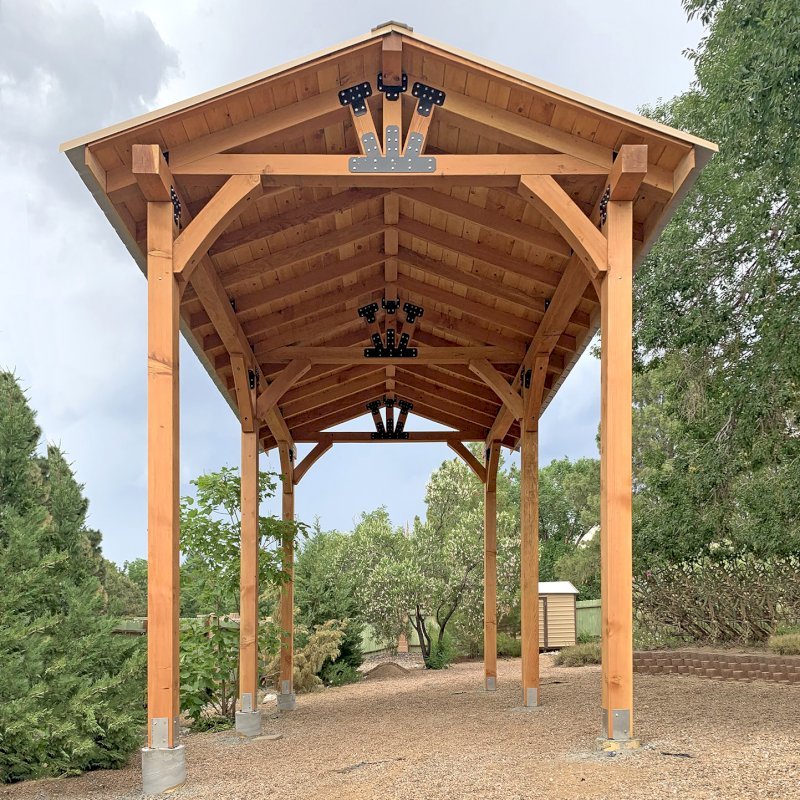

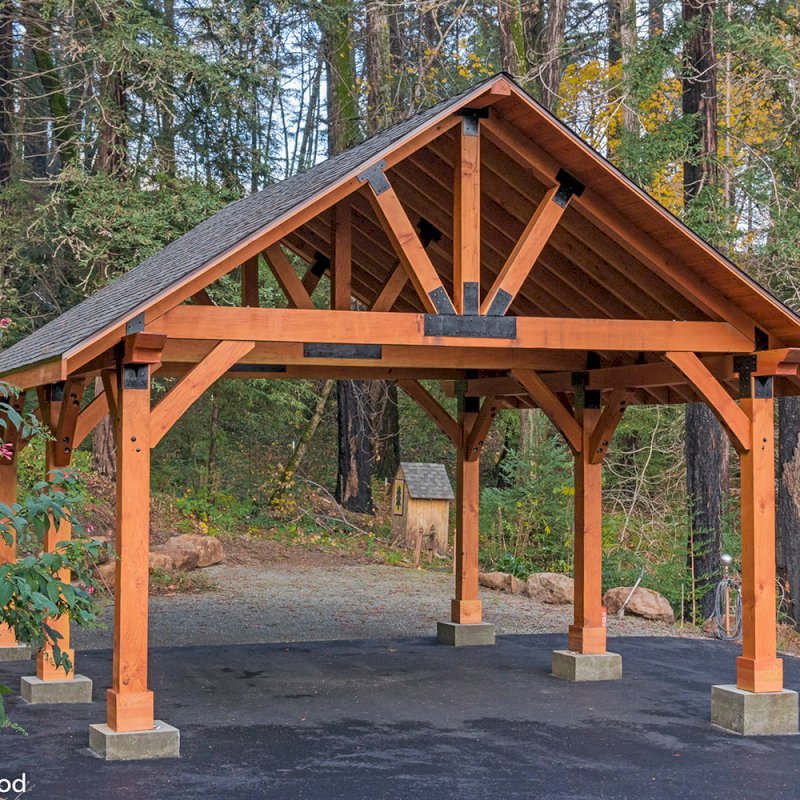

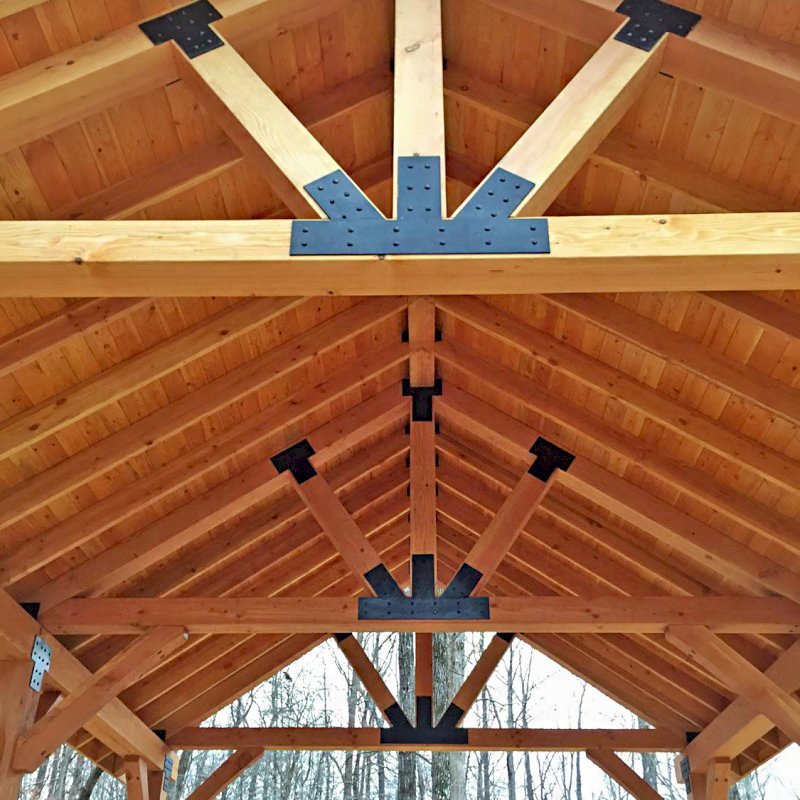

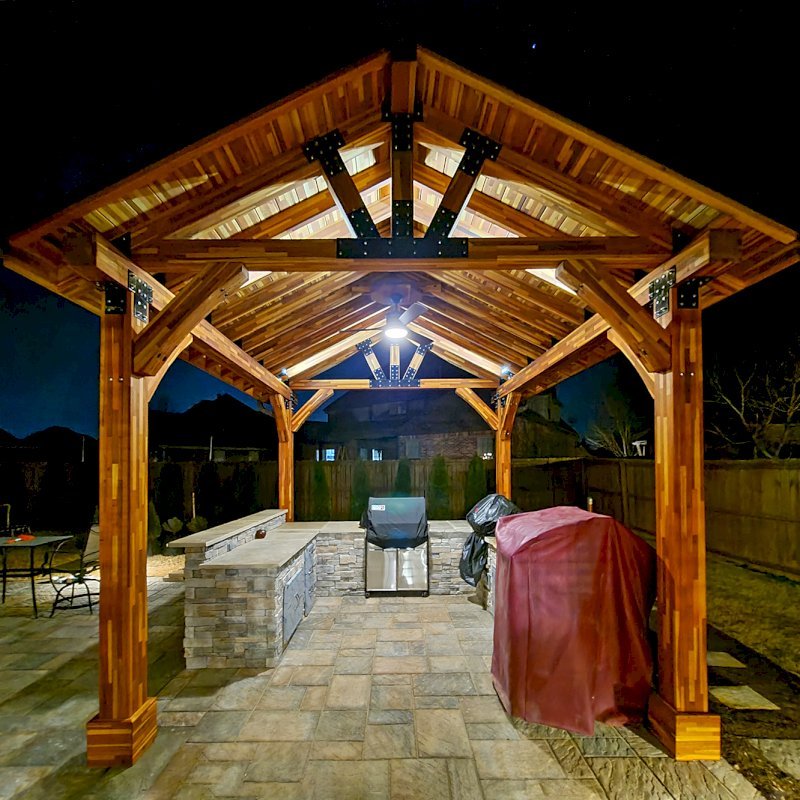

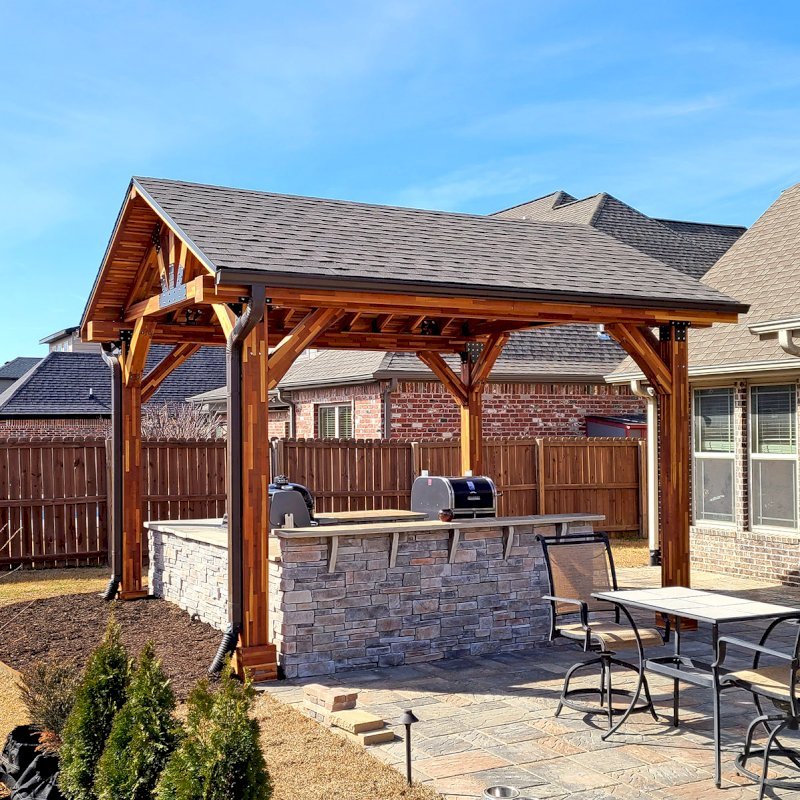

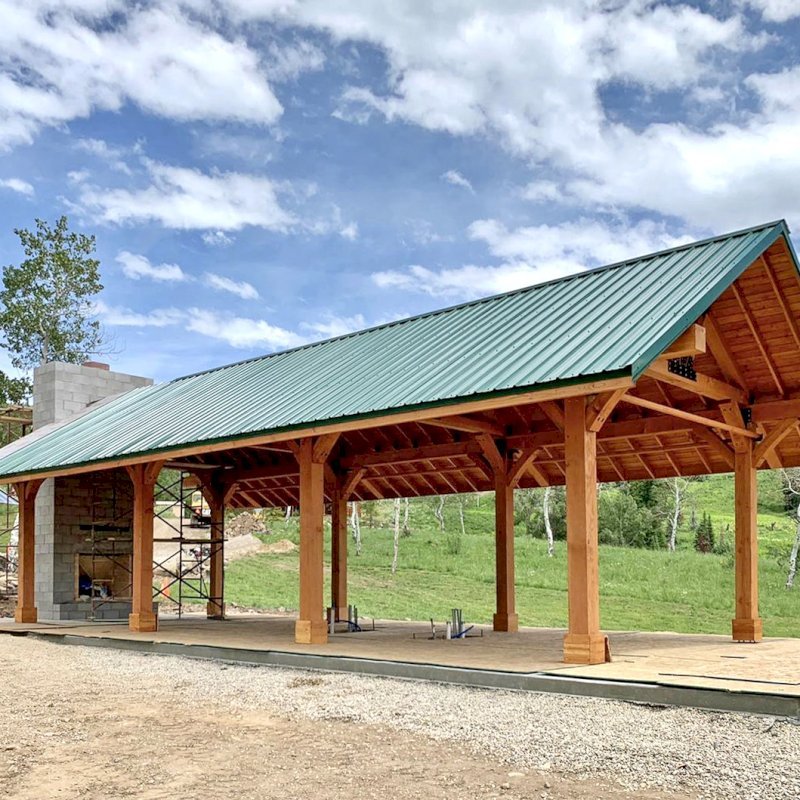

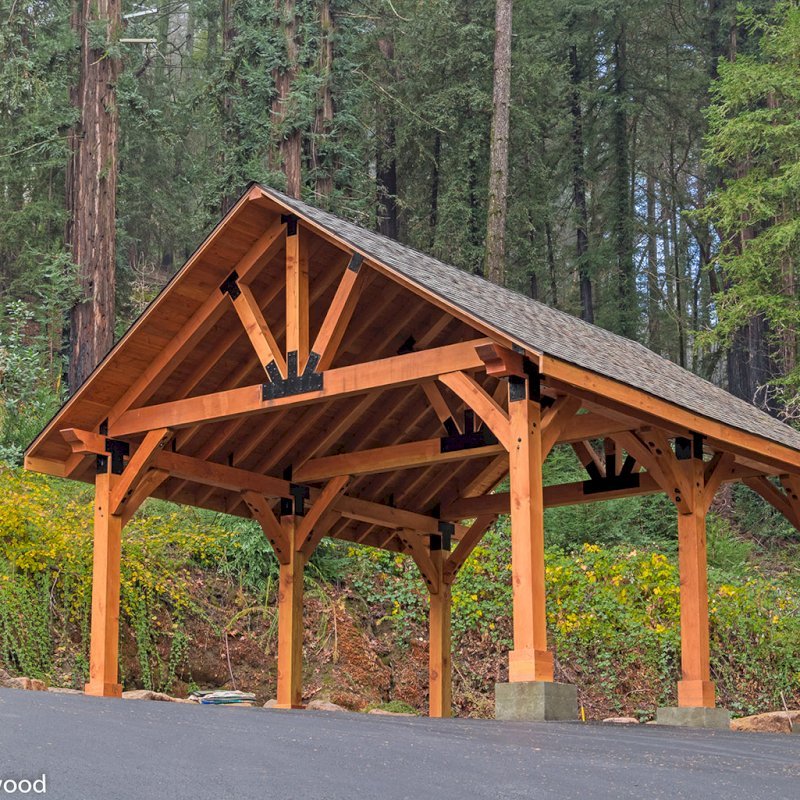

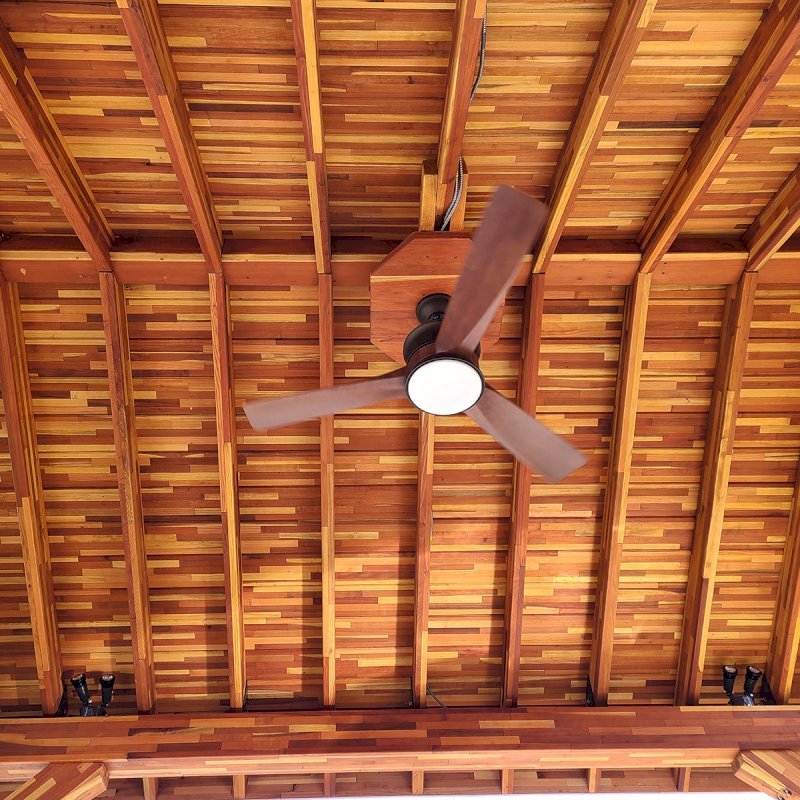

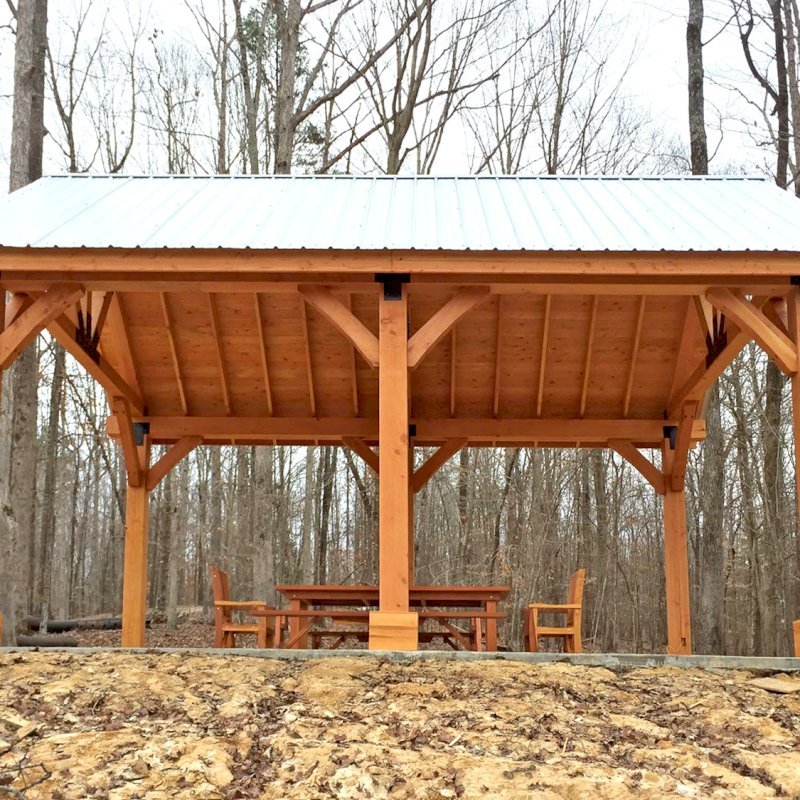

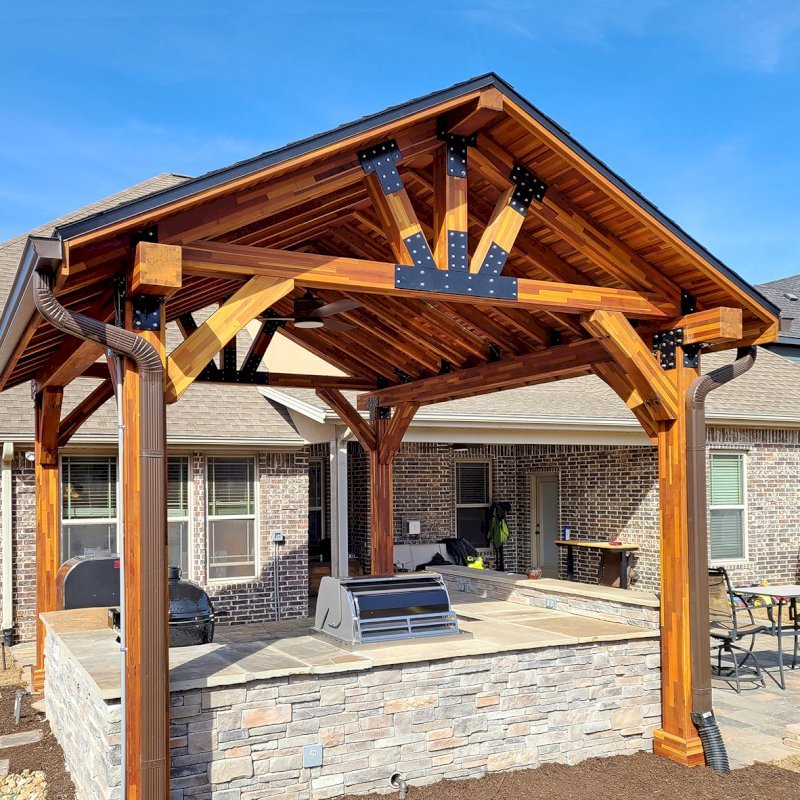

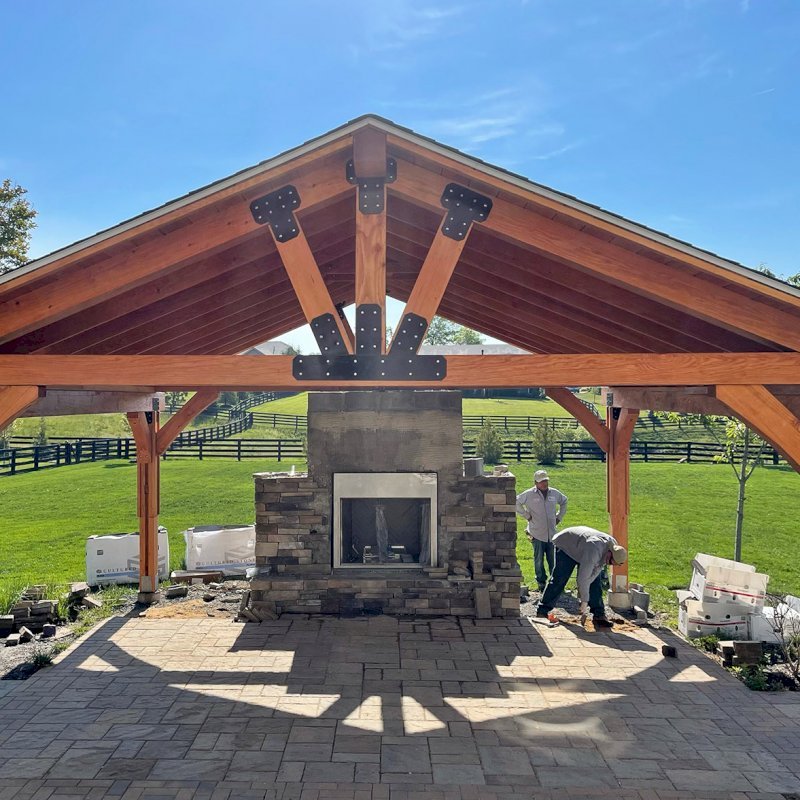

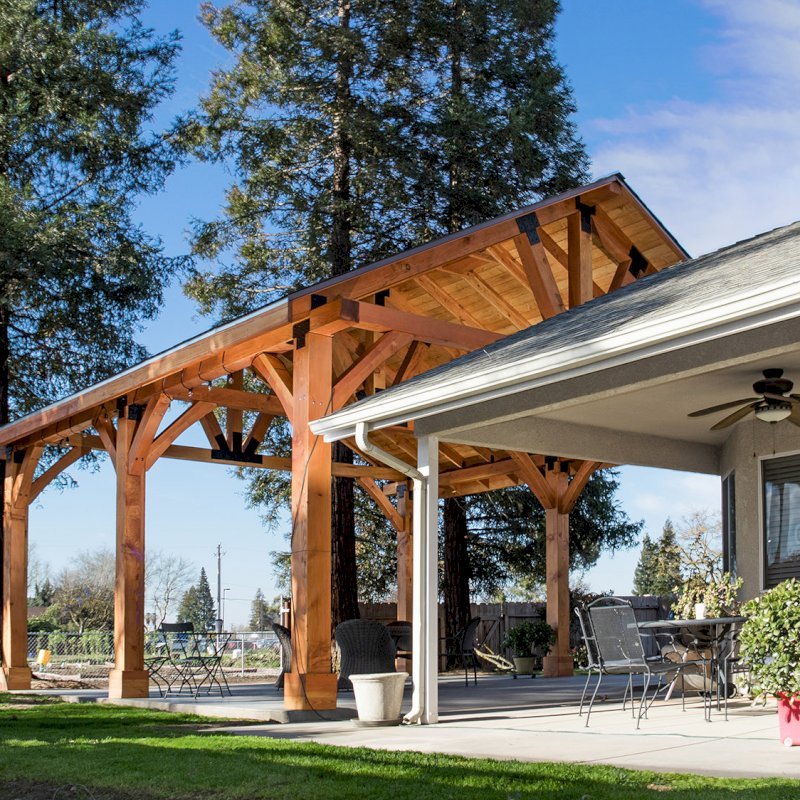

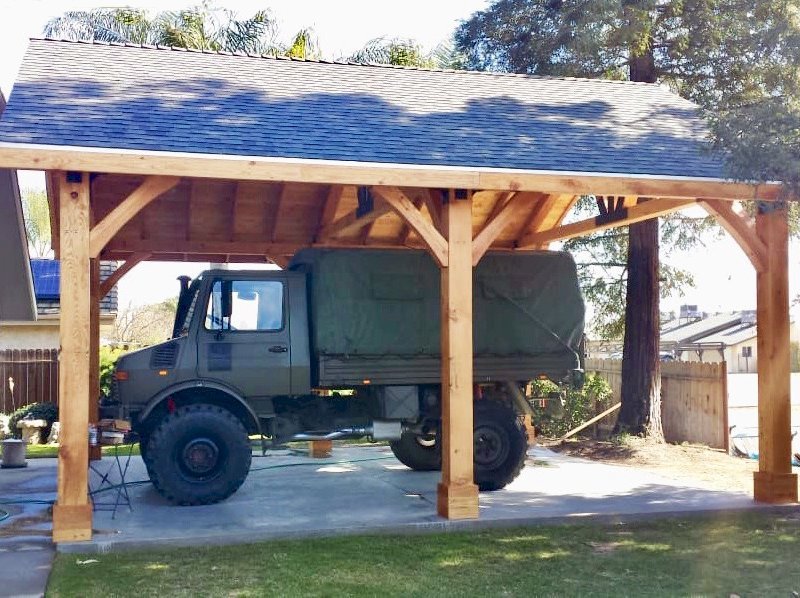

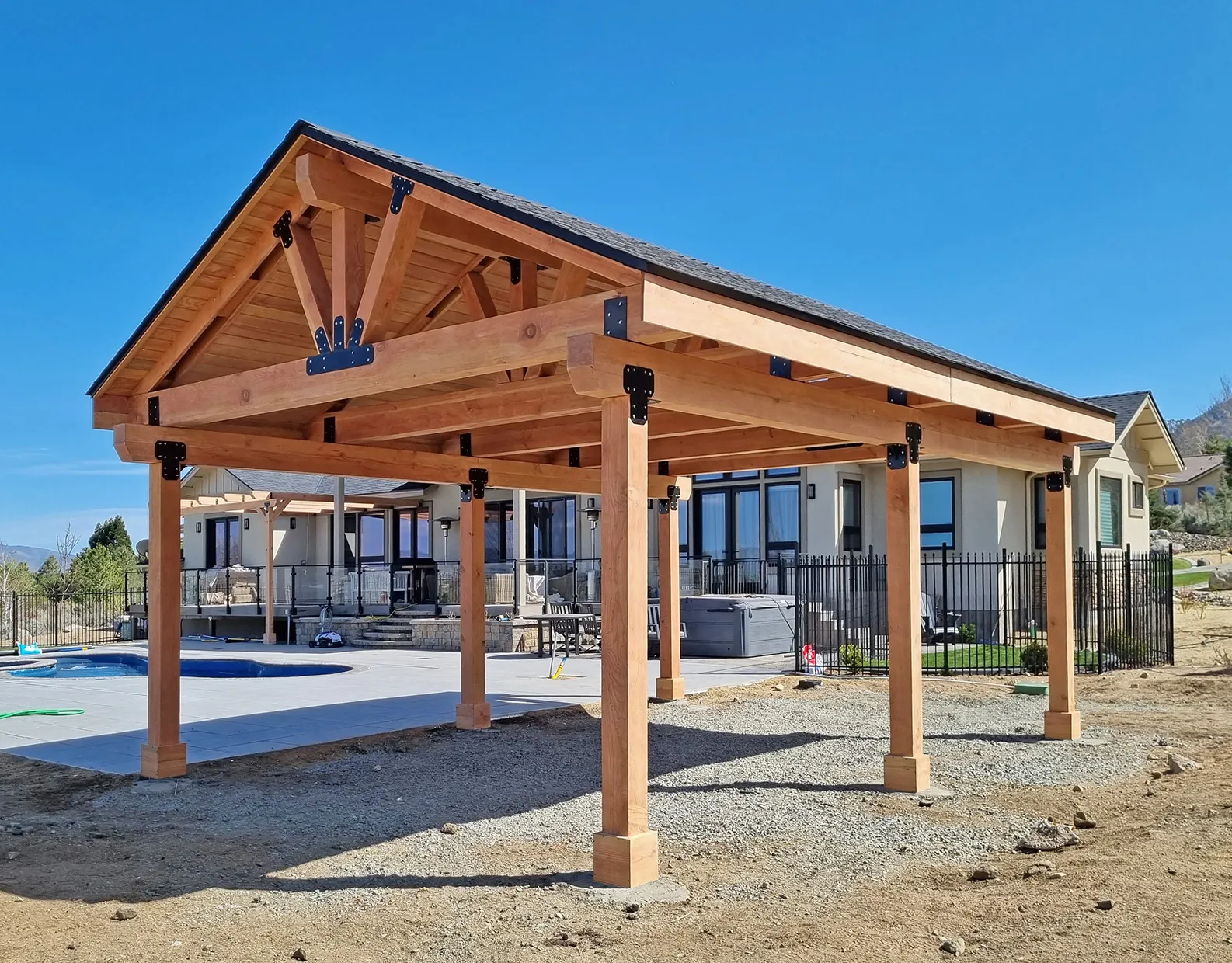

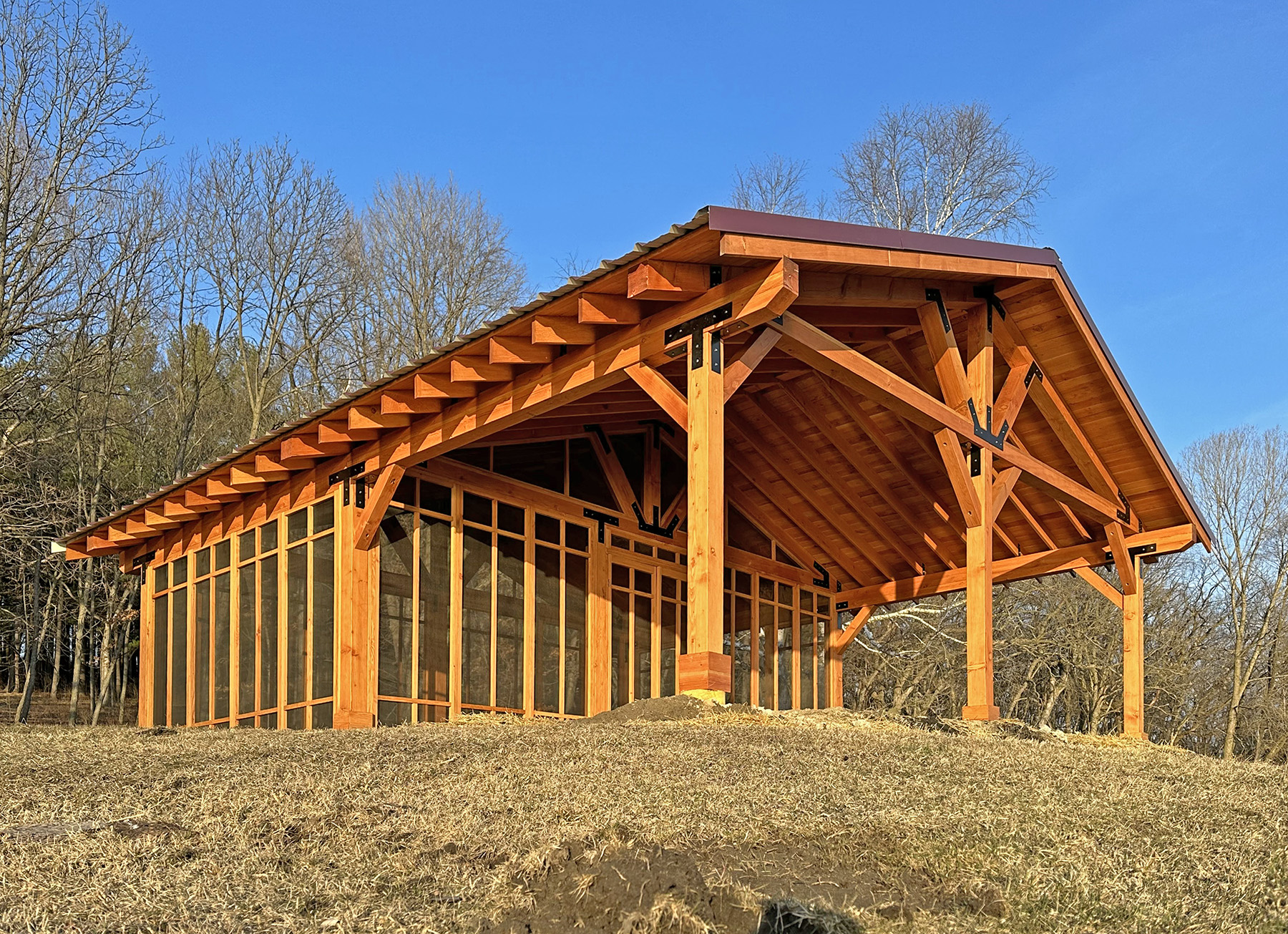

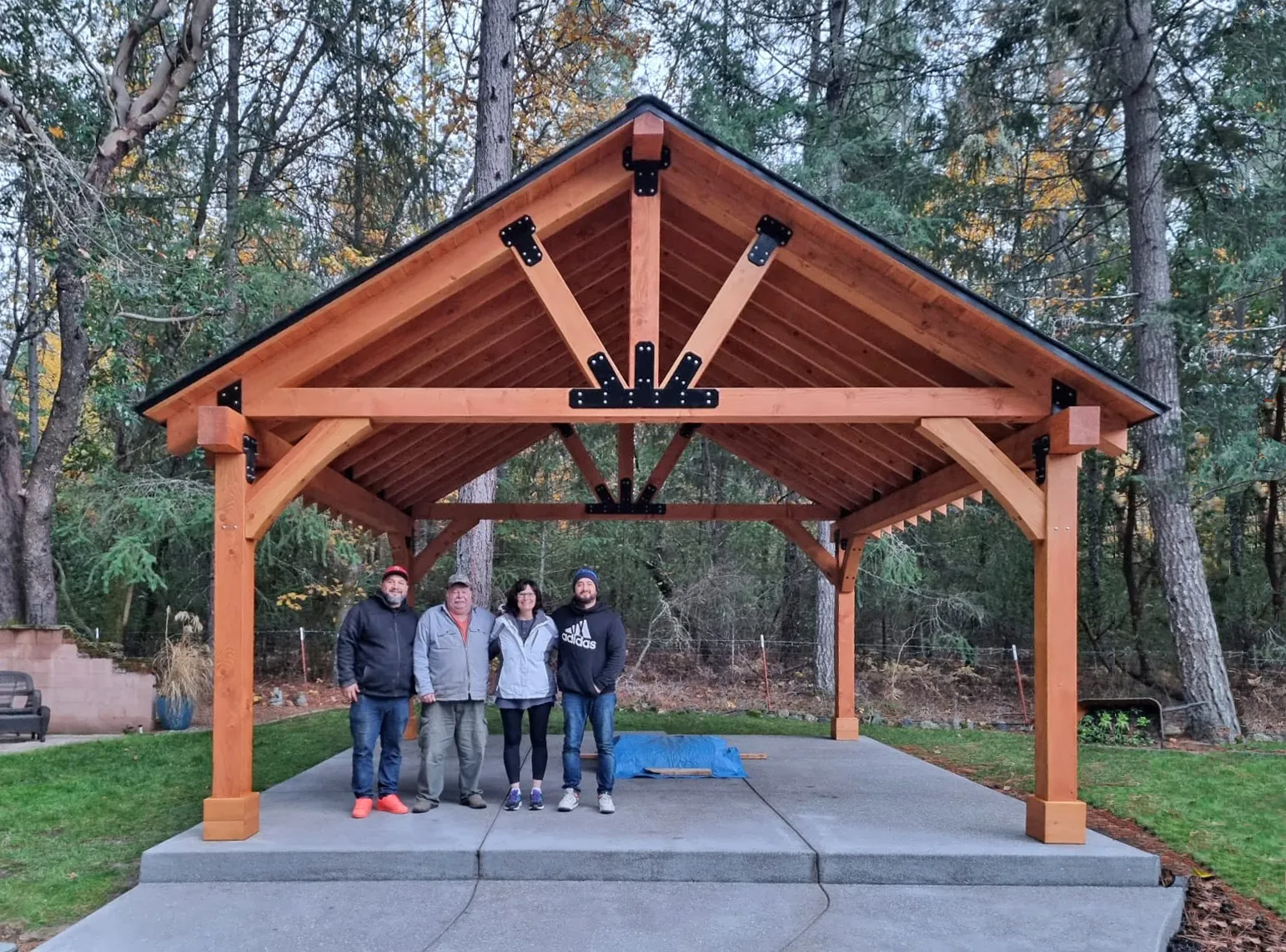

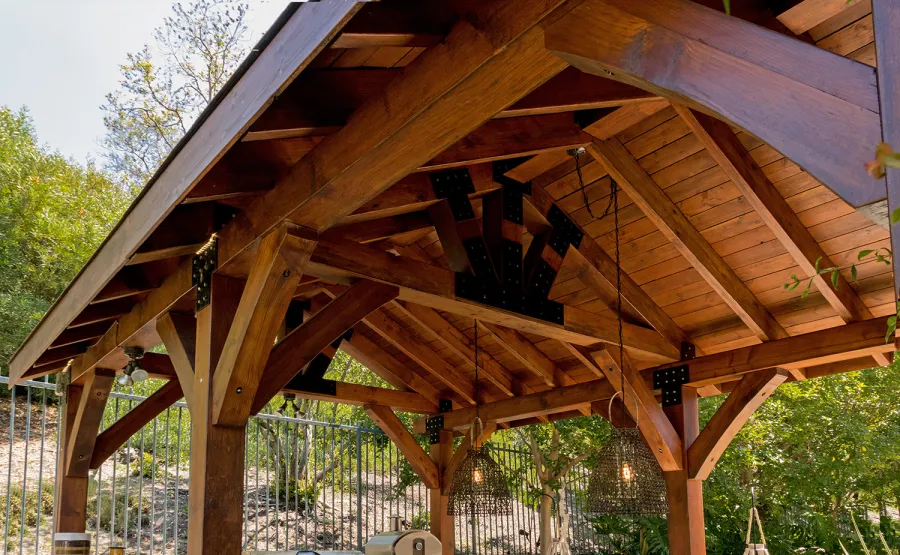

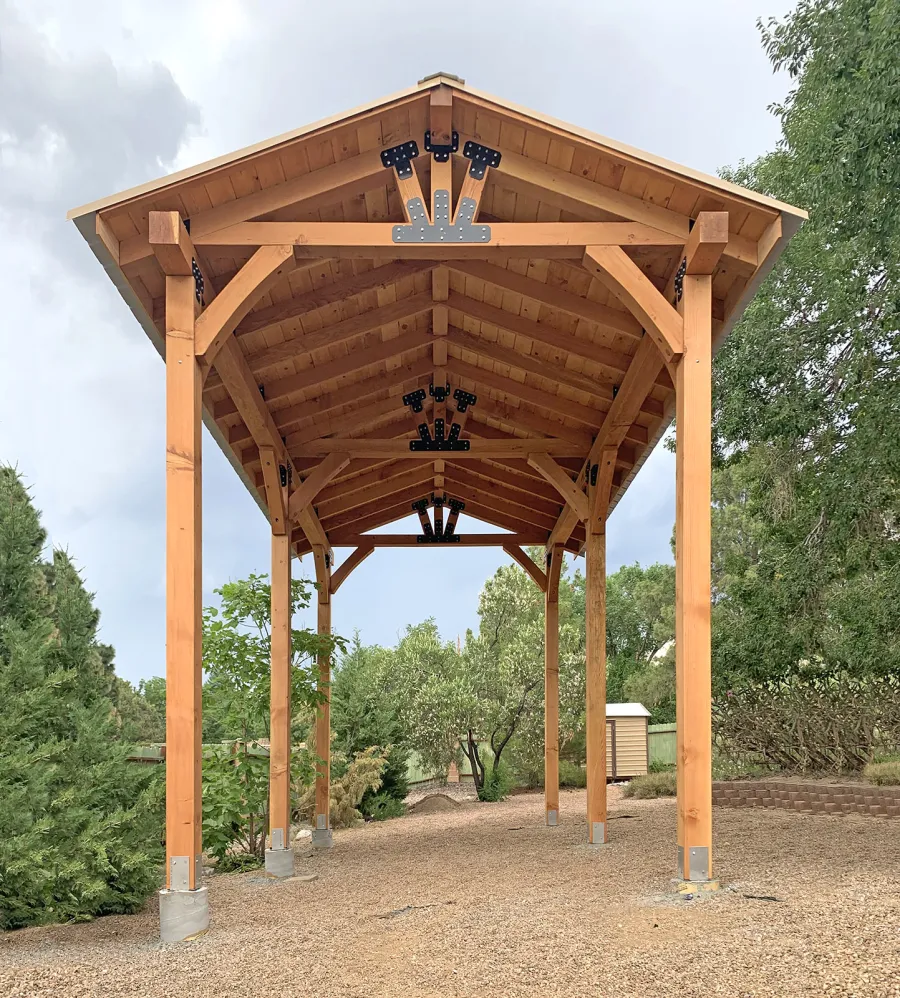

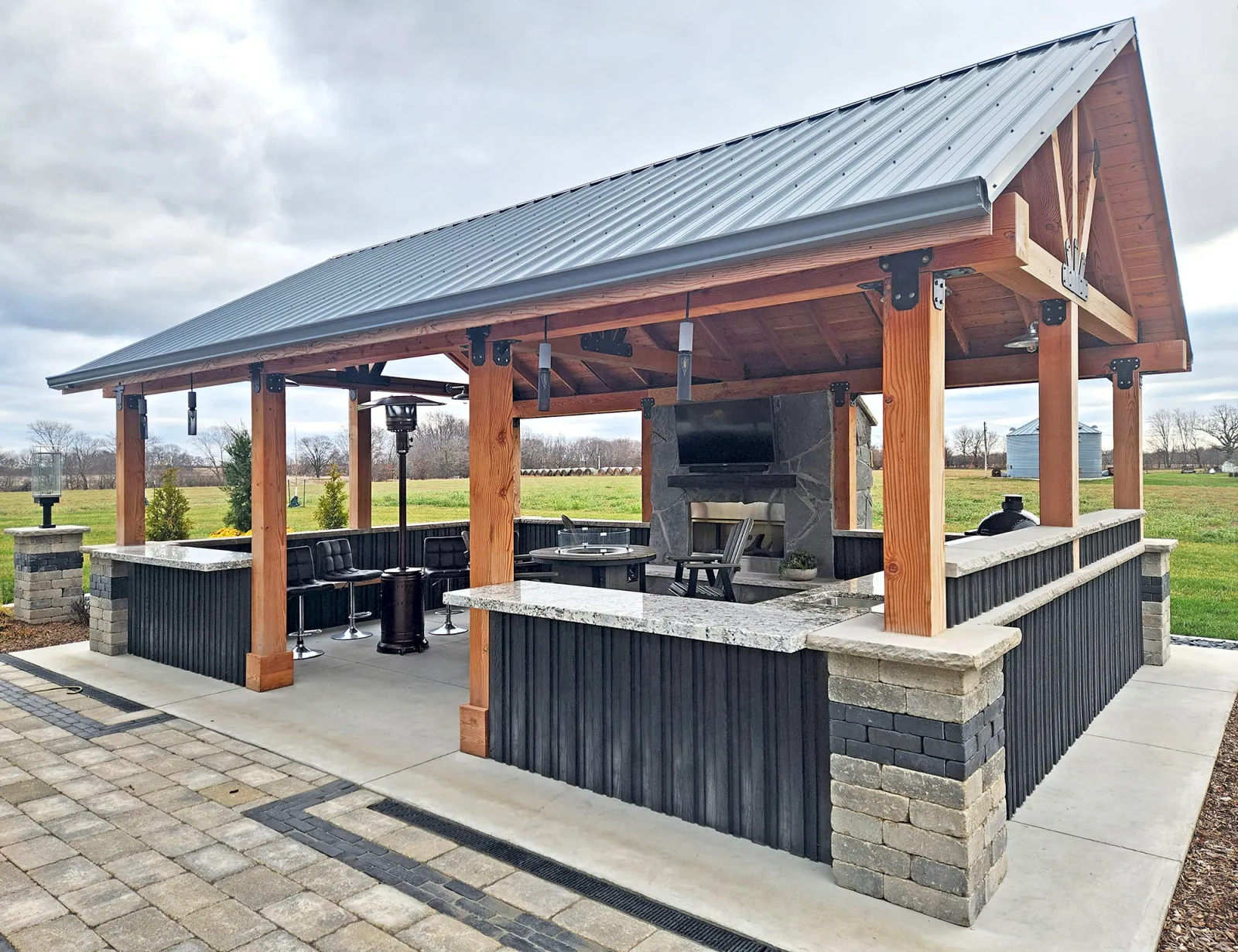

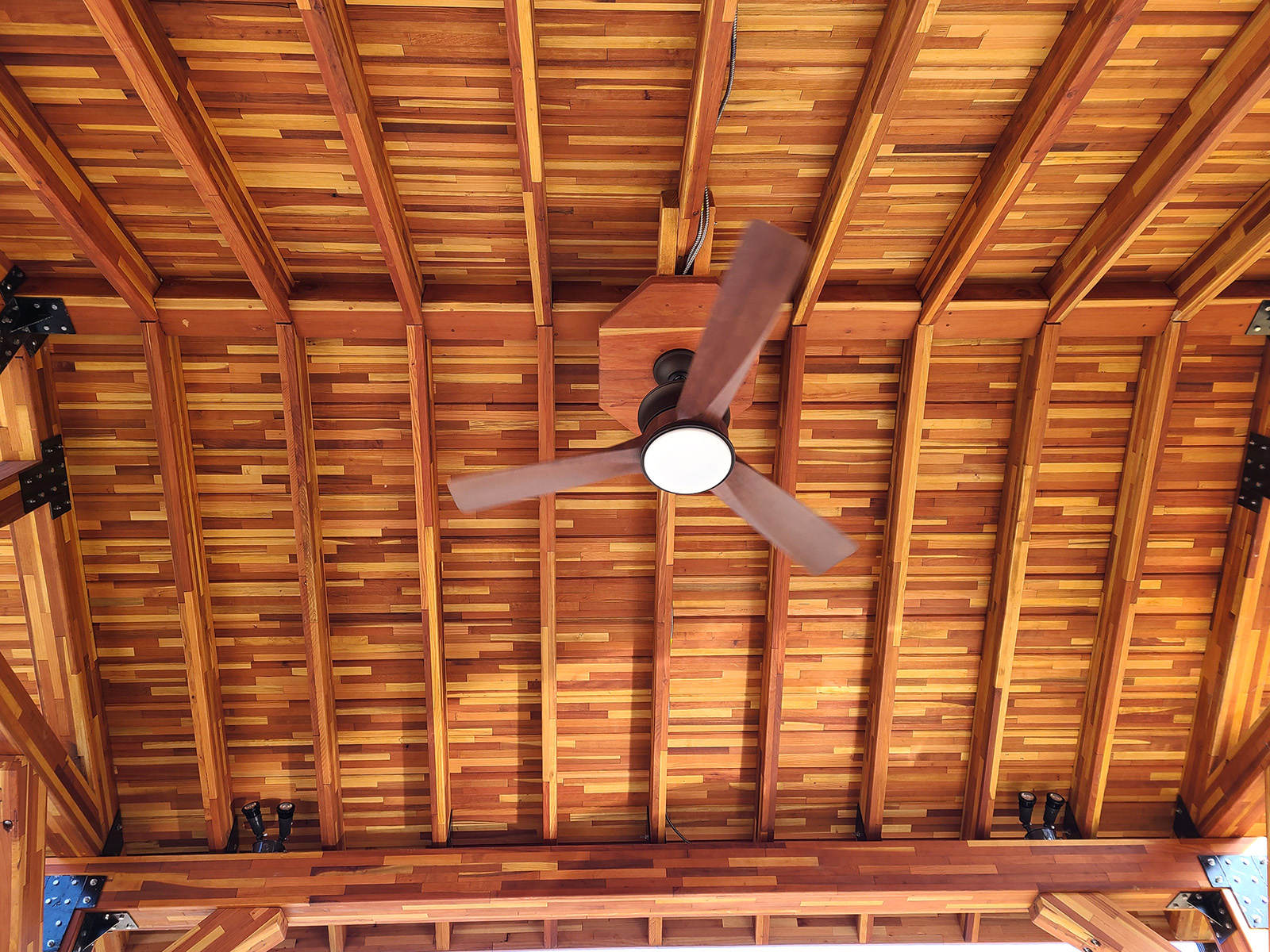

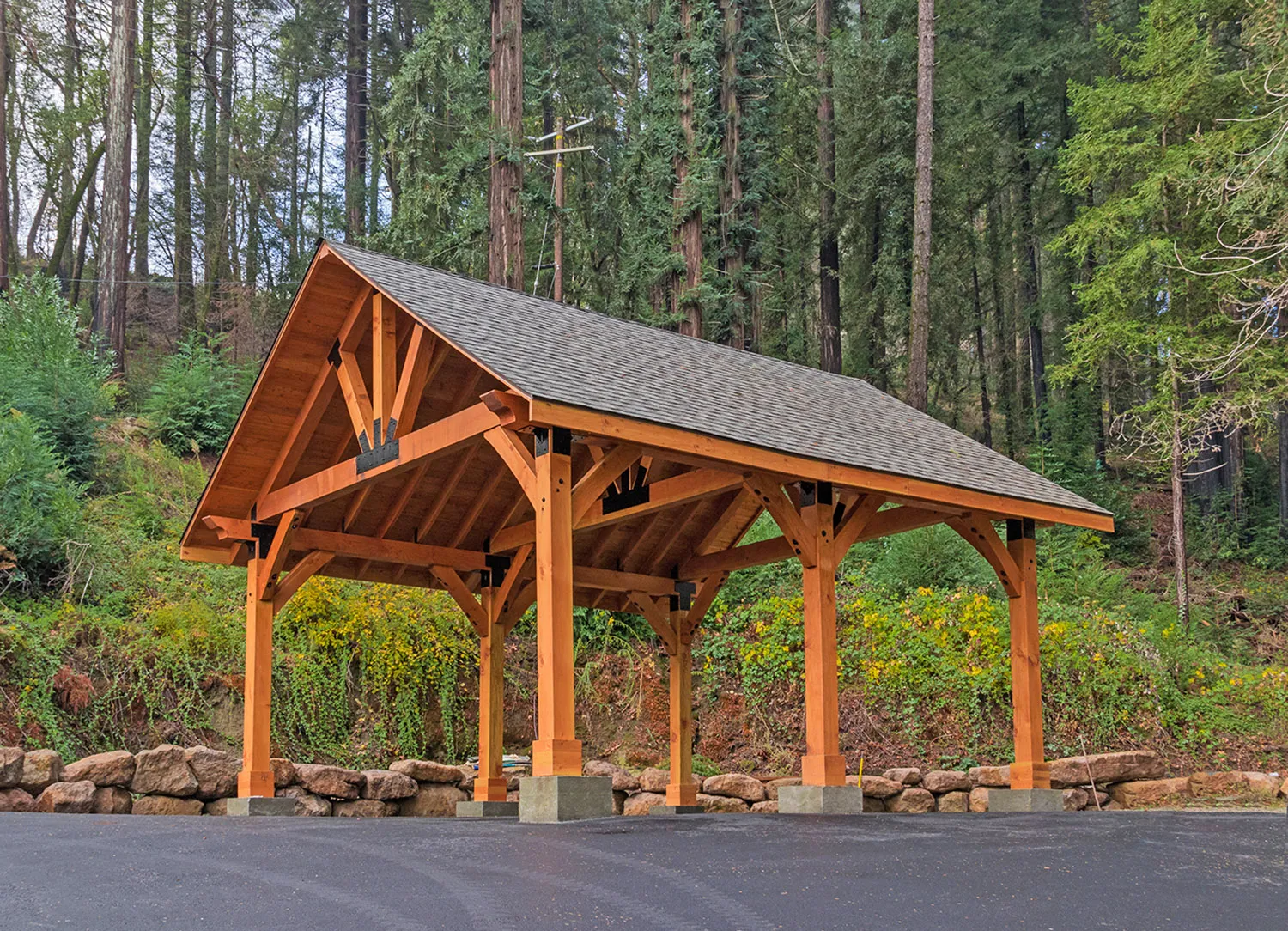

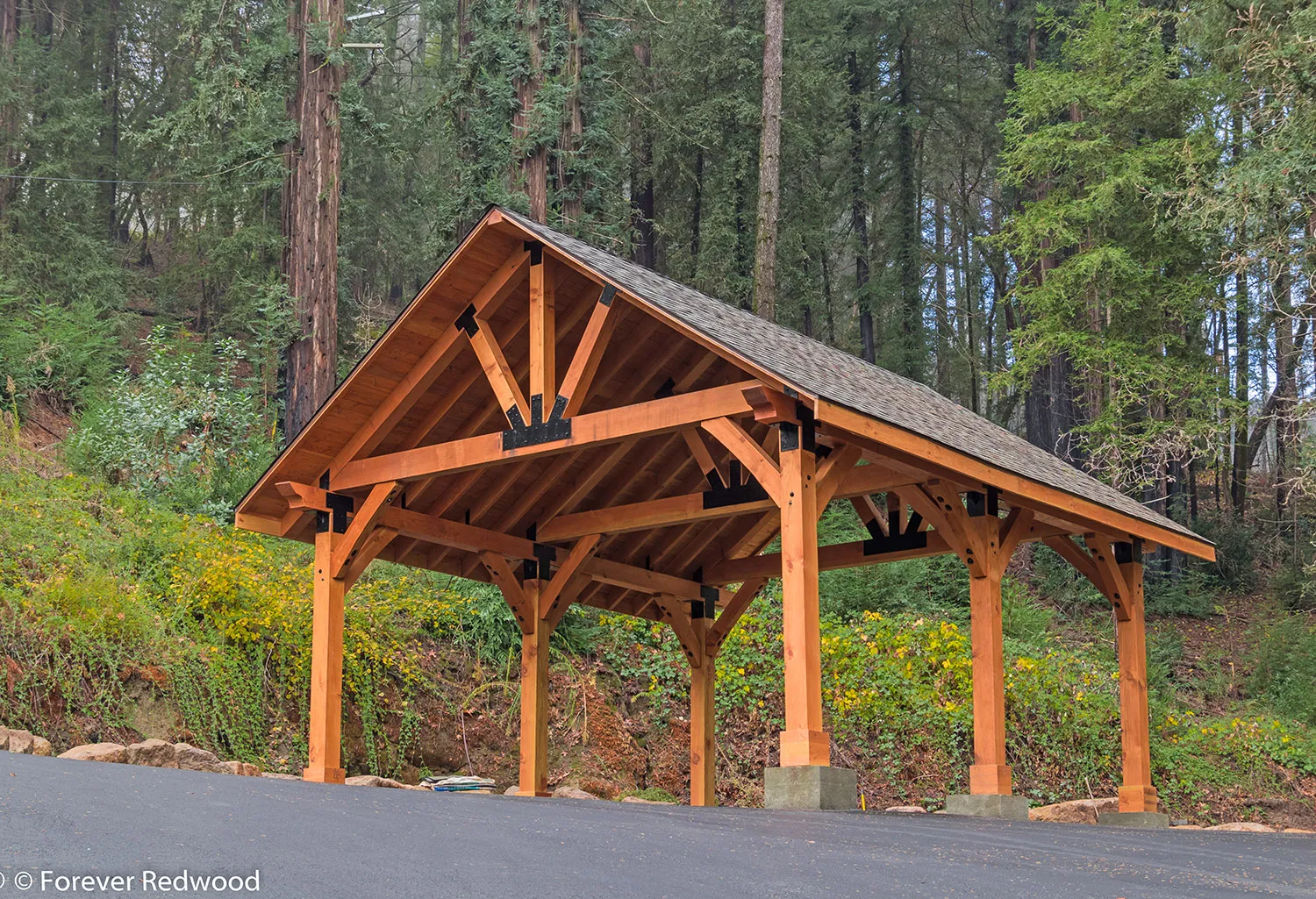

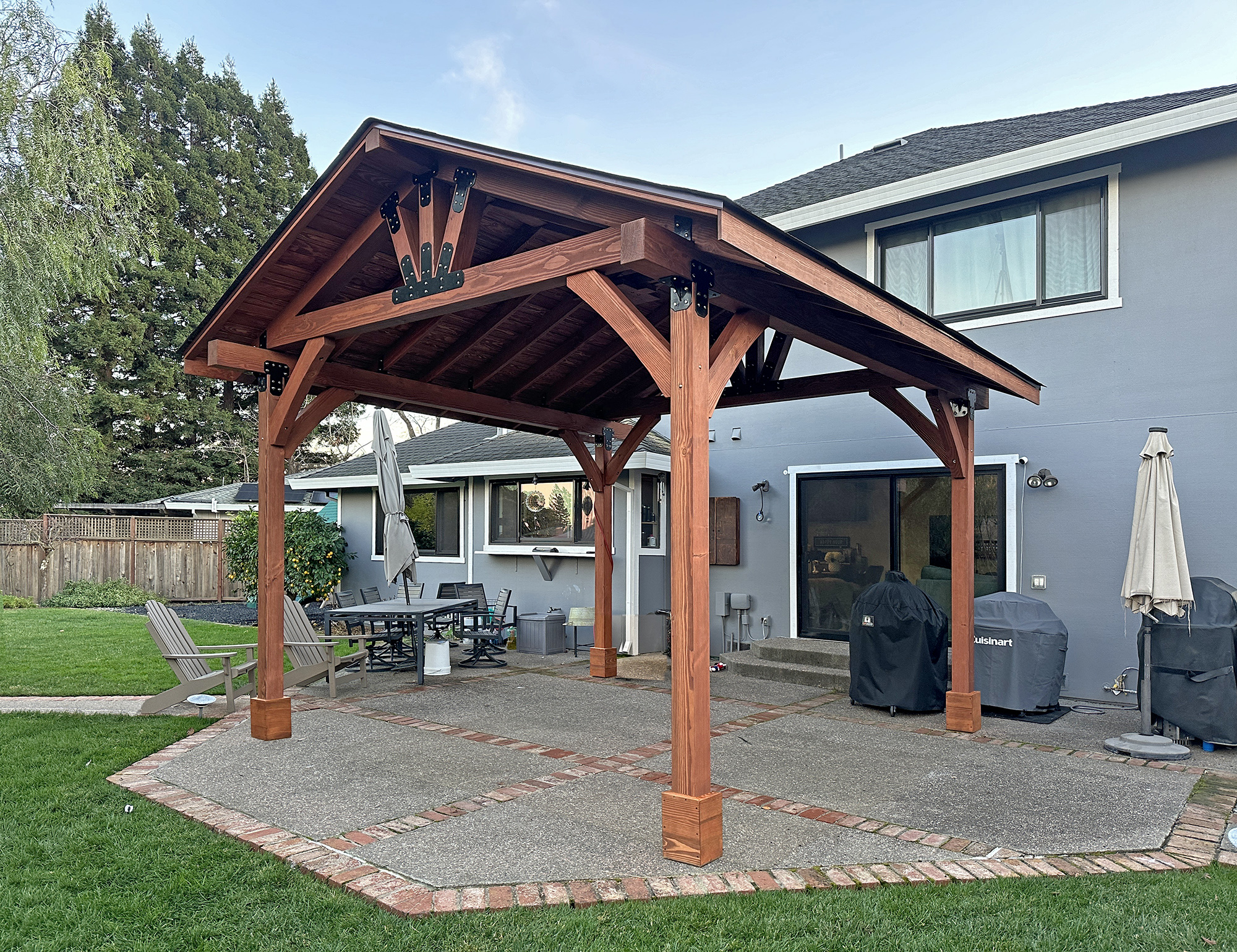

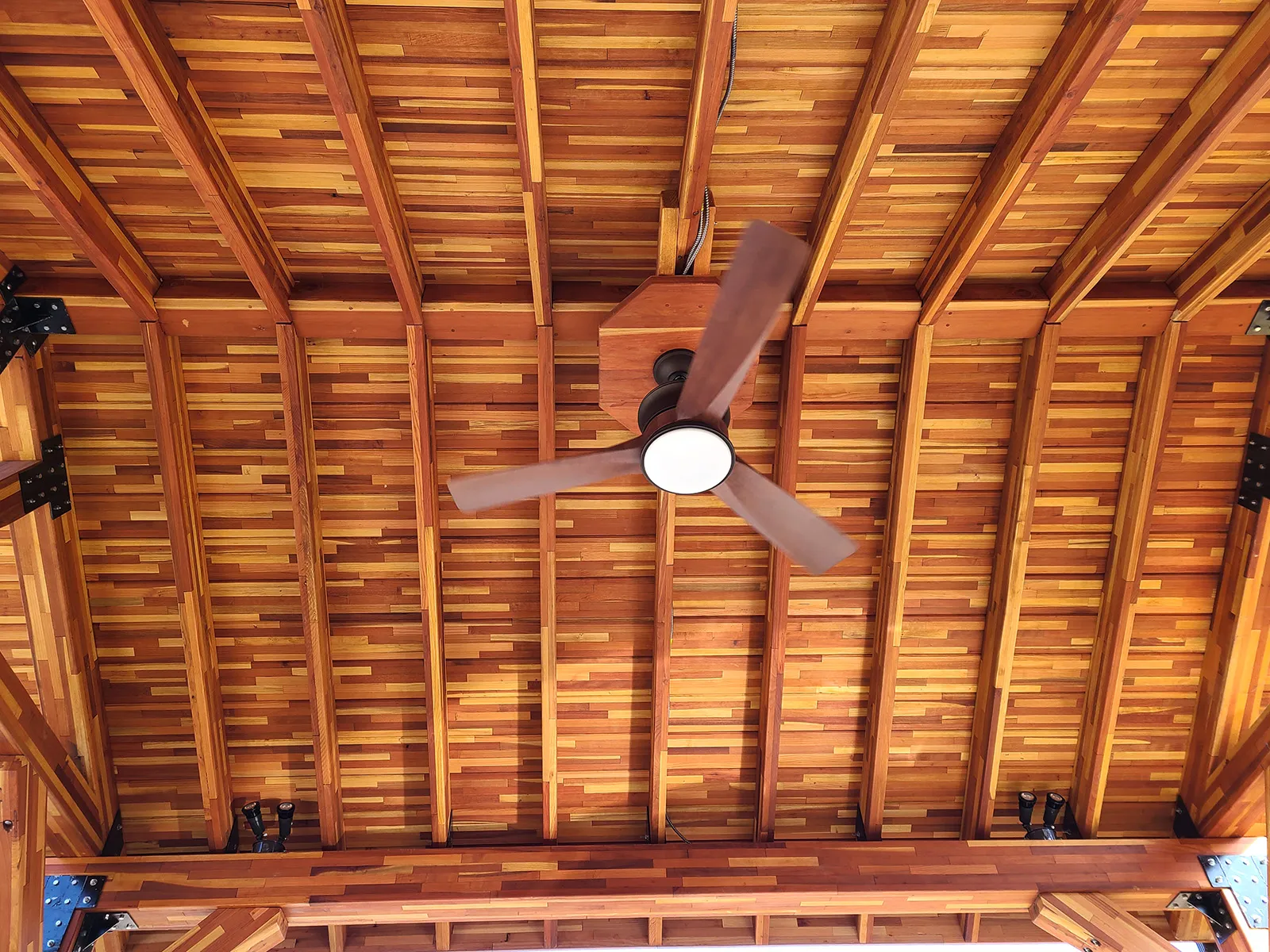

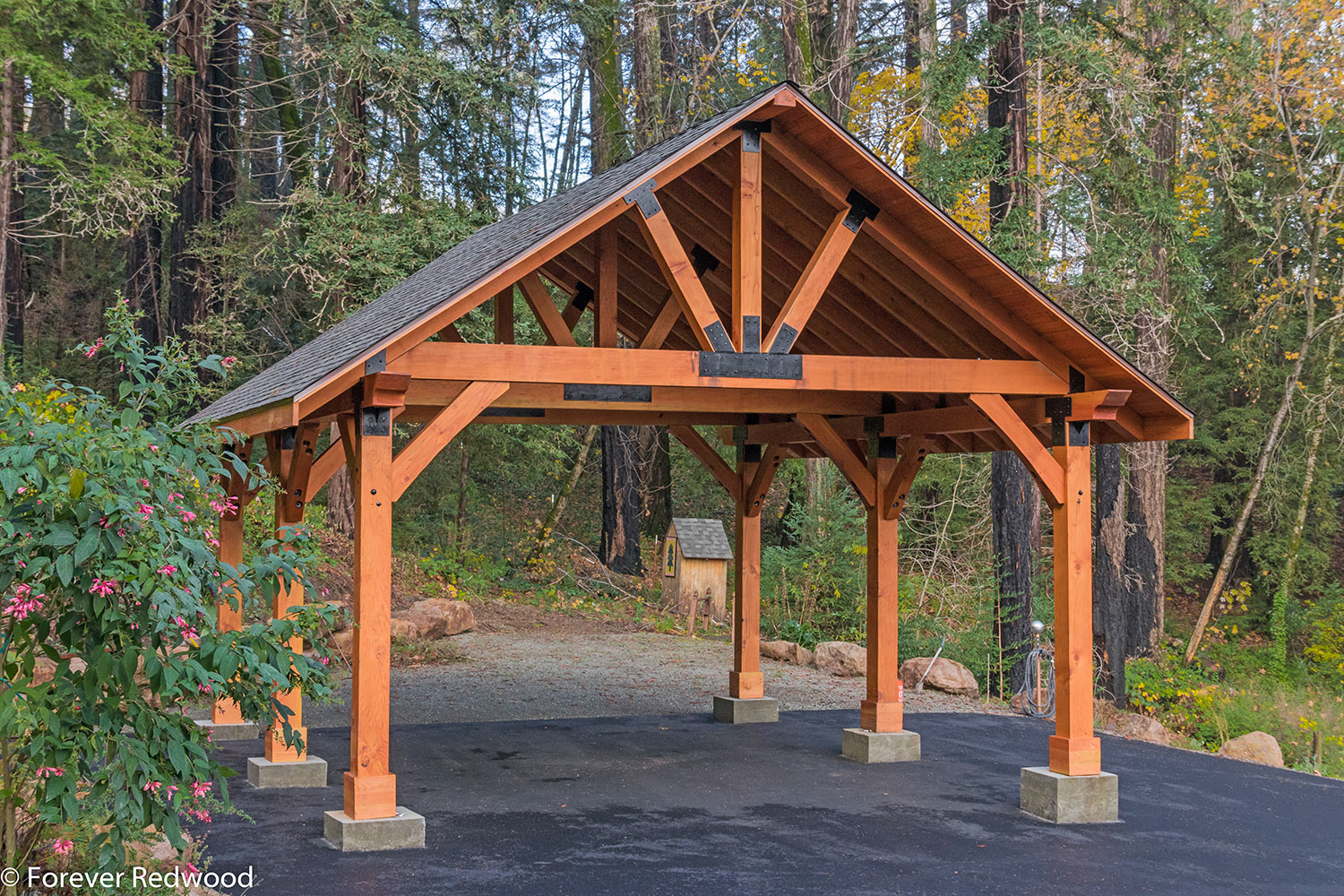

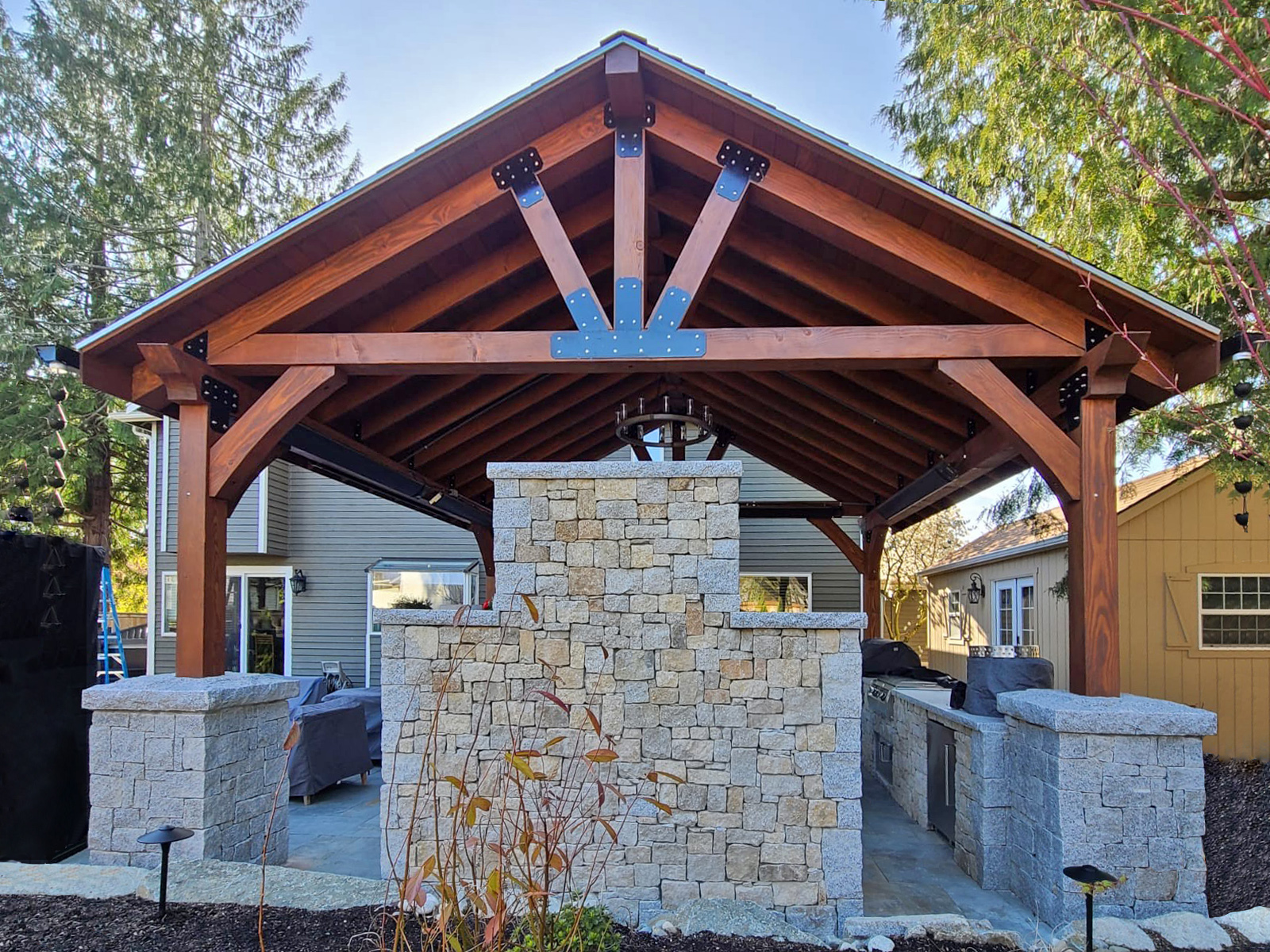

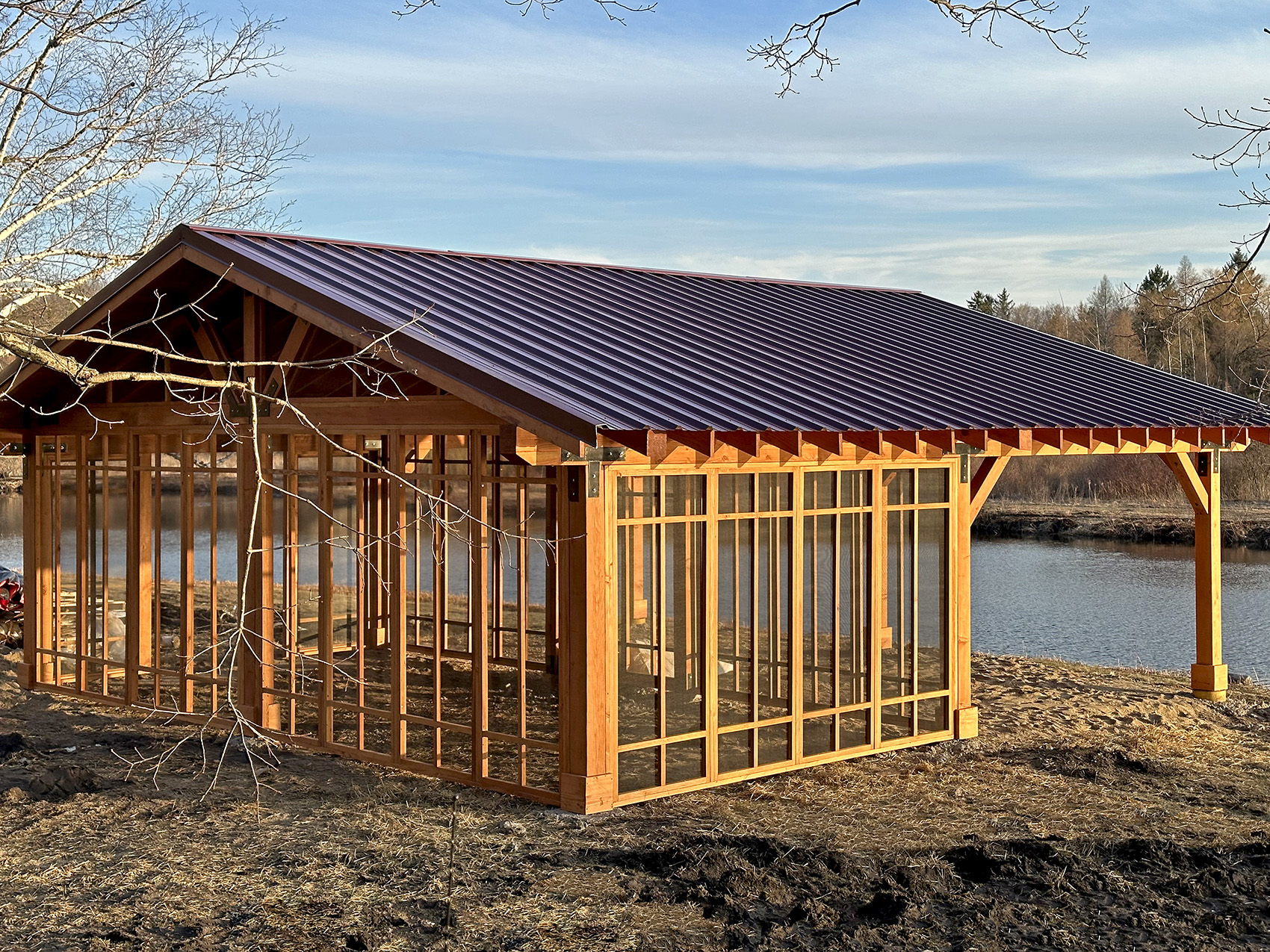

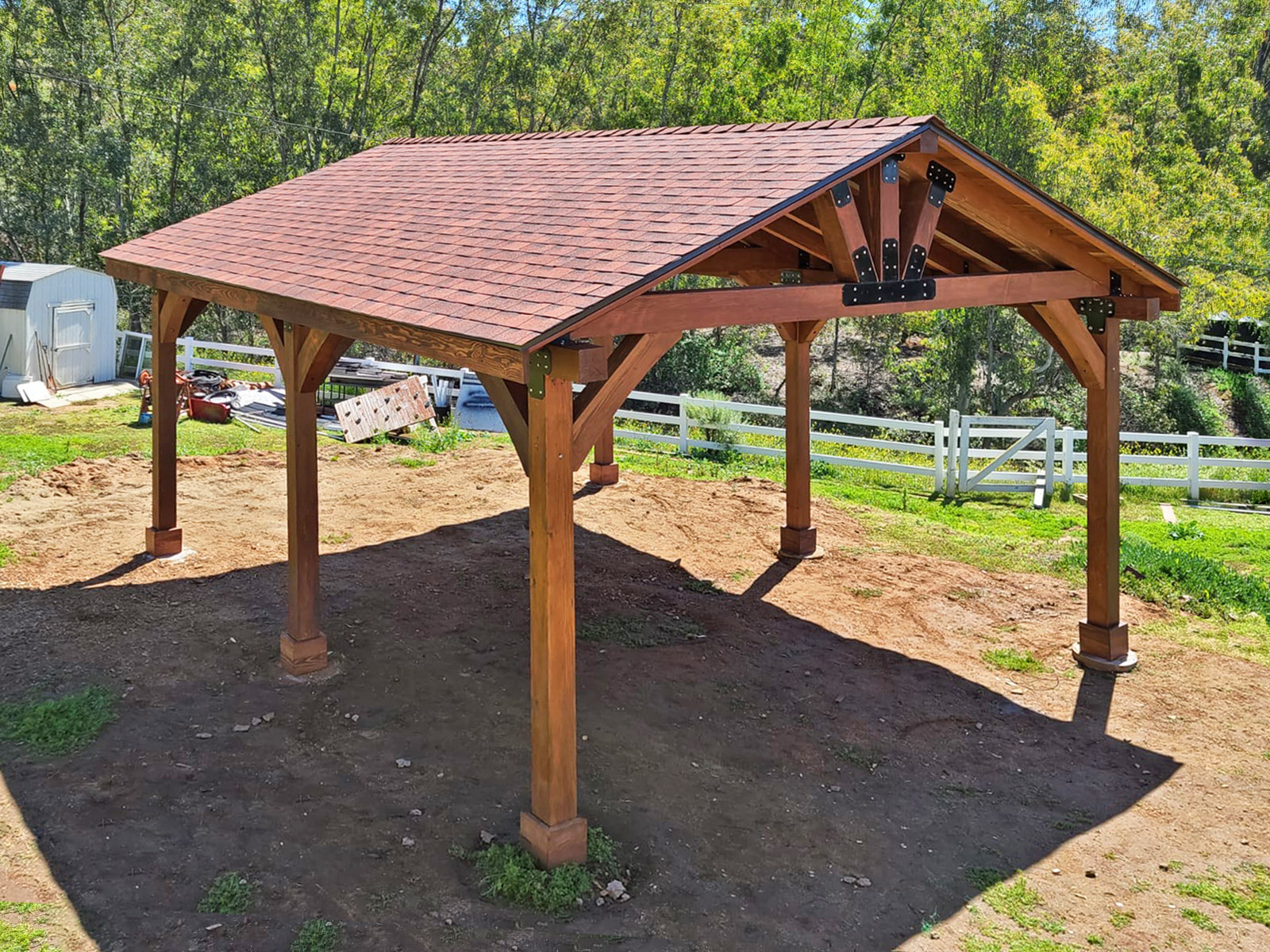

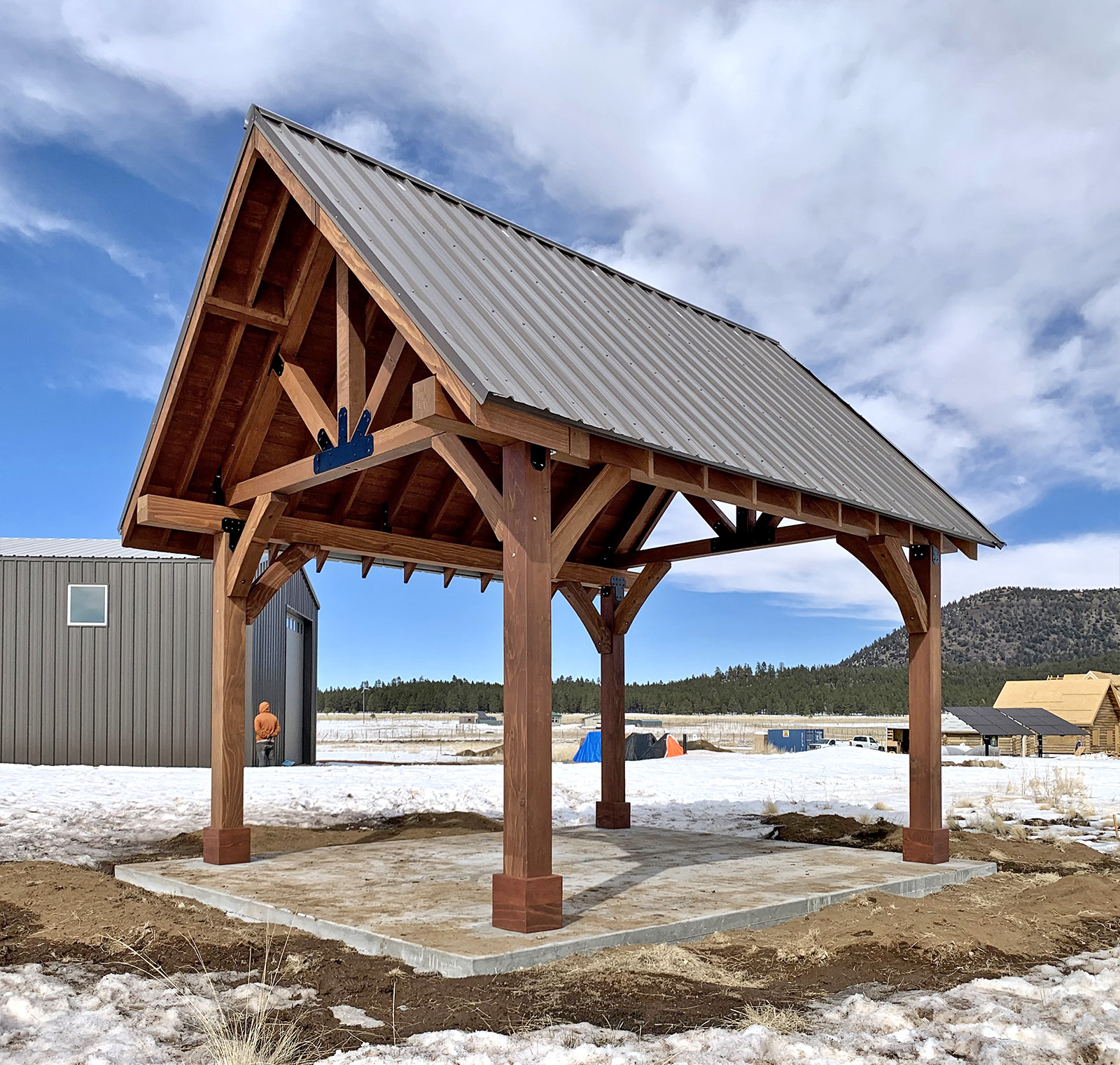

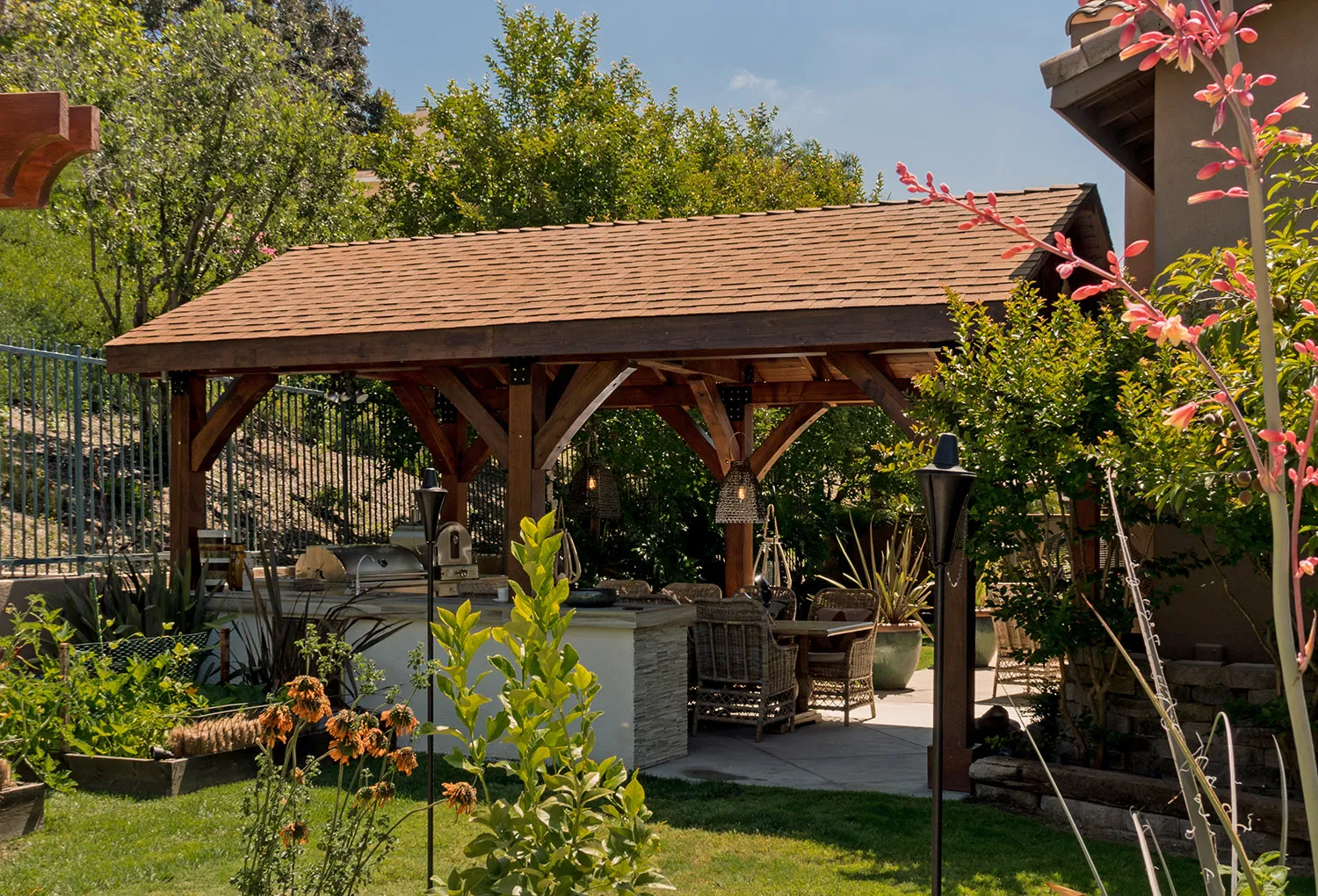

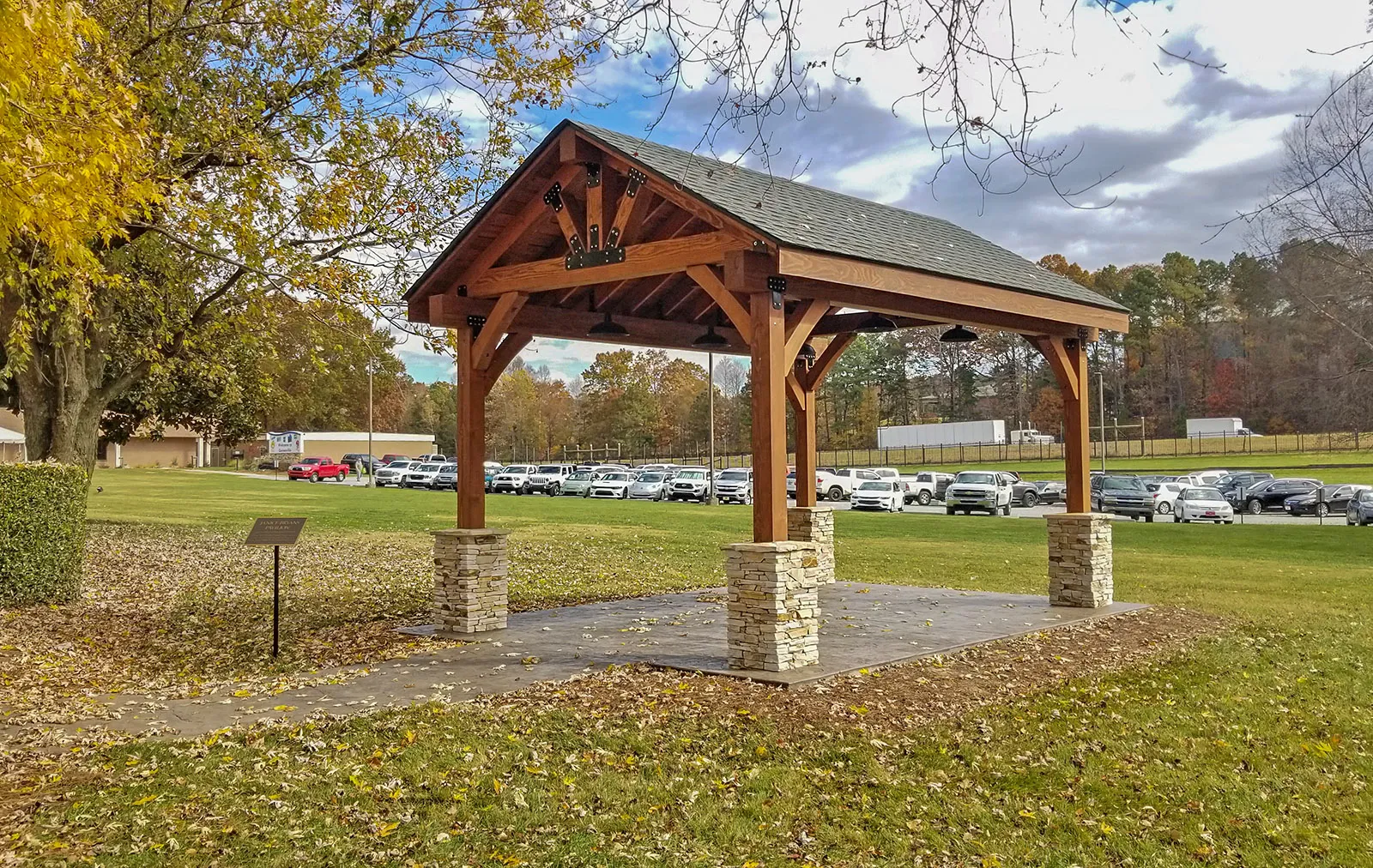

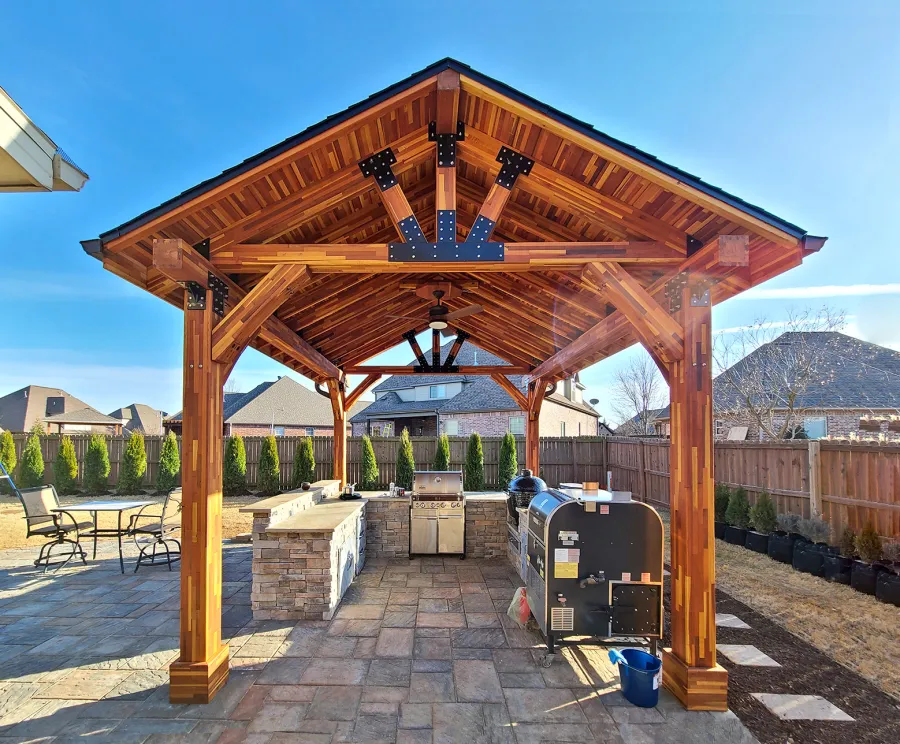

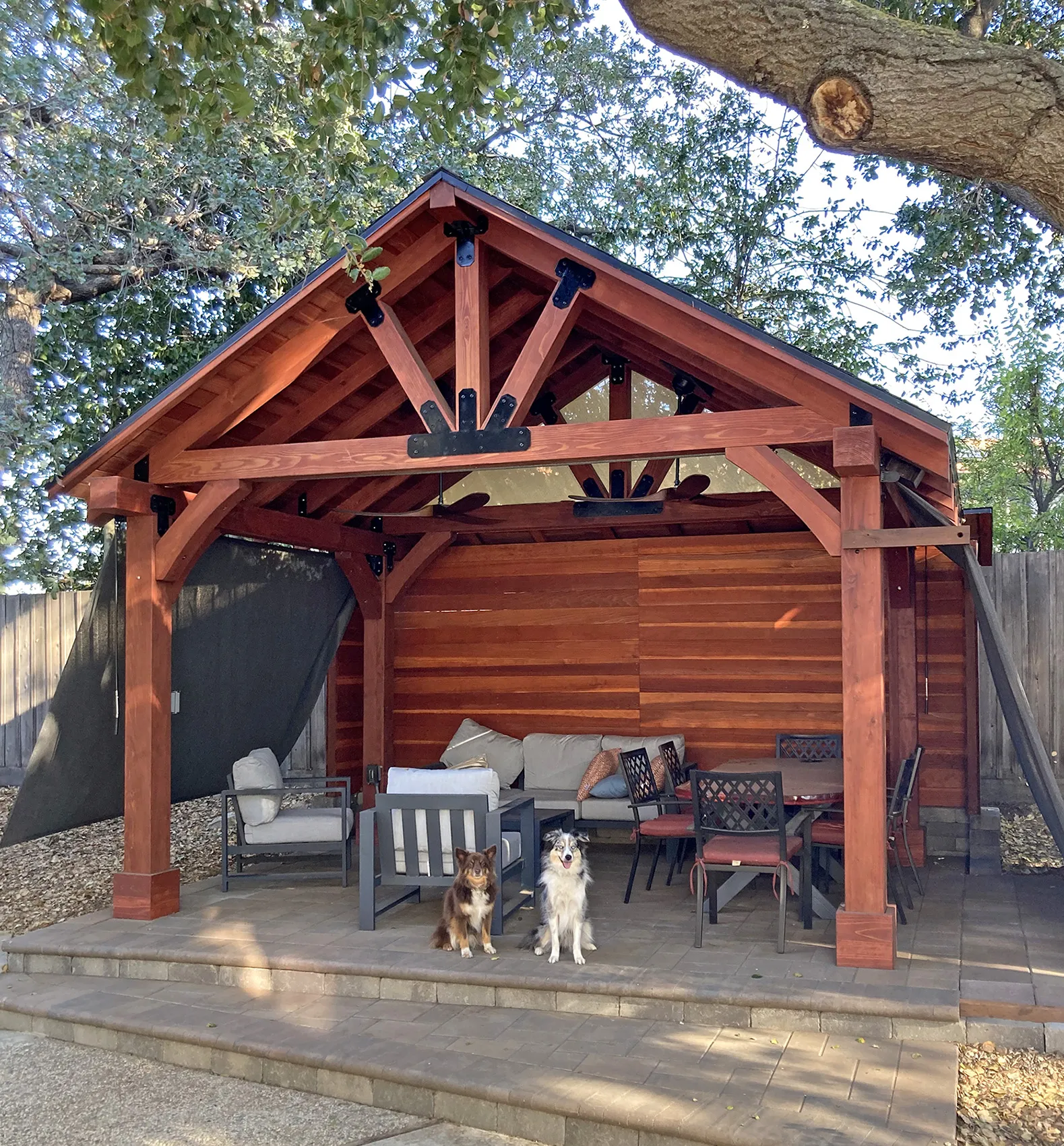

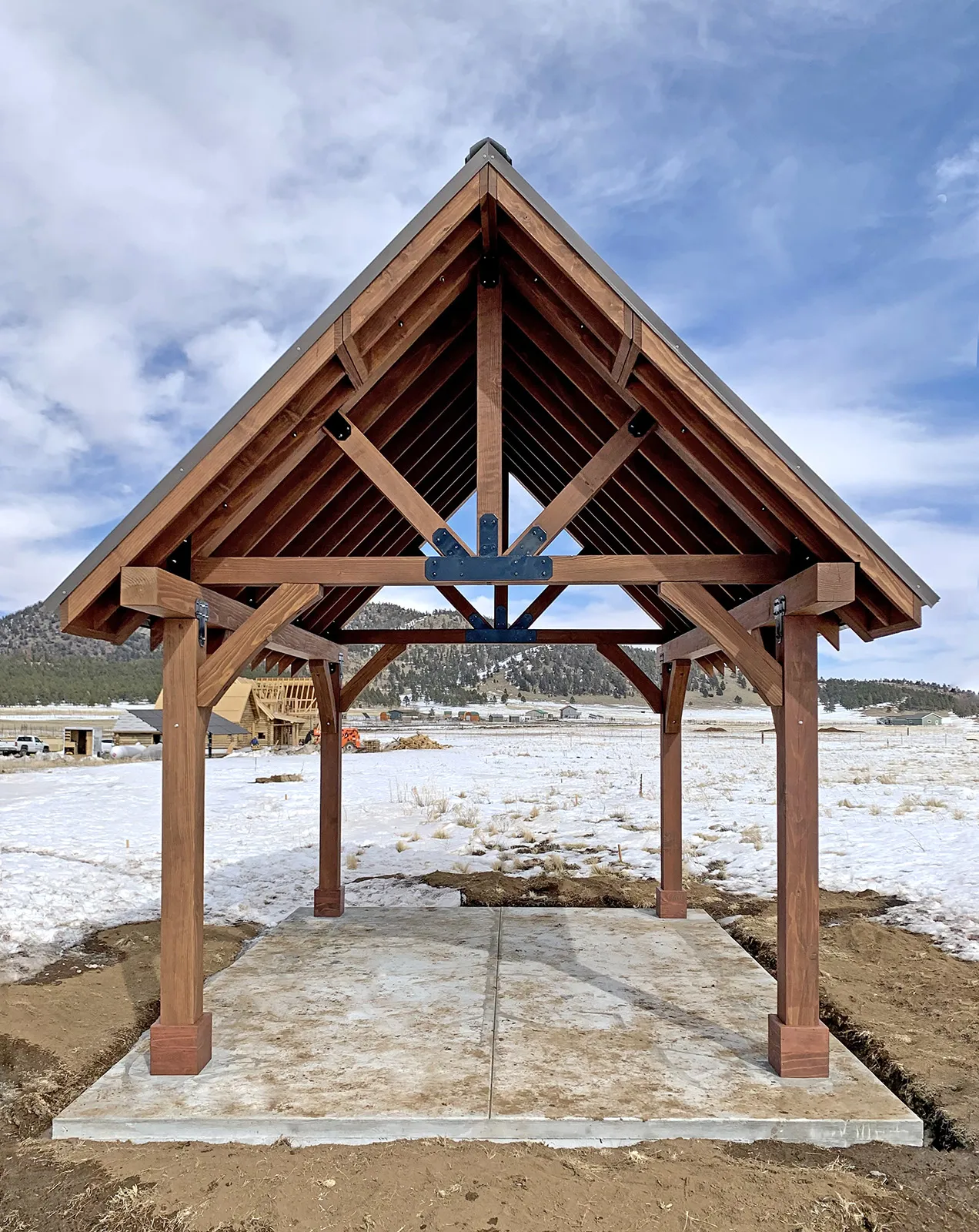

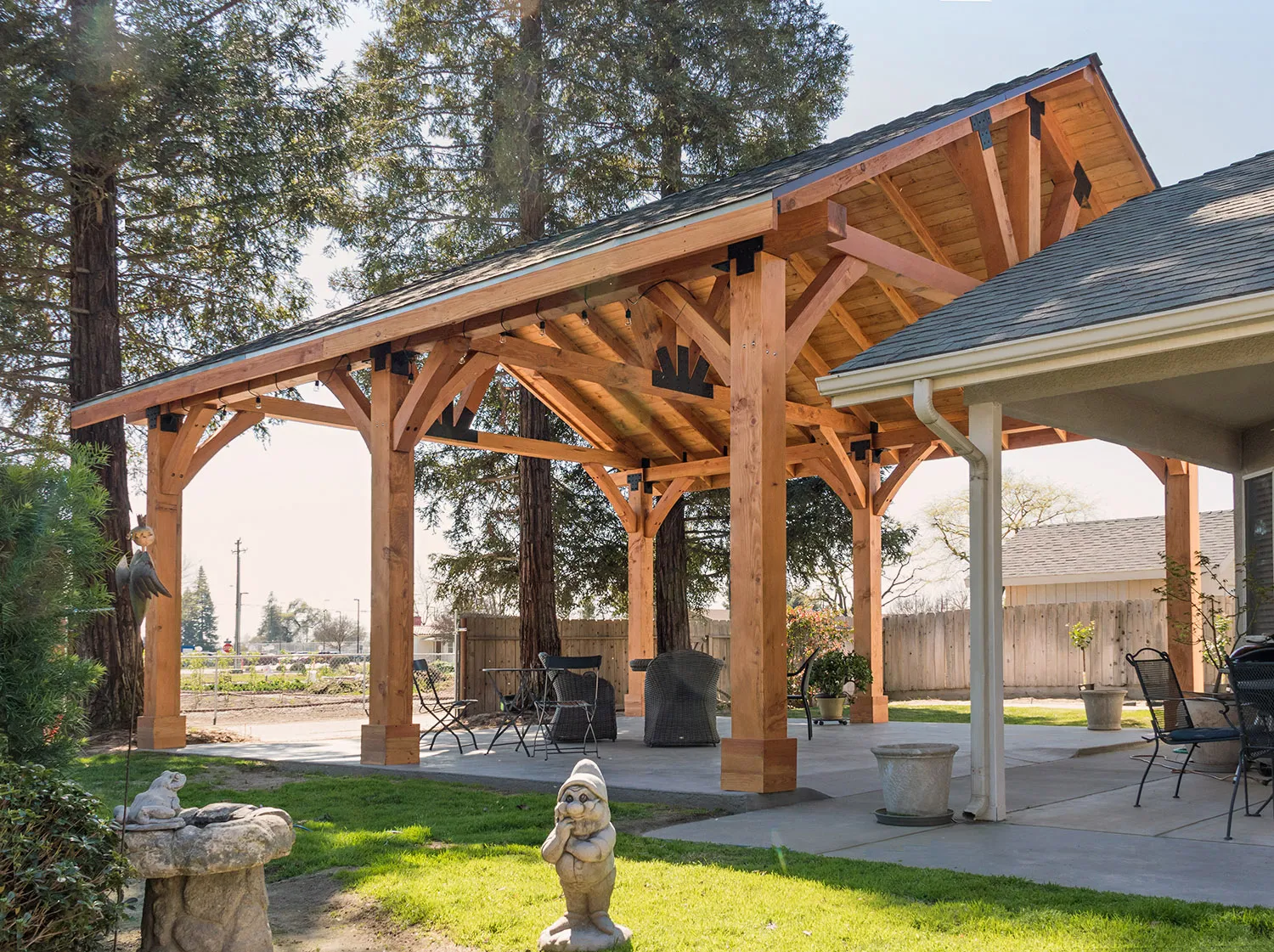

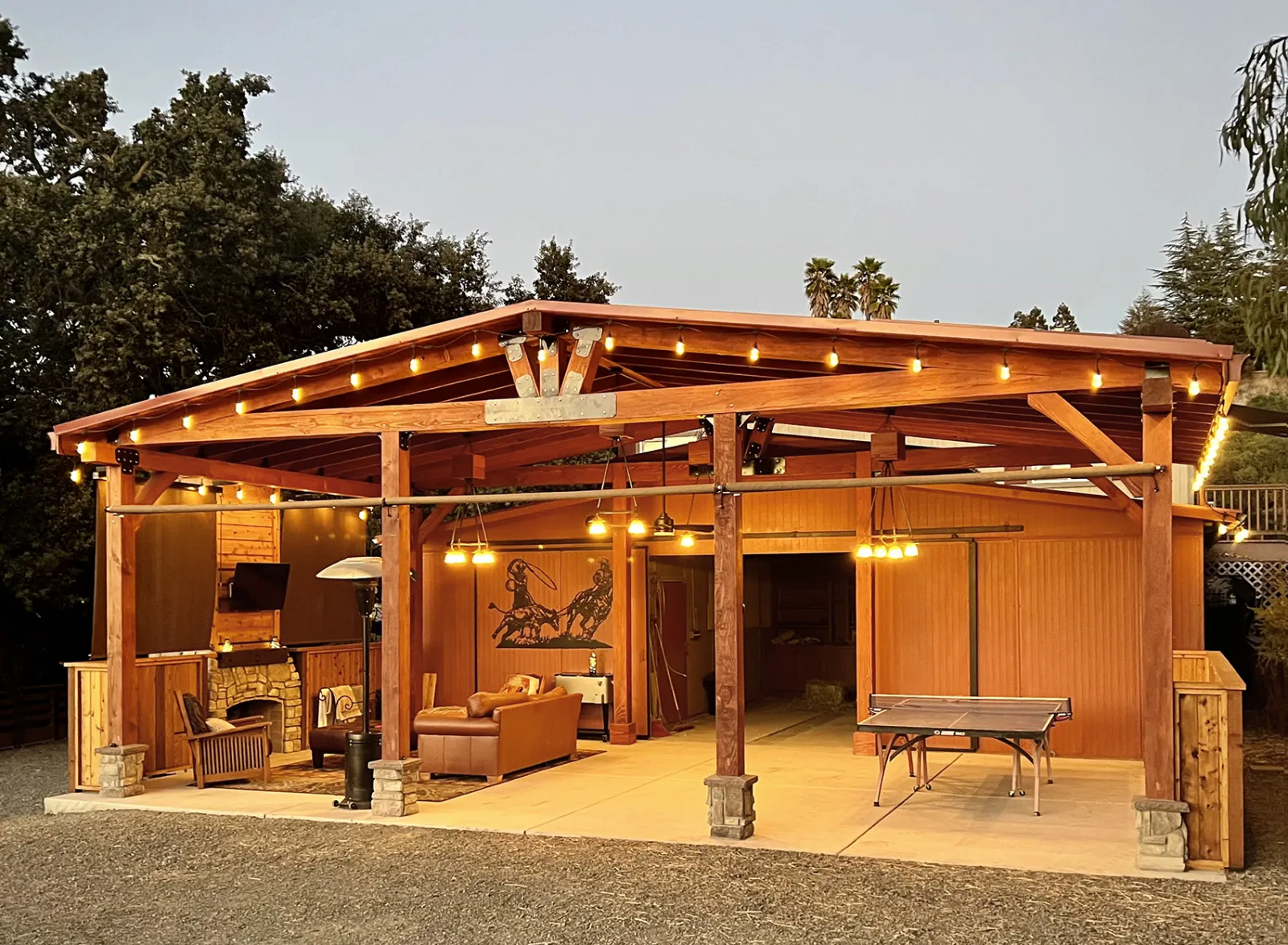

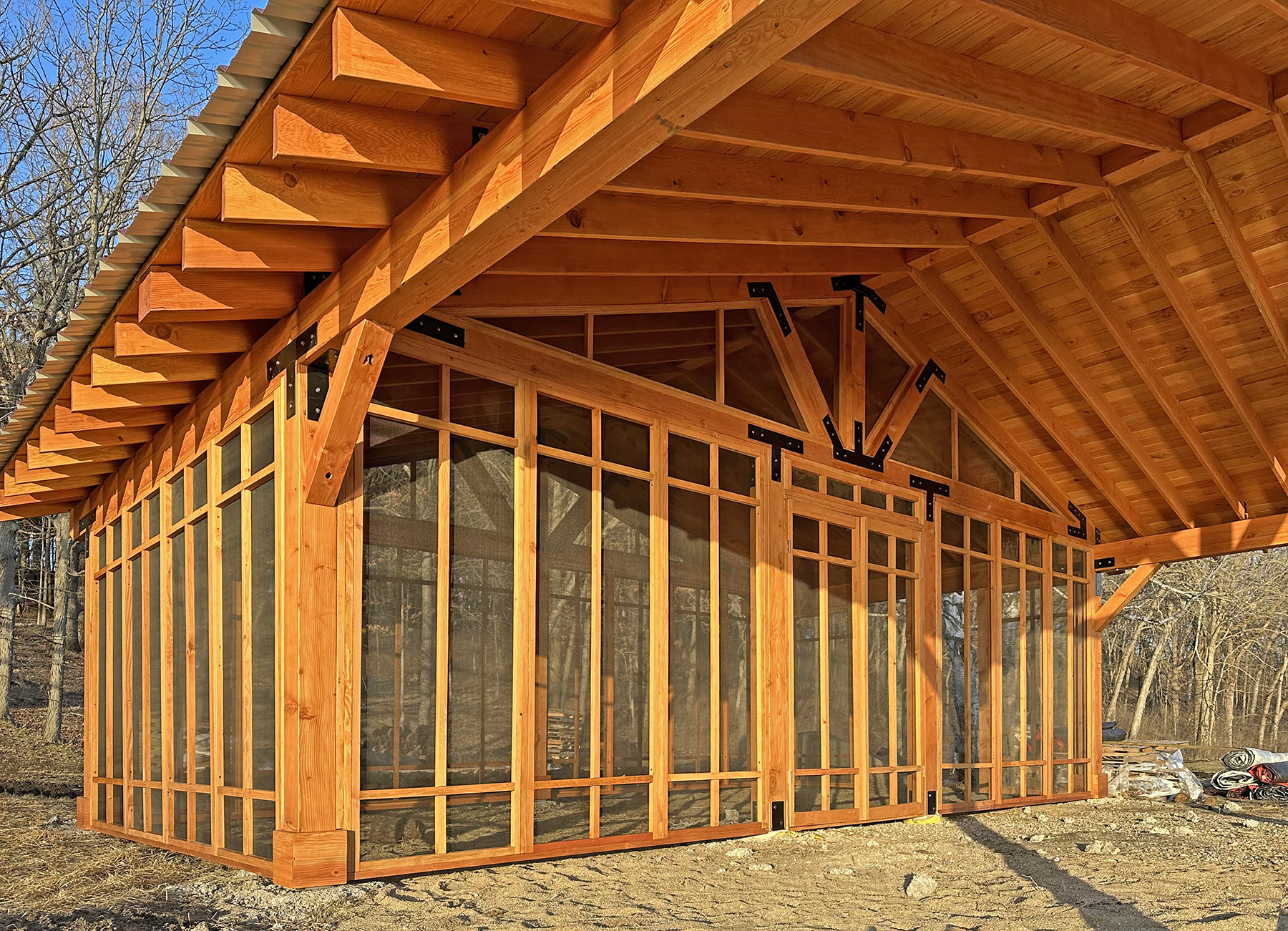

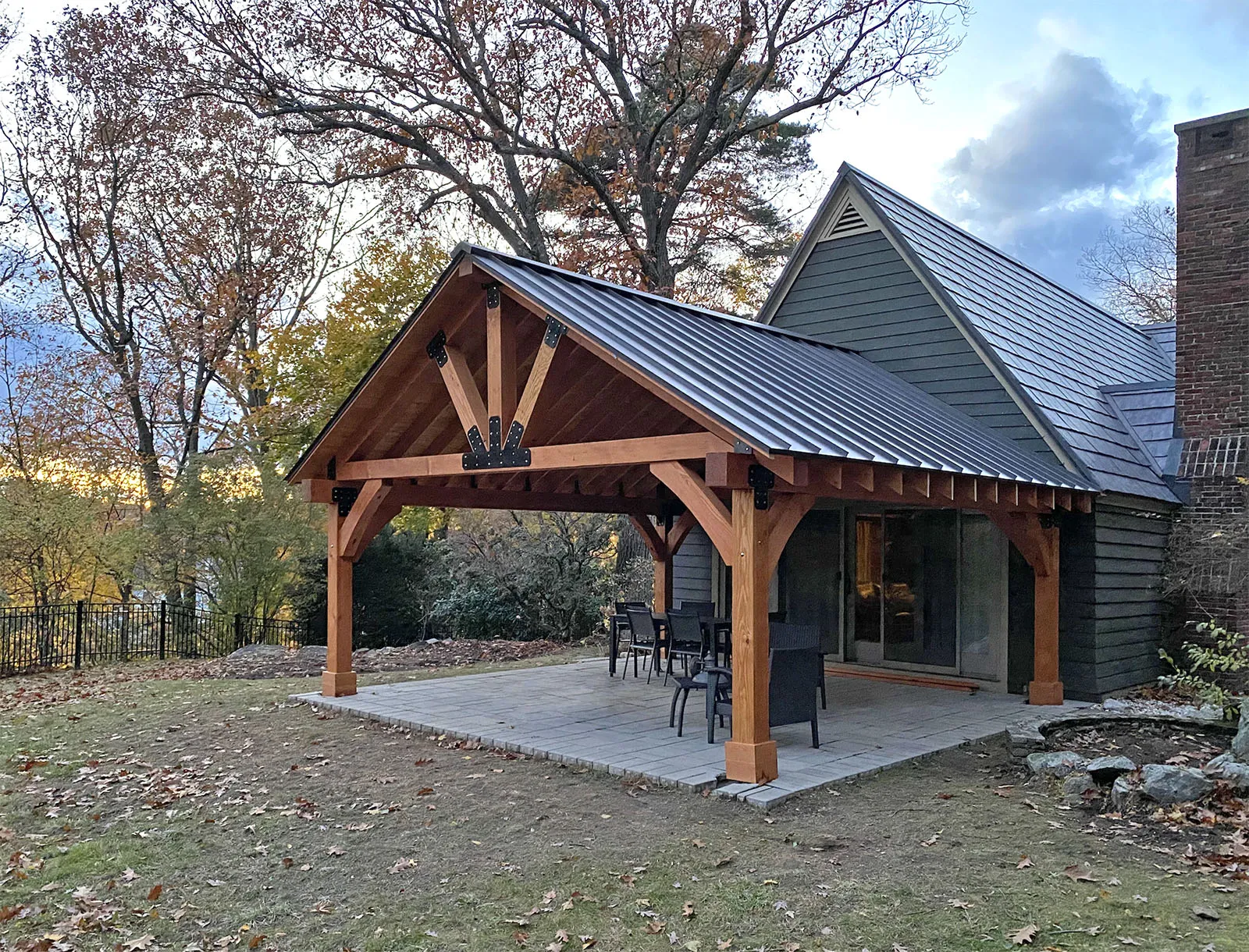

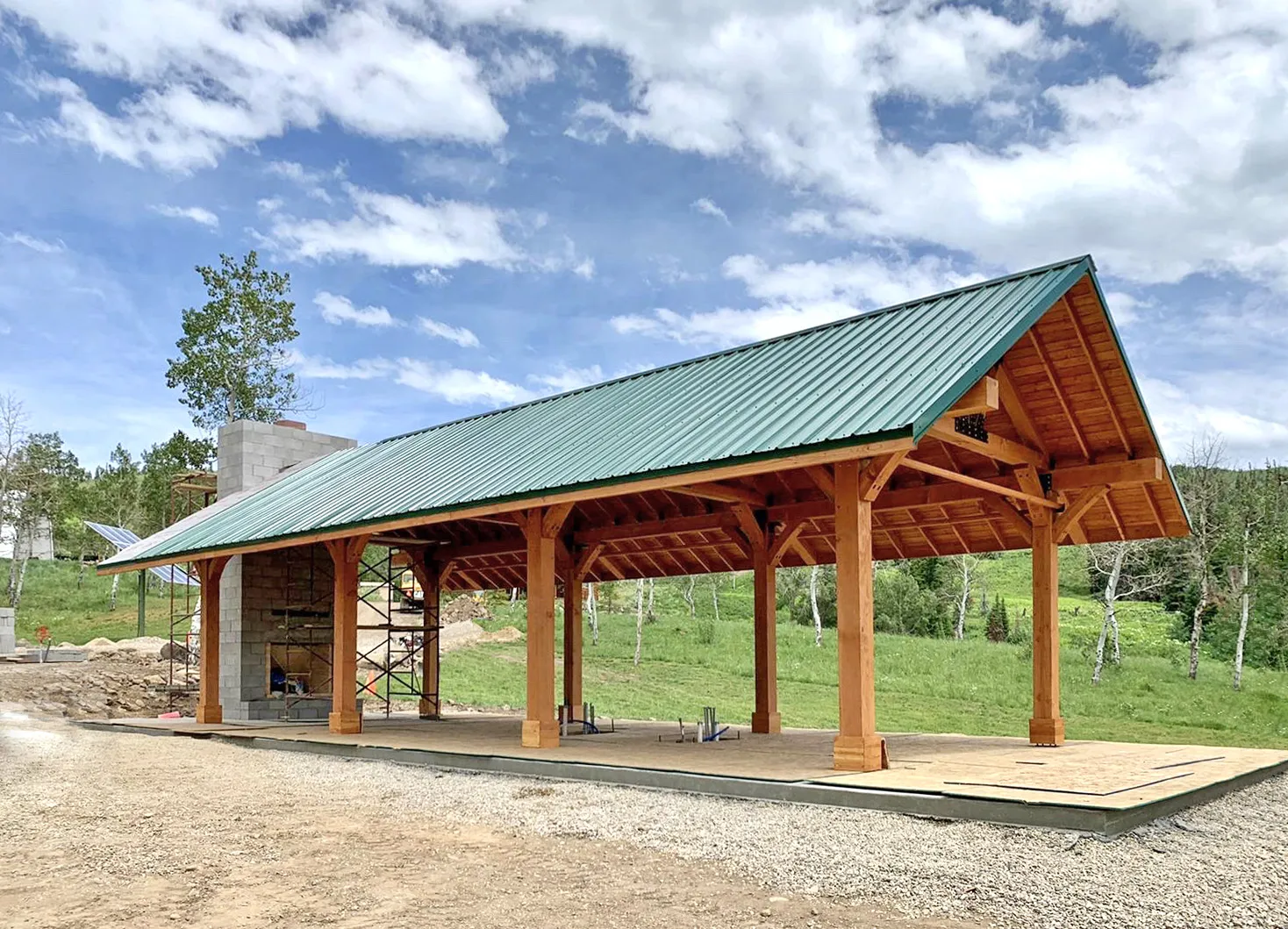

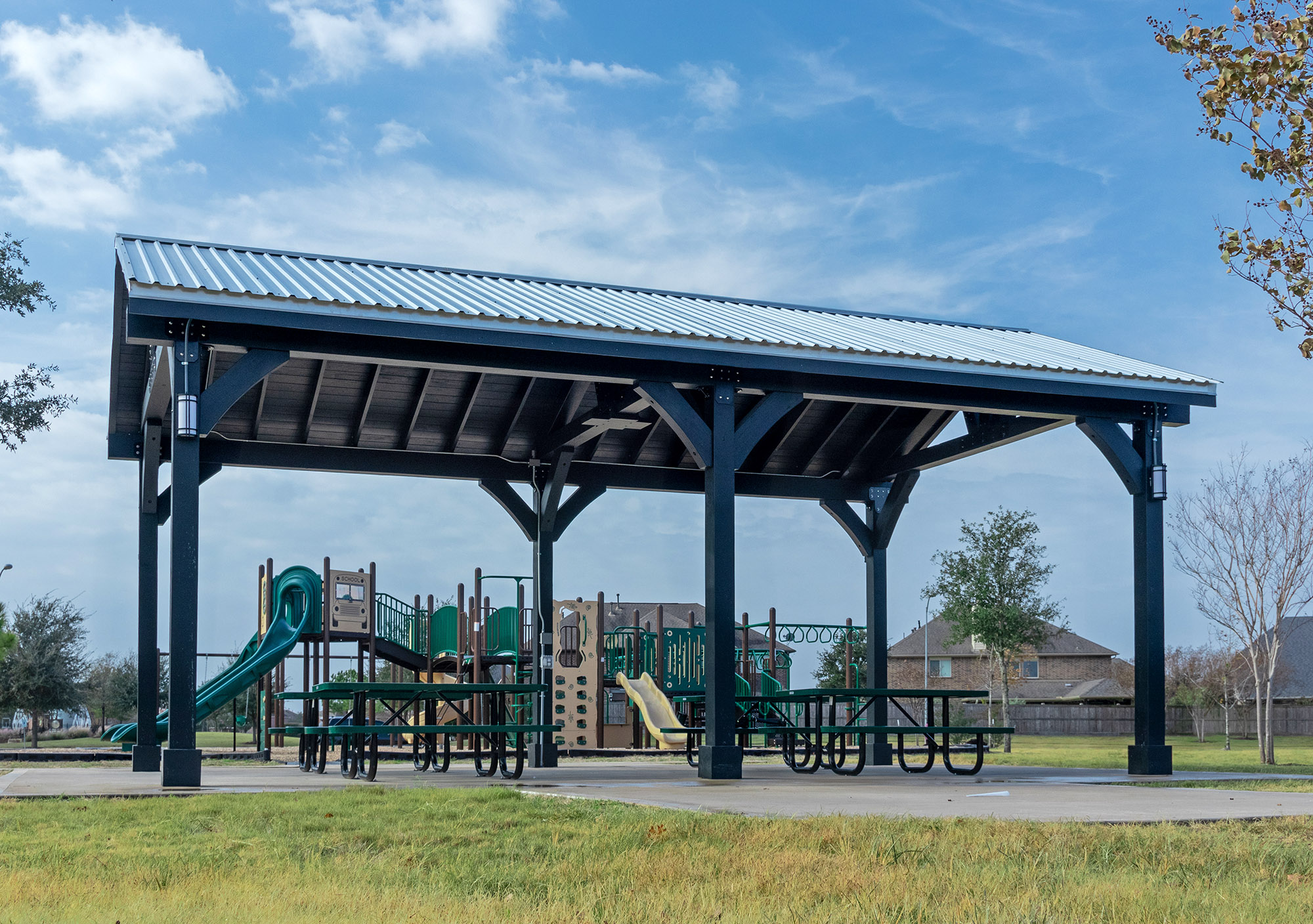

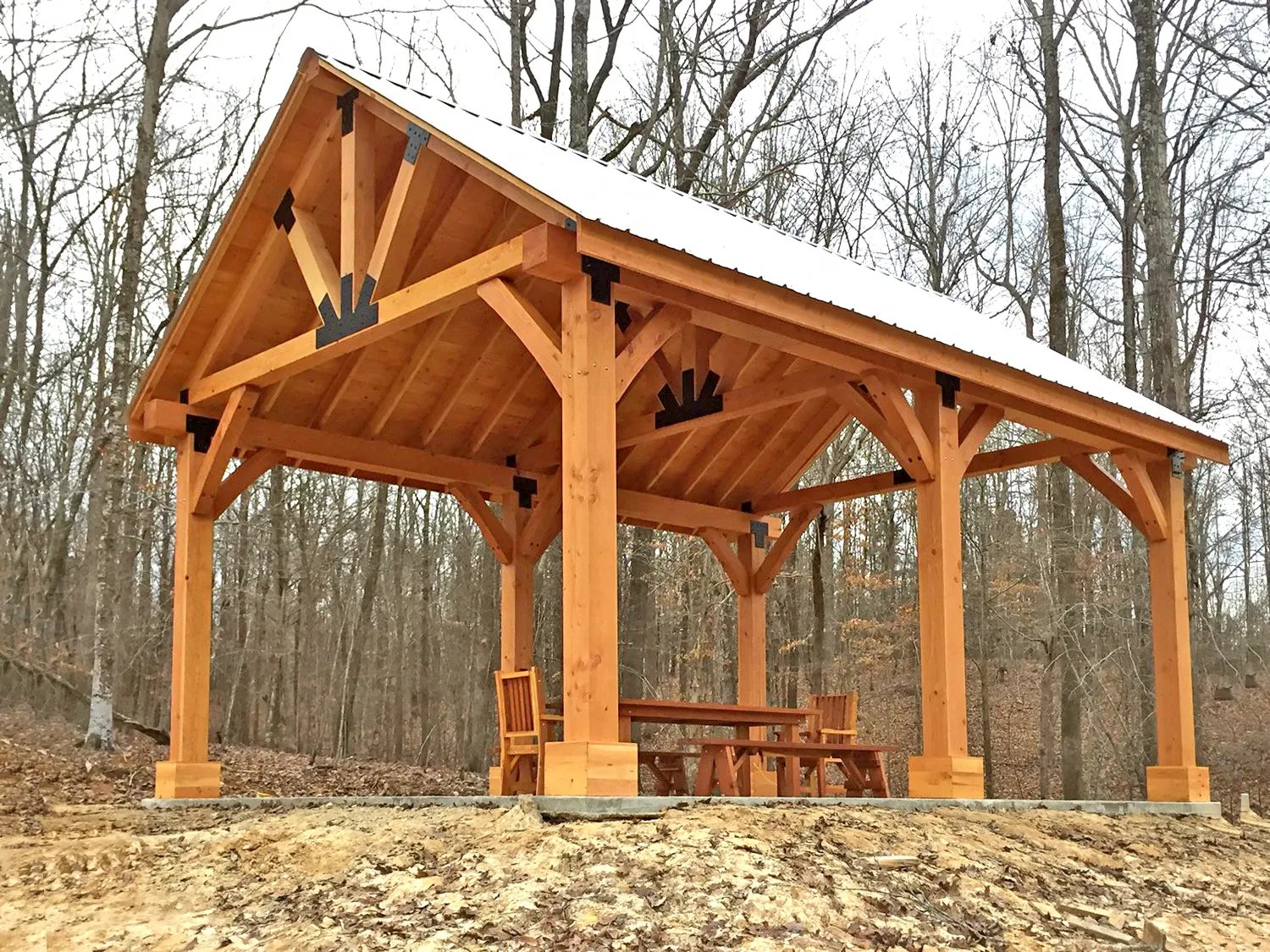

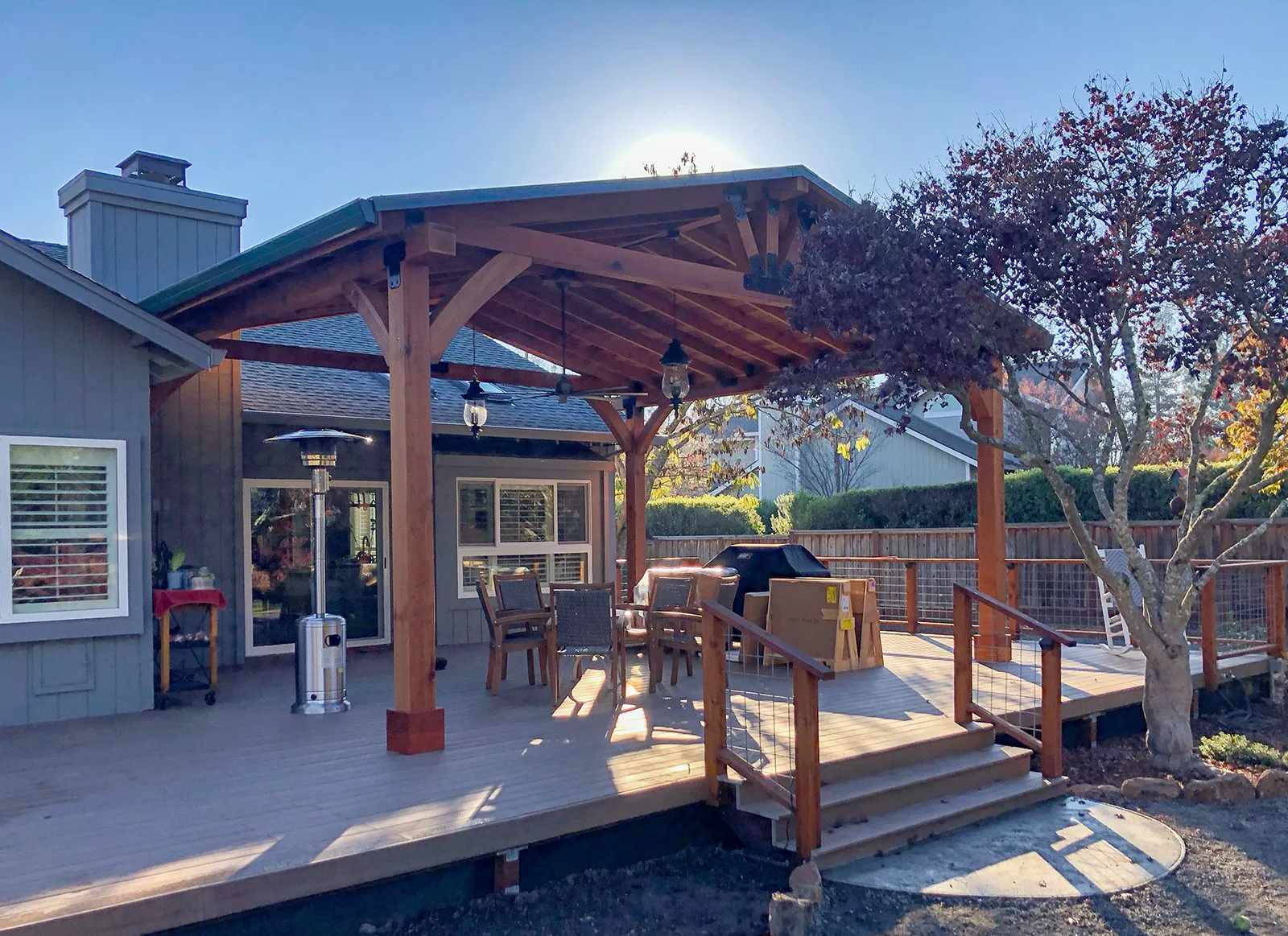

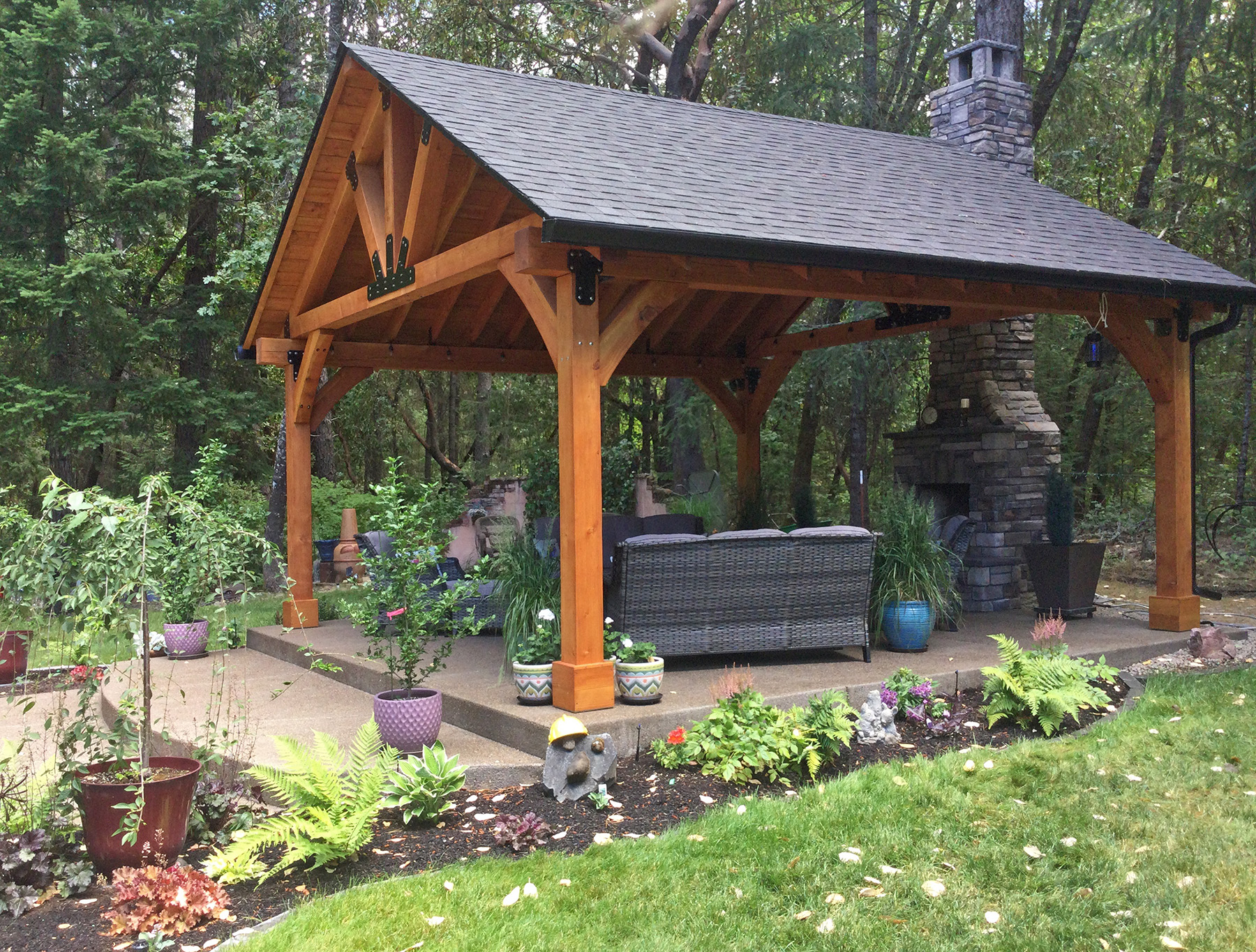

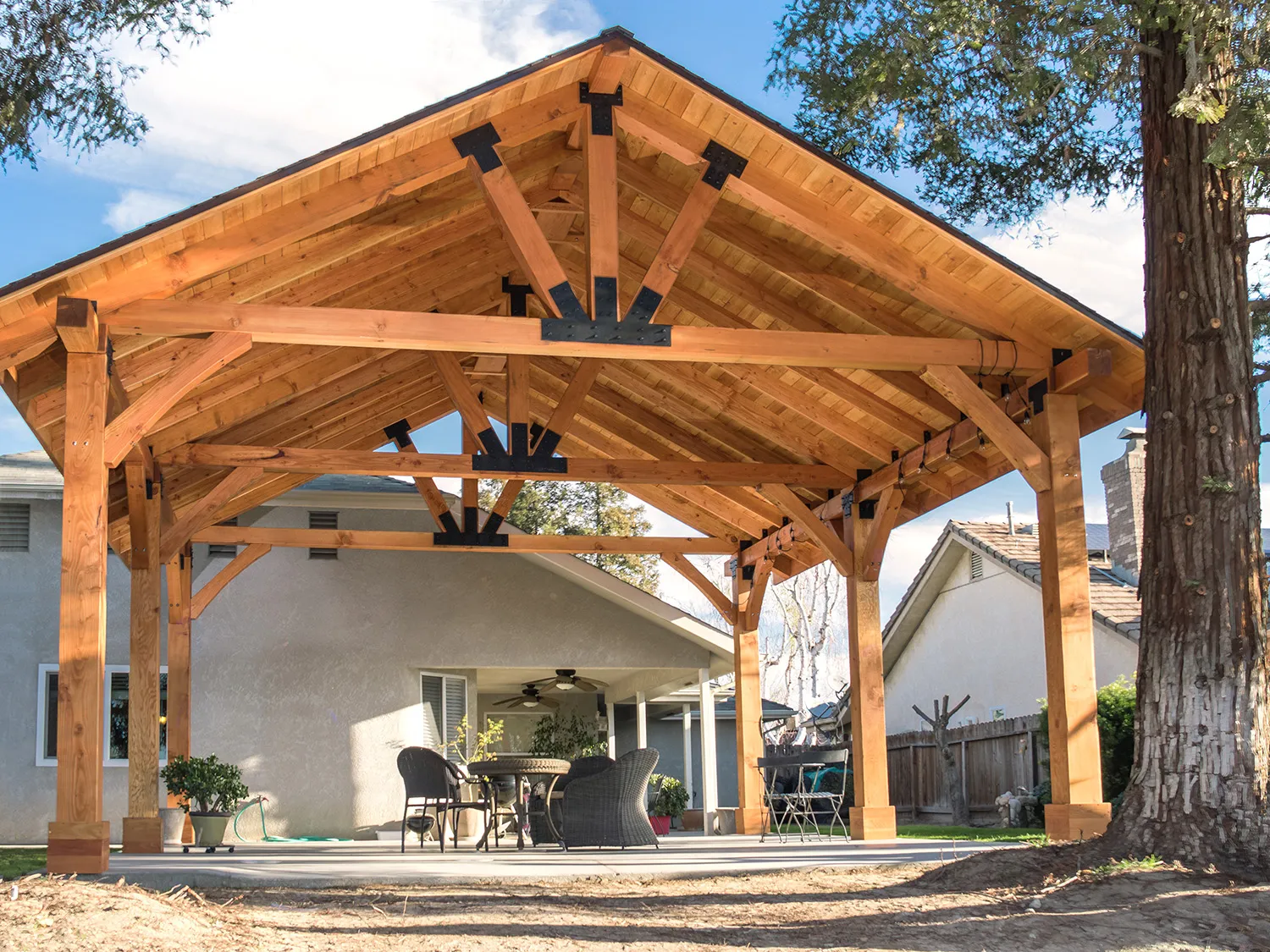

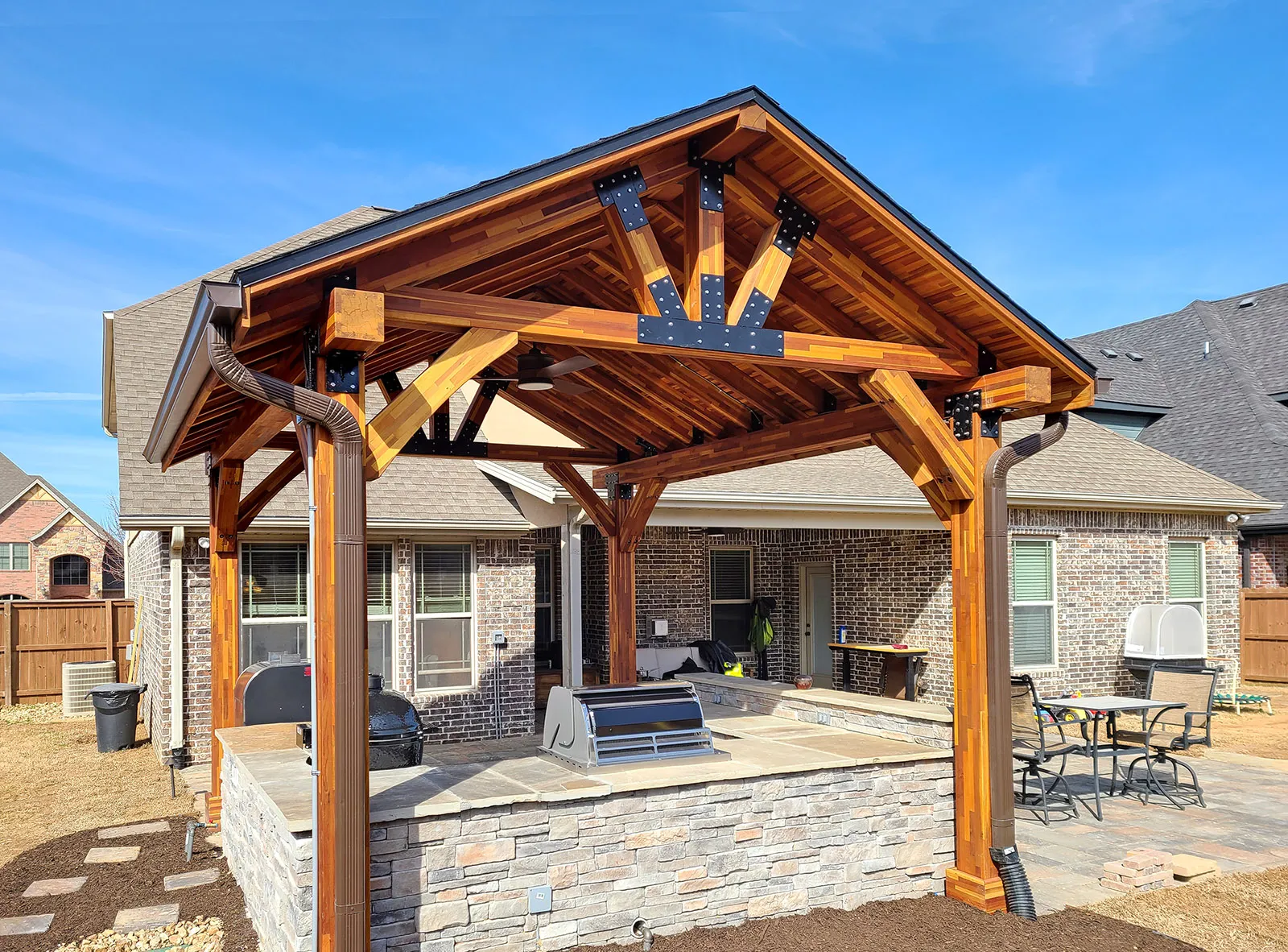

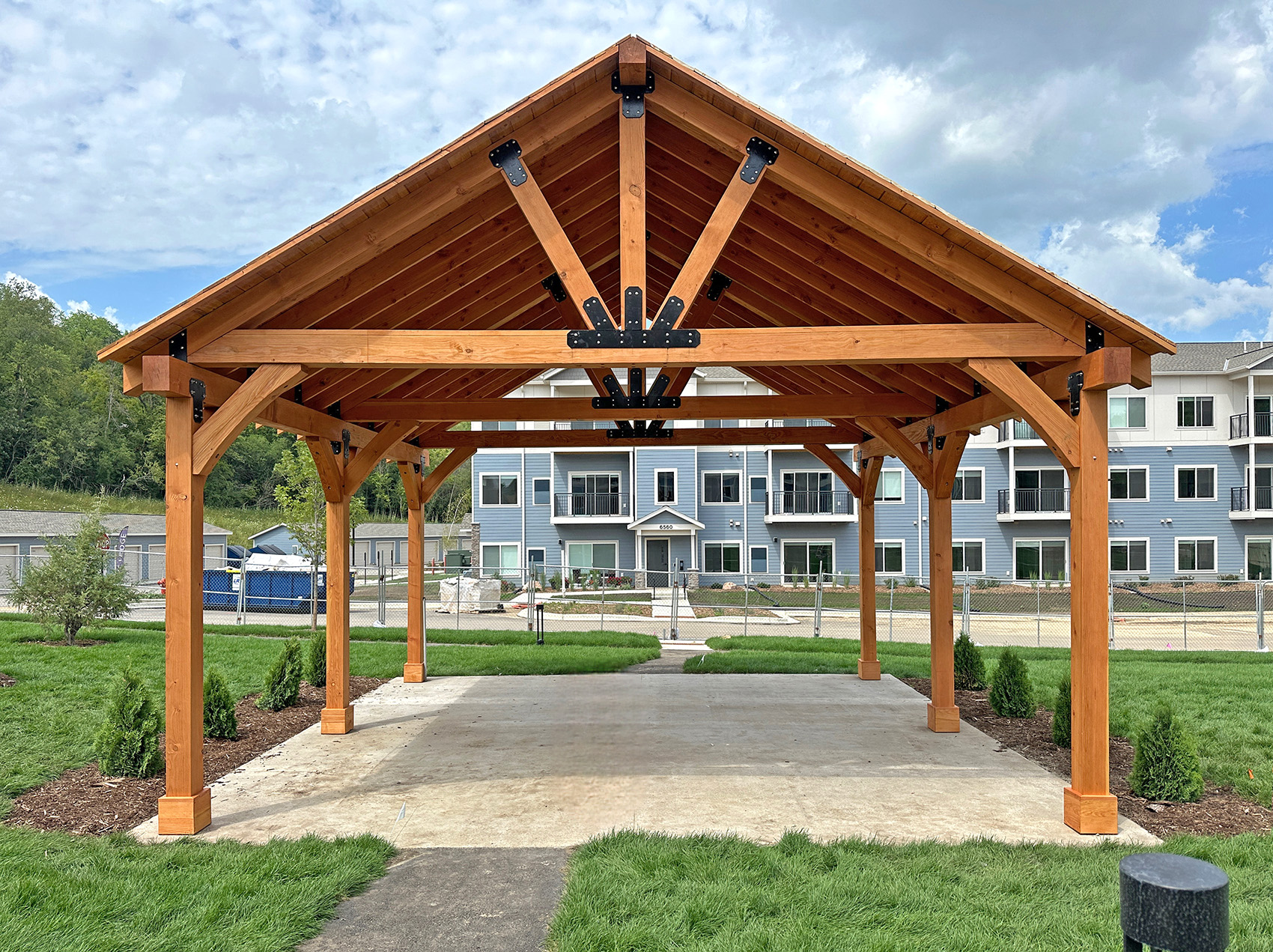

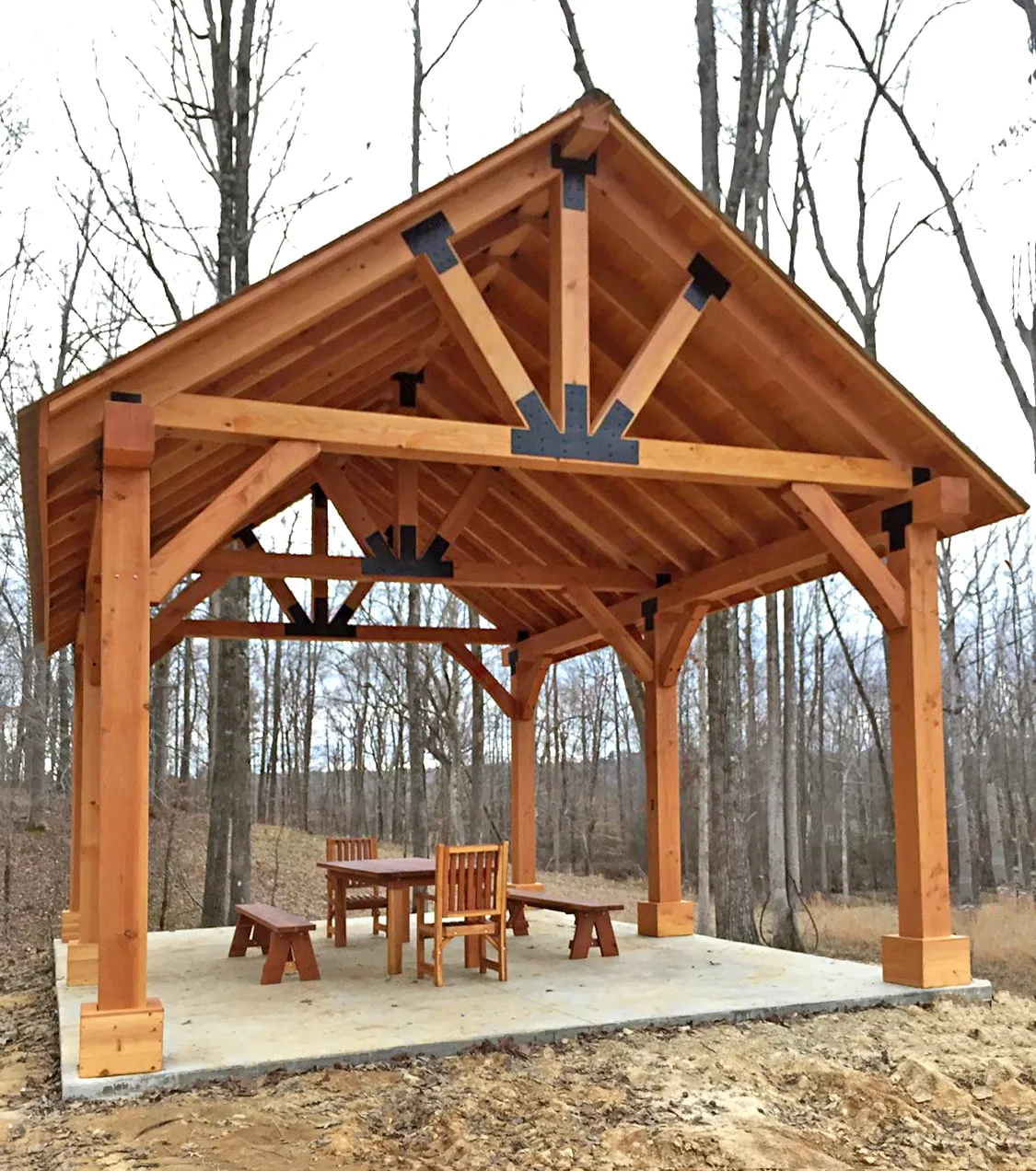

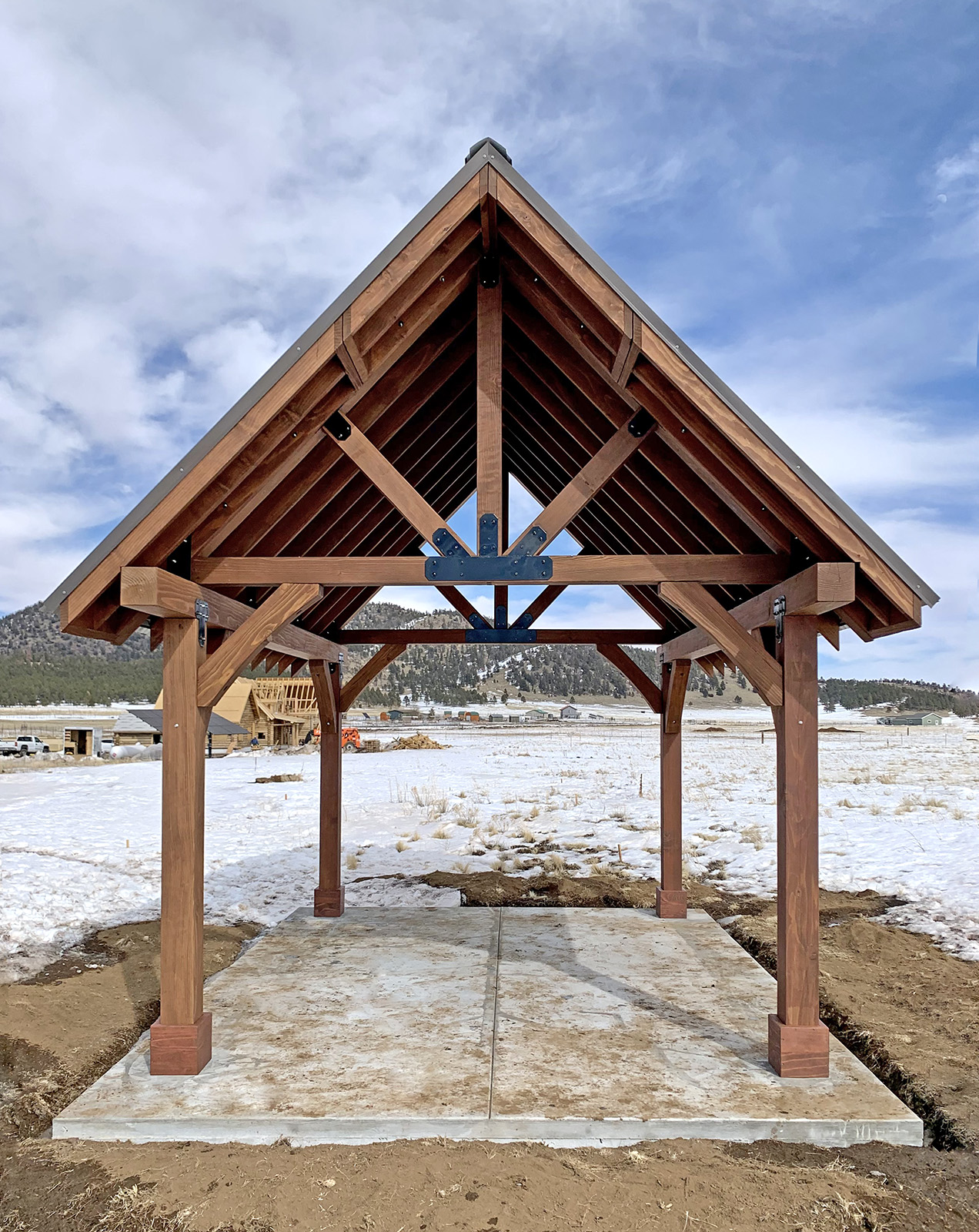

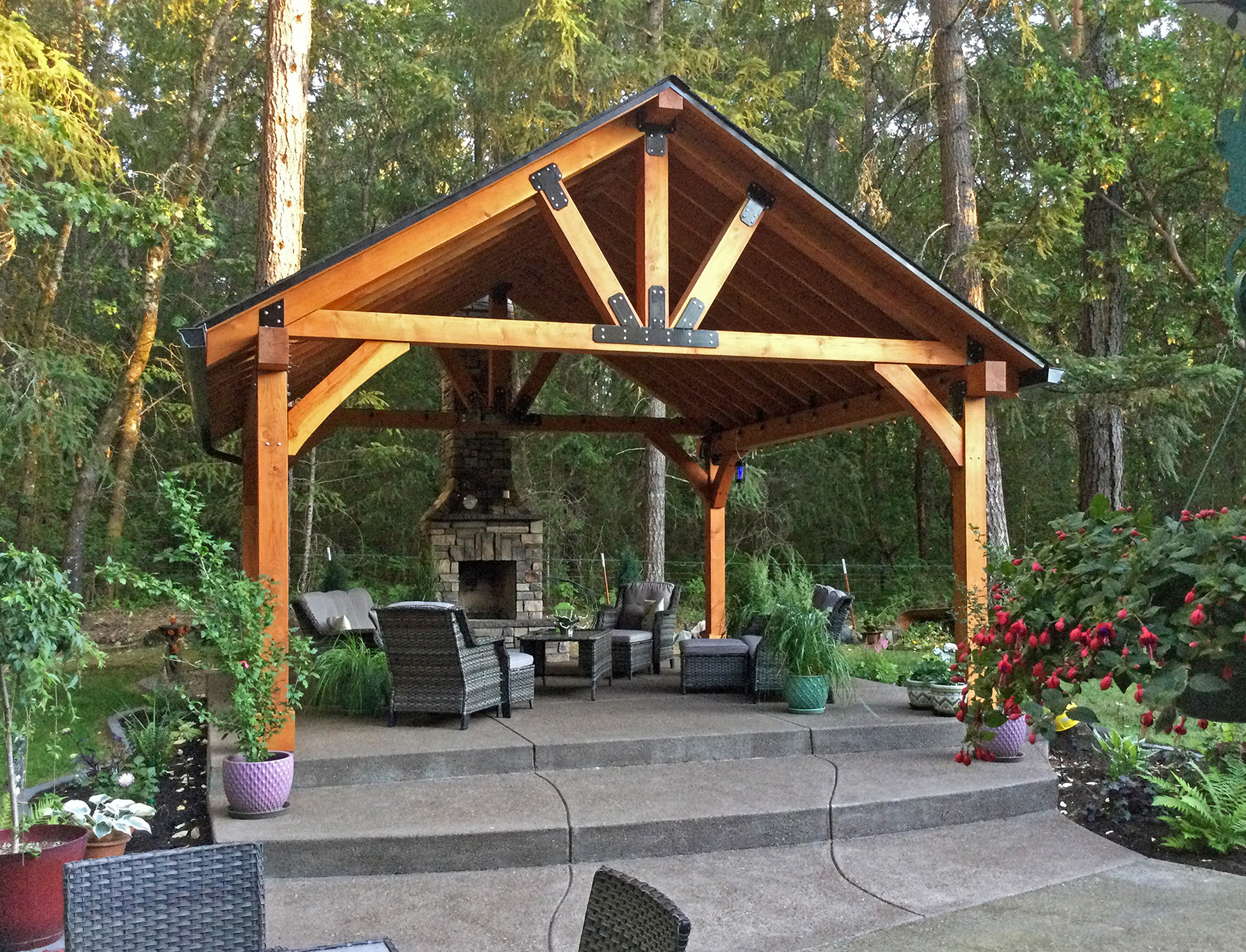

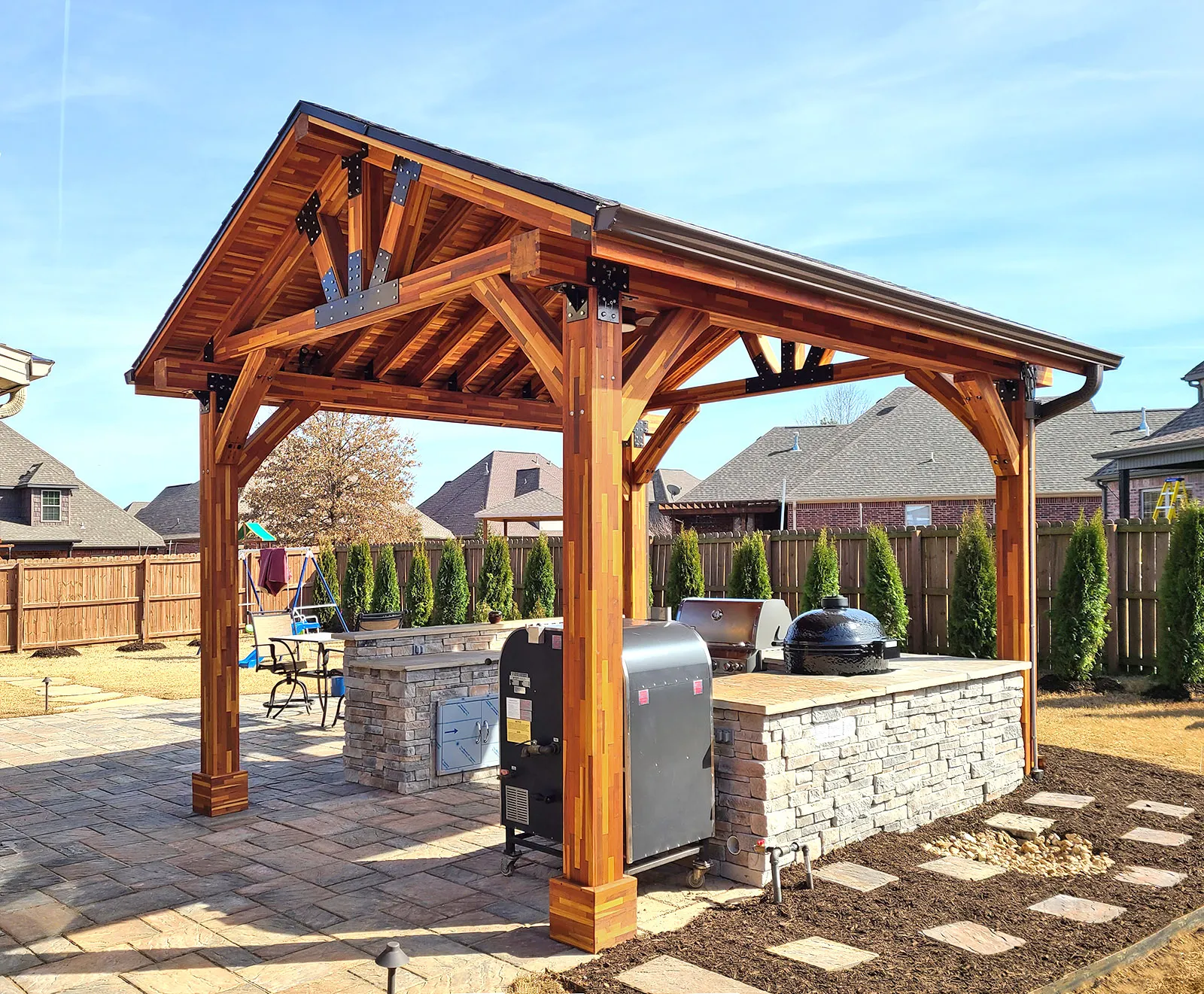

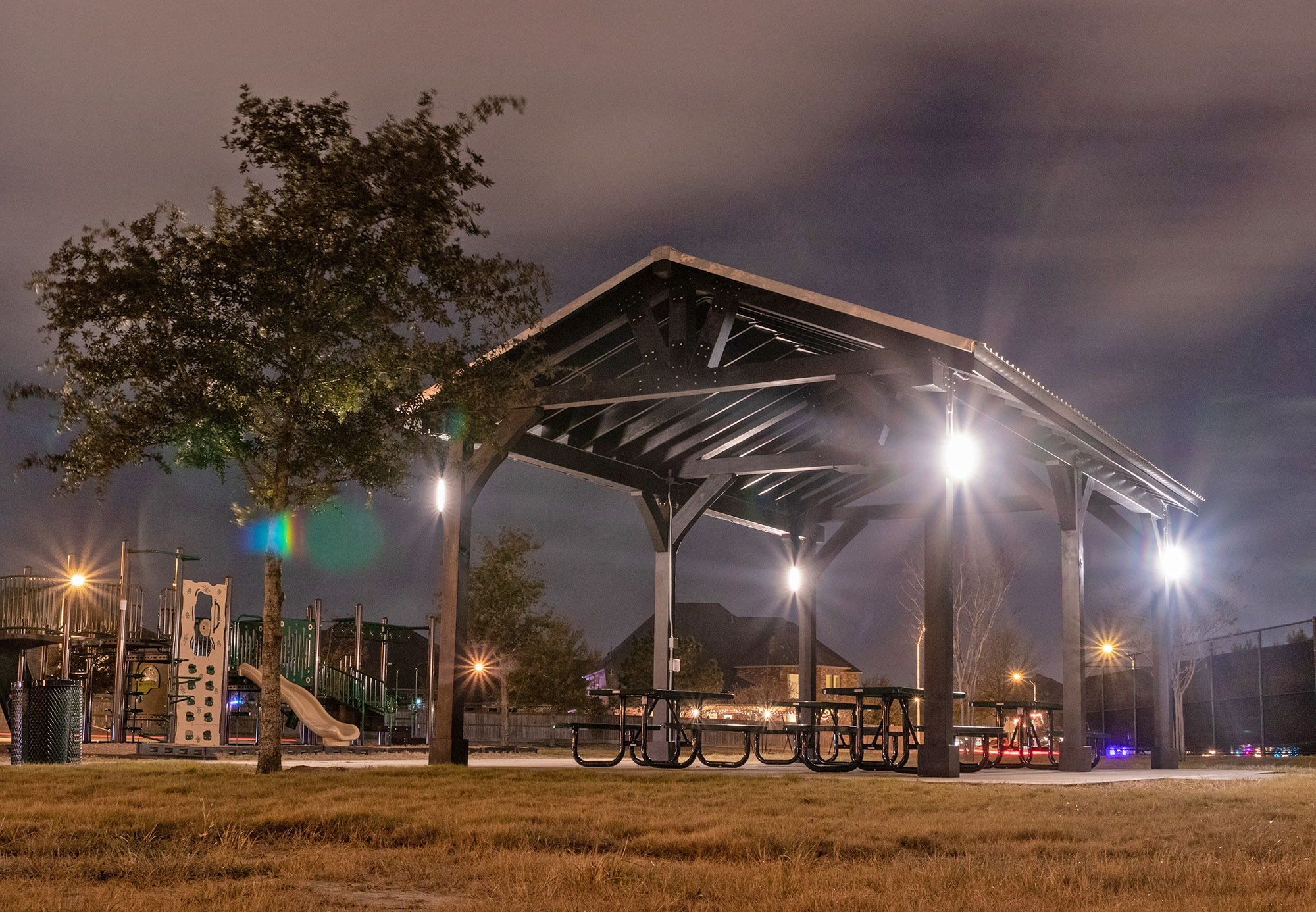

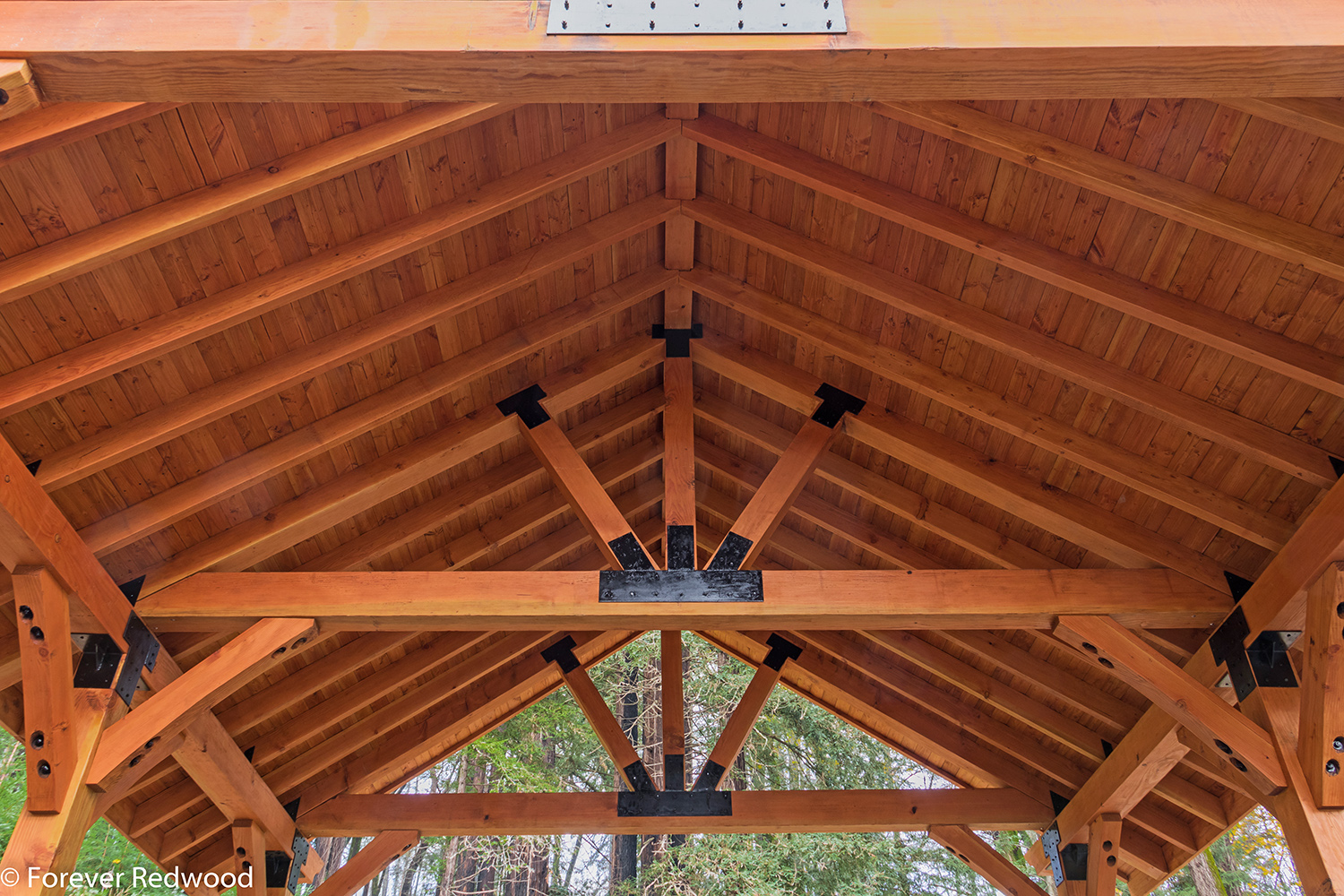

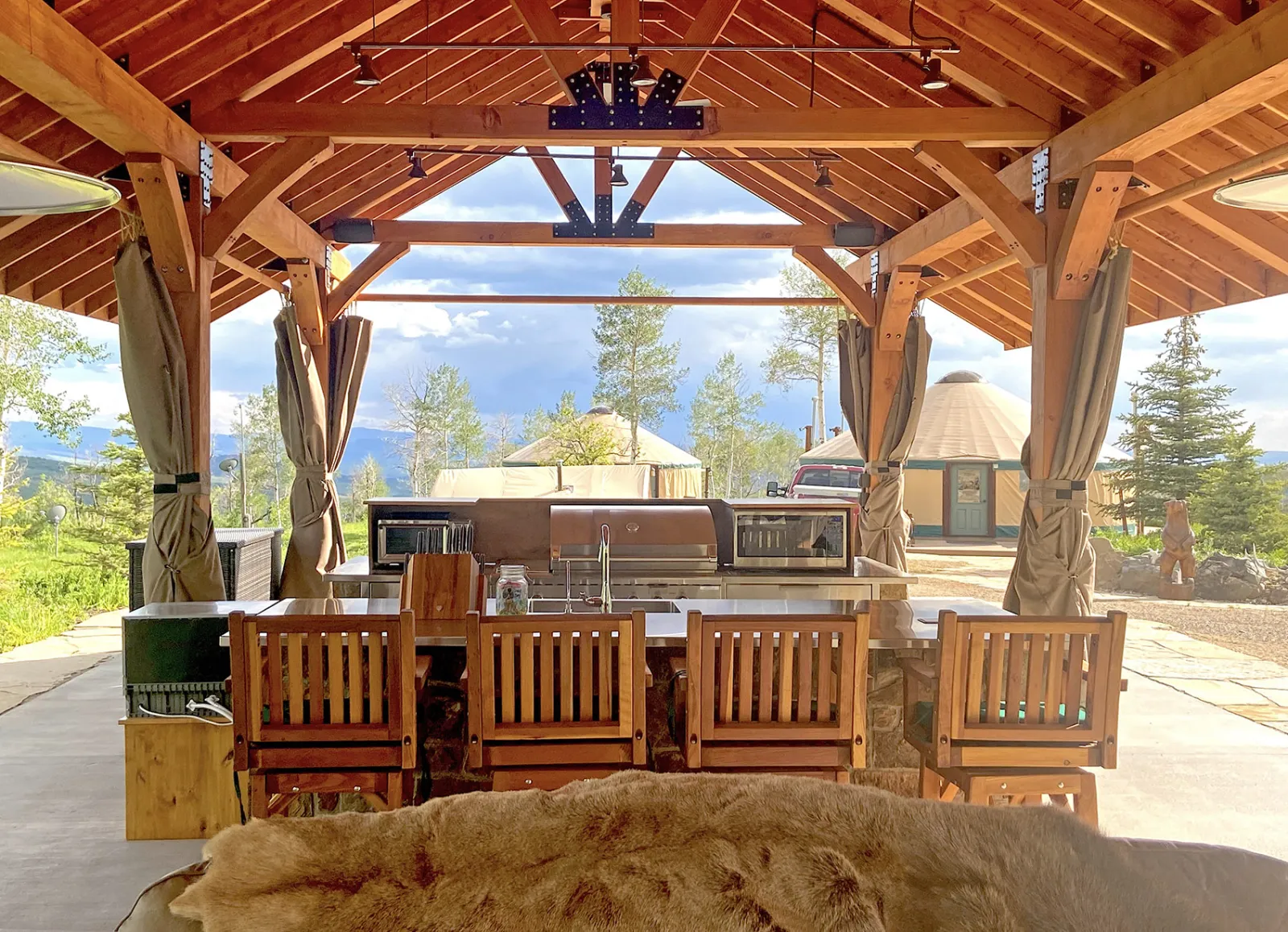

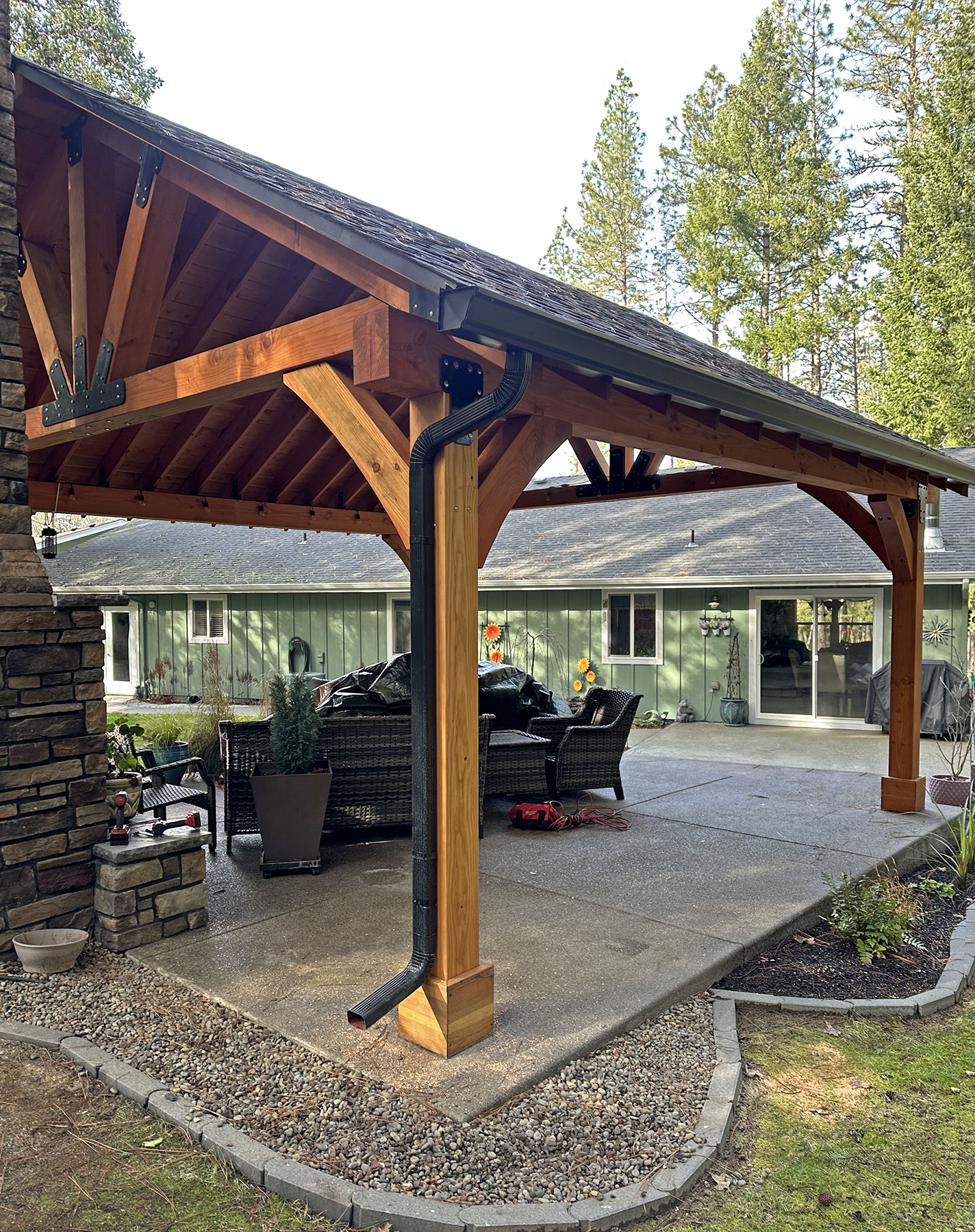

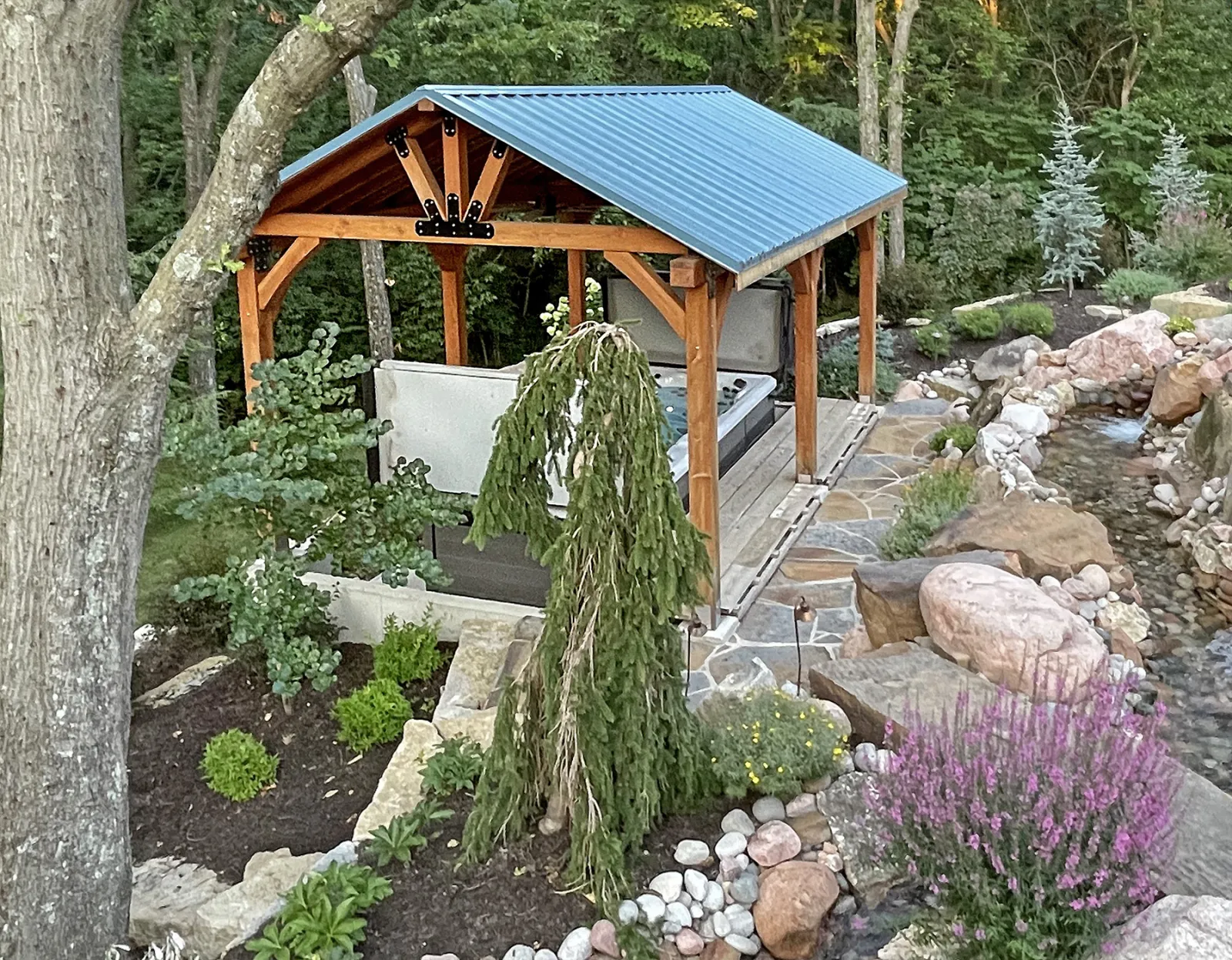

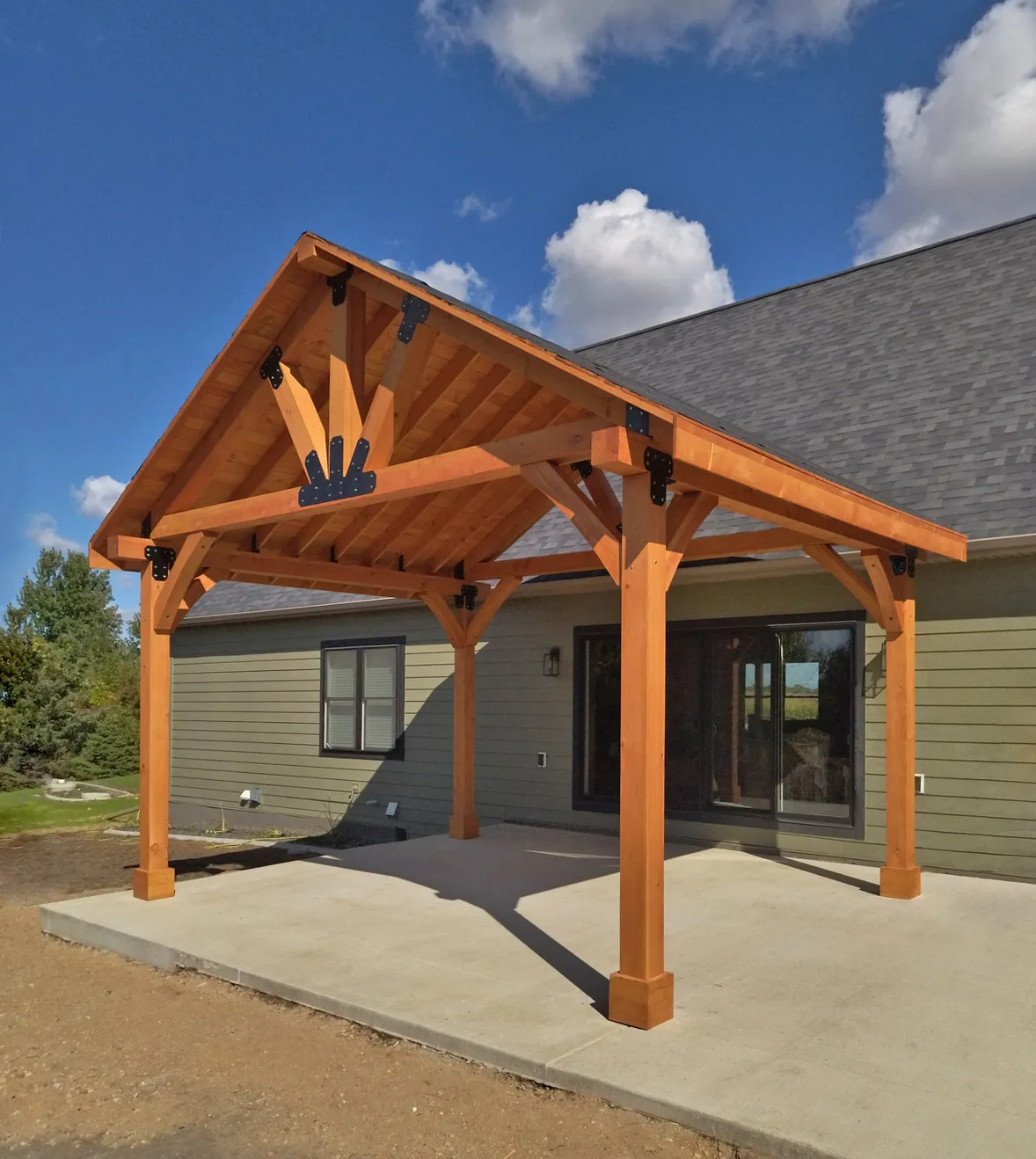

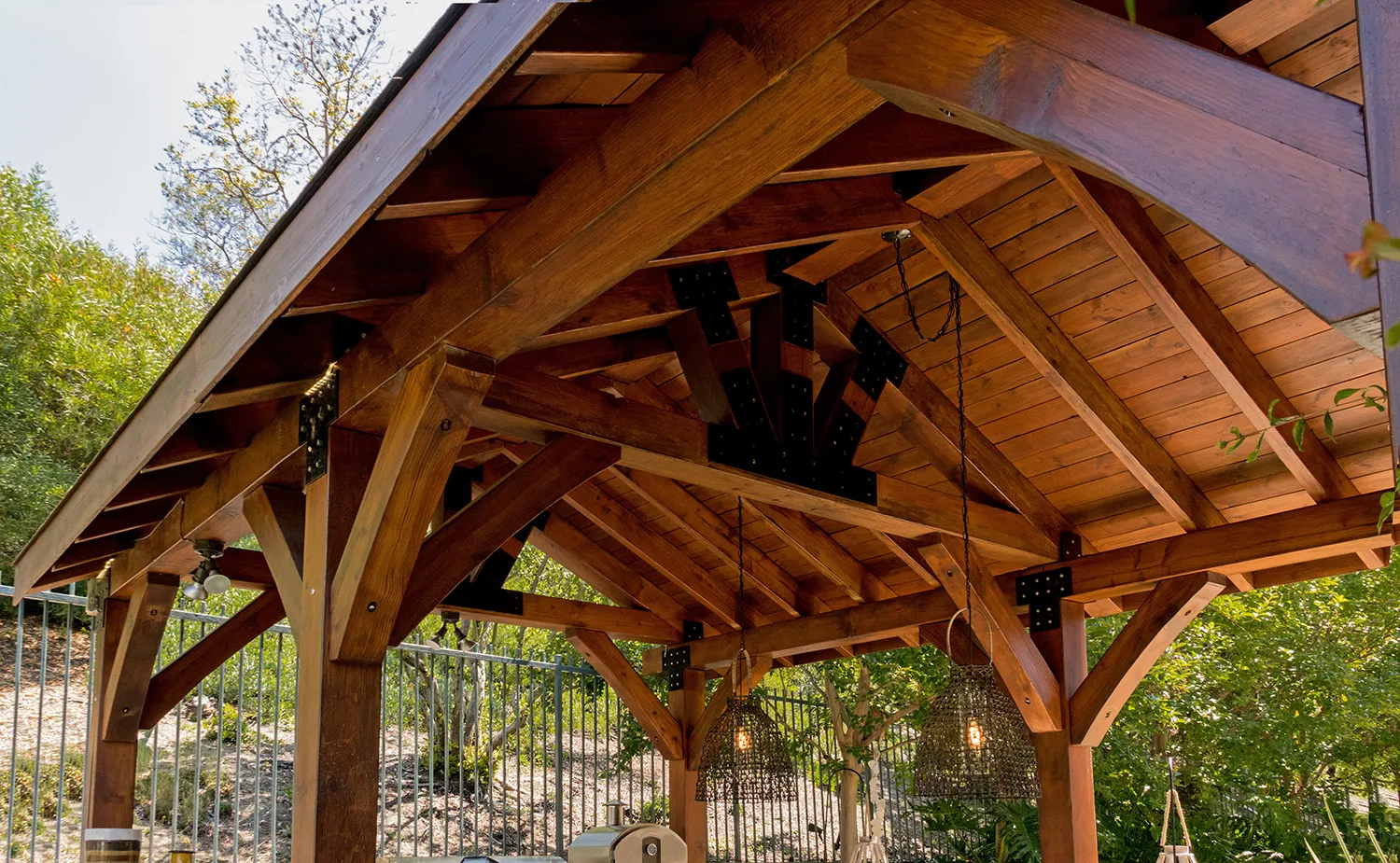

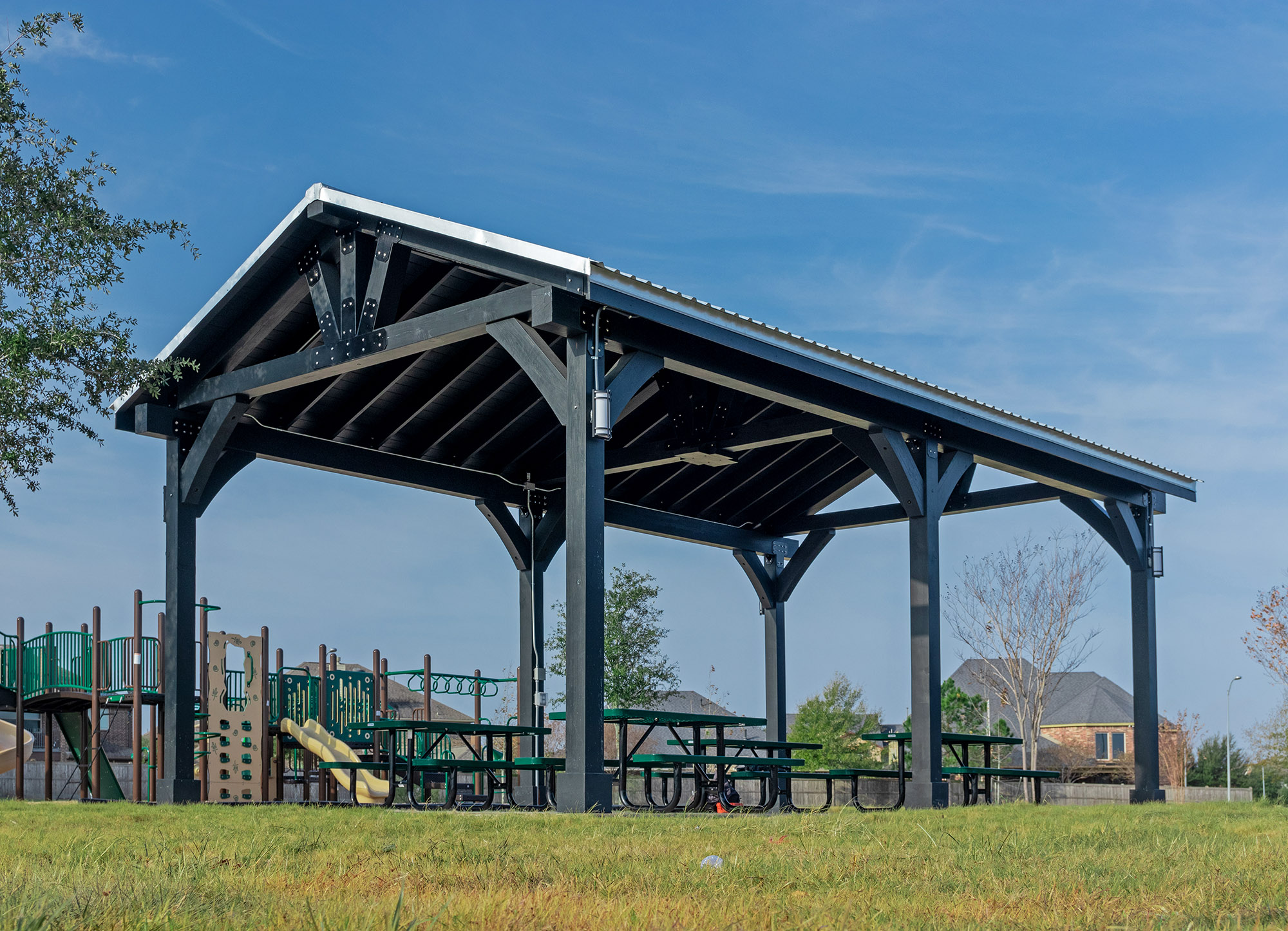

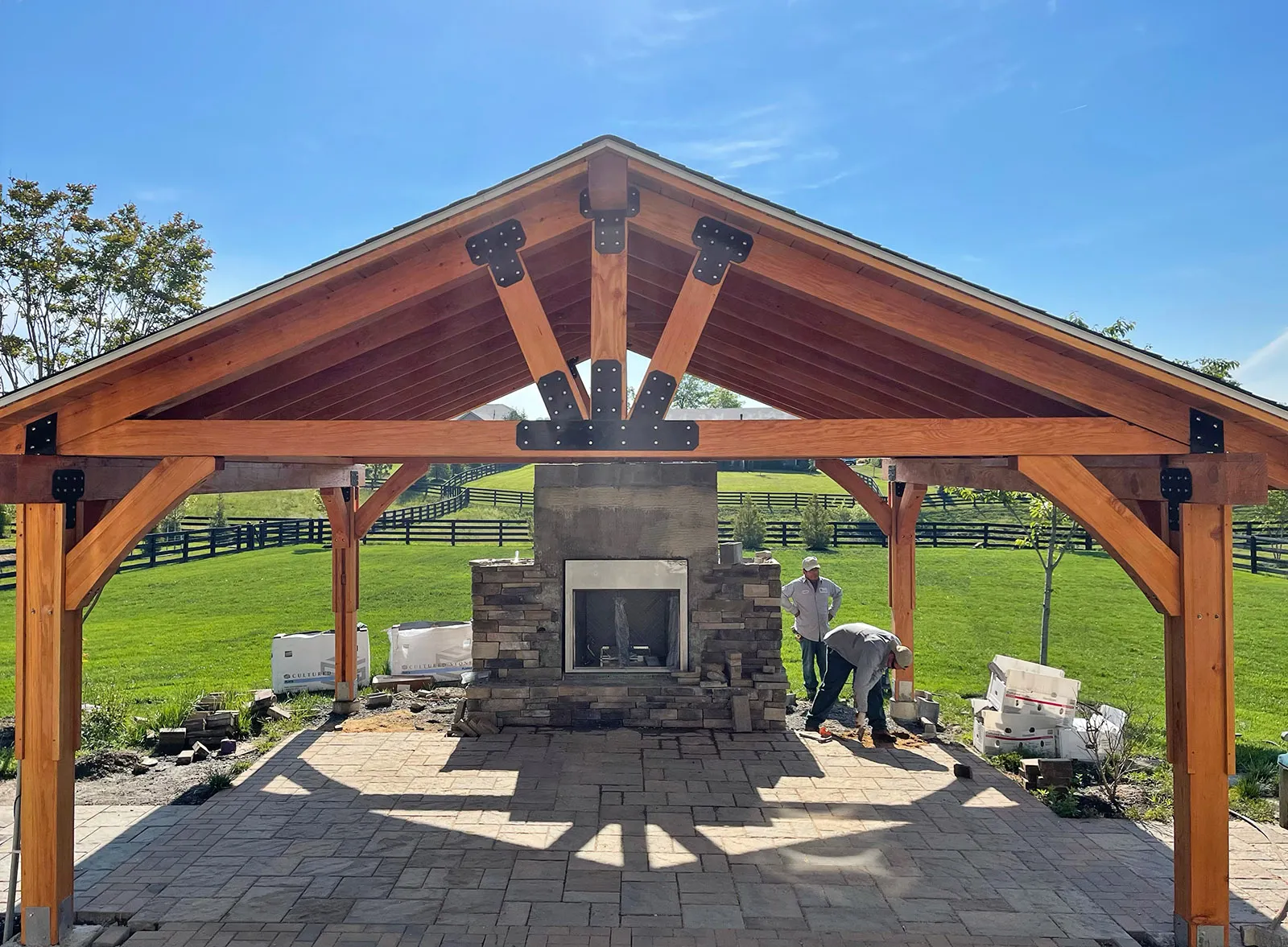

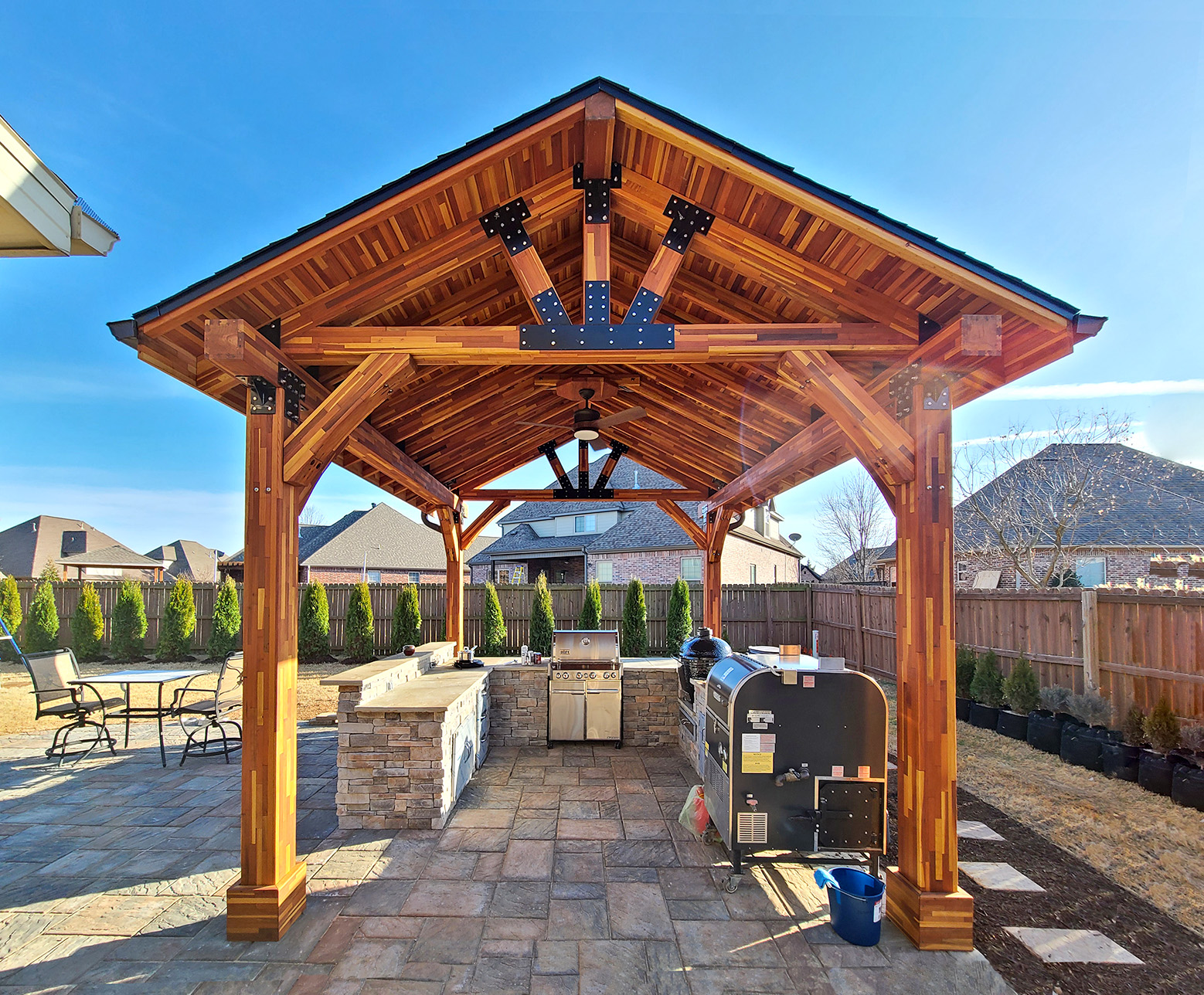

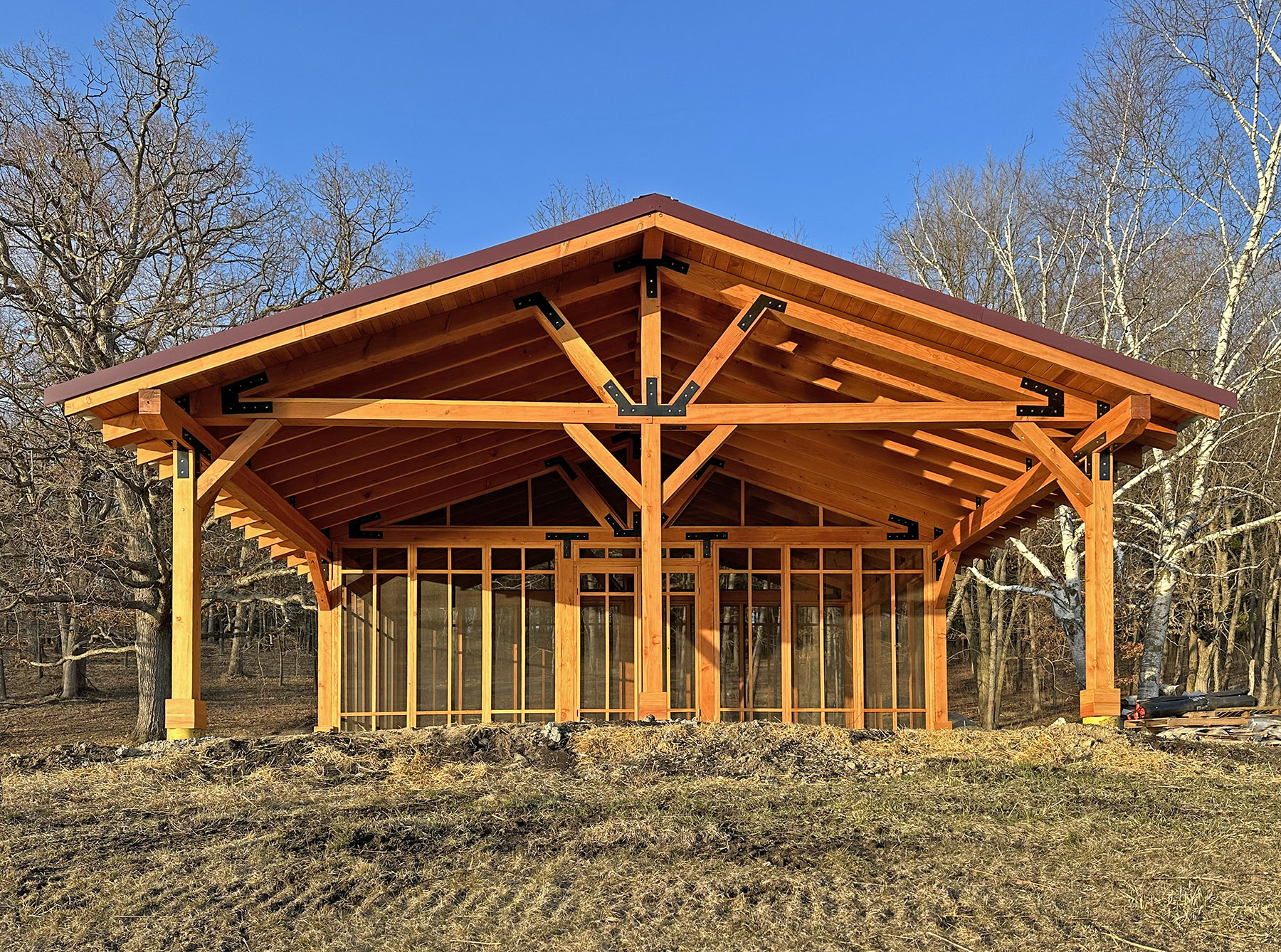

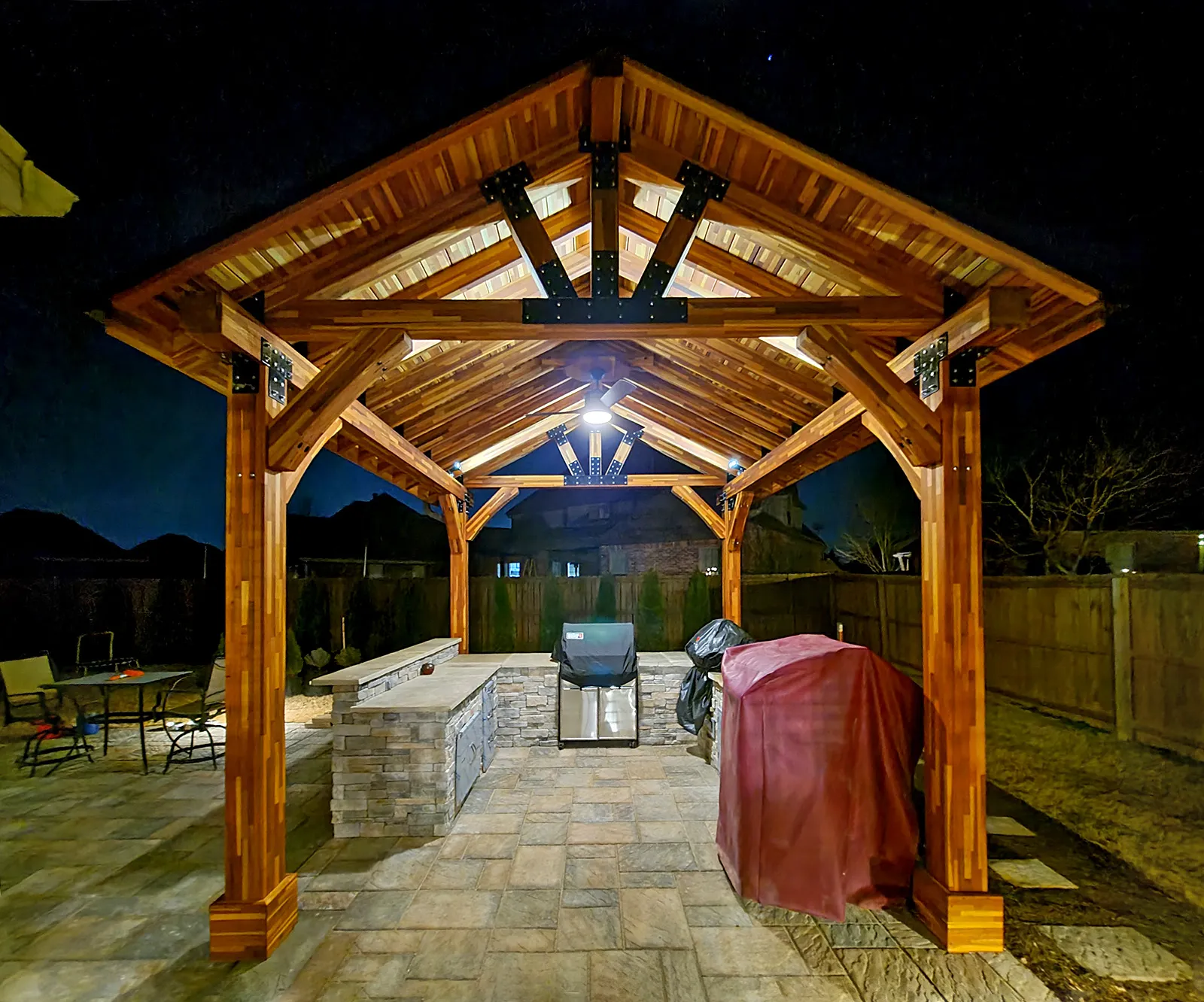

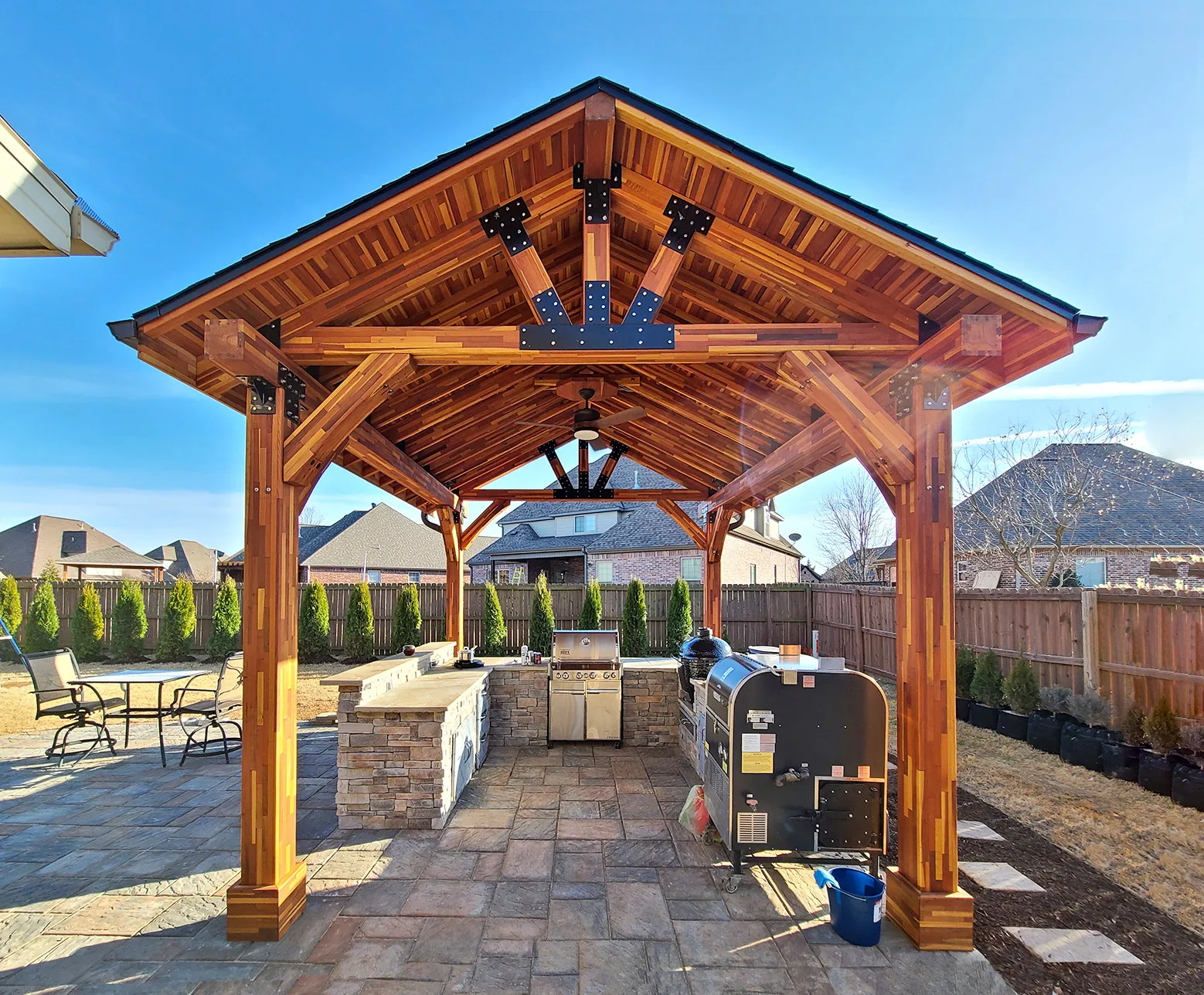

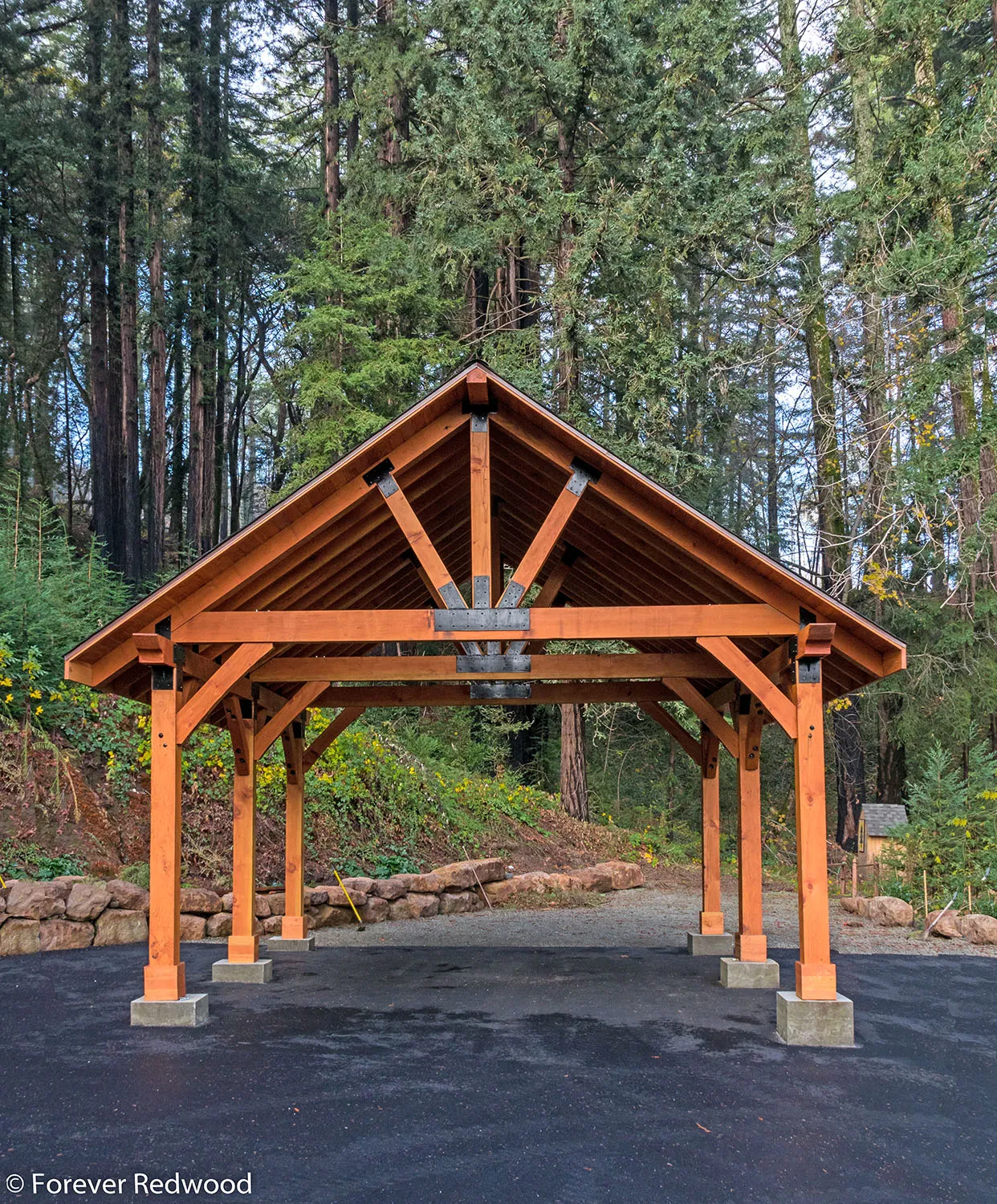

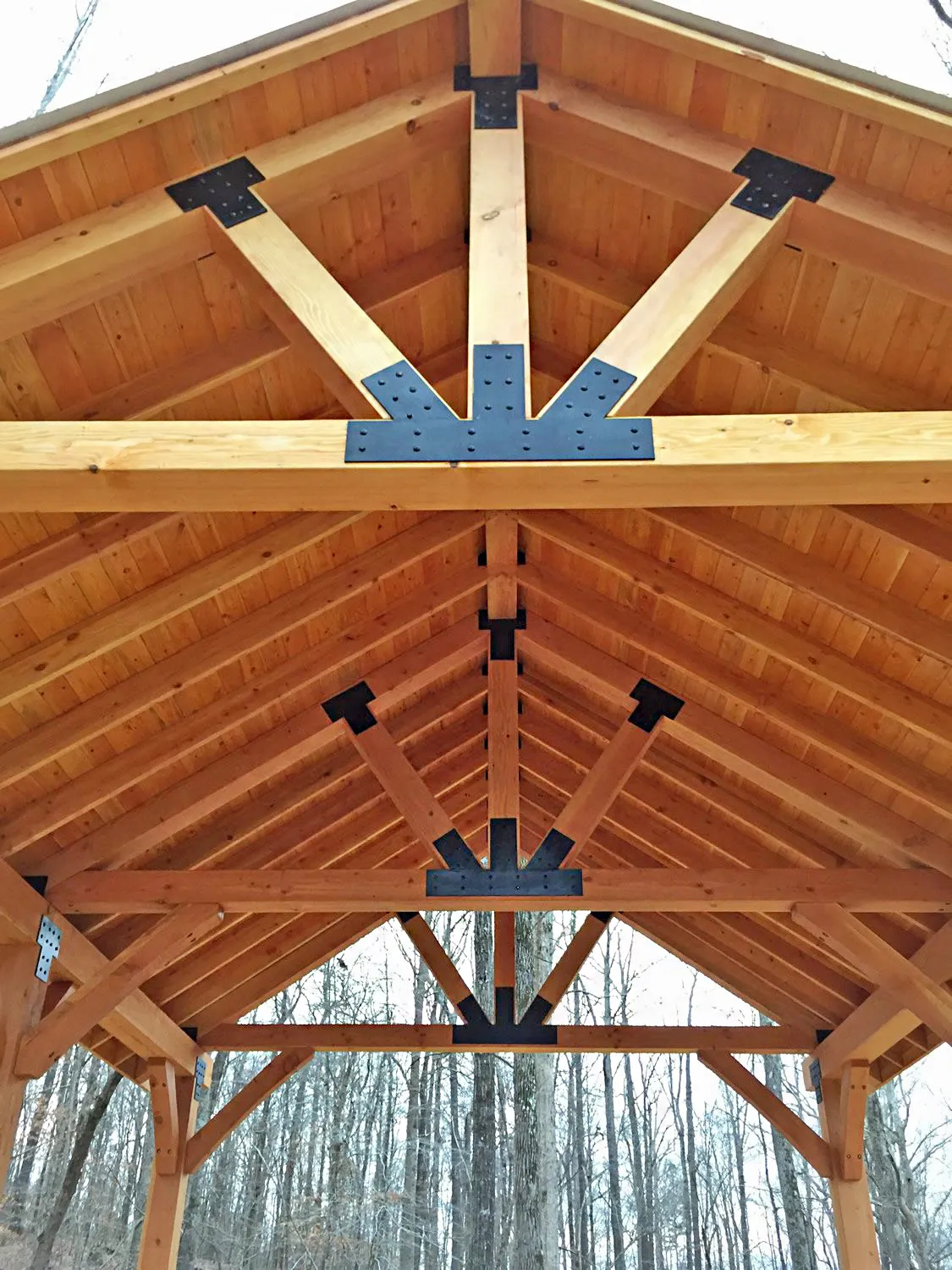

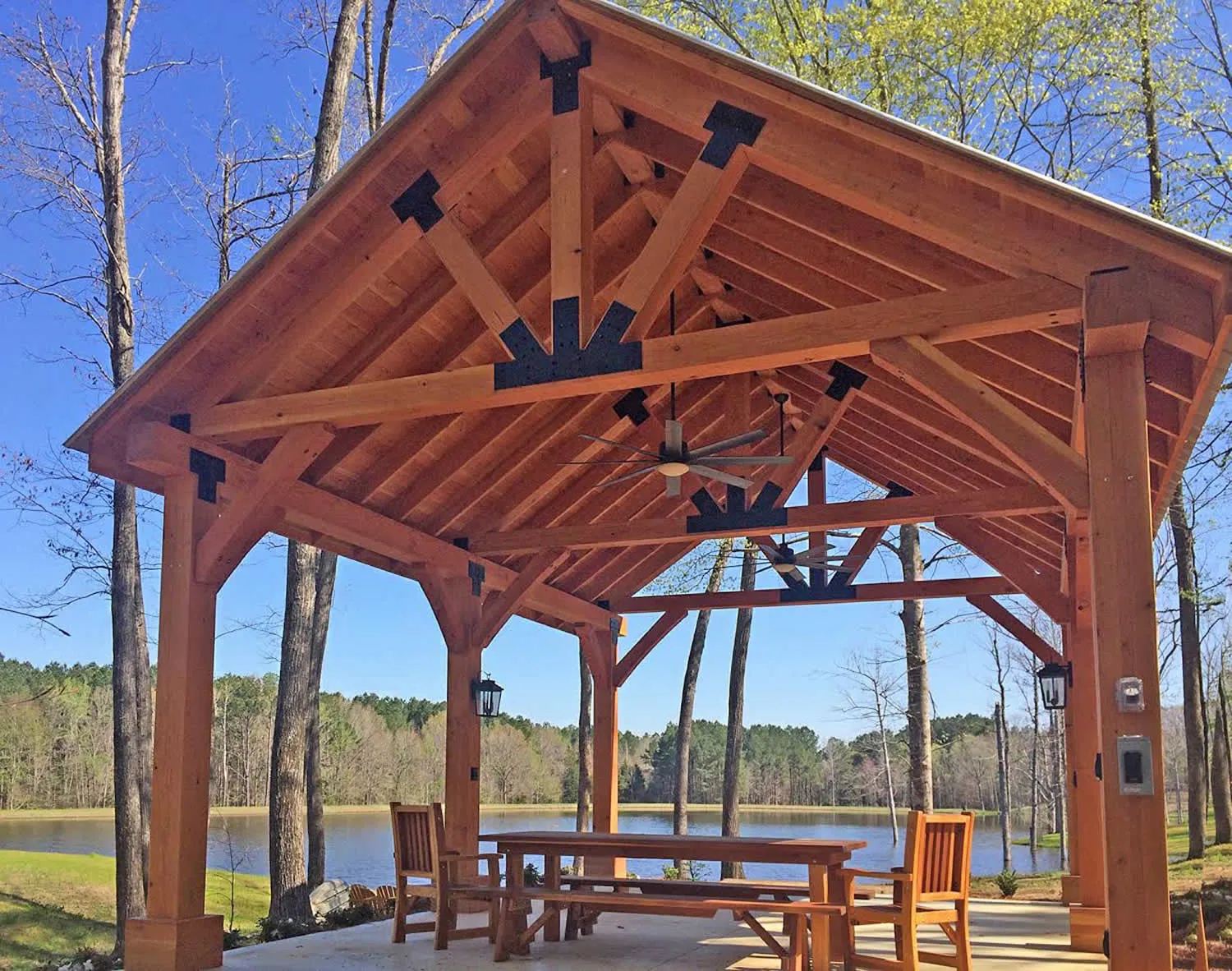

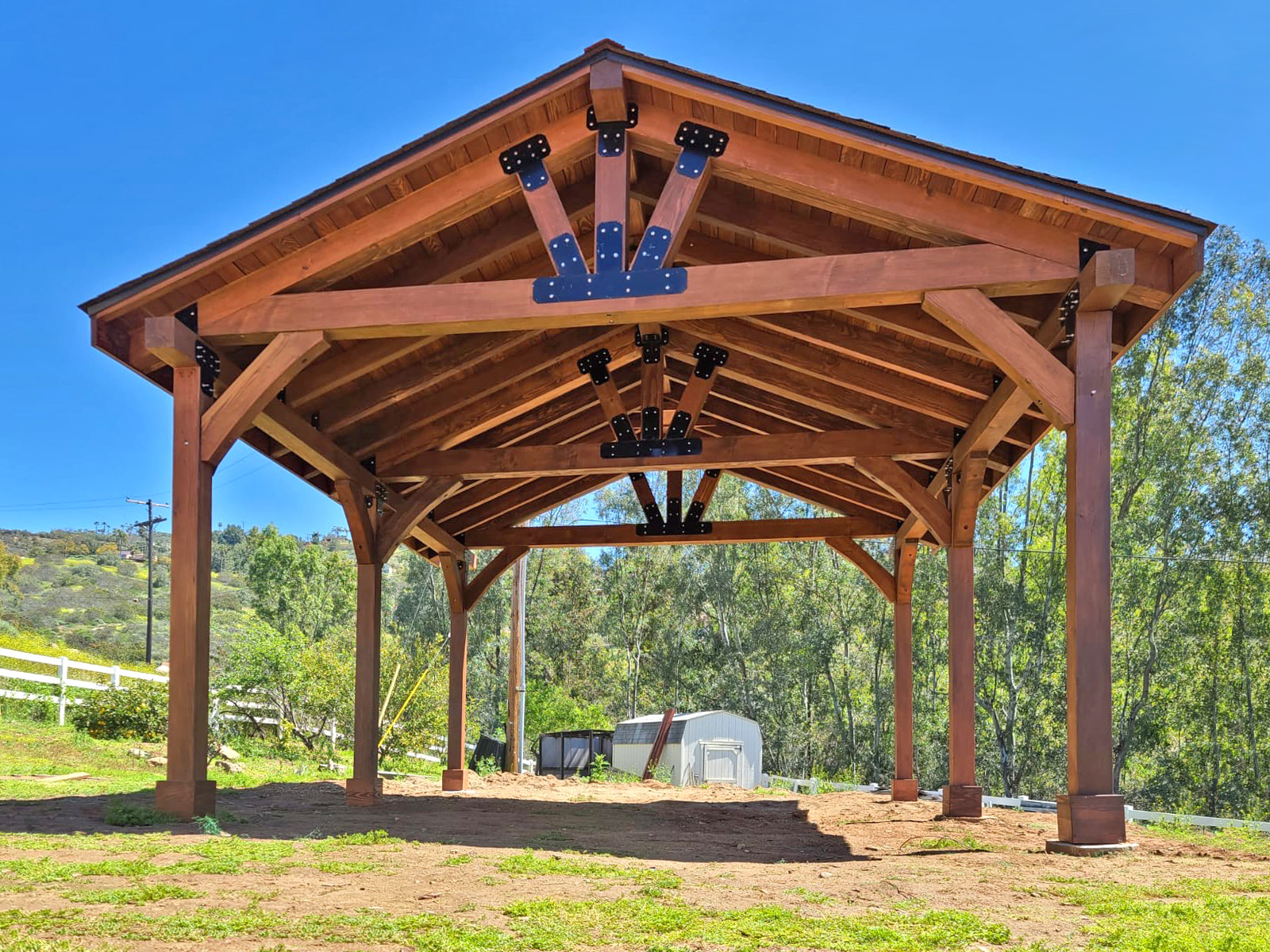

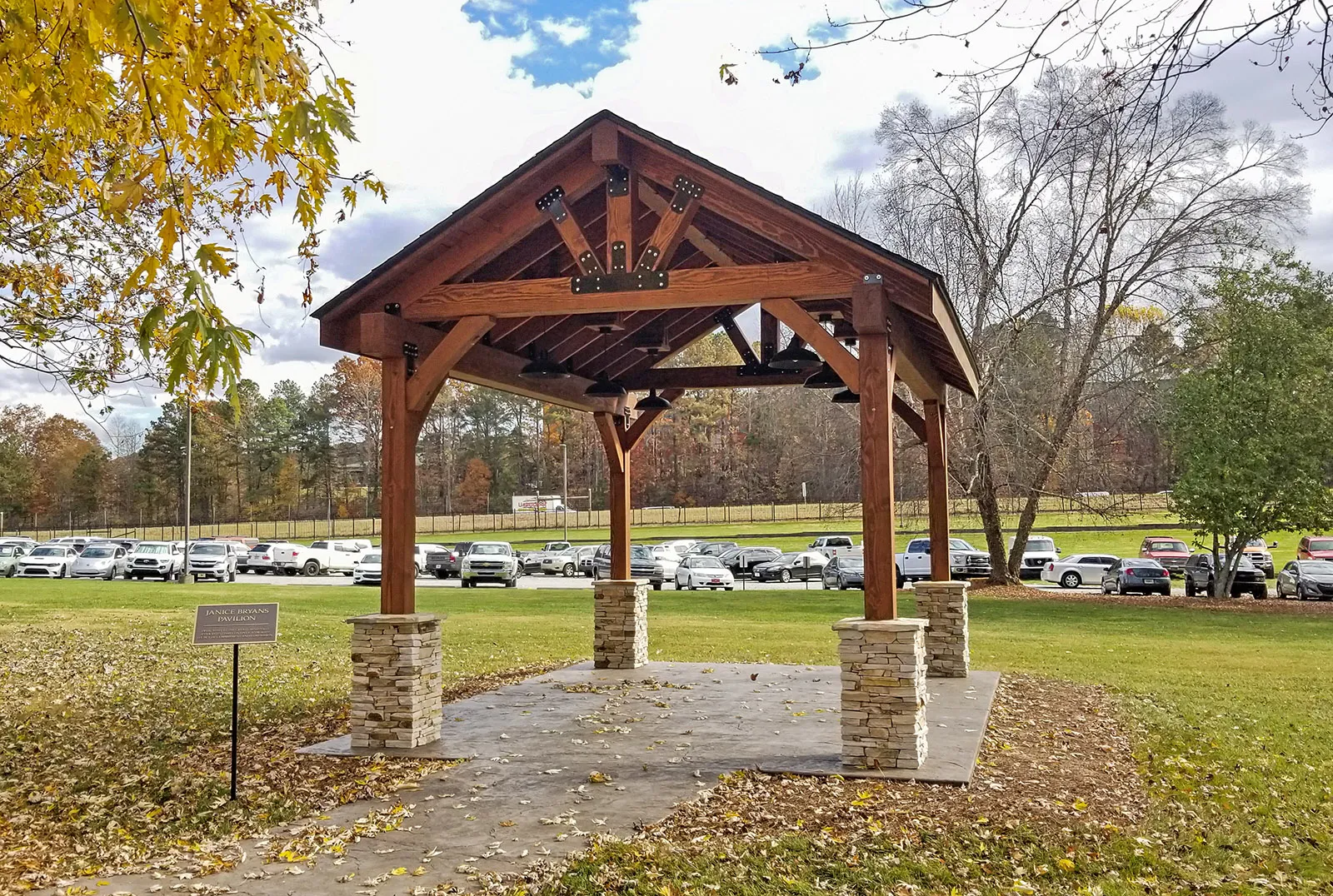

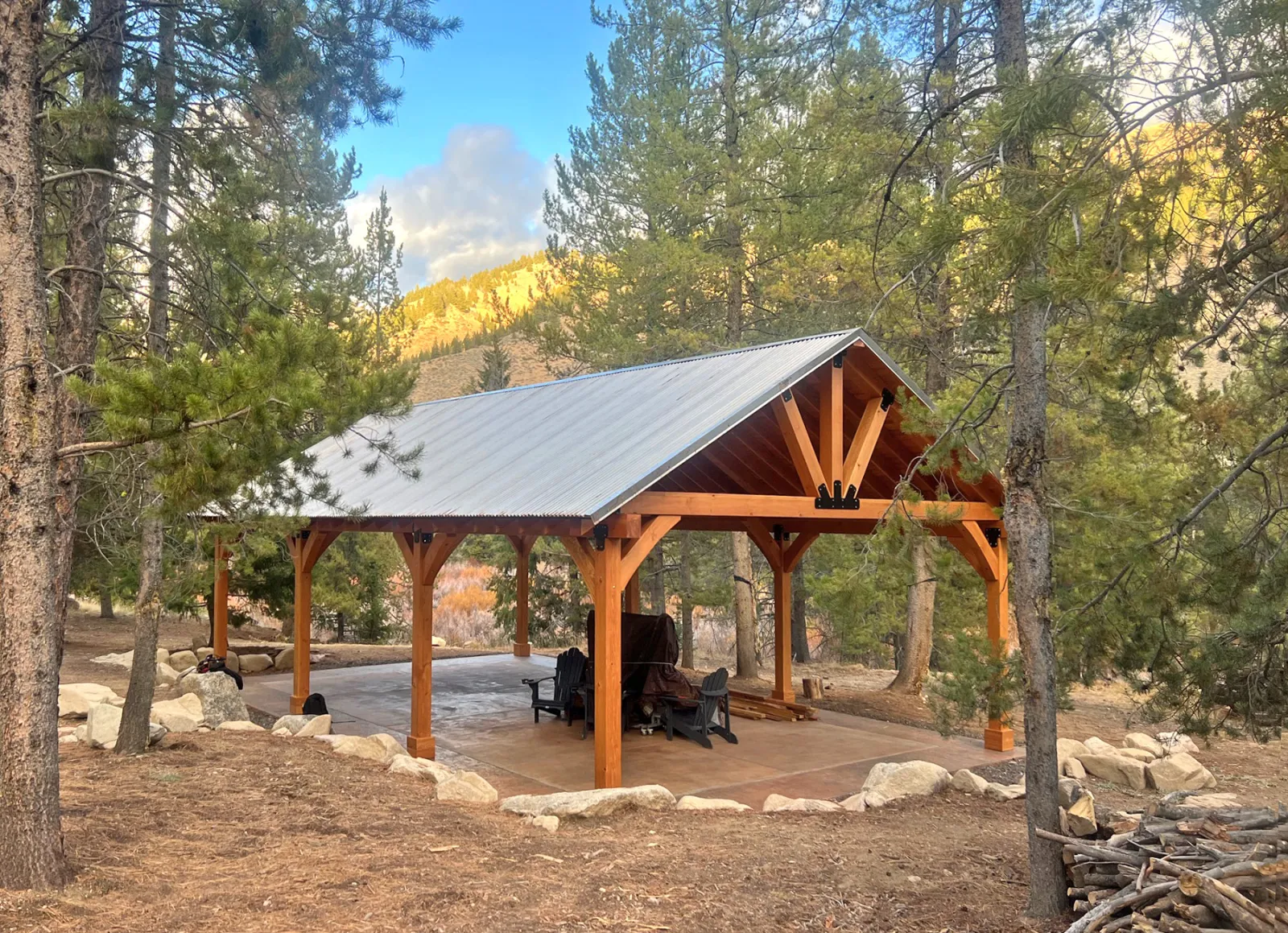

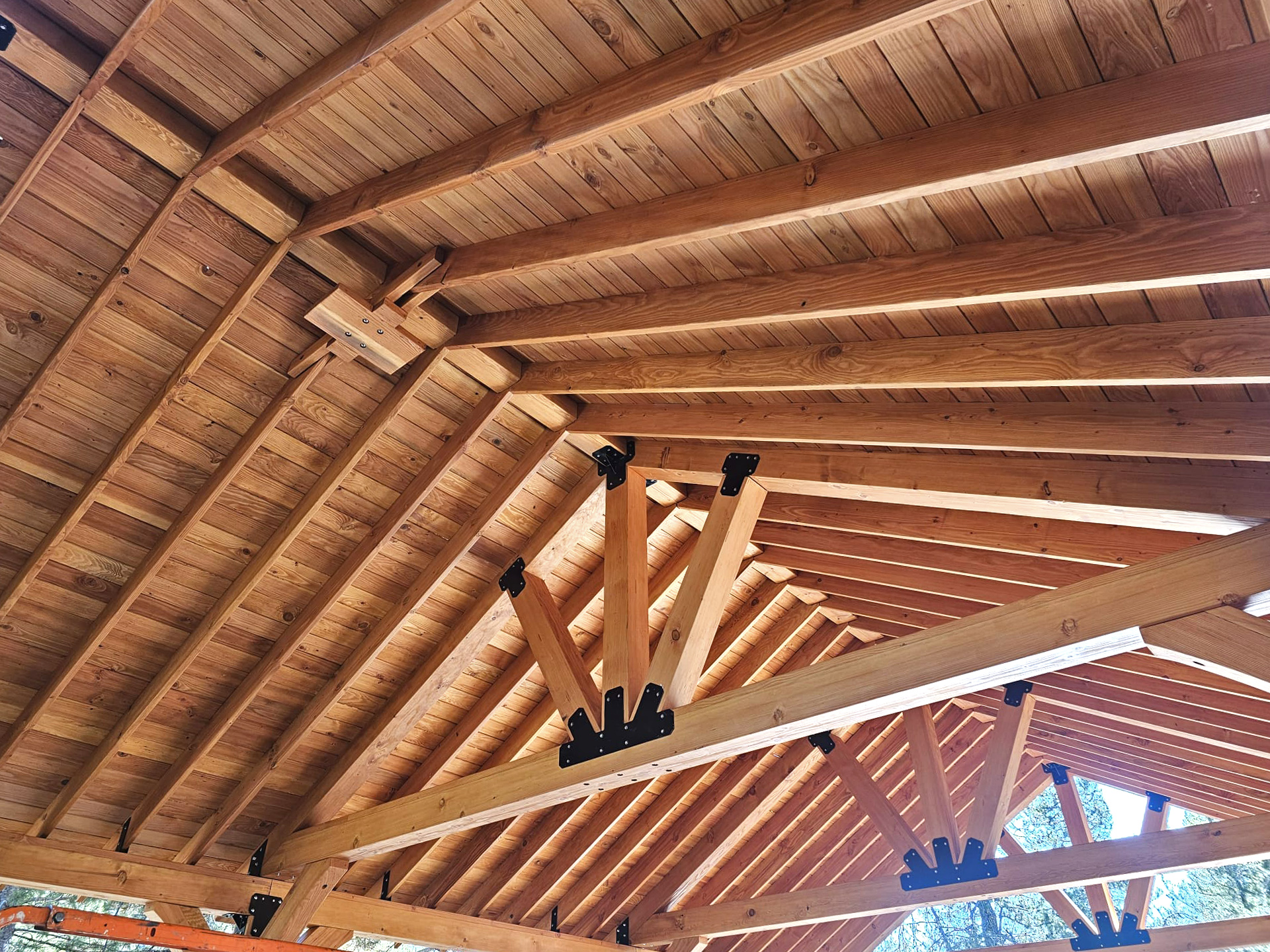

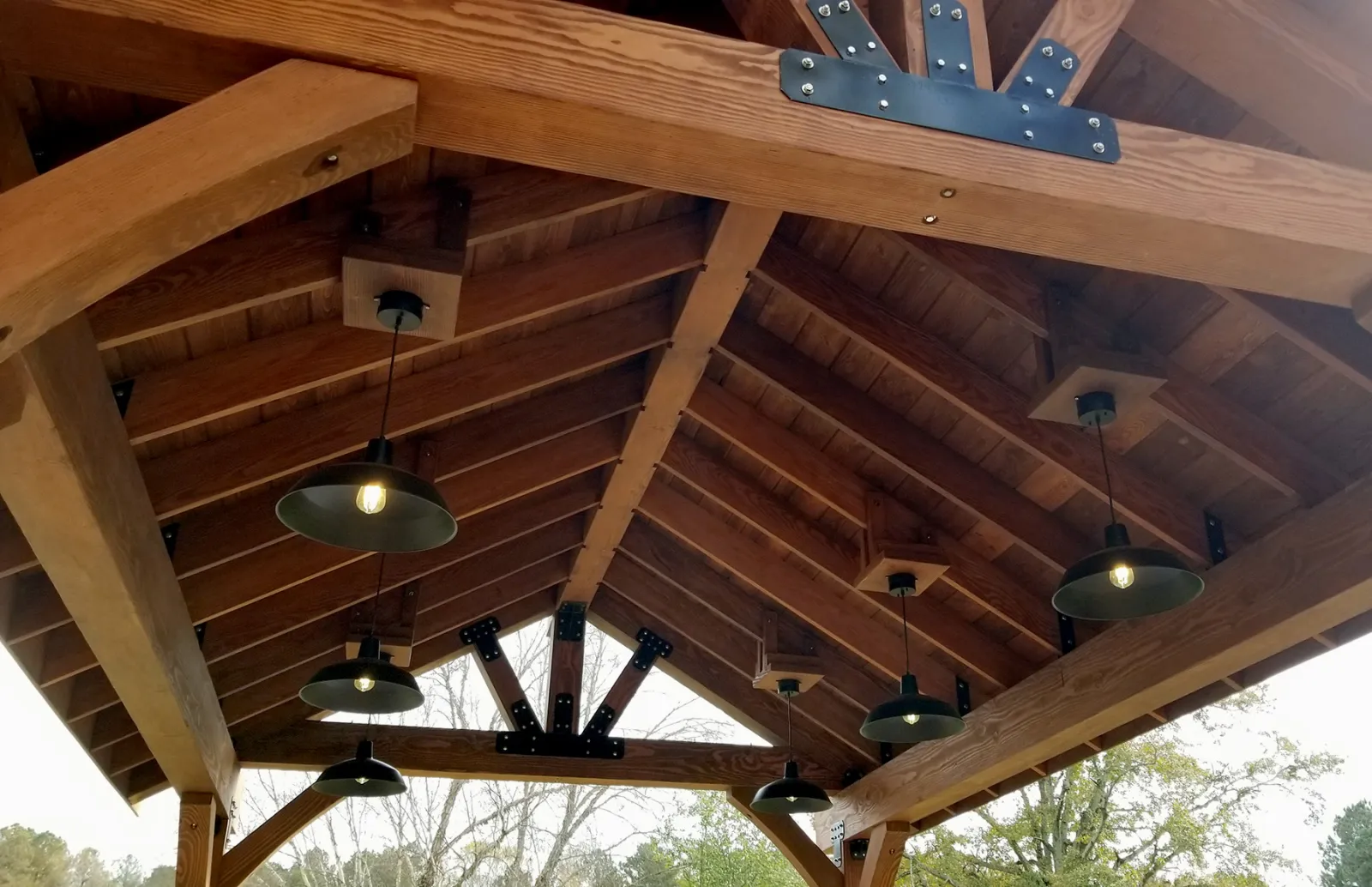

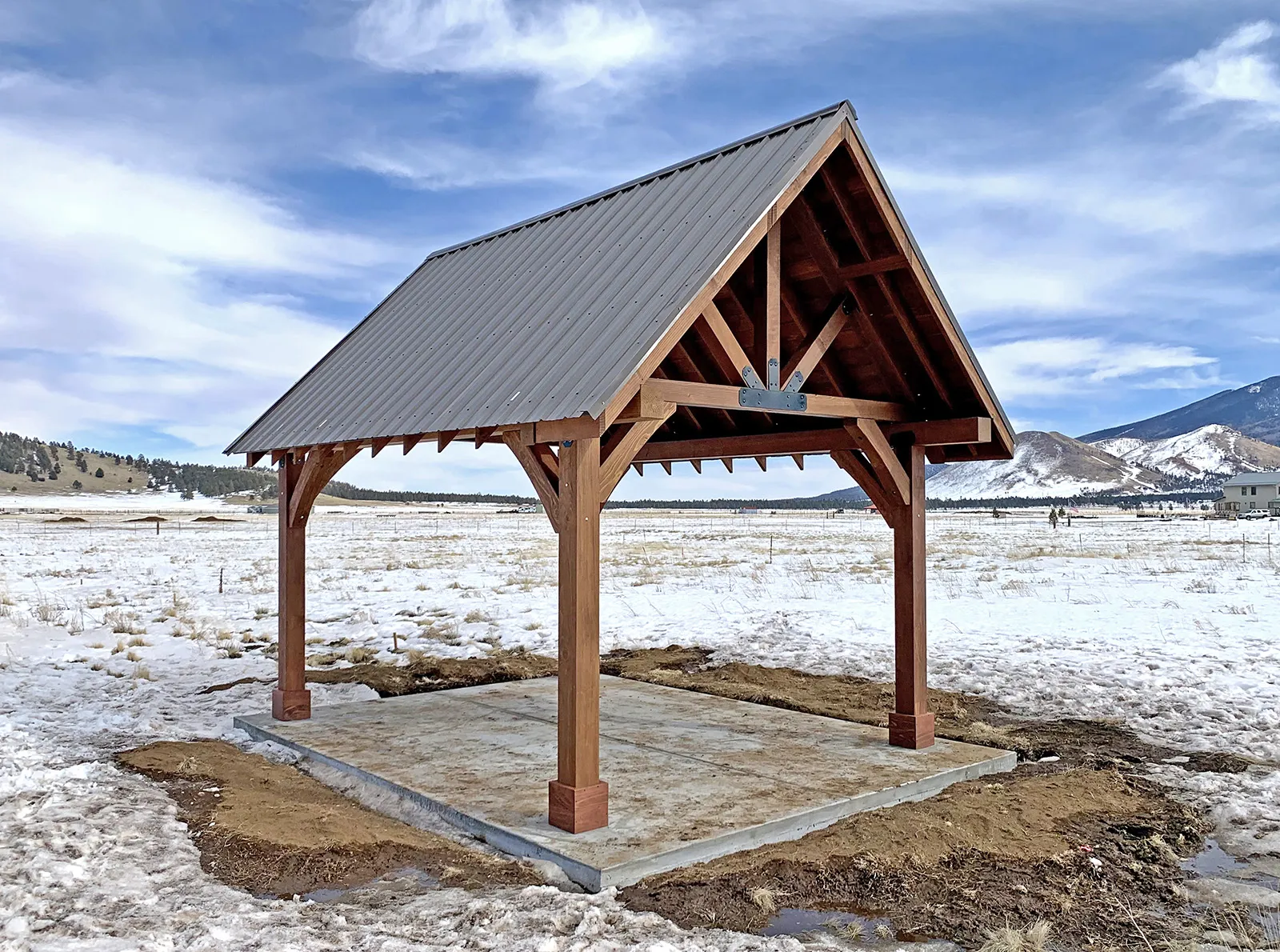

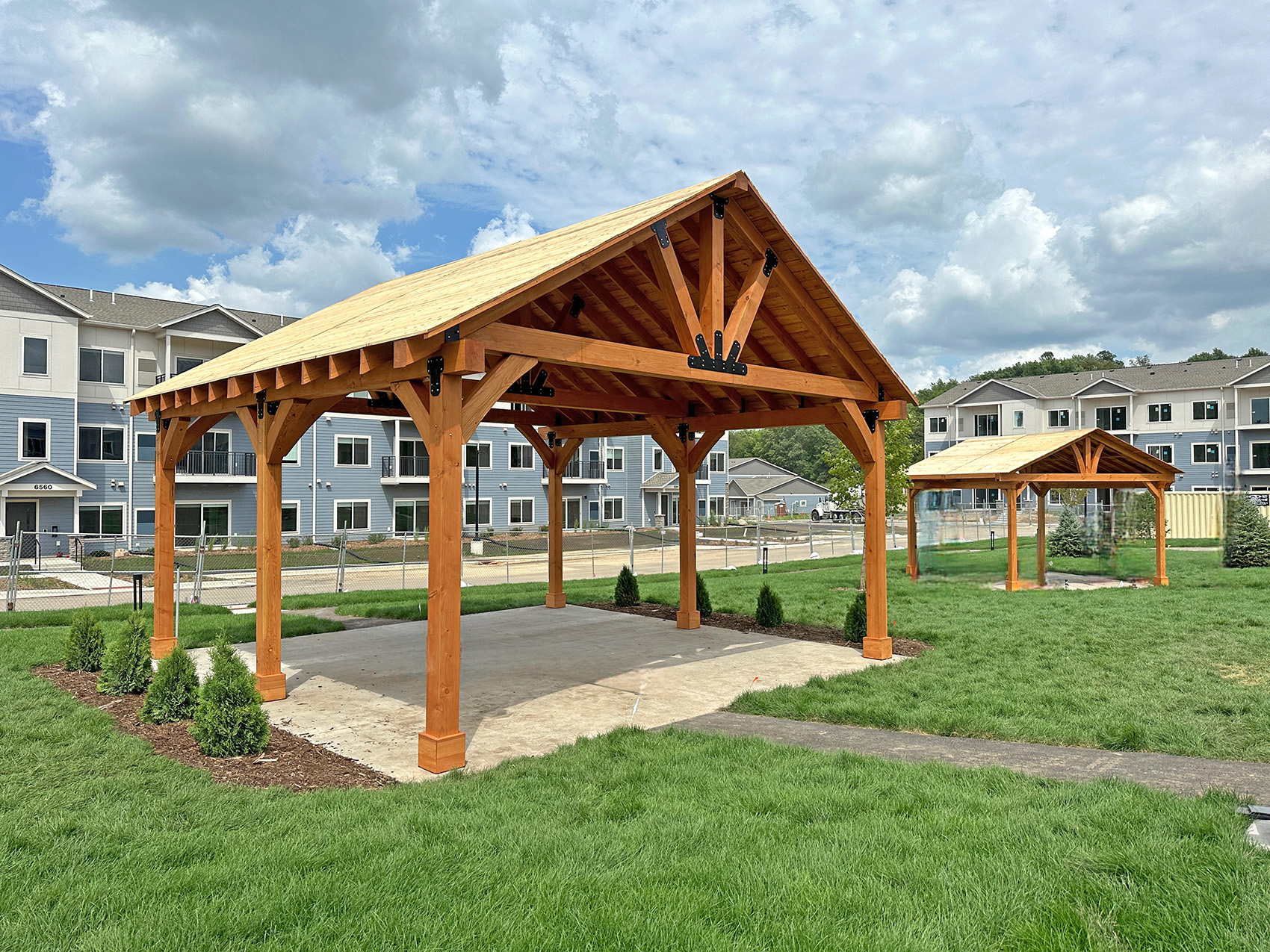

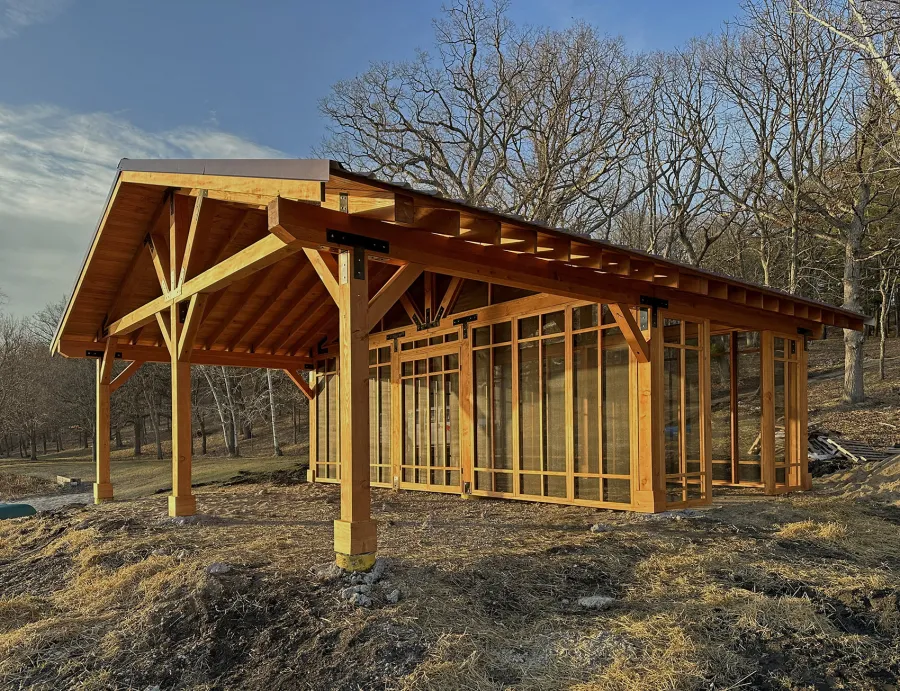

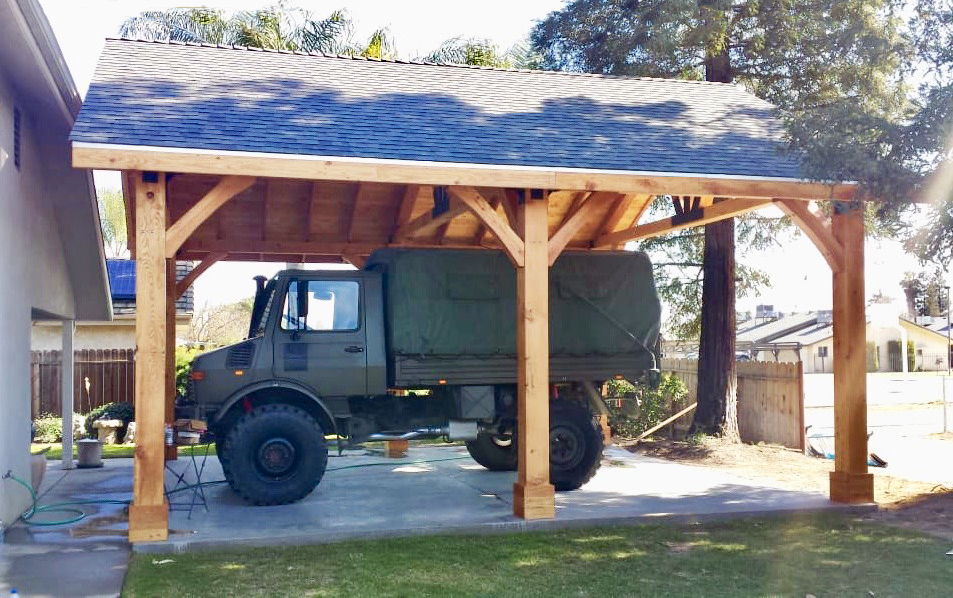

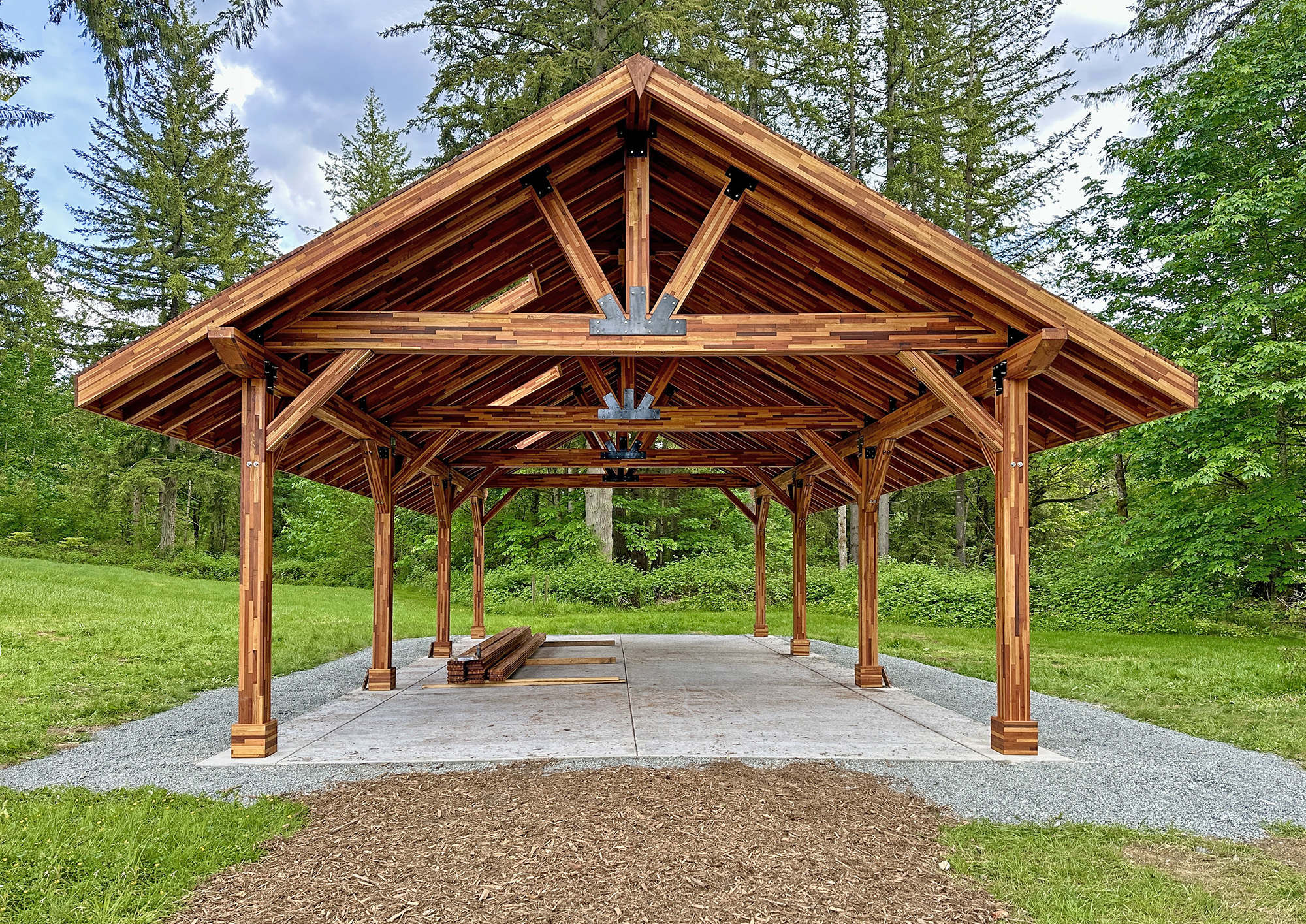

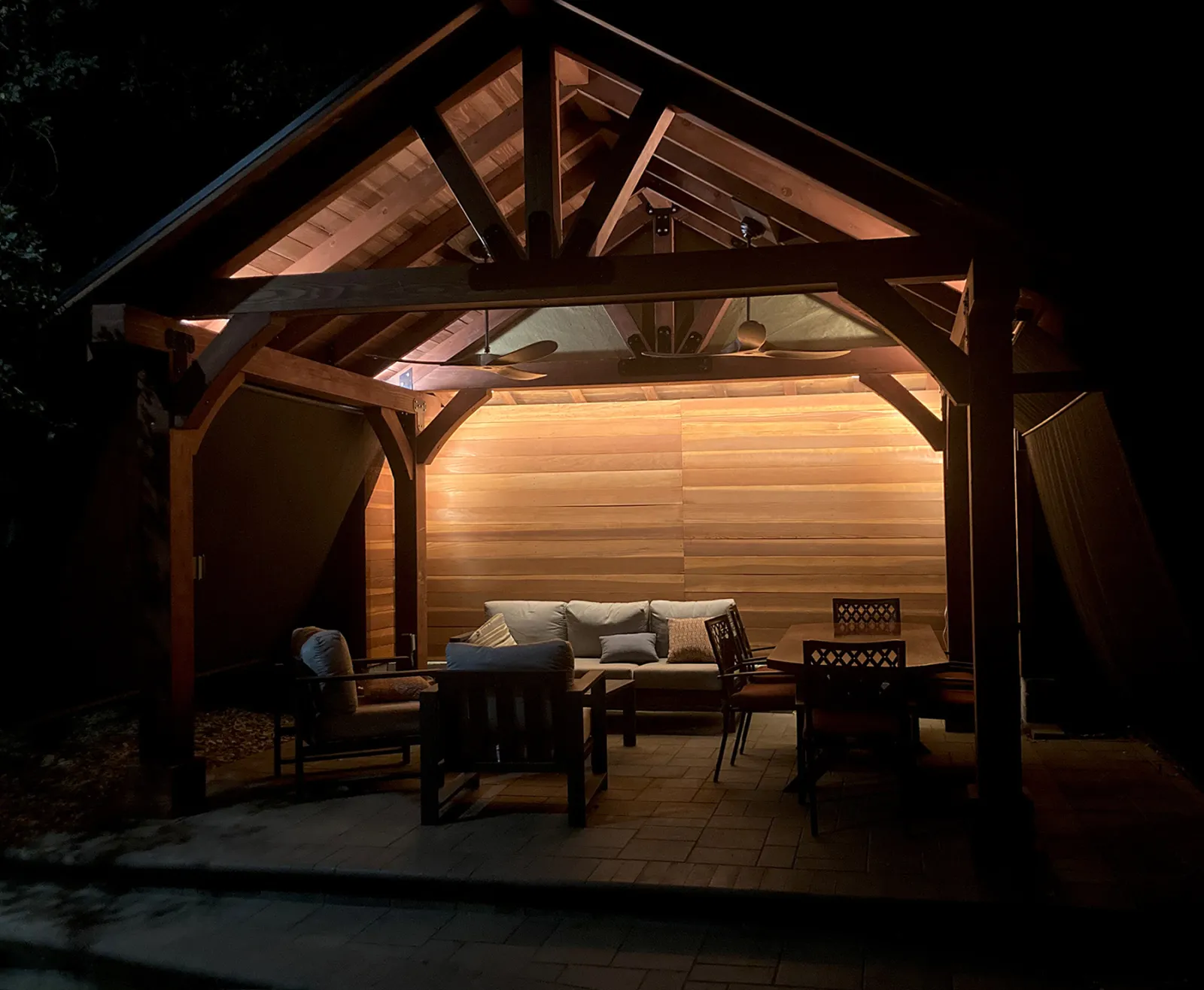

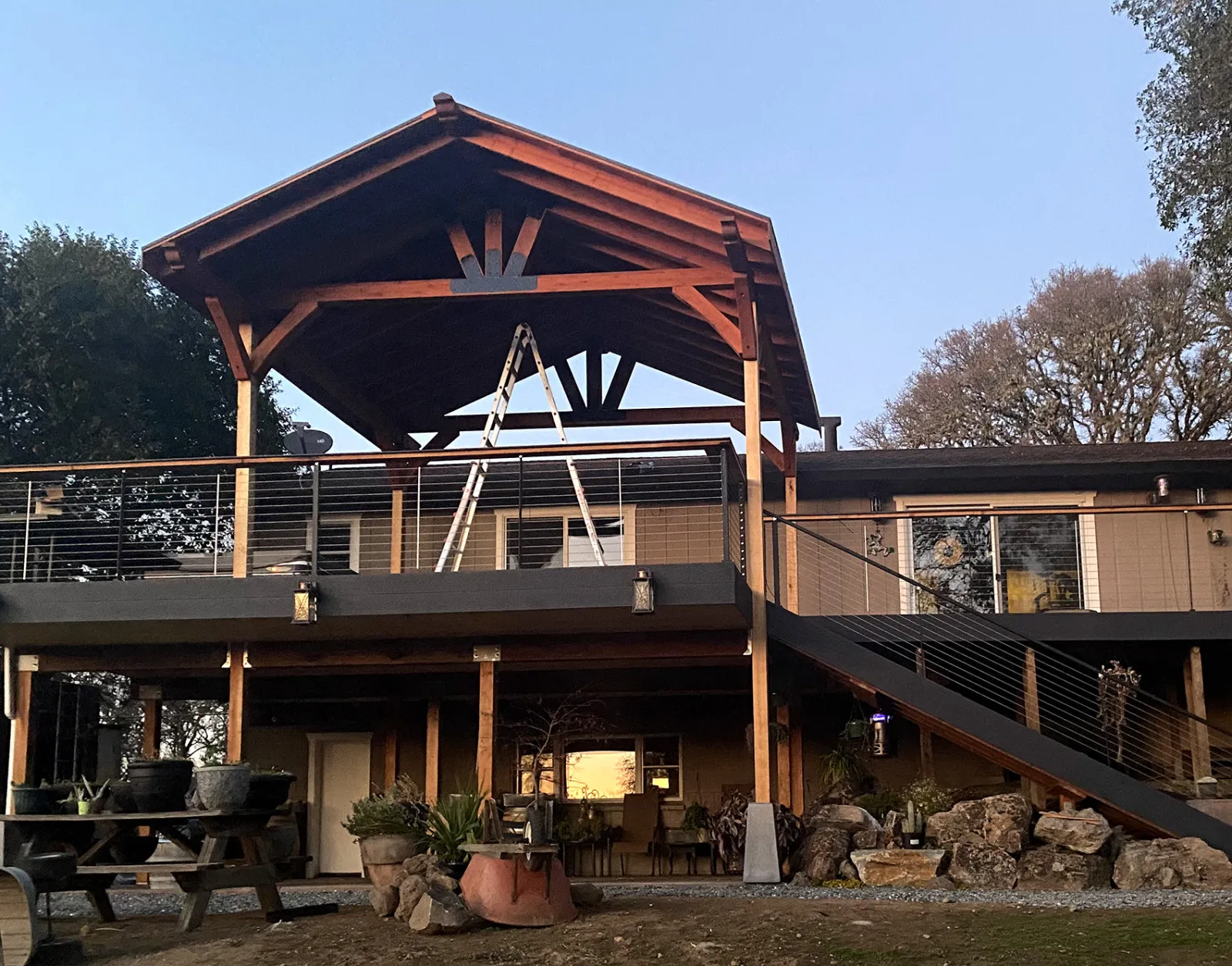

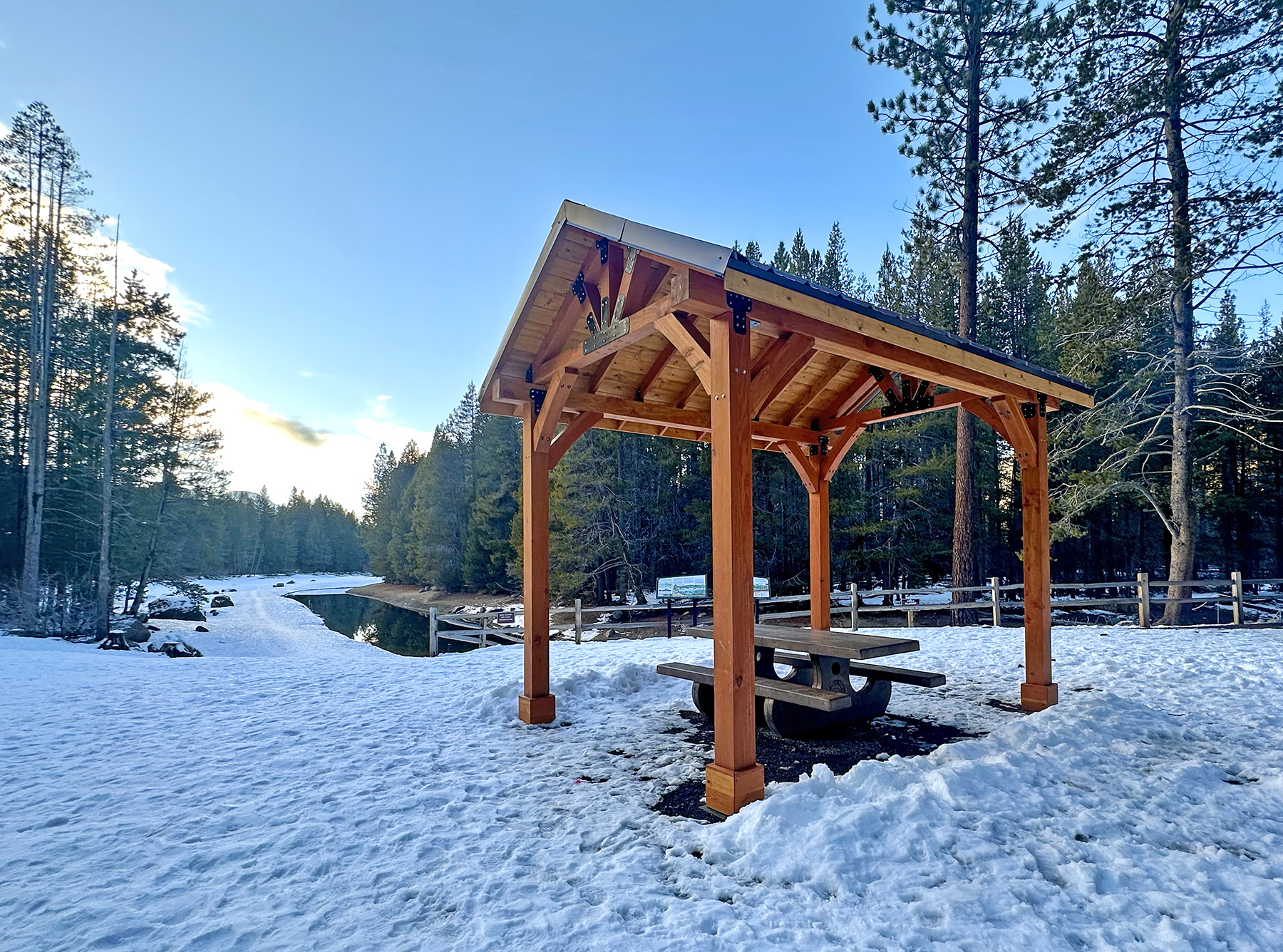

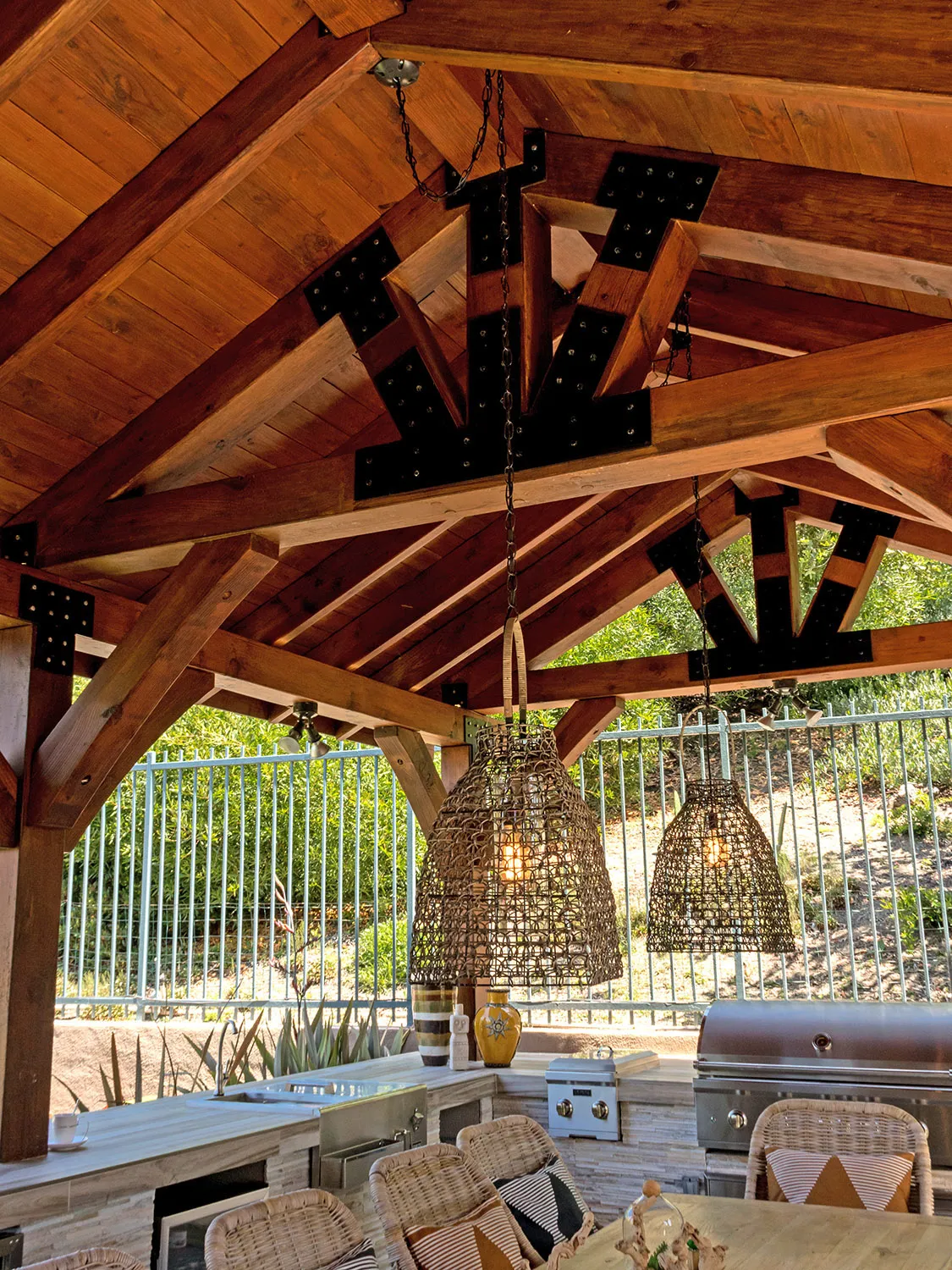

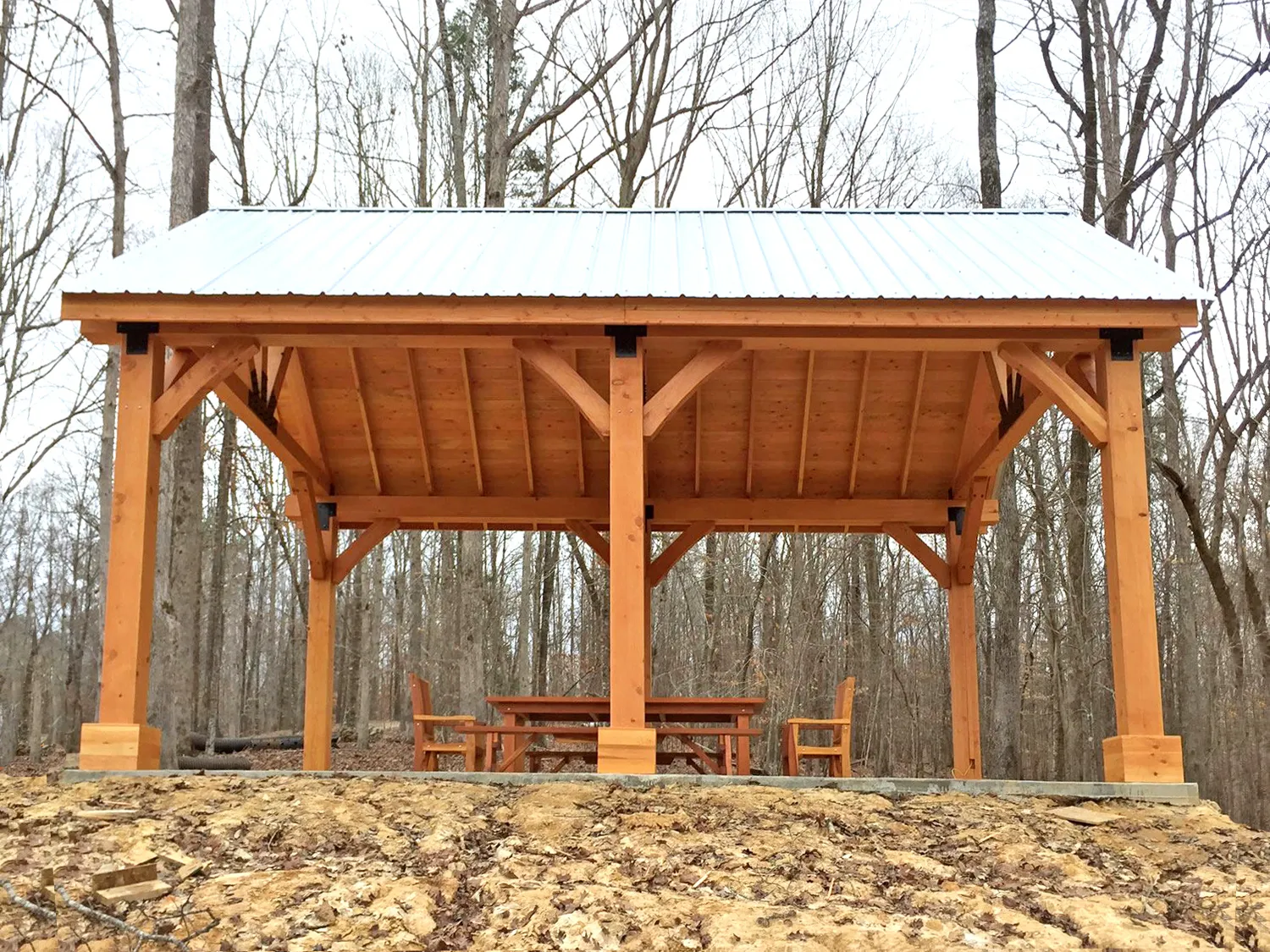

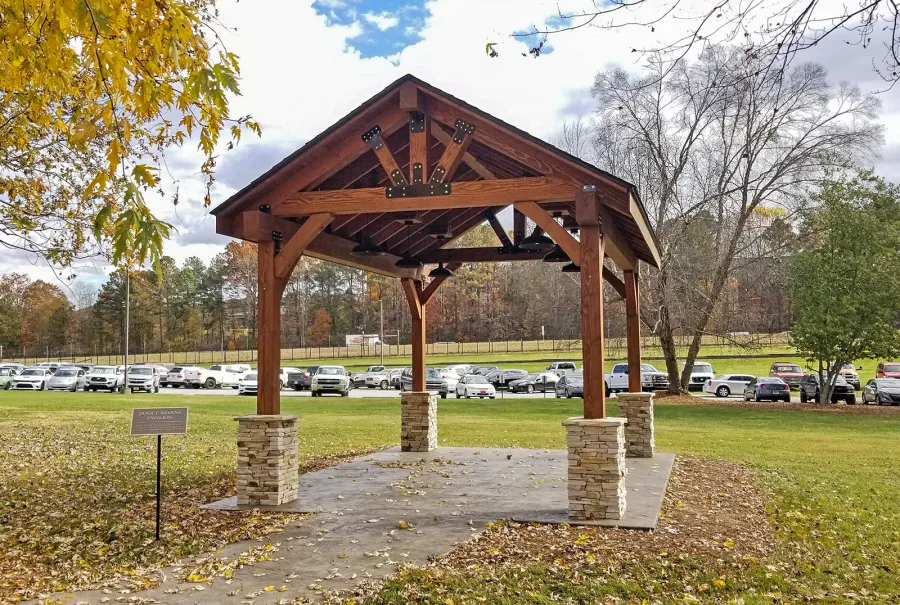

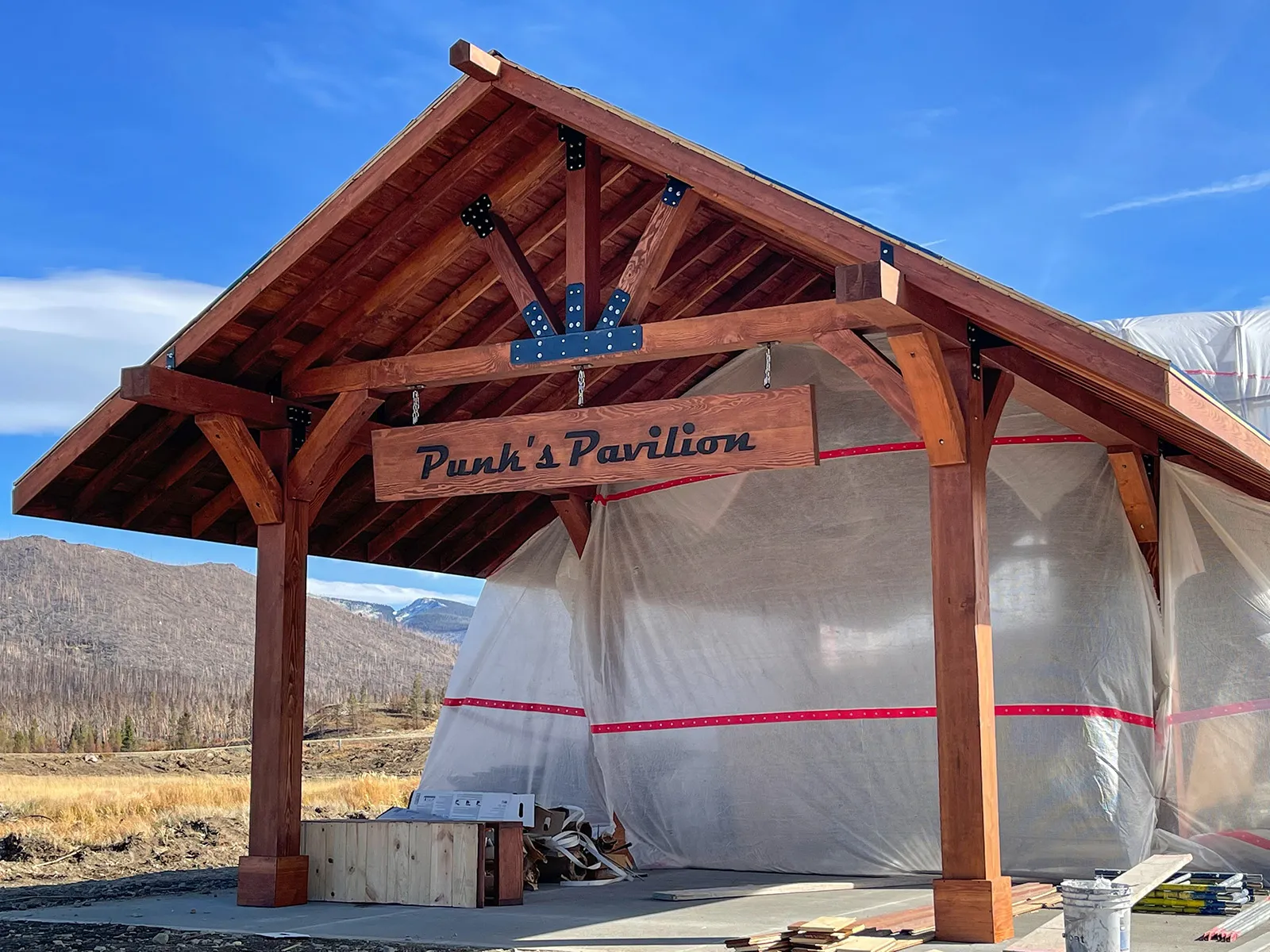

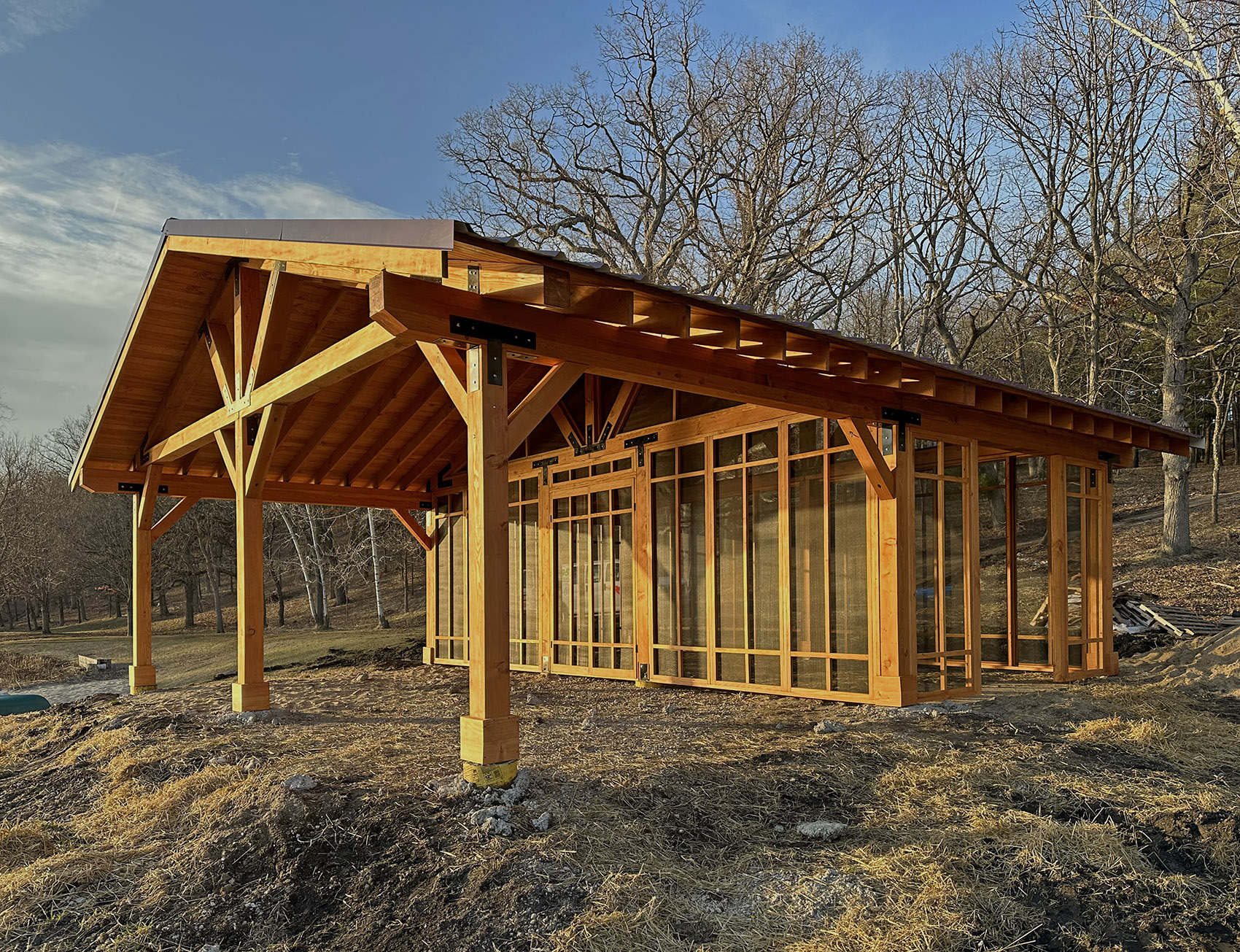

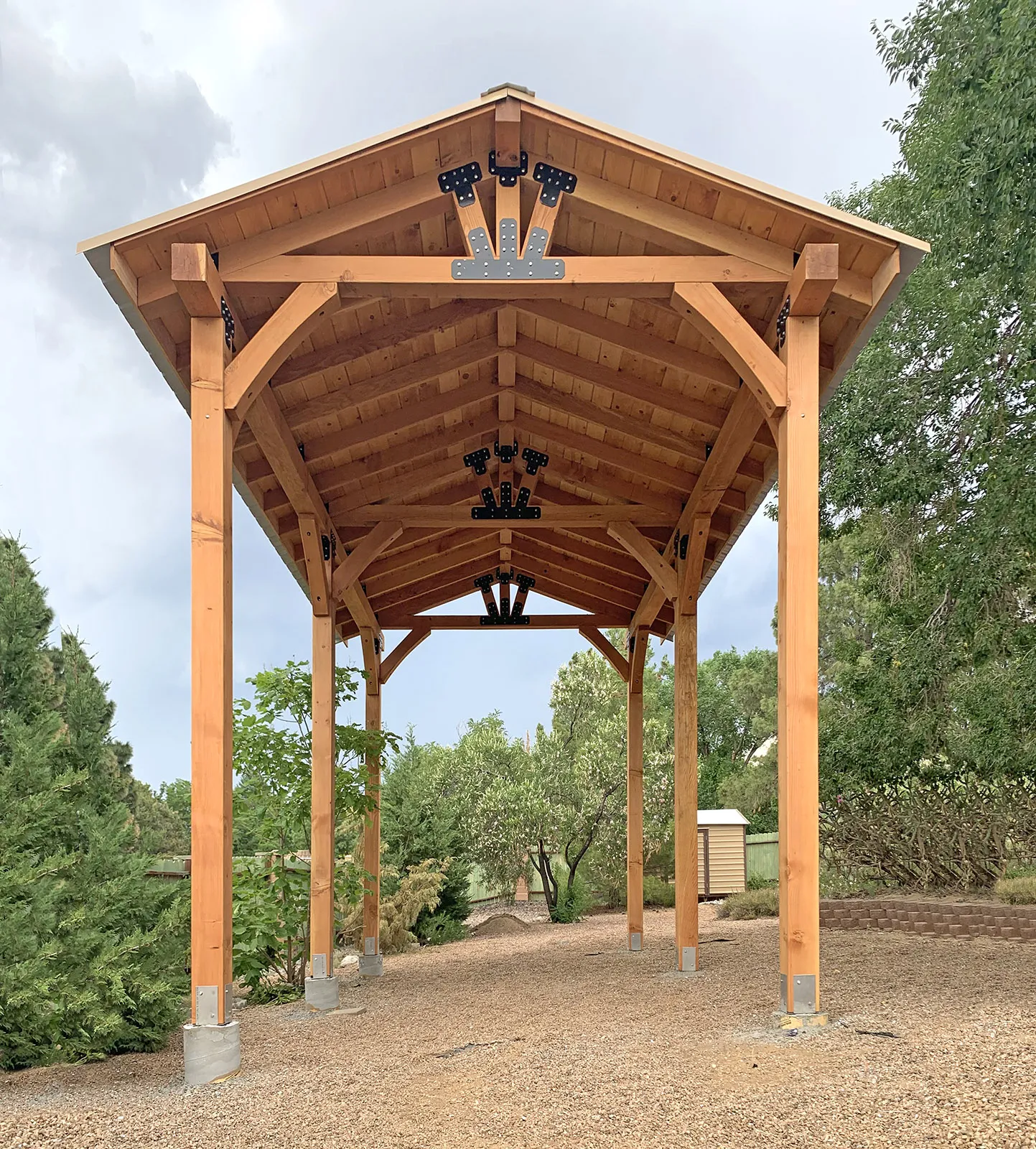

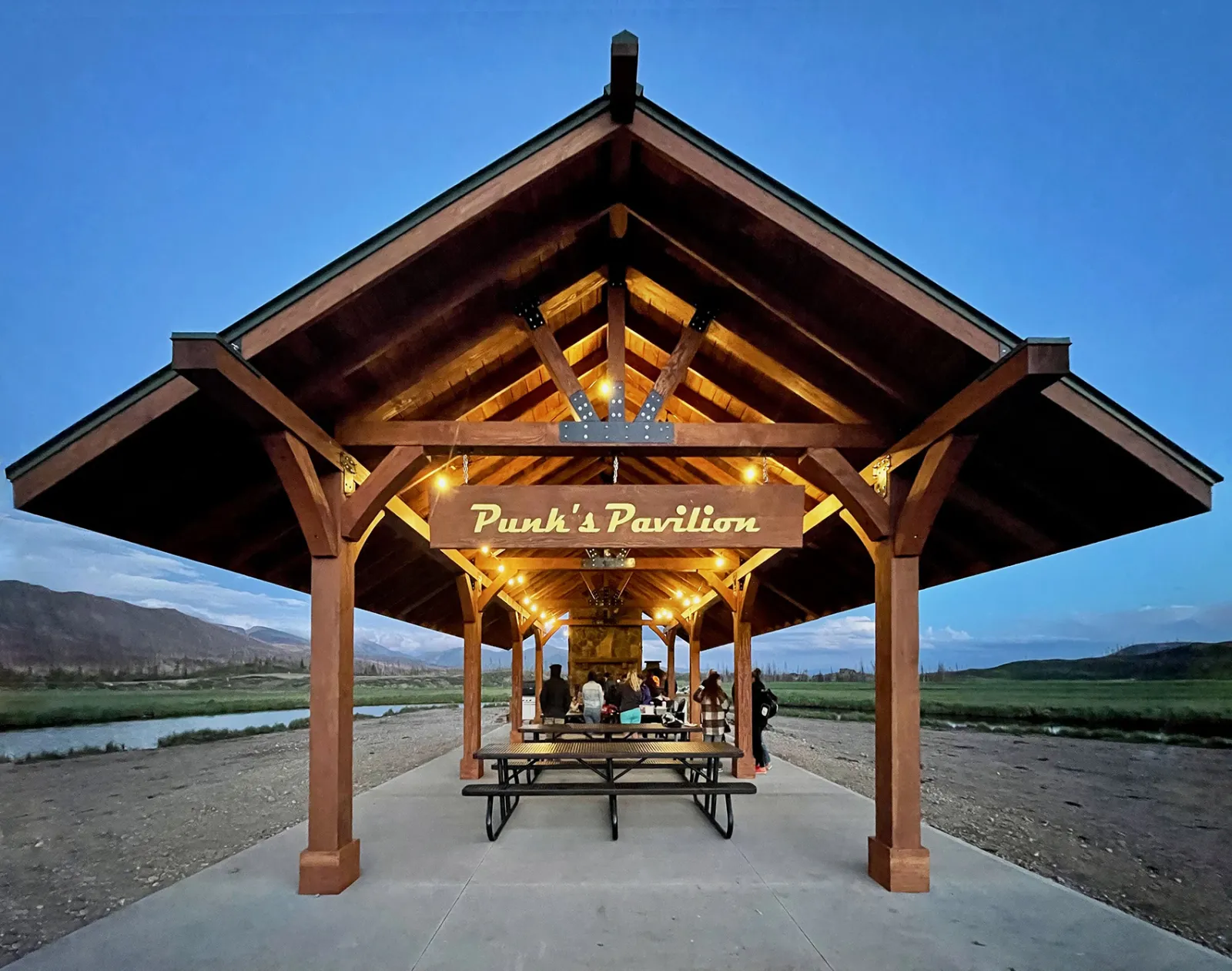

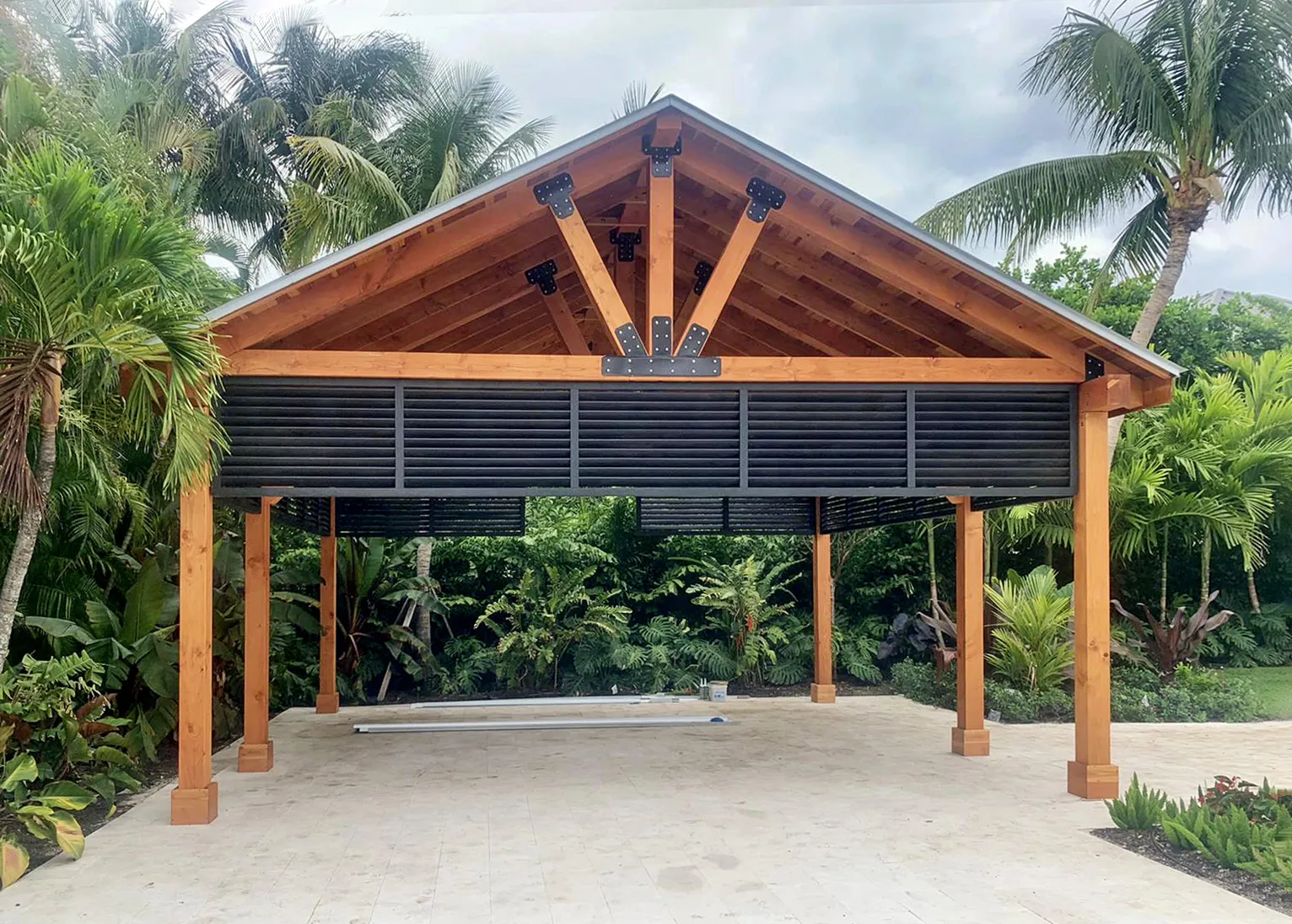

The Thick Timber Toledo Wood Pavilions

THE THICK TIMBER TOLEDO WOOD PAVILIONS SPECIFICATIONS (PDF DOWNLOAD)

GENERAL INFORMATION ABOUT PERMITTING FOR PERGOLAS AND PAVILIONS

ROOF PITCH - HELP INFORMATION

DIMENSIONS & DRAWINGS (PROVIDED PRIOR TO CONSTRUCTION)

CUSTOM DRAWINGS

The Toledo Pavilion Dimensions Example

The Toledo Pavilion has standard dimensions in lengths from 10' to 40' and widths from 8' to 24'. The length and width are the overall roof measurements. The standard roof overhang is 12". If you need a custom size, we can do it. Just let us know.

Top View

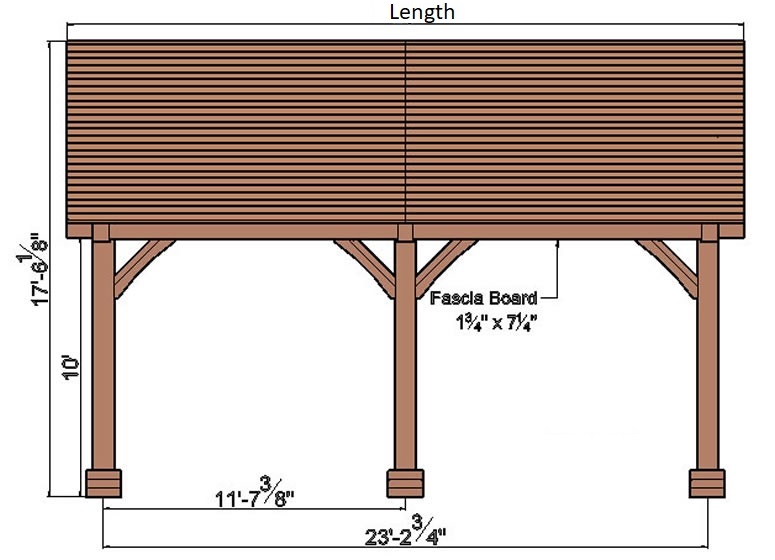

Front View

Ladder View

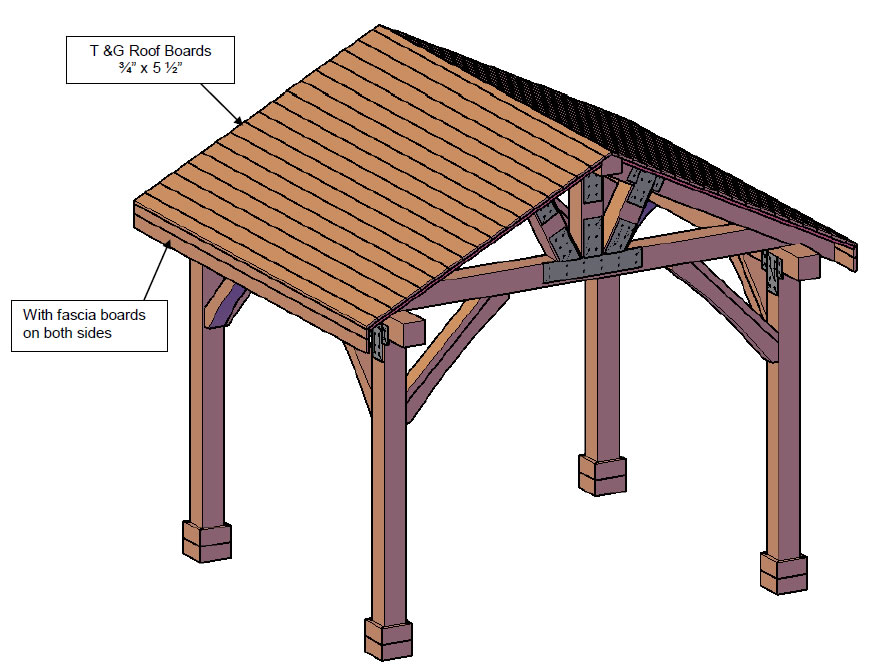

Isometric View

Toledo Dimensions for Posts 6in x 6in
H (ft.)	H1 (ft.)	W (ft.)	W1 (ft.)	L (ft.)	L1 (ft.)	Post Qty.
9	12.57	12	9.54	12	9.54	4
9	13.07	14	11.54	14	11.54	4
9	13.32	15	12.54	15	12.54	4
9	14.29	16	13.54	16	13.54	4
9.5	13.07	12	9.54	18	15.54	4
9.5	13.57	14	11.54	20	17.54	4
9.5	13.82	15	12.54	22	9.77	6
9.5	14.79	16	13.54	24	10.77	6
10	13.57	12	9.54	25	11.27	6
10	14.07	14	11.54	26	11.77	6
10	14.32	15	12.54	28	12.77	6
10	15.29	16	13.54	30	13.77	6
10.5	14.07	12	9.54	32	14.77	6
10.5	14.57	14	11.54	34	15.77	6
10.5	14.82	15	12.54	35	16.27	6
10.5	15.79	16	13.54	36	16.77	6
11	14.57	12	9.54	38	11.85	8
11	15.07	14	11.54	40	12.51	8
11	15.32	15	12.54	42	13.18	8
11	16.29	16	13.54	44	13.85	8
11.5	15.07	12	9.54	45	14.18	8
11.5	15.57	14	11.54	46	14.51	8
11.5	15.82	15	12.54	48	15.18	8
11.5	16.79	16	13.54	50	11.89	10
12	15.57	12	9.54	55	13.14	10
12	16.07	14	11.54	60	14.39	10
12	16.32	15	12.54
12	17.29	16	13.54

Top View

Front View

Ladder View

Isometric View

Toledo Dimensions for Posts 8in x 8in
H (ft.)	H1 (ft.)	W (ft.)	W1 (ft.)	L (ft.)	L1 (ft.)	Post Qty.
9	12.57	12	9.4	12	9.4	4
9	13.07	14	11.4	14	11.4	4
9	13.32	15	12.4	15	12.4	4
9	14.29	16	13.4	16	13.4	4
9	14.9	18	15.4	18	15.4	4
9	15.91	20	17.4	20	17.4	4
9	17.26	22	19.4	22	9.7	6
9	17.85	24	21.4	24	10.7	6
9.5	13.07	12	9.4	25	11.2	6
9.5	13.57	14	11.4	26	11.7	6
9.5	13.82	15	12.4	28	12.7	6
9.5	14.79	16	13.4	30	13.7	6
9.5	15.4	18	15.4	32	14.7	6
9.5	16.41	20	17.4	34	15.7	6
9.5	17.76	22	19.4	35	16.2	6
9.5	18.35	24	21.4	36	16.7	6
10	13.57	12	9.4	38	17.7	6
10	14.07	14	11.4	40	12.47	8
10	14.32	15	12.4	42	13.13	8
10	15.29	16	13.4	44	13.8	8
10	15.9	18	15.4	45	14.13	8
10	16.91	20	17.4	46	14.47	8
10	18.26	22	19.4	48	15.13	8
10	18.85	24	21.4	50	15.8	8
10.5	14.07	12	9.4	55	13.1	10
10.5	14.57	14	11.4	60	14.35	10
10.5	14.82	15	12.4
10.5	15.79	16	13.4
10.5	16.4	18	15.4
10.5	17.41	20	17.4
10.5	18.76	22	19.4
10.5	19.35	24	21.4
11	14.57	12	9.4
11	15.07	14	11.4
11	15.32	15	12.4
11	16.29	16	13.4
11	16.9	18	15.4
11	17.91	20	17.4
11	19.26	22	19.4
11	19.85	24	21.4
11.5	15.07	12	9.4
11.5	15.57	14	11.4
11.5	15.82	15	12.4
11.5	16.79	16	13.4
11.5	17.4	18	15.4
11.5	18.41	20	17.4
11.5	19.76	22	19.4
11.5	20.35	24	21.4
12	15.57	12	9.4
12	16.07	14	11.4
12	16.32	15	12.4
12	17.29	16	13.4
12	17.9	18	15.4
12	18.91	20	17.4
12	20.26	22	19.4
12	20.85	24	21.4

Top View

Front View

Ladder View

Isometric View

Toledo Dimensions for Posts 10in x 10in
H (ft.)	H1 (ft.)	W (ft.)	W1 (ft.)	L (ft.)	L1 (ft.)	Post Qty.
9	12.91	12	9.23	12	9.23	4
9	13.4	14	11.23	14	11.23	4
9	13.65	15	12.23	15	12.23	4
9	14.63	16	13.23	16	13.23	4
9	15.23	18	15.23	18	15.23	4
9	16	20	17.23	20	17.23	4
9	17.34	22	19.23	22	9.61	6
9	18.02	24	21.23	24	10.61	6
9.5	13.41	12	9.23	25	11.11	6
9.5	13.9	14	11.23	26	11.61	6
9.5	14.15	15	12.23	28	12.61	6
9.5	15.13	16	13.23	30	13.61	6
9.5	15.73	18	15.23	32	14.61	6
9.5	16.5	20	17.23	34	15.61	6
9.5	17.84	22	19.23	35	16.11	6
9.5	18.52	24	21.23	36	16.61	6
10	13.91	12	9.23	38	17.61	6
10	14.4	14	11.23	40	12.41	8
10	14.65	15	12.23	42	13.08	8
10	15.63	16	13.23	44	13.74	8
10	16.23	18	15.23	45	14.08	8
10	17	20	17.23	46	14.41	8
10	18.34	22	19.23	48	15.08	8
10	19.02	24	21.23	50	15.74	8
10.5	14.41	12	9.23	55	13.06	10
10.5	14.9	14	11.23	60	14.31	10
10.5	15.15	15	12.23
10.5	16.13	16	13.23
10.5	16.73	18	15.23
10.5	17.5	20	17.23
10.5	18.84	22	19.23
10.5	19.52	24	21.23
11	14.91	12	9.23
11	15.4	14	11.23
11	15.65	15	12.23
11	16.63	16	13.23
11	17.23	18	15.23
11	18	20	17.23
11	19.34	22	19.23
11	20.02	24	21.23
11.5	15.41	12	9.23
11.5	15.9	14	11.23
11.5	16.15	15	12.23
11.5	17.13	16	13.23
11.5	17.73	18	15.23
11.5	18.5	20	17.23
11.5	19.84	22	19.23
11.5	20.52	24	21.23
12	15.91	12	9.23
12	16.4	14	11.23
12	16.65	15	12.23
12	17.63	16	13.23
12	18.23	18	15.23
12	19	20	17.23
12	20.34	22	19.23
12	21.02	24	21.23

If you want a strong Post and Support on your Pavilion for the smallest measurements, let us know in the comments box when you place the order or email us to [email protected]

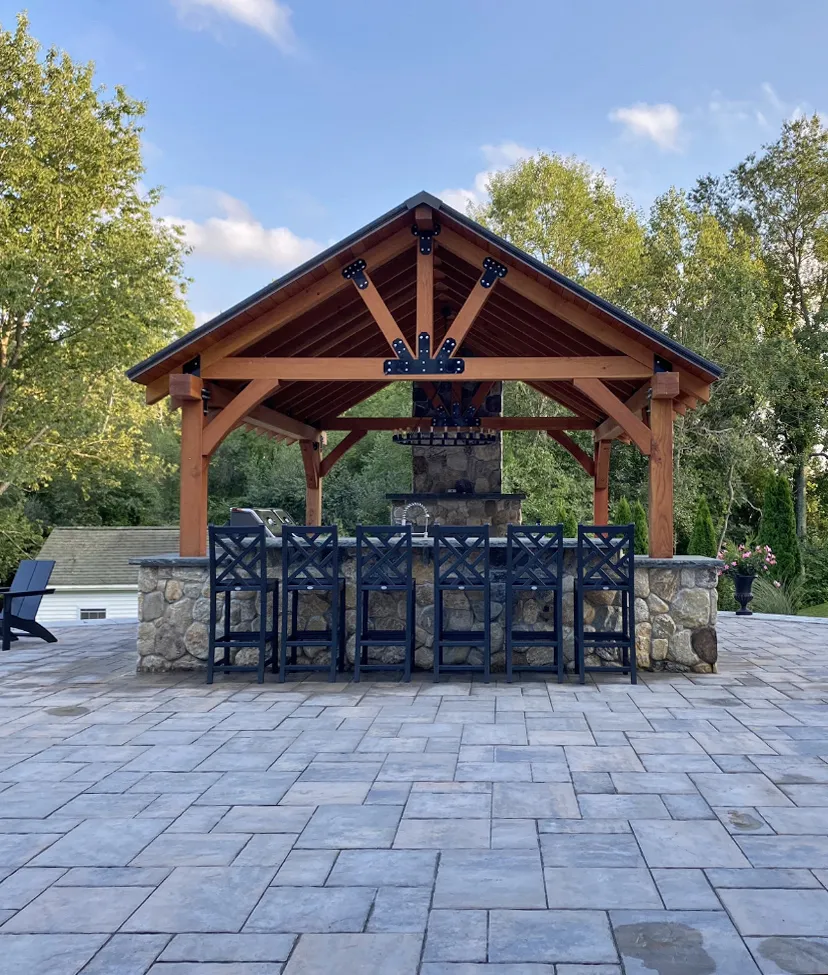

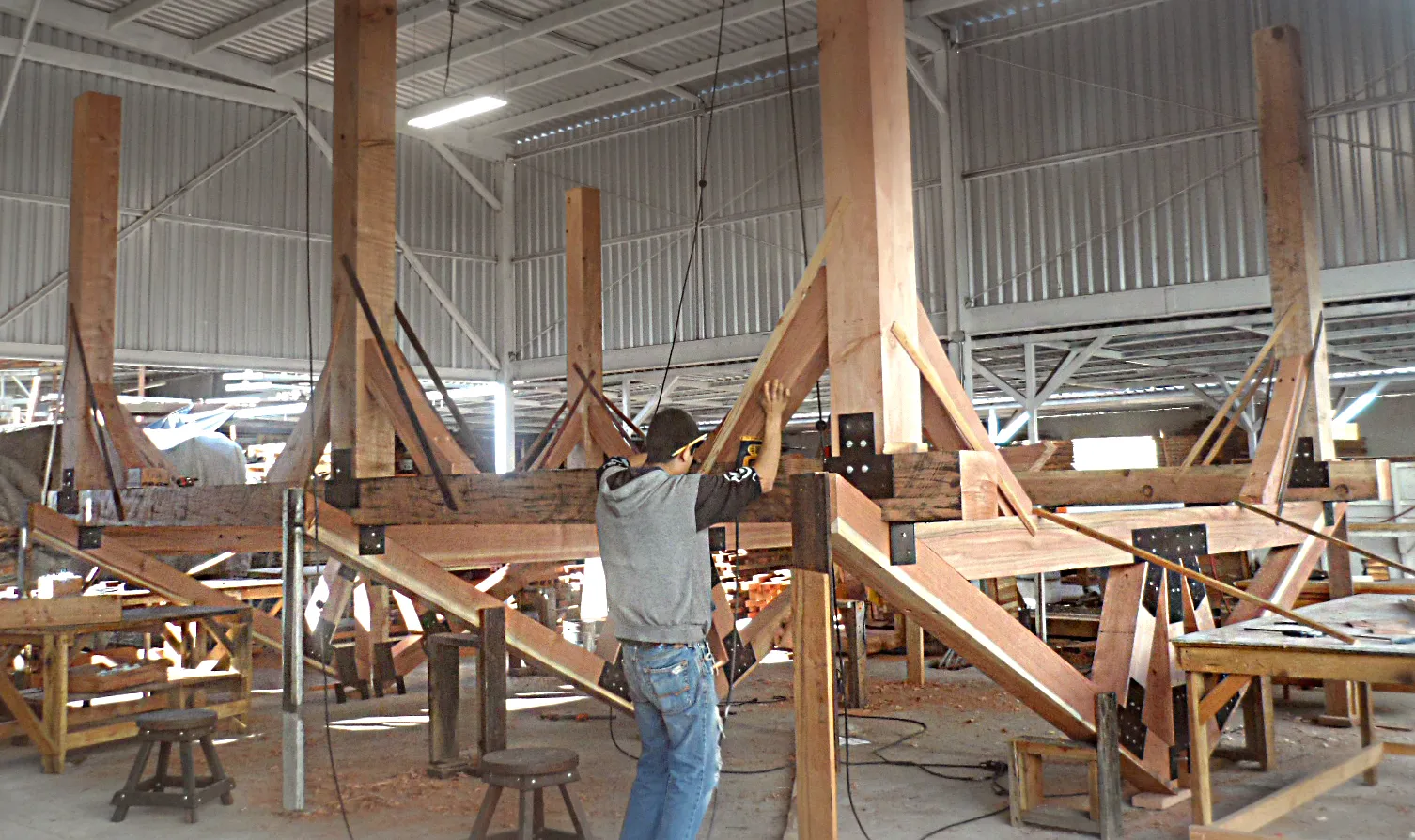

Assembly Instructions for: Typical Assembly instructions for an average sized The Thick Timber Toledo Wood Pavilions (shown is a 20' x 16' size)

Assembly Instructions for: The Thick Timber Toledo Wood Pavilions

Assembly Instructions for: How to Anchor Your Pavilion

Our White Glove Assembly is a complete onsite assembly and anchoring service. The cost varies between 25 - 35% of your structure's overall cost and includes all materials: footings work, concrete, equipment rental if needed, and standard roofing materials if needed. Our installation teams are now available in all 50 states!

DIY: For moderately-sized structures (up to 400 sqft.), some of our customers choose to save money by doing the assembly themselves. In general, the larger the structure, the more people and time you will need: we recommend a minimum of 3 people. If you have assembly questions, just give us a call!

Care: You should expect your furniture to last outside for a minimum of 10-40 years without maintenance, even in climates with harsh year-round conditions. Because of our high quality wood, the silver patina that will naturally occur is surface deep (less than 1/64") and is not indicative of decay. We keep our display items without refinishing as examples show off their natural aging. We like the patina! If you’d like to keep your set looking its best for decades please visit: Care and Finish.
