The Carport Pavilions are available in widths from 16' to 24'. The Length and Width are the overall roof measurements. The standard roof overhang is 12".

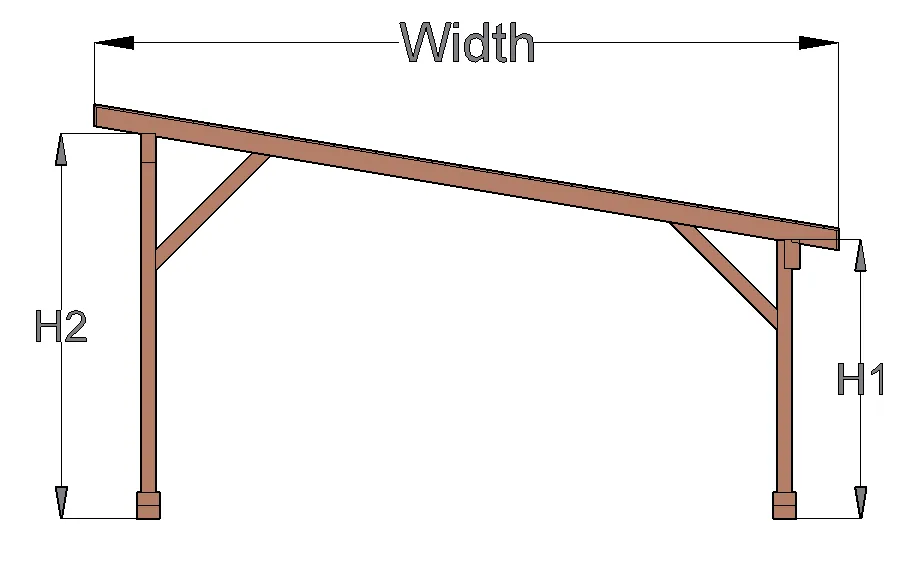

The Carport Pavilion - Side View.

The Carport Pavilion - Front View: The 3 parking bays are available from 38ft long
Width | Post Measurements | |
---|---|---|
Smallest Post Height (H1) | Tallest Post Height (H2) | |
16ft | 9ft | 11ft - 1 1/16in |
18ft | 9ft | 11ft - 5 1/16in |
20ft | 9ft | 11ft - 8 3/16in |
22ft | 9ft | 12ft - 1 1/16in |
24ft | 9ft | 12ft - 5 1/16in |
