ADA Accessibility Guidelines (ADAAG)

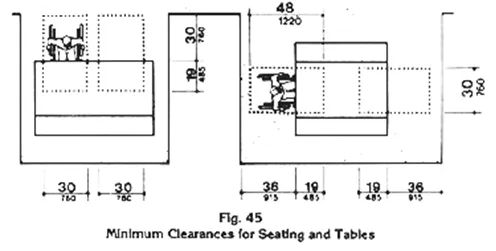

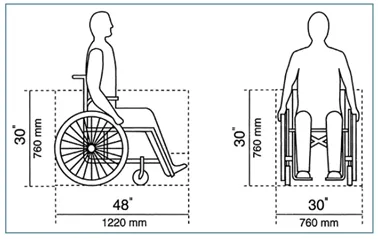

4.32.2 Seating. If seating spaces for people in wheelchairs are provided at fixed tables or counters, clear floor space complying with 4.2.4 shall be provided. Such clear floor space shall not overlap knee space by more than 19 in (485 mm) (see Fig. 45).

4.32.3 Knee Clearances. If seating for people in wheelchairs is provided at tables or counters, knee spaces at least 27 in (685 mm) high, 30 in (760 mm) wide, and 19 in (485 mm) deep shall be provided (see Fig. 45). 4.32.4* Height of Tables or Counters. The tops of accessible tables and counters shall be from 28 in to 34 in (710 mm to 865 mm) above the finish floor or ground.

OPTION 1 - With both benches trimmed

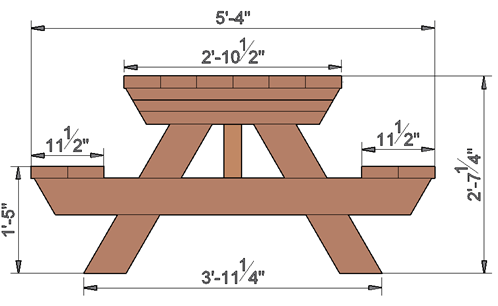

D1 Side View

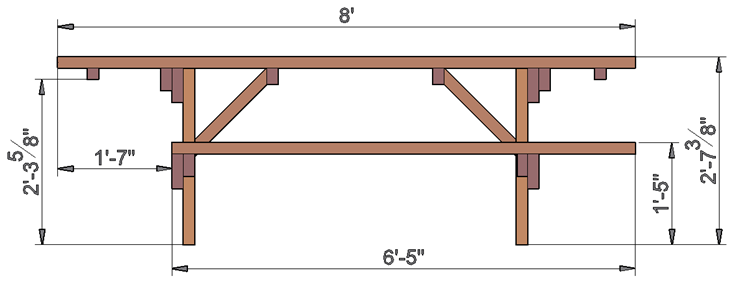

D2 Front View

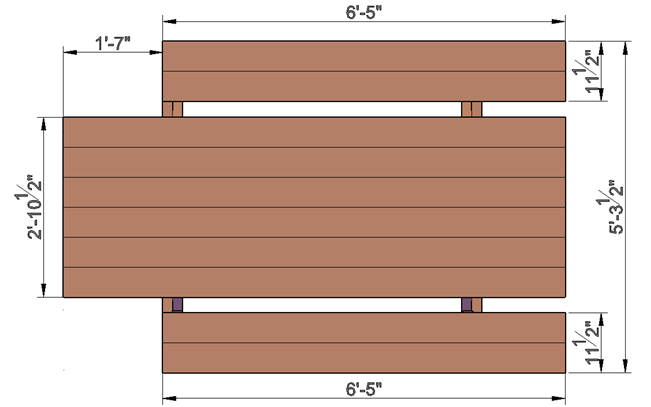

D3 Top View

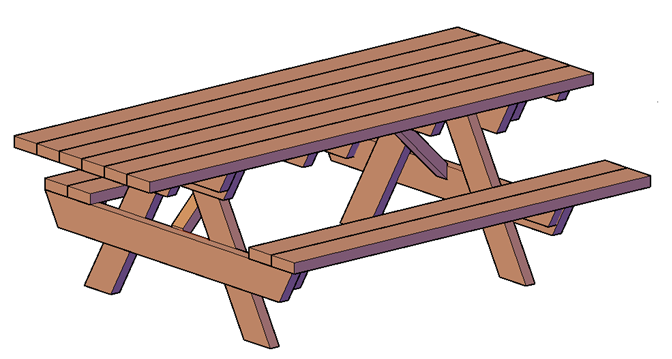

D4 Isometric View
OPTION 2 - With one bench trimmed

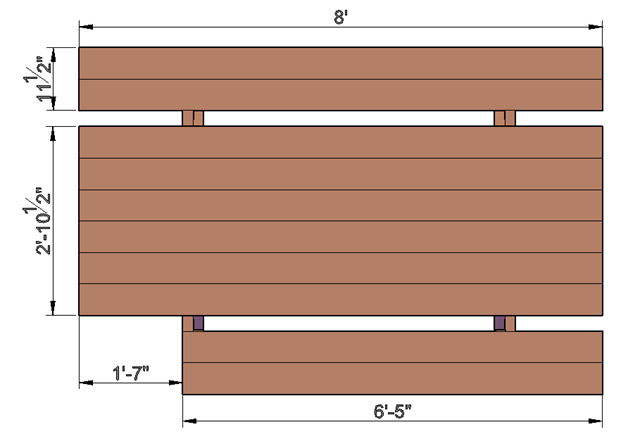

D3 Top View

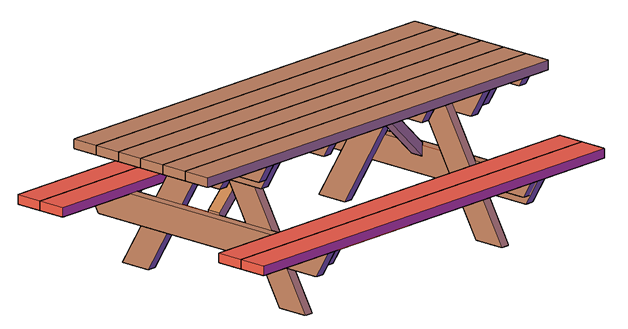

D4 Isometric View
OPTION 3 - With benches a full size on both sides

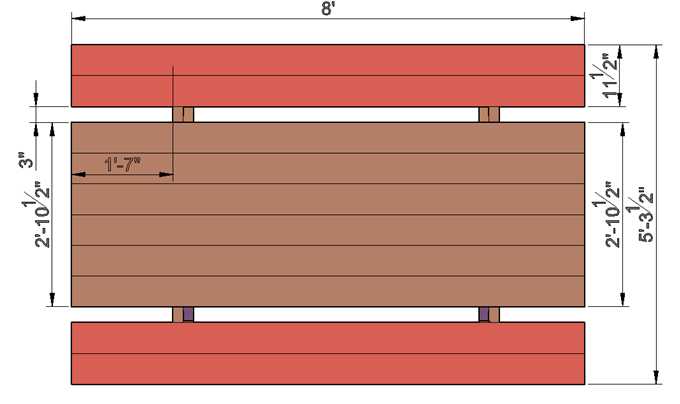

D3 Top View

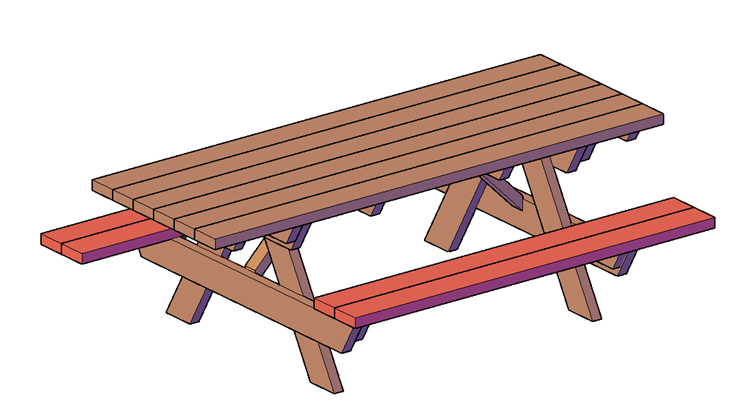

D4 Isometric View
With benches a full 8’ on both sides, a wheel chair does have enough room to fit at either end of the table as long as no one sits near the edge. But if you want to make sure that this space is always available, then we should trim at least one of the benches on one end of the table.
