ARCHED GARDEN ARBOR SPECIFICATIONS (PDF DOWNLOAD)

DIMENSIONS & DRAWINGS

Arched Garden Arbor Dimensions.
They are available from 48 inches to 96 inches width and from 36 inches to 96 inches depth. They are 102 inches tall. The width and depth are the overall roof dimensions, see the Table and drawings below:

Height (H): 102 in.

Weight of Arbor Alone: 250 lbs.

WIDTH Roof (W): Interior Between Posts (w): 48 in 24 in 60 in 36 in 72 in 48 in 80 in 56 in 84 in 60 in 96 in 72 in

DEPTH Roof (D): Interior Between Posts (d): 36 in 18.5 in 48 in 30.5 in 60 in 42.5 in 72 in 54.5 in 84 in 66.5 in 96 in 78.5 in

Isometric View

Front View

Side View

Assembly instructions for: Arched Garden Arbor

All You Need is a Few Tools and a Friend.

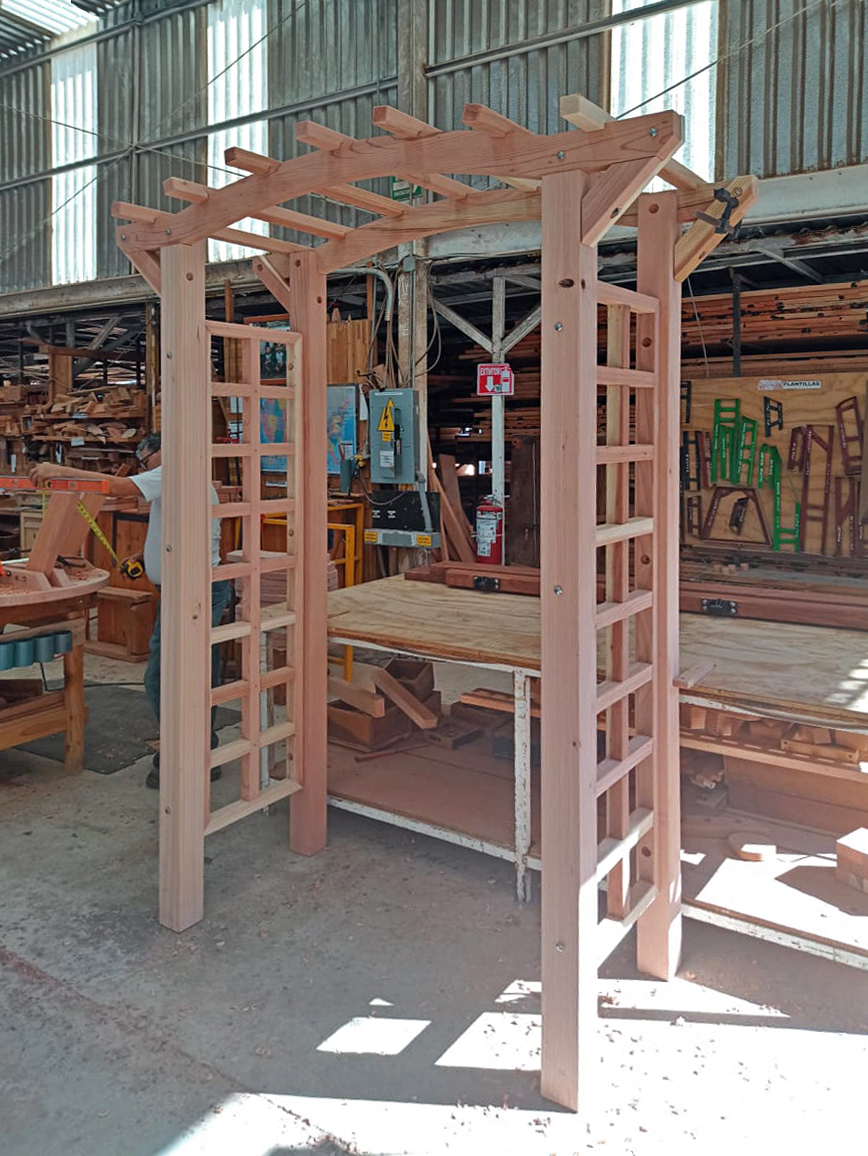

Assembly is best done by two people and usually takes about half a day to a day, depending on size. Pergolas need a ratchet wrench, a hammer and a ladder to put them together. In some cases, you might need a drill to attach the posts into concrete. As with all our products, we preassemble pergolas in our shop to ensure everything fits together. All hardware is included and all parts are clearly labeled before it is shipped. We also include detailed step-by-step instructions.

Take a look at our assembly instructions below for specific details. If you plan to pour concrete to hold the posts, the project will require an additional half day prior to assembly. Please do the concrete pour a few days prior to assembly to allow the concrete to cure.

Installation Help.

Special talent is not required to re-assemble our pergolas. But, if you would like help, just let us know. We have our own team for installations in California, Nevada and Southern Arizona and a network of local contractors we recommend for farther afield.

Care: Your Forever Redwood Furniture will last for decades in year-round weather without maintenance.

Depending on the wood grade you choose, even with harsh year-round outdoor conditions, you can expect your furniture to last from ten to forty years without maintenance of any kind.

Being outside year-round is rough on any woods finish. The surface absorbs UV rays, pollution, constant variations in moisture and temperature and it also oxidizes. This is why most wood just doesn’t hold up and the surface color slowly changes towards a silver patina over the years. But, with Forever Redwood, you don’t have to worry. The silver patina is surface deep only (less than 1/64") and is not indicative of decay. Your set will last decades and is not compromised in any way by the surface color change. For example, we keep our display items as is without refinishing to show off this natural aging (we like the patina!).

Although Forever Redwood is maintenance-free, we recommended you take a few minutes as needed to clean by either hosing down and/or brushing/dusting away accumulated debris (no soap or chemicals needed). If you’d like to keep your set looking its best for decades, please go to: Care and Finish.

Keep the colors looking vibrant for decades.

A quick power washing every 5 to 10 years clears away the accumulated grim, UV surface burning and the old sealant in a few minutes. When power washing be careful not to spray close to the surface or you may cut into the grain of the wood. Once dry, go over any rough spots to smooth out and ready for sealing. You’ll need $2 and 10 minutes to do it. Pick up 2 sheets of sandpaper (one 100 grit and one 220 grit). Go over the spots with 100 grit for ten strokes or so and dust off. Then do the same with the fine 220 grit. Redwood sands easily. Dust off and you’re ready for sealing.

For best results, sand in the direction of the grain (same direction of the growth lines in the wood). For example, on a picnic tabletop, sand in the lengthwise direction of the boards. After sanding, choose any stain/sealant you like. Redwood takes well to most.
